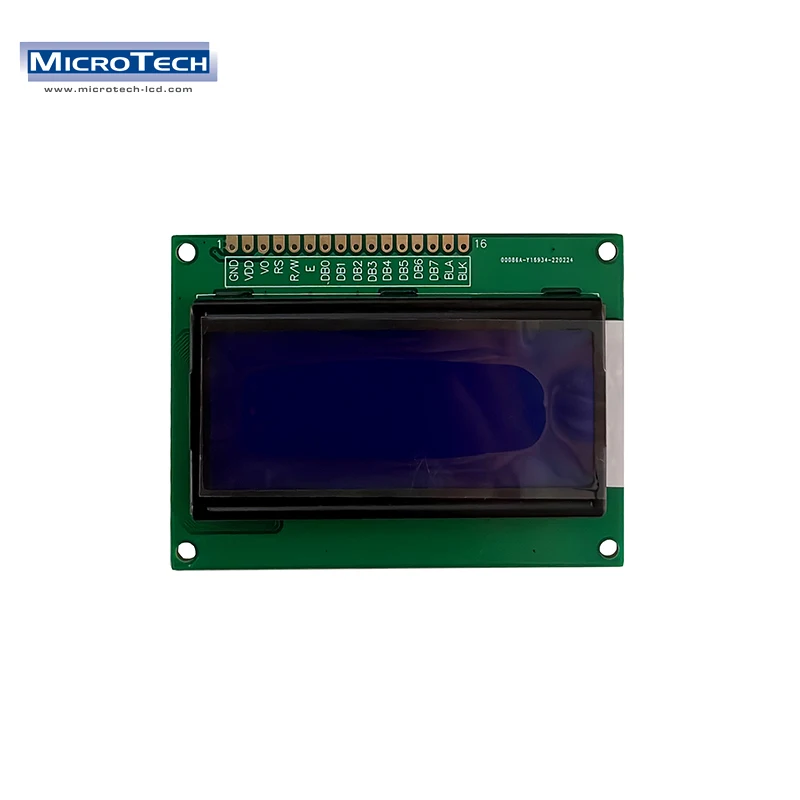

FTN monochrome SPLC780D1 lcd 1602 1604 dot matrix COB blue screen i2c 16X4 character MPU lcd display module
- Category: >>>
- Supplier: MICROTECH TECHNOLOGY COMPANY LIMITED
Share on (11000002294457):
Product Overview
Description
lcd 1604 dot matrix COB blue screen i2c 16X4 character FTN monochrome SPLC780D1 MPU lcd module
Specification
GREEN/BLUE/BLACK background color
Interface with 4-bit or 8-bit MPU (directly connected M6800 serial MPU)

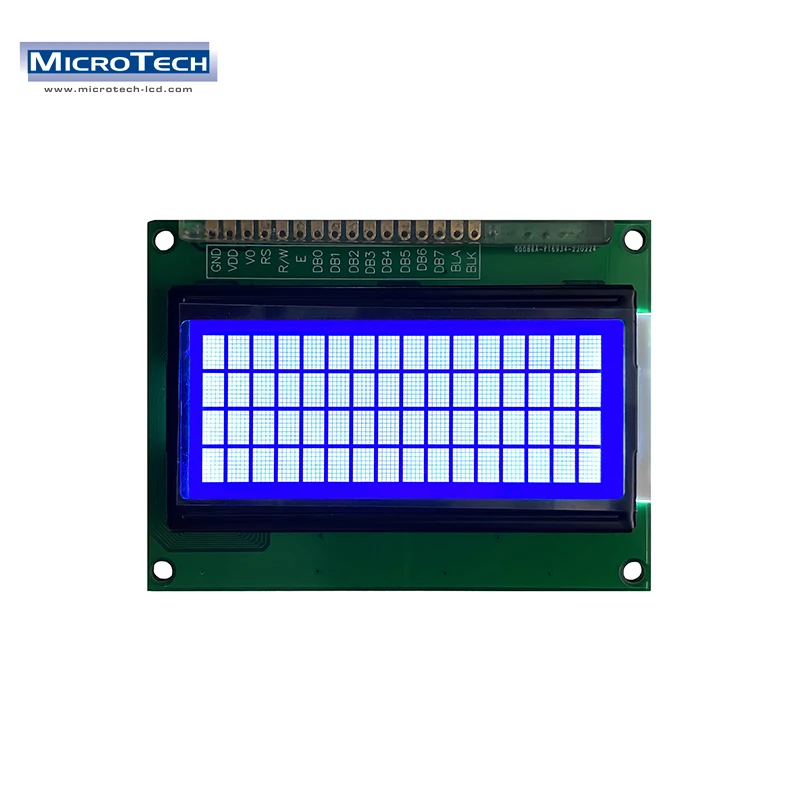

Display Specification
Display Character: 16 character X 4 line Character Font:5X8dors+cursor
Display color-Display background color : STN Blue / FSTN
Polarize mode: Negative, Transmissive / positive, Transmissive,Gray
Viewing angle: 6:00
Display duty: 1/16 Driving bias: 1/5
Character Generator ROM (CGROM): 8320 bits (192 characterX5X8 dots) &(32
characterX5X10 dots)
Character Generator RAM (CGRAM): 64X8 bits (8 charactersX5X8 dots)
Display Data RAM (DDRAM) :40X8 bits (80 characters max)
Mechanical characteristics (Unit: mm)
Extenal dimension: 80X36X11
View area : 64.5X14.6 Character font: 5X8 dots + cursor
Character size: 2.9X5.15 Dots size:0.54X0.6
Character pitch: 3.52X5.85
POWER： +5V
