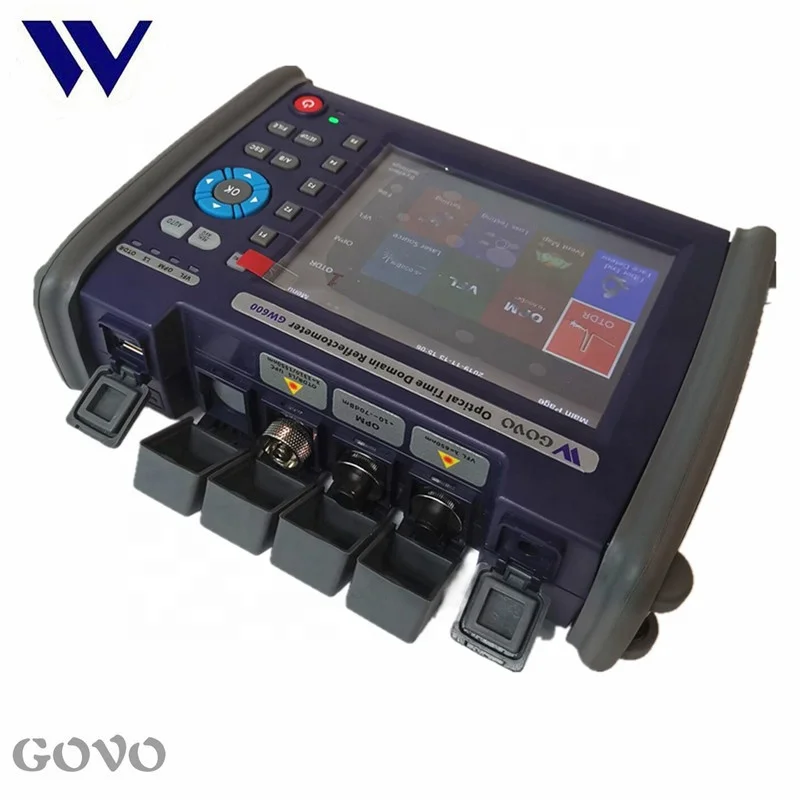

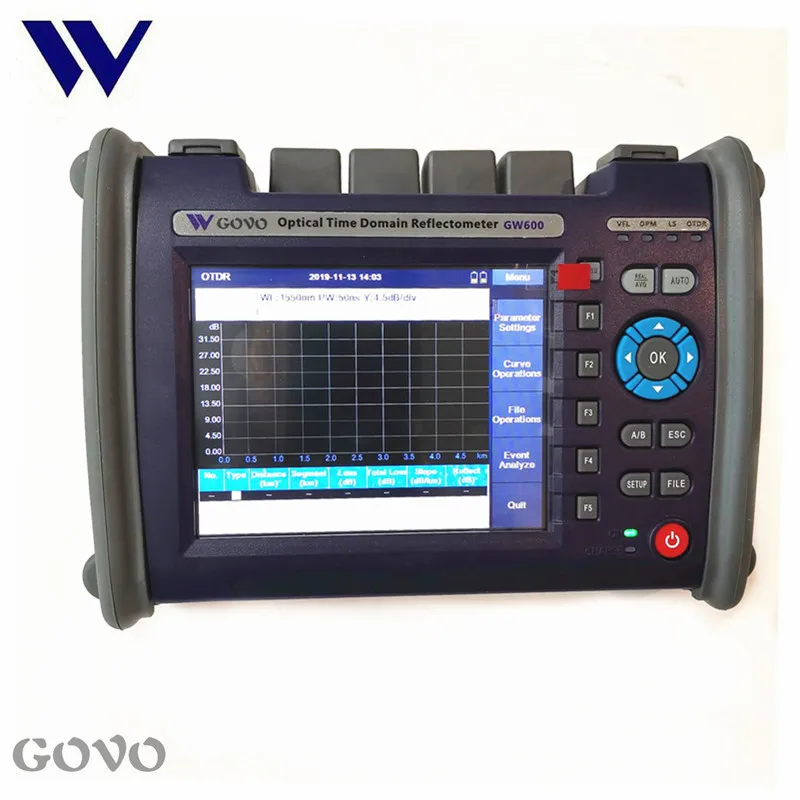

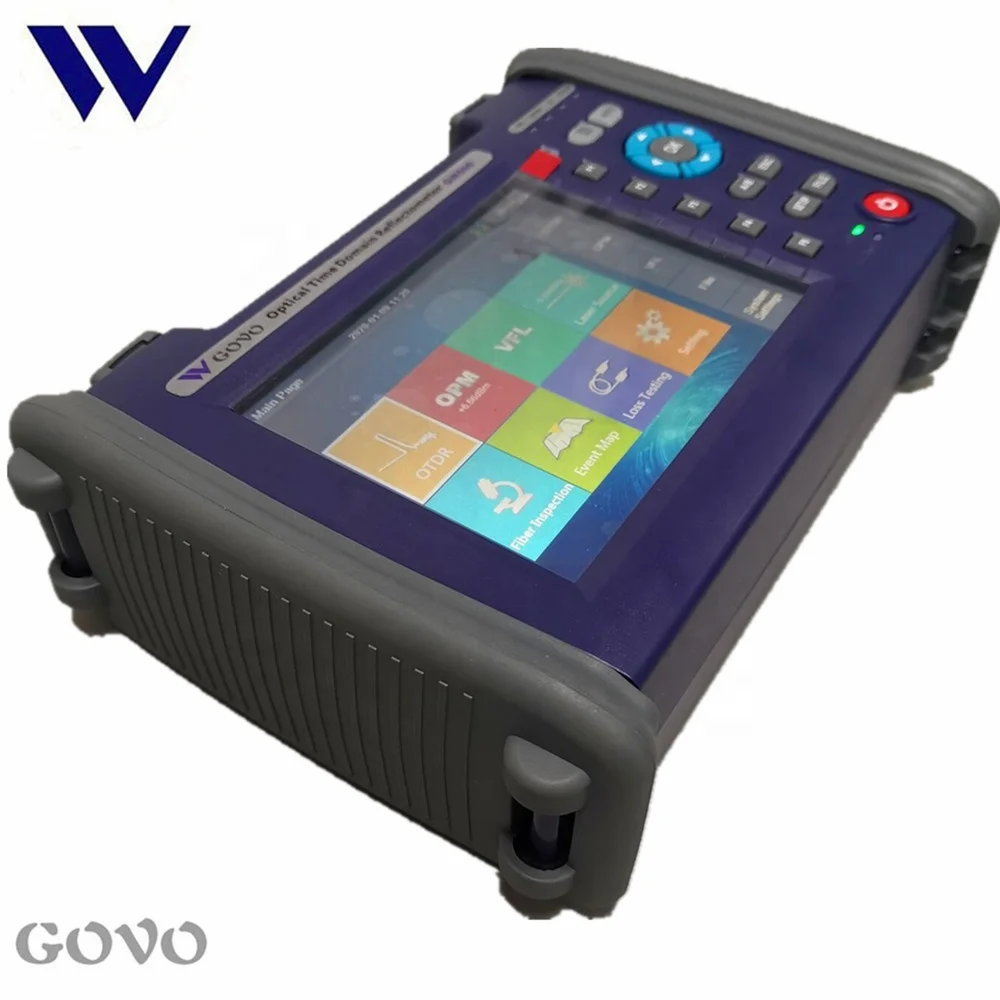

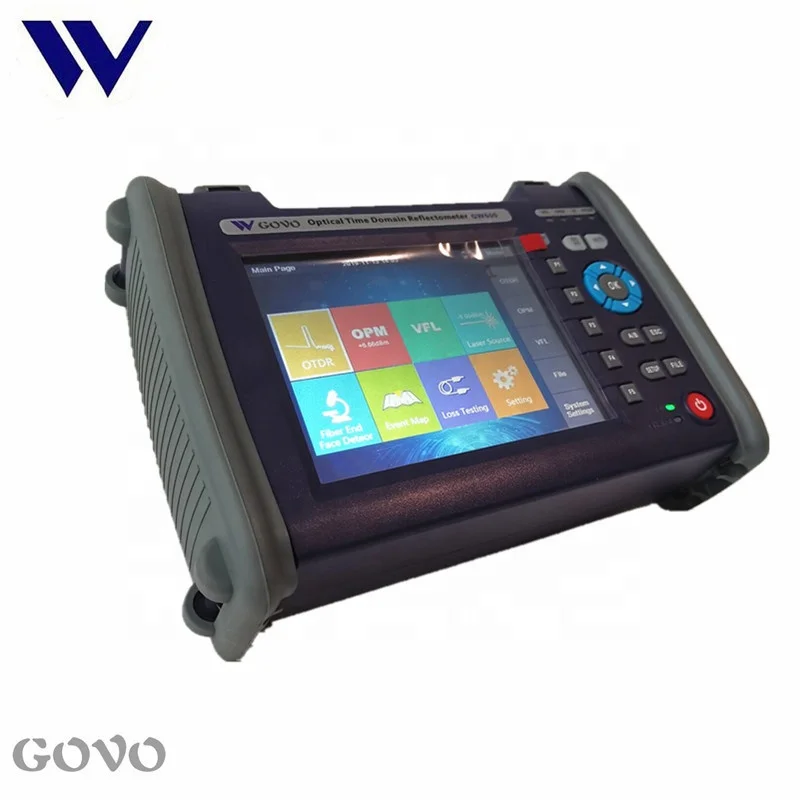

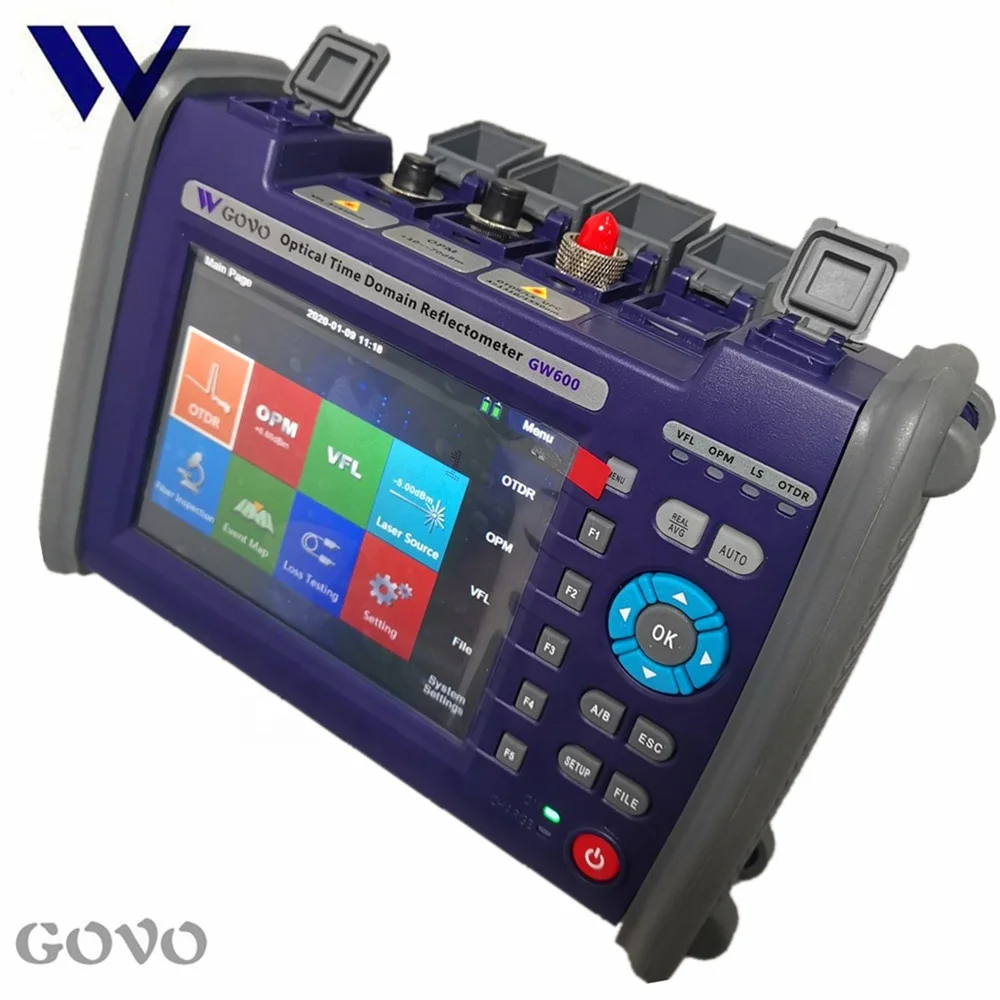

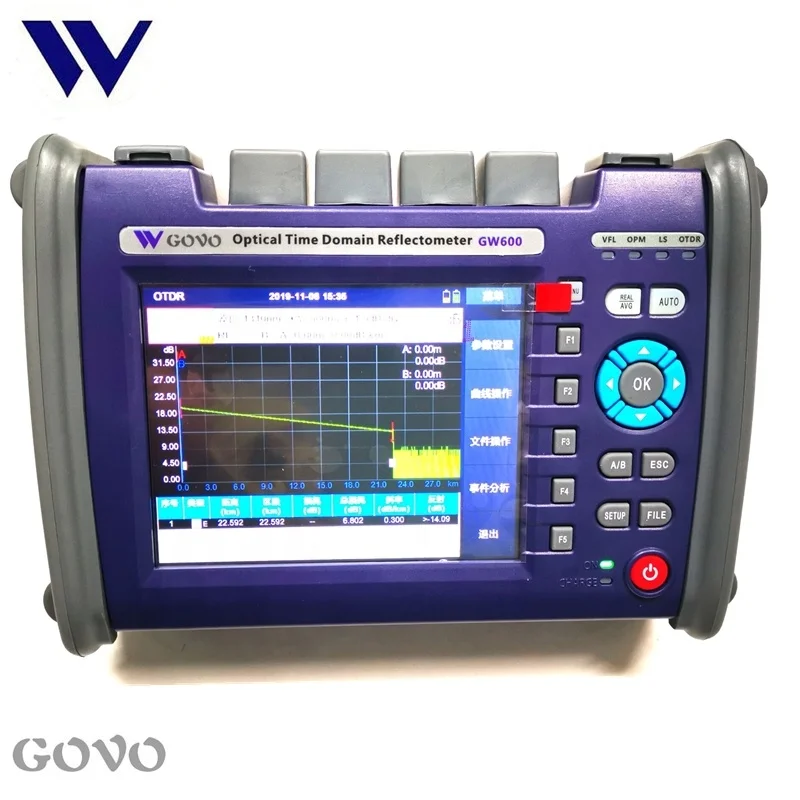

GOVO GW600 5.6 inch QUAD OTDR price 850/1300/1310/1550nm 20/26/28/26/dB SM&MM OTDR
- Category: >>>
- Supplier: Shanghai Govo Telecom Co. Ltd.
Share on (11000002360125):
Product Overview
Description
GOVO GW600 5.6 inch QUAD OTDR price 850/1300/1310/1550nm 20/26/28/26/dB SM&MM OTDR
Product Description
GW-600 series tester is a comprehensive optical fiber measuring instrument developed by Shanghai Govo Telecom Co., Ltd, to solve the measurement of various parameters of optical fiber. It mainly USES OTDR function and has other common measuring functions. Really reflected: ONE MACHINE, TESTING ALL!
Features
- Compact, lightweight, powerful
- Dynamic range :up to 42dB in single mode and 26dB in multimode
- Testing distance up to 190 km@1550nm
- 5.6 inch Touchscreen,TFT
- Dual battery, longer standby time and fast charging

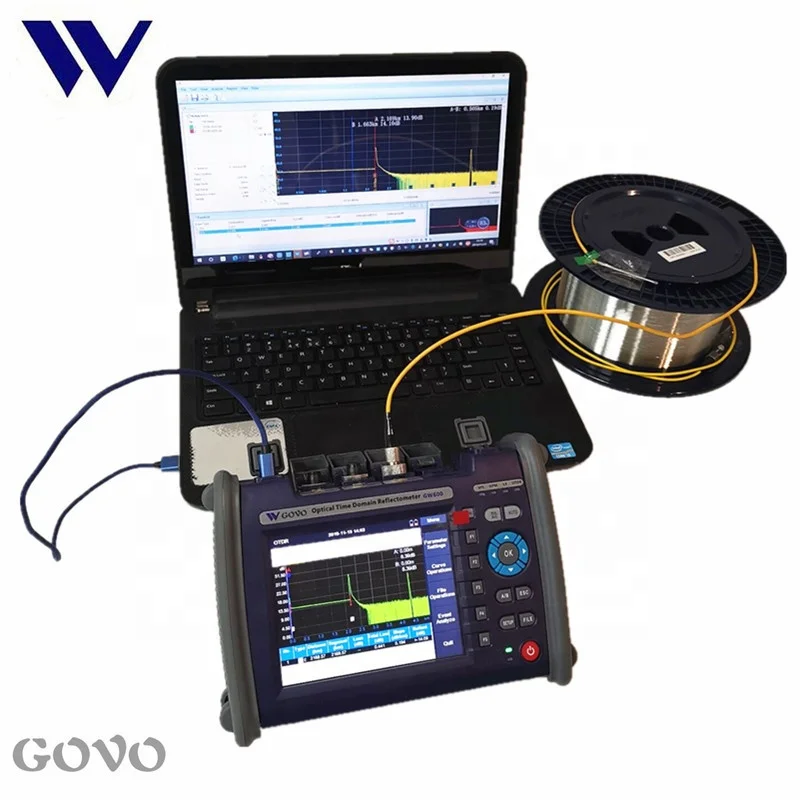

- Graphics data reports can be saved in SD card, transferred to a computer and ready for printing.
- Minimum event dead zone 0.8m
- Minimum attenuation dead zone 4m
- Maximum sampling resolution: 5cm
- one button test 1310 1550nm dual wavelength
- Various OTDR modules available for SM, MM, PON network,access network test

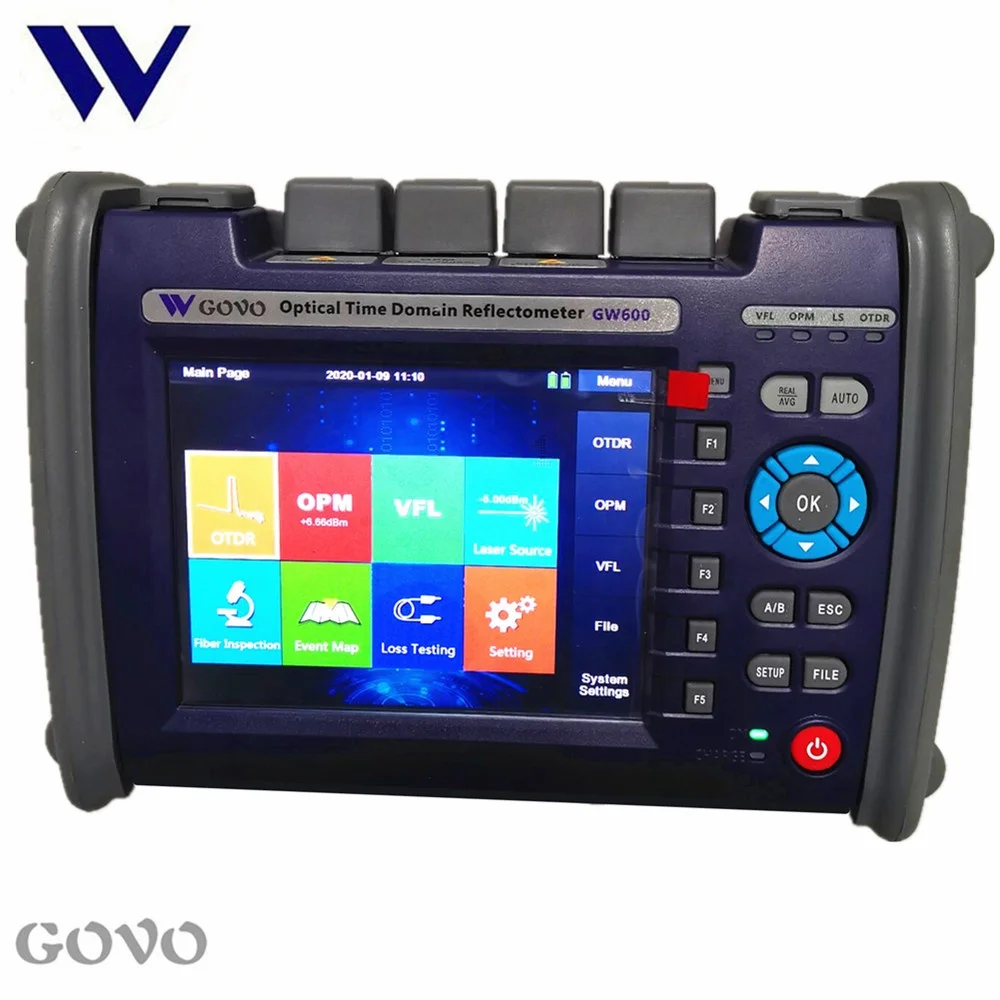

- OTDR integrated with OPM, LS, VFL and Event map functions ready
Specification
Technical Specifications: | ||
Display | 5.6 inch Touchscreen,TFT | |
Interfaces | USB (Type A)MINI USB,SD card | |
Batteries | Single battery capacity:7.4V/2500mAh; x2 PCS | |
Power supply | AC/DC adapter; 100~240v, 50/60Hz | |

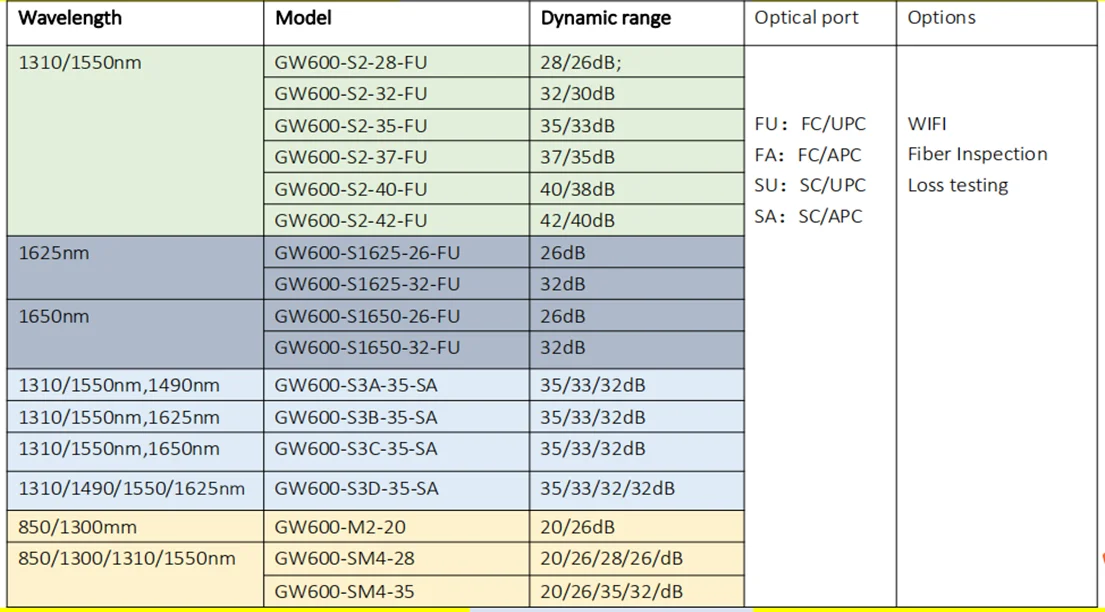

Wavelengths (max. 4 wavelengths) | Single mode | Multimode |
| 1310nm 1490nm 1550nm 1625nm 1650nm | 850nm 1300nm |
Dynamic Range(dB) | 26~42dB | 20/26dB |
Event Dead Zone | 0.8m | 1.25m |
Attenuation Dead Zone | 4m | 5m |
Minimum sampling resolution | 0.05m | |
Maximum sampling point | 256,000 | |
linearity | ≤0.05dB/dB | |
Loss resolution | 0.001dB | |
Distance resolution | 0.01m | |
Distance accuracy | ±(1m+Range×3×10-5+Sampling resolution) (Regardless of the refractive index) | |
Memory | >100000 | |
Interface | USB(Type A),MINI USB,SD card | |
Operating temperature | -10℃~+50℃ | |
Storage temperature | -20℃~+70℃ | |
Relative Humidity | ≤95% (No condensation) | |
Size (Hx Wx D) | 215mm×155mm×68mm (8.46 in x 6.10 in x 2.68 in) | |
Weight | 1.1kg (including battery) | |
VFL module | Laser: 650nm±10nm ; default :10mW Laser safety: Class III B | |
OPM module | Optic power meter -70~+10dBm (default); Optic power meter -50~+26dBm (optional) | |
Laser source | Output:-5dBm±2dB,Frequency:CW/270Hz/1KHz/2KHz | |
GPS/GNSS | Optional | |
WIFI/Blue tooth | Optional | |
IOT module | Optional | |

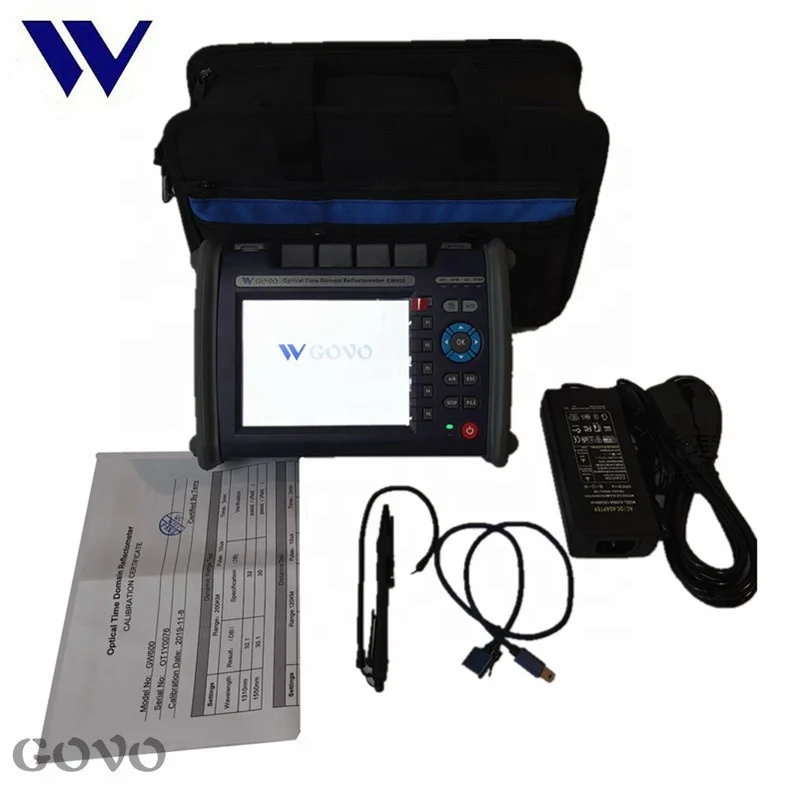

Packaging & Shipping
