Устойчивый к истиранию с высокой нагрузкой поставщик резиновый ролик
- Category: Rubber Rollers >>>
- Supplier: Ohtsu-Chemical Co. Ltd
Share on (11000002361908):
Product Overview
Description
Products Description
Many V-rollers are lined up in steelworks to transport steel pipes.

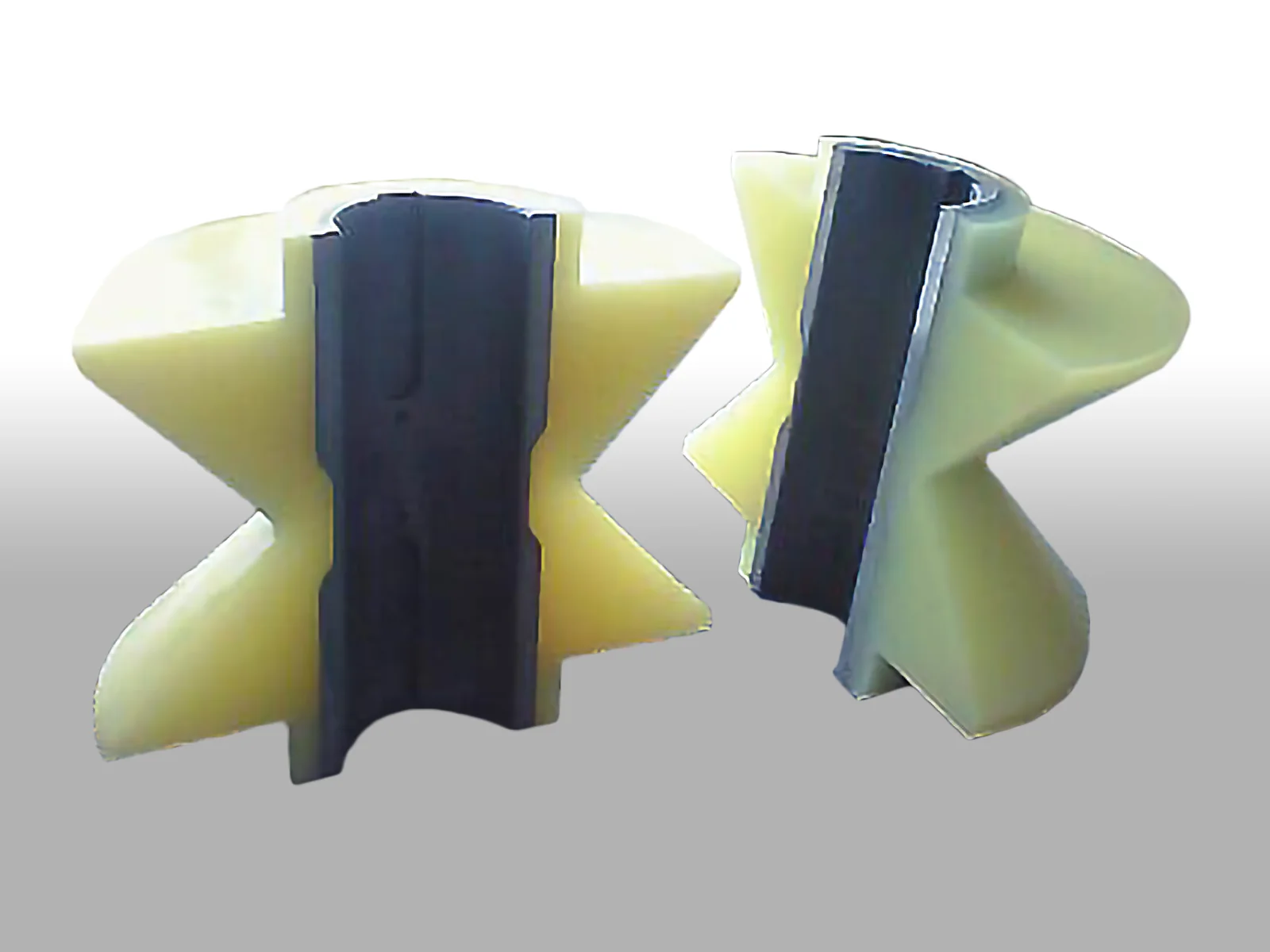

Split V-roller is a prototype of stand-alone V-roll.
It is also ideal for applications that require load bearing and wear resistance.

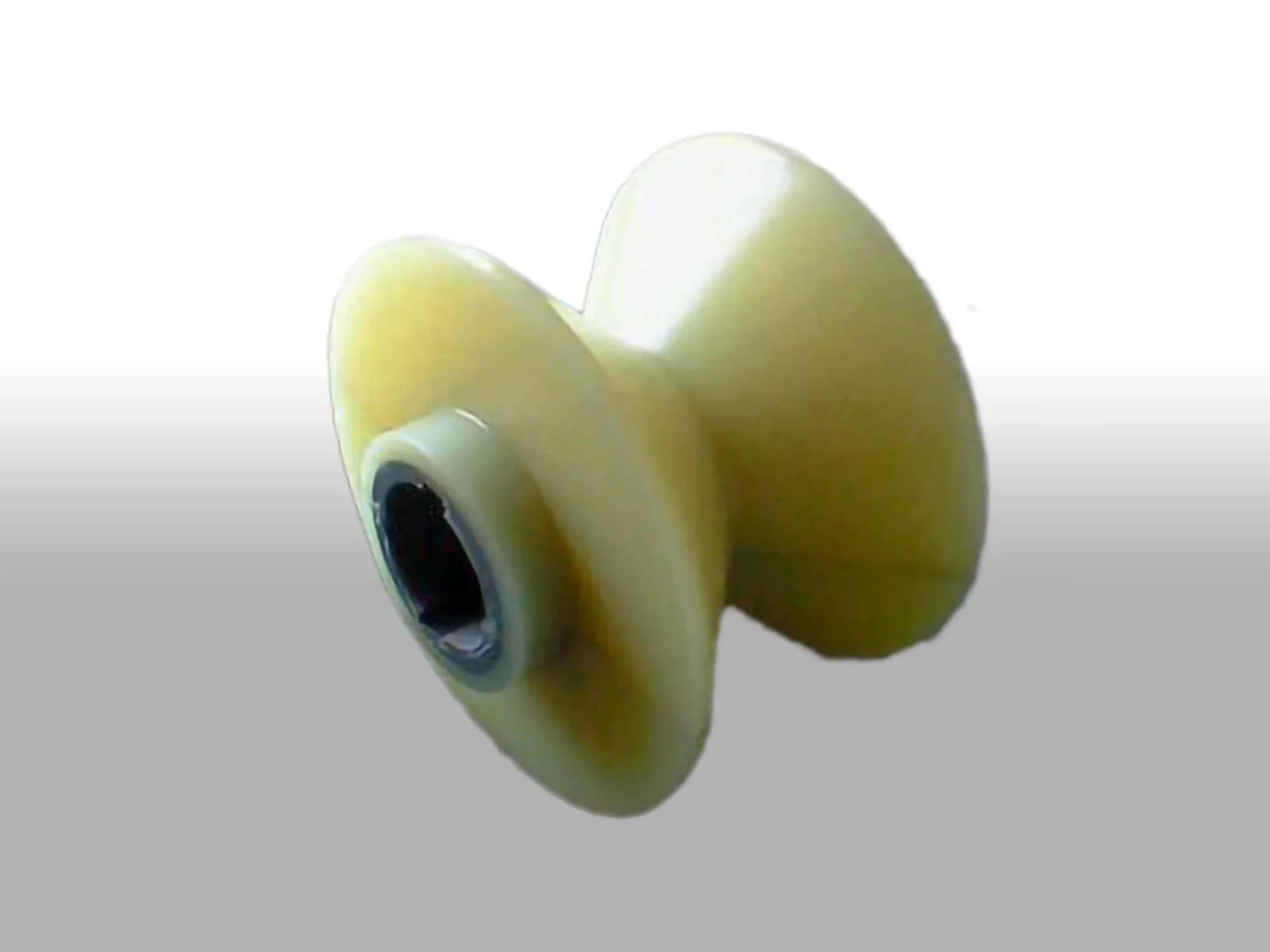

V-rollers are generally made by lining urethane rubber around iron core.
Split V-rollers are made as such for easy installation and removal. By doing this, labor costs in steelworks can be economized.
There is split iron core in the center part of the urethane rubber, and that urethane rubber is attached to the outside.
The urethane part is made by molding each half-split one-by-one.
Therefore, to make one set (two pieces) of each split separately, the manufacturing costs will increase due to the matching of the half-splits when stacking them. However, because of the large number of V-rollers, the labor cost for installation and removal in steelworks can be significantly reduced.
And so, even if the product unit price increases, split-type V rollers are regularly adopted and used.
Split V-roller is a prototype of stand-alone V-roll.
It is also ideal for applications that require load bearing and wear resistance.
V-rollers are generally made by lining urethane rubber around iron core.
Split V-rollers are made as such for easy installation and removal. By doing this, labor costs in steelworks can be economized.
There is split iron core in the center part of the urethane rubber, and that urethane rubber is attached to the outside.
The urethane part is made by molding each half-split one-by-one.
Therefore, to make one set (two pieces) of each split separately, the manufacturing costs will increase due to the matching of the half-splits when stacking them. However, because of the large number of V-rollers, the labor cost for installation and removal in steelworks can be significantly reduced.
And so, even if the product unit price increases, split-type V rollers are regularly adopted and used.
Steel pipe conveyor split V-roller (Edge diameter x Center diameter x Length) | Mighty-Prene Material Code | Hardness (JIS-A) | Properties | |||
Standard sizes: ・200–400mm x 150–300mm x 200–400mm | LM4090 | 90 | ・Oil resistant ・Abrasion resistant ・High strength ・High load bearing | |||
LM4095 | 95 | |||||
*Please inquire if you have any request, such as size and material other than listed. | ||||||
Company Profile
A pioneer of urethane rubber technology and quality
Ohtsu Chemical Challenging Towards the Next Generation
Since the establishment in 1971, Ohtsu Chemical has supported the development of society by precisely responding to the needs of all industrial fields as a “pioneer of technology and quality” in the field of urethane resin casting. As we develop new materials, products and production technologies through technological development centered on urethane rubber, we are also expanding into other fields of liquid resin and liquid rubber by utilizing urethane casting production technology. As a leading company in the industry, we contribute to people’s safe and successful lives, and continue to challenge the bright future ahead.
Mighty-Prene is the trademark of urethane rubber by Ohtsu Chemical.
LM (Liquid Mighty-Prene) is a liquid thermosetting urethane rubber.
Since the establishment in 1971, Ohtsu Chemical has supported the development of society by precisely responding to the needs of all industrial fields as a “pioneer of technology and quality” in the field of urethane resin casting. As we develop new materials, products and production technologies through technological development centered on urethane rubber, we are also expanding into other fields of liquid resin and liquid rubber by utilizing urethane casting production technology. As a leading company in the industry, we contribute to people’s safe and successful lives, and continue to challenge the bright future ahead.
Mighty-Prene is the trademark of urethane rubber by Ohtsu Chemical.
LM (Liquid Mighty-Prene) is a liquid thermosetting urethane rubber.
Contributing to the Development of Society through R&D
We manufacture products according to your needs.
