OEM High Quality 100W Flexible Solar Panel for Family Van Boat Travelling RV 12V Battery
- Category: >>>
- Supplier: Shenzhen Tomax New Energy Technology Co. Ltd.
Share on (11000002369349):
Product Overview
Description
Product Description
OEM New Arrival High Quality 100W Special Flexible Solar Panel for Family Van Boat Travelling RV Battery
Electrical Specifications | |
*Standard Test Conditions | (Irradiance of 1000W/m2, spectrum AM 1.5g and cell temperature of 25 ºc) |
Maximum Power Pmax | 100W |
Voltage at Maximum Power Point (Vmpp) | 17.6V |
Current at Maximum Power Point (Impp) | 5.68A |
Open Circuit Voltage (Voc) | 21.6V |
Short Circuit Current (Isc) | 6.24A |
Max System Voltage (IEC/UL) | 1000V DC |
Temperature Coefficient of Isc | (+0.06% /ºC) |
Temperature Coefficient of Voc | (-0.33% /ºC) |
Temperature Coefficient of Pmax | (-0.41% /ºC) |
Mechanical Specifications | |
Cell Type | SunPower solar cell |
Cell Size | 125mm x 125mm (4.92” x 4.92”) |
No. of Cells | 32 = 4 × 8 pcs |

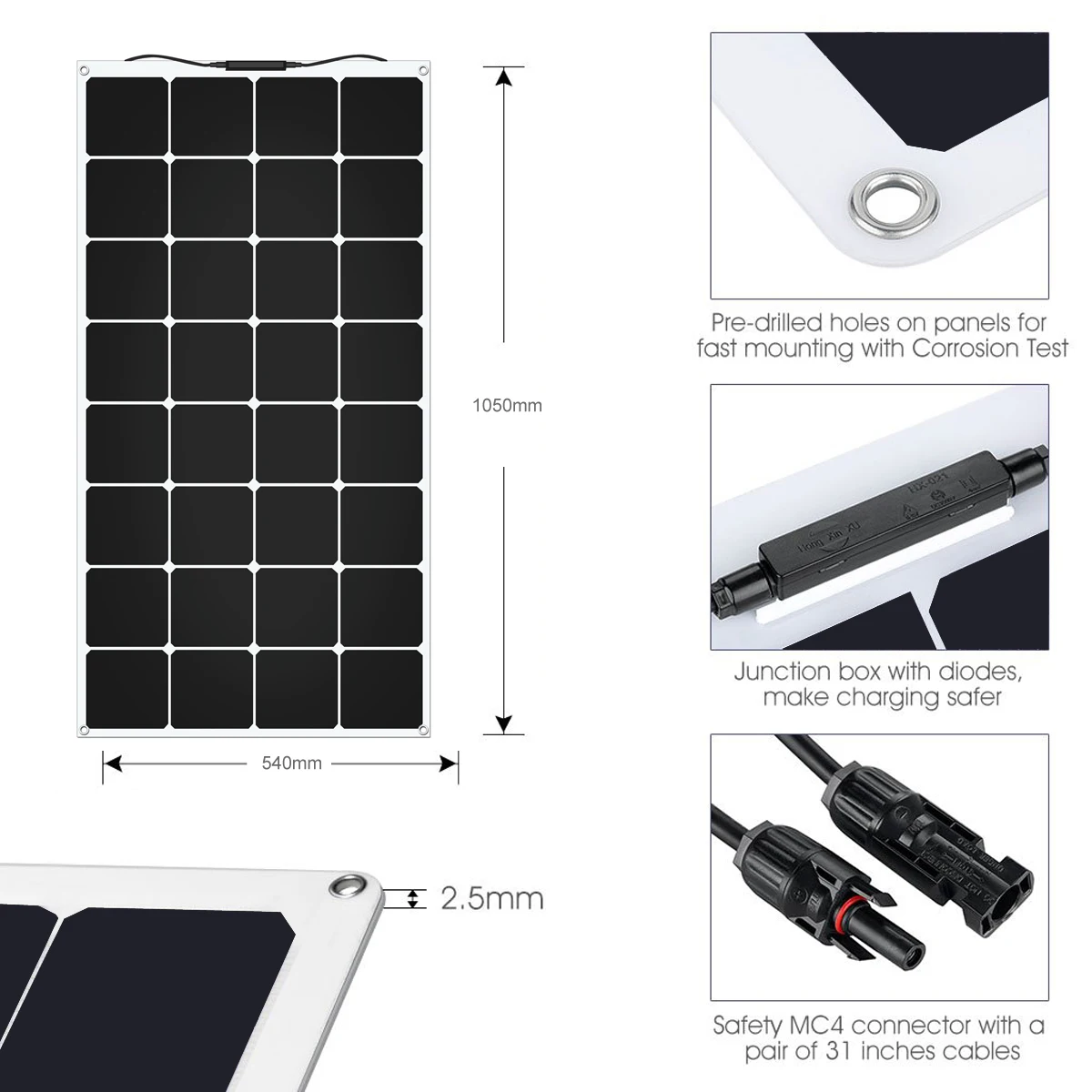

Module Dimension (L x W x T) | 1050mm x 540mm x 2.5mm (41.33” x 21.26” x 0.1”) |
Weight | 1.8 kg |
Front material | High performance corrosion resistant ETFE |
Cable Length | 900mm (35.43”) for positive (+) and negative (-) |
Type of Connector | MC4 compatible |
Junction Box | IP67 Rated |
Packing Configuration | 10 pcs/ctn |
Carton size | 1080mm × 570mm × 100mm (42.52” x 22.44” x 3.94”) |
Other Performance Data | ||||||
Power Tolerance | Operating Temperature | Operating Temperature | Max Series Fuse Rating | |||
Operating Temperature | -20℃ to +65℃ | -20℃ to +65℃ | 45 ºC ± 2 ºC | |||
Our Advantages
* Powerful Power Output : SunPower cells are the firstt choice for customers due to the combination of high efficiency and ruggedness.
* Unique Cell Structure: SunPower cell is built on thick and strong copper wire
* Premium ETFE Film: easy to clean, ensures the best performance day after day.
* Lightweight : It is a great choice where you need big power without sacrificing fuel economy
* Easy Installation: Can be fixed by adhesive, grommets, velcro. Can be installed without costly structural roof reinforcements.
* Unique Cell Structure: SunPower cell is built on thick and strong copper wire
* Premium ETFE Film: easy to clean, ensures the best performance day after day.
* Lightweight : It is a great choice where you need big power without sacrificing fuel economy
* Easy Installation: Can be fixed by adhesive, grommets, velcro. Can be installed without costly structural roof reinforcements.
Company Profile
With the solar products growing in popularity as a fantastic source of renewable energy, commercial installations, businesses, and private homes, Shenzhen Tomax New Energy Technology Co., Ltd is proud to be a growing company specializes in providing the high quality high efficiency solar raw materials, portable and off-grid solar power solutions or related products such as portable solar panels, power station generator for large scale commercial and domestic solar application projects.We are dedicated to bringing quality healthy and safe alternatives for people’s everyday needs.
Since its foundation, our company keeps living up to the belief of ”honest selling, high quality&service, people orientation and benefits to customers.” we have established longer and closer working relationships with our clients and suppliers not only provide immediate and reliable services but to continually exceed expectations and goals.
We will do the best to offer best services and products to customers and promise we will be responsible all the way to the end once our services begin.
We are looking forward to welcoming you to our company and work to develop and enhance your current business !
Since its foundation, our company keeps living up to the belief of ”honest selling, high quality&service, people orientation and benefits to customers.” we have established longer and closer working relationships with our clients and suppliers not only provide immediate and reliable services but to continually exceed expectations and goals.
We will do the best to offer best services and products to customers and promise we will be responsible all the way to the end once our services begin.
We are looking forward to welcoming you to our company and work to develop and enhance your current business !
Packing & Delivery
FAQ
1.What's your advantage?
A: Honest business with competitive price and professional service on export process.
2. How I believe you?
A : We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
3.Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.
4.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
5.How about the delivery time?
A: Within 15-35 days after we confirm you requirement.
6.what kind of payment does your company support?
A: T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please contact me.
A: Honest business with competitive price and professional service on export process.
2. How I believe you?
A : We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
3.Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.
4.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
5.How about the delivery time?
A: Within 15-35 days after we confirm you requirement.
6.what kind of payment does your company support?
A: T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please contact me.
