Automatic flute paper laminating machine with flip flop stacker two stations
- Category: >>>
- Supplier: Zhejiang Wylong Machinery Co. Ltd.
Share on (11000002446895):
Product Overview
Description
High Speed Automatic Paper Flute Laminating Machine
Features
1,UP TO 12000 per hour
2,Fully realize intelligent automation
3,Change paper size automatic adjustment machine
4,curve speed positioning ensure accuracy
5,intermittent positioning accuracy of the latest techniligy
6,Automatic tracking system of base paper and surface paper.
7,Correction of the while process of the left and right positioning of the surface paper.
8,interlligent detection of paper length
9,intelligent fault display and ararm system
10,intelligent glue supply and recover system
11,intelligent cleanuing water circulation system
12,base paper bending pressure device
13,bottom paper suction size adjustment device
14,U.S.MAC components open close suction
15,the most advanced electrical control system
16,Servo feeding system for face paper
17,I-shaped pre-pushing system
18,Anti rejection device
19,Surface paper adopts shaftless feida paper paper feeding device
Specification
model | HLG-1480G | HLG-1680G | |
Max.sheet size | 1450*1450mm | 1650*1650mm | |
Min.sheet size | 450*350mm | 450*350mm | |
Thickness of upper paper | 150-600g/㎡ | 150-60g/㎡ | |
Thicness of bottom paper | Thickness≤10mmA-F corrugated paper,over 300g paper jam | ||
Laminate Error | ±1mm | ±1mm | |
Max speed | 12000pcs/h | 12000pcs/H | |
Weight | 7000kg | 7000kg | |
Dimension | 157000*2200*2600mm | 161000*2400*2600mm | |
power | 22kw/380v | 26kw/380v | |
Electric system brand
Name | Original | Brand |
main motor | Taiwan | Fukuda |
paper feed motor | Taiwan | Li Ming |
paper feed motor | Taiwan | Sanya |
reducer motor | Taiwan | Fukuda |
red light circle | Israel | VOLTA |
belt | Japan | UNIENTI |
reducer | shanghai | Xinyangda |
vacuum pump | Germany | Baker |
photoelectric | Japan | Omron |
relay | Germany | Schneider |
Touch screen | Taiwan | Delta |
Inverter | Taiwan | Delta |
bearing | Japan | NSK |
drive chain | Germany | IWIS |
belt tensioner | Taiwan | Taicang Feiting Transmission |
The electromagnetic valve | Japan | SMC |
Press button | Germany | Schneider |
AC contactor | Germany | Schneider |
PLC | Taiwan | Delta |
Expansion module | Taiwan | Delta |
Machine Structure

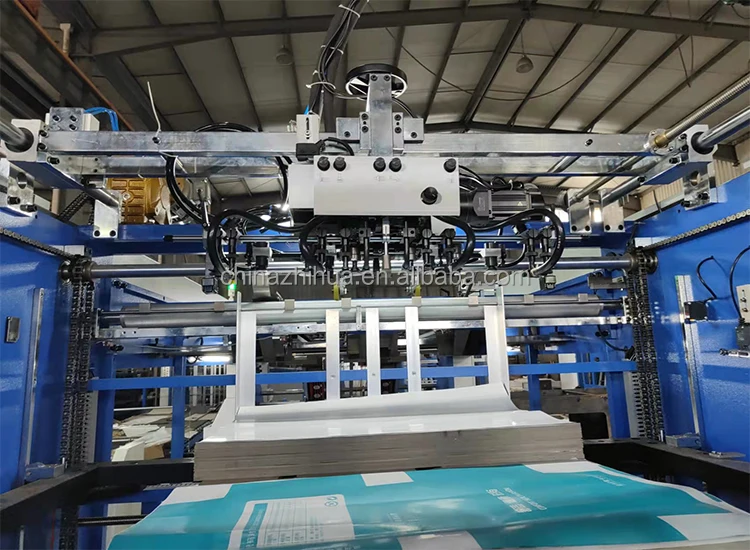

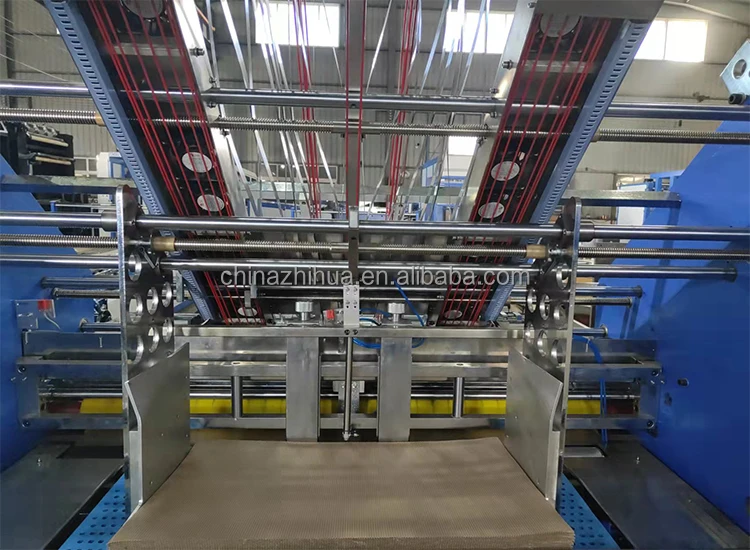

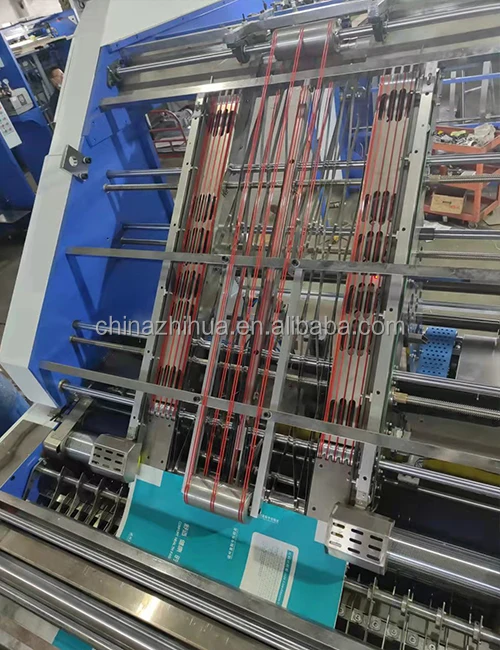

1,Top feeder part
4 suckers for picking up paper and 4 suckers for conveying paper to ensure stable and fast paper feeding.

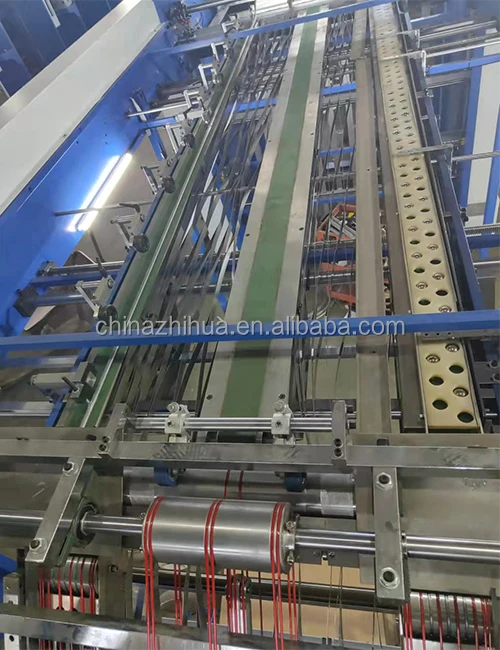

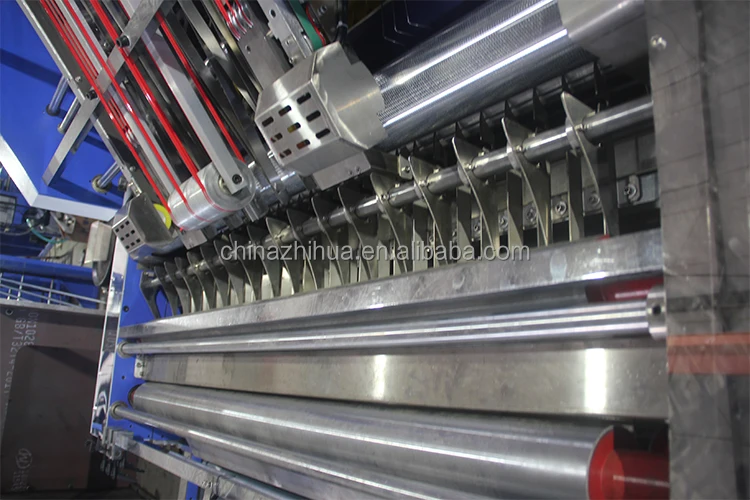

2,Bottom feeding and laminating part
3,Stainless steel material roller ,never rust ,guarentee the amount of glue ies enven

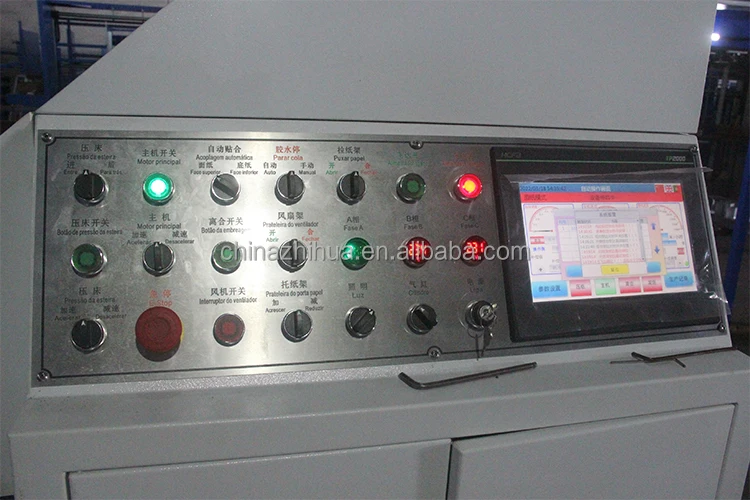

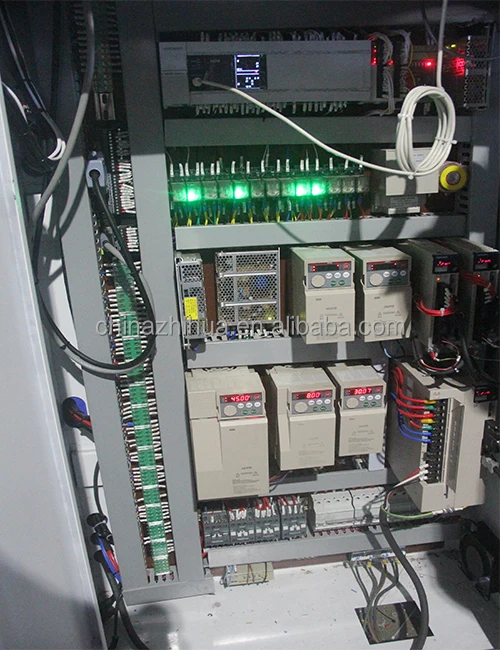

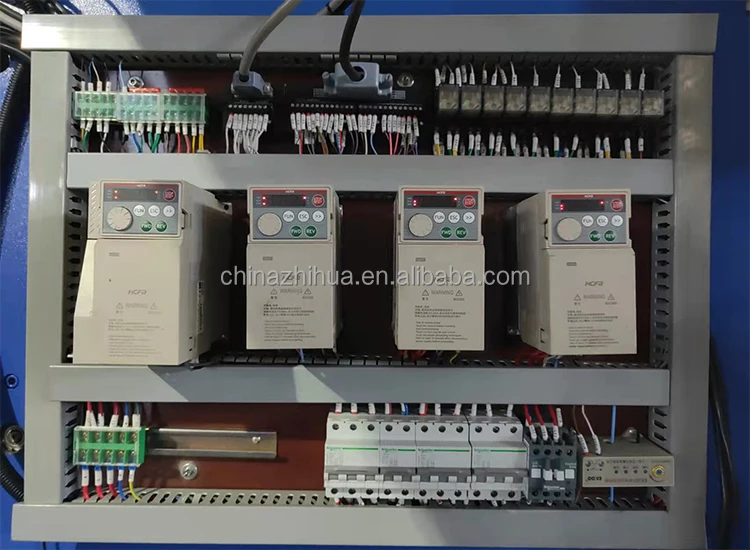

4,Electrical part
Famous brand electridal component ensure machine stability ,high efficiency and low failure.display interface and PLC combination,display all the information, such as warning, error detect, failures,and operating speed, etc

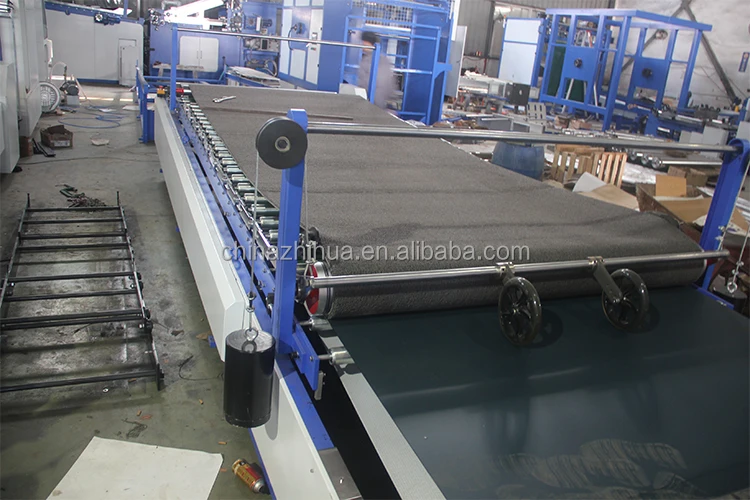

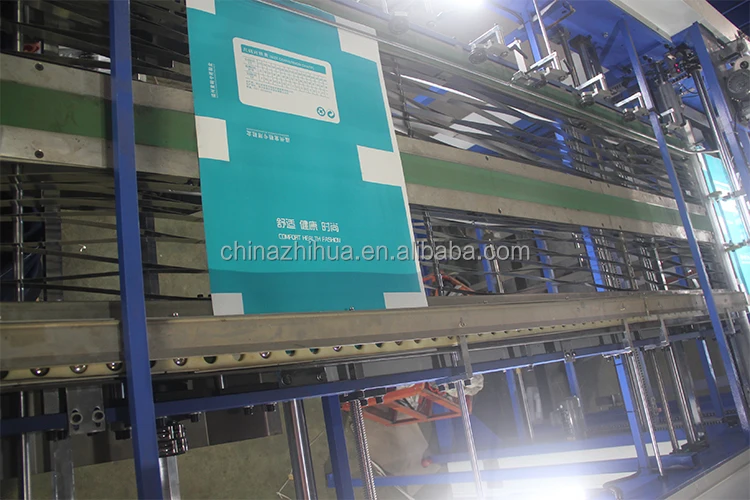

4. Sheet pressing part
Slope type of the pressing convoyer, humanized design to save effort for the operator collecting the sheets.
Slope type of the pressing convoyer, humanized design to save effort for the operator collecting the sheets.
Certifications

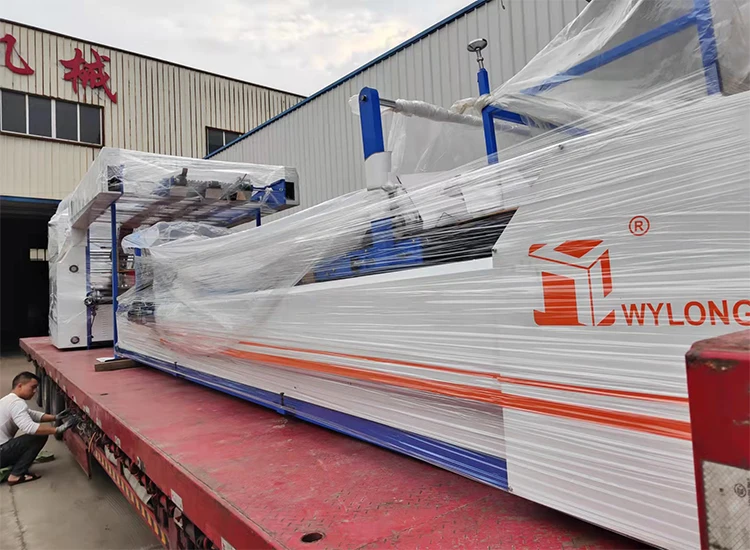

Packing and Delivery

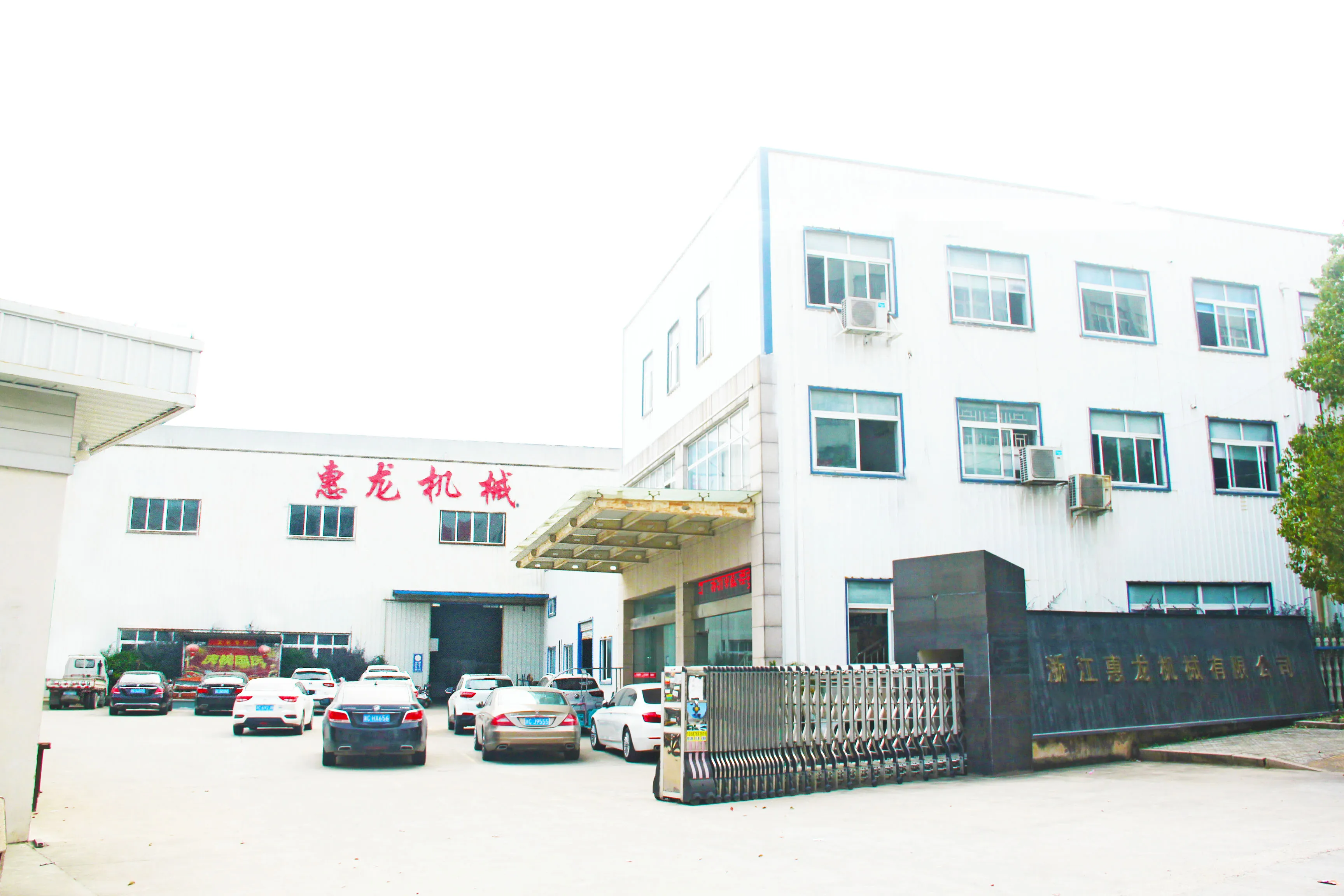

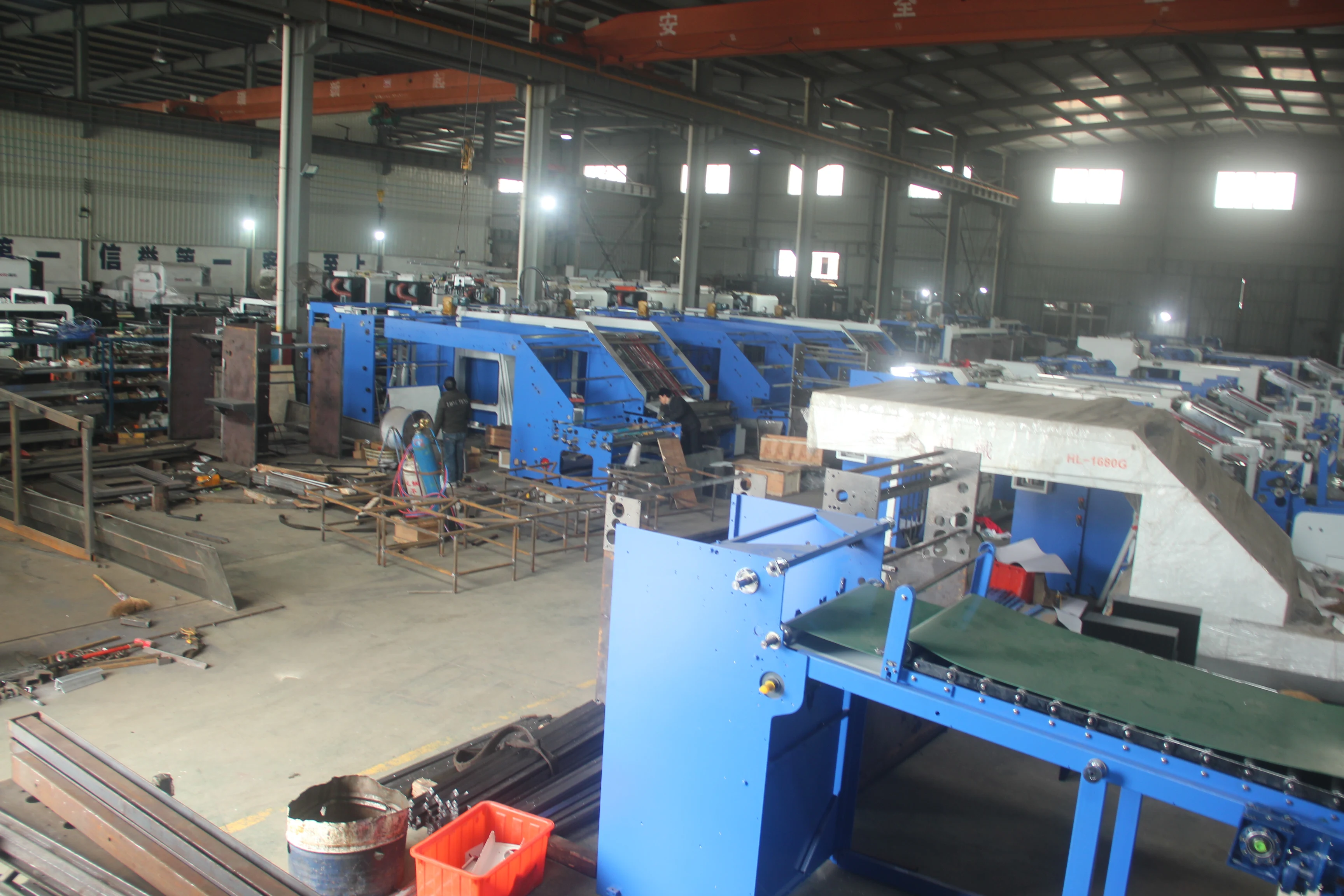

Company Profile
Wynlong Machinery Co., Ltd. located in ruian city, is a professional corporation specialize in manufacture full-automatic card mounting machine,full-automatic intelligent high-speed paper mounting machine,one of the full-automatic high-speed turnover paper machine in Zhejiang Province.
With ISO 9001 Certification, advanced technology and equipment as well as the ability of research and development of new products, our products are sold throughout the world and enjoy great popularity both at home and abroad.
Since it was established, our company has followed the principles of "Scientific Management, High Quality and Efficiency", "Customers First, Credibility & Promise." We always take consumers as our first consideration. Persisting in supplying quality products and services,
We sincerely welcome all new and old friends to create a prosperity future.
With ISO 9001 Certification, advanced technology and equipment as well as the ability of research and development of new products, our products are sold throughout the world and enjoy great popularity both at home and abroad.
Since it was established, our company has followed the principles of "Scientific Management, High Quality and Efficiency", "Customers First, Credibility & Promise." We always take consumers as our first consideration. Persisting in supplying quality products and services,
We sincerely welcome all new and old friends to create a prosperity future.
