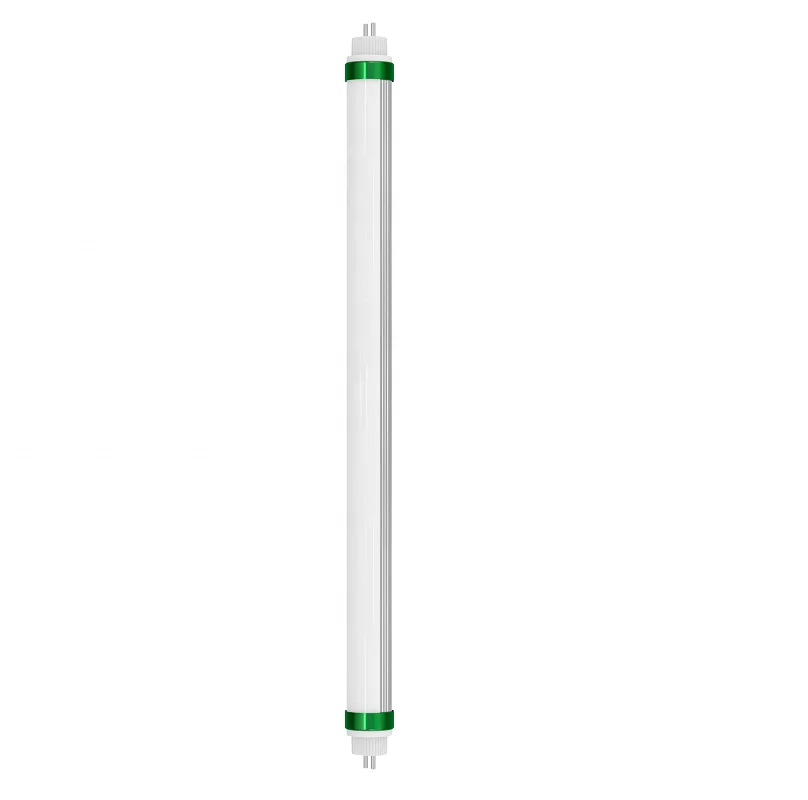

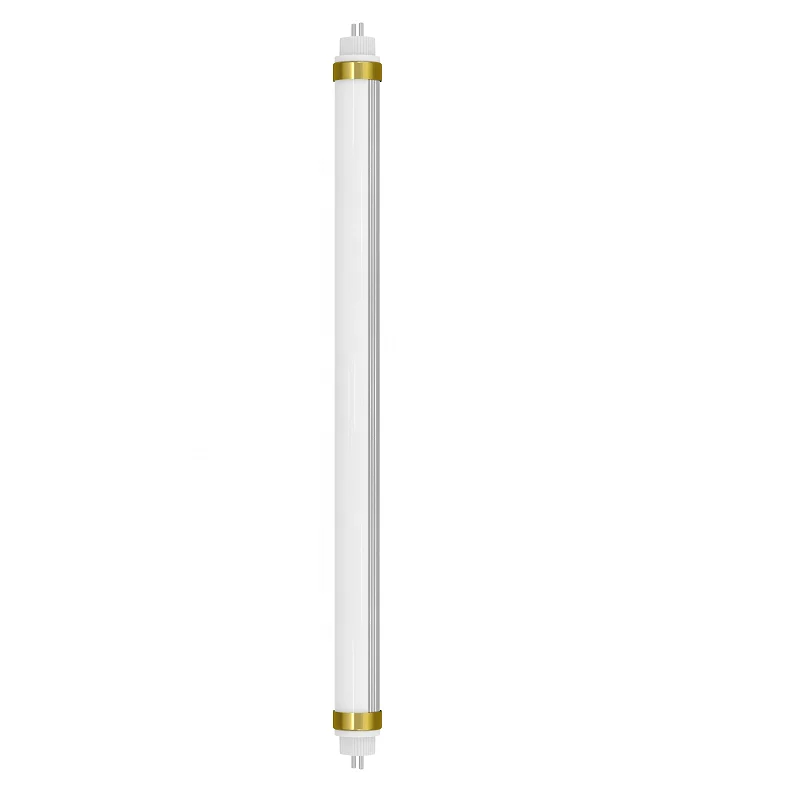

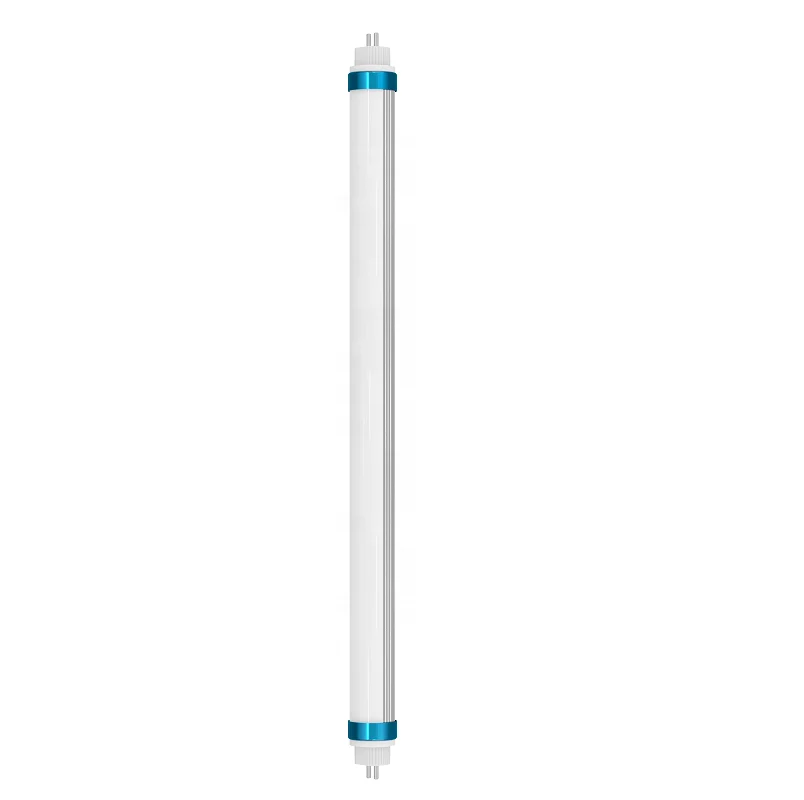

tube led 140 degree beam angle 175lm/w 160lm/w 130lm/w LED T5 tube light Rotatable 180 degree angle
- Category: >>>
- Supplier: Strong Lumen Opto Co. Ltd.
Share on (11000002519936):
Product Overview
Description
Product Description
bulb t5 175lm/w 160lm/w 130lm/w LED T5 tube light led replace fluorescent tubes 140 degree beam angle
Product Features
1. Pretty and elegant appearance, G5 fixed end cap.
2. Type B (Bypass the ballast, Single/Double ended).
3. 6063 Aluminum shell, Japan PC cover, long lifespan.
2. Type B (Bypass the ballast, Single/Double ended).
3. 6063 Aluminum shell, Japan PC cover, long lifespan.
4. Professional design of optics, no shadow, no light spot.
5. Super efficiency up to 175lm to save 75% energy and electricity
Detailed Images
Advantages:
1. Less watt replaces big watt of traditional light, helping you to save 75% energy and electricity.
2. While the cost for Less watt light is much lower than big watt light.
1. Less watt replaces big watt of traditional light, helping you to save 75% energy and electricity.
2. While the cost for Less watt light is much lower than big watt light.
Stronglumen's 175lm/w | Replaces market's 80lm/w |
9W | 20W |
15W | 32W |
18W | 40W |
24W | 52W |
Stronglumen's 160lm/w | Replaces market's 80lm/w |
9W | 18W |
15W | 80lm/w 30W |
18W | 80lm/w 36W |
24W | 80lm/w 48W |
Stronglumen's 130lm/w | Replaces market's 80lm/w |
9W | 15W |
15W | 24W |
18W | 30W |
24W | 40W |
Product Presentation
Name | LED T5 tube light |
Type | Type B bypass the ballast, Single/Double ended |
Voltage | 100-277V; 100-240V |
Size | 600mm 900mm 1200mm 1500mm |
Efficiency | UP to 175lm/w; 160lm/w 130lm/w |
Material | Aluminum body+PC lens |
LED Chip | SMD2835 |
Color index | Ra>80 |
power factor | PF>0.9 |
CCT | C: 5000K, K: 4500K, L: 4000K, M: 3500K, N: 3000K |
Beam angle | Clear cover:120°; Milky Cover:140° |
Warranty | 5 years |
Certificates | DLC UL CE ROHS |
The best meterials:
1. V0 fire-rated PC material from Japan, safe and high transtittance
2. Ultra bright SMD2835 LED, high lumen outupts
3. 19mm PCB with 35um copper thickness and thermal conductivity 1.0, good for cooling
4. Ultra high efficiency driver, good for cooling and providing high efficiency light
5. 0.8mm thickness heatsinking, good for cooling
6. double isolatation protection for LED driver, prong the lifespan
7. V0 fire-rated end cap
2. Ultra bright SMD2835 LED, high lumen outupts
3. 19mm PCB with 35um copper thickness and thermal conductivity 1.0, good for cooling
4. Ultra high efficiency driver, good for cooling and providing high efficiency light
5. 0.8mm thickness heatsinking, good for cooling
6. double isolatation protection for LED driver, prong the lifespan
7. V0 fire-rated end cap
Application
Product packaging
foam package for projects, 50pcs/ctn to save shipping cost
individual packge for retails or wholesales, 25pcs/ctn
Related Products
Company Introduction
Strong Lumen Opto Co.,Ltd, was established in 2008 in Shenzhen, specializing in high lumen output LED tube Light, LED panel Light, UFO LED Highbay light, which in compliance with standards of VDE, TUV, CE, SAA, UL, ETL, DLC, ROHS and are mainly exported to European and American markets more than 14 years.
Monthly capability:500,000PCs LED tubes, 30,000PCs UFO LED highbay lights, 50,000PCs LED panel lights.
ISO 9001:2014;
China National Hightech Enterprise;
China Enterprise Credit Grade AAA;
Shenzhen Top50 Innovative Enterprises
Shenzhen Top50 Innovative Enterprises
Strong Lumen always focus on Strong Lumen Products.
T8 and T5 LED tube light | 130lm/w, 160lm/w, 175lm/w, 200lm/w |
UFO highbay light | 175lm, 190lm/w, 200lm/w |
Panel light | 120lm/w, 150lm/w, 180lm/w |
Linear light | 130lm/w, 160lm/w, 180lm/w |
Street light | 140lm/w, 170lm/w |
FAQ
1. Does your product really high to 175lm/w?
Yes, it's really up to 175lm/w, developed by our R&D Department 4 years ago, and has been sold to US, Canada, Netherlands, Germany, France, Spain ect market already. We can send the IES file and datasheet if on need.
2. Can i use directly without doing anything? Like bypass the ballast? It's so difficult for me.
It can bypass or compitable with the ballast, single or double ended is ok. Easy installation and very connevient, most customers buy it in US, it's the best sales.

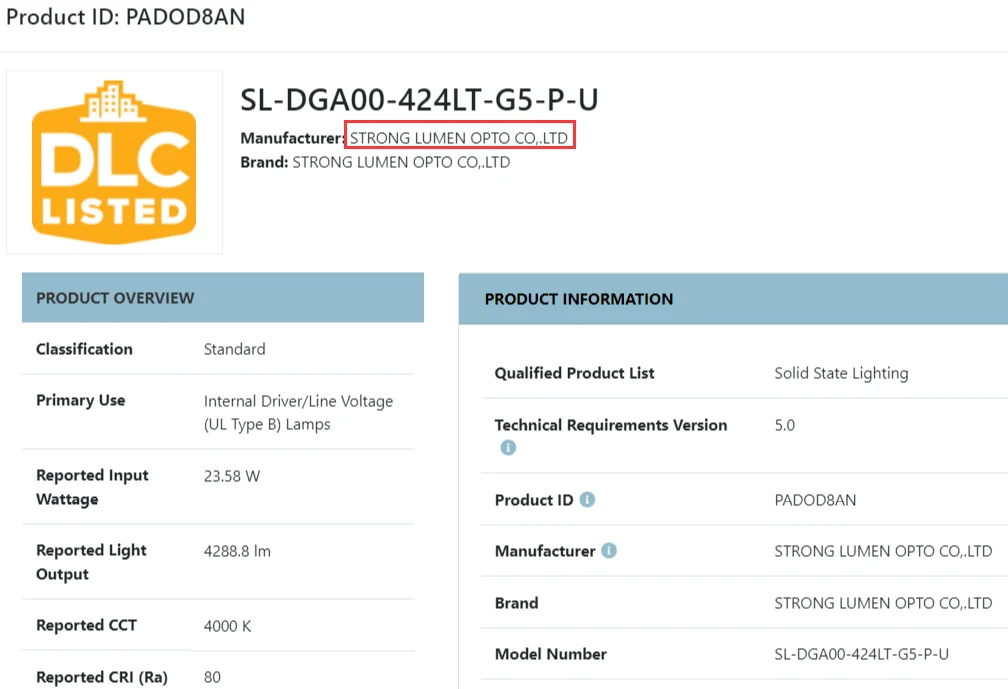

3.Does it have UL or DLC Listed?
Yes, it is approved UL & DLC listed, we already have customers selling there.
4. Can you send me a sample?
Yes, sample is available in 5-7days.
Yes, it's really up to 175lm/w, developed by our R&D Department 4 years ago, and has been sold to US, Canada, Netherlands, Germany, France, Spain ect market already. We can send the IES file and datasheet if on need.
2. Can i use directly without doing anything? Like bypass the ballast? It's so difficult for me.
It can bypass or compitable with the ballast, single or double ended is ok. Easy installation and very connevient, most customers buy it in US, it's the best sales.
3.Does it have UL or DLC Listed?
Yes, it is approved UL & DLC listed, we already have customers selling there.
4. Can you send me a sample?
Yes, sample is available in 5-7days.
