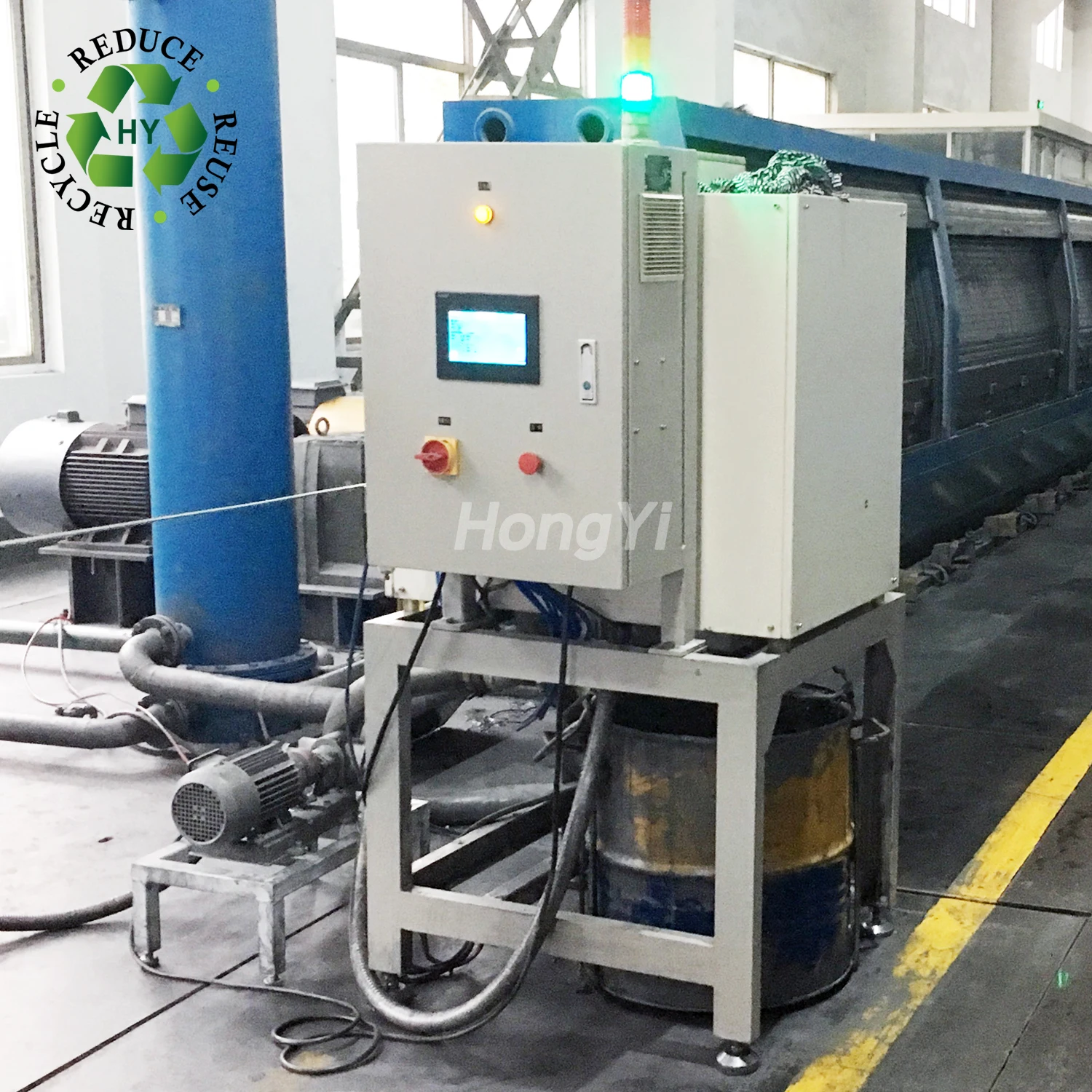

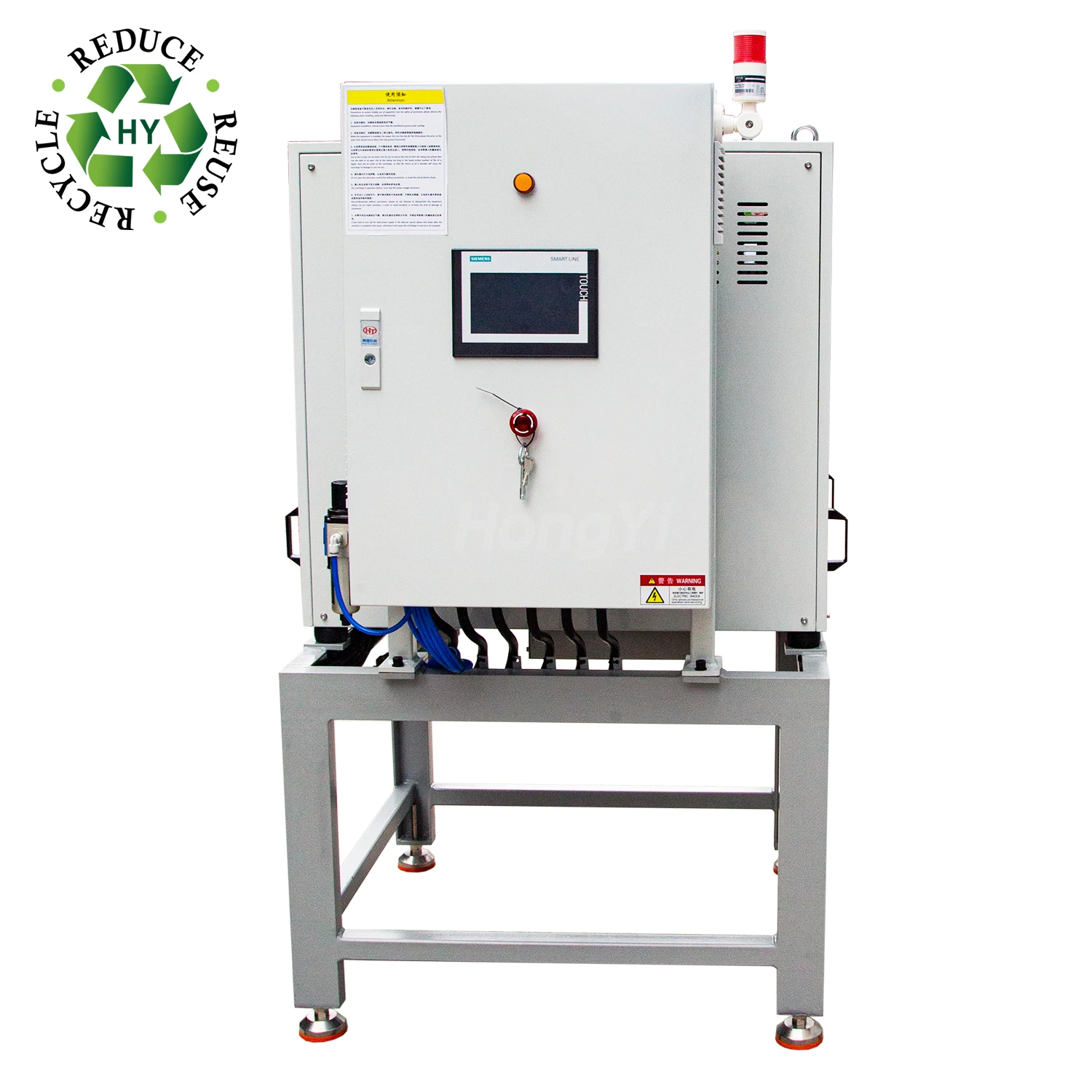

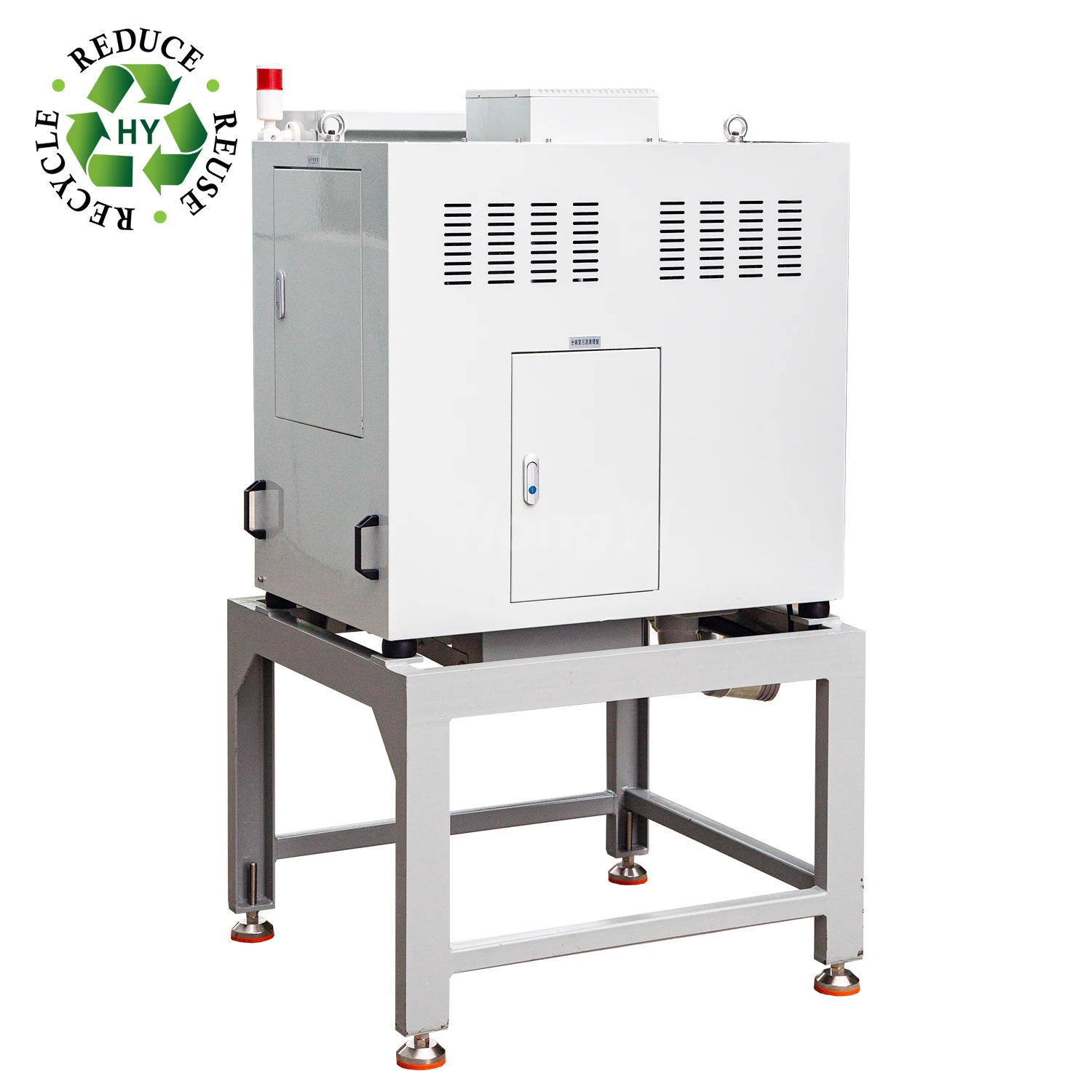

centrifugal oil separator for Industrial Oil Cleaning in Wire Drawing, Cold Forming, Quenching, Grinding, Cutting Oil, etc.
- Category: >>>
- Supplier: HY ENVIRONMENT SDN. BHD.
Share on (11000002568631):
Product Overview
Description
Product Description
Removes fine particles from oil to keep the oil clean
centrifugal oil separator is widely used for Industrial Oil Cleaning in Wire Drawing, Cold Forming, Quenching, Grinding, Cutting Oil, Water Based Cutting Oils, etc.
Main Features
1. No filter element, clean oil by“Centrifugal Separation Method”, no replacement element.
2. Portable and online by pass.
3. LCD touch screen control panel and PLC running program control.
4. Automatically running, no need operators to operate.
5. Automatically Self-discharging, automatically discharge the slag according to the present time interval. No need operators to discharge manually.
6. Achieve greater centrifugal force. Adopt variable frequency design, can adjust the motor speed freely to change the centrifugal force G value, so that the centrifugal force of motor can reach 1700~ 2500G.
7. Impurity particles can be separated from 0.45~4μm and above.
Principle Operation
• Oil is pumped into the centrifuge and directed into the rotor of the centrifuge. The centrifugal rotor is connected to the motor drive directly. The motor drives the rotor spinning and the rotor rotates quickly. The centrifugal force in the rotor causes the dirt particles present accelerate radially and deposit on the internal wall of the rotor. In the course of operation these deposits form a thick cake.
• Centrifugal force is capable of removing a wide range of particles extending into sub-micron range. The removal of particles by centrifugal force is based on their relative density; therefore there is no restriction on contaminant size.
• A barrier filtration device removes particles from oil based on filter element. Hongyi centrifugal oil cleaner is not a barrier filtration device; it has no filter element and no need filtration media to remove contaminant particles.

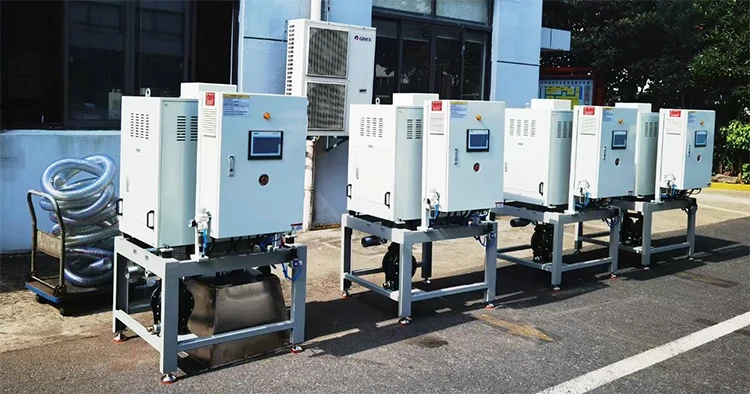

| Model/Type | Hy800 (Copper Aluminum Wire Drawing)Oil Centrifugal Cleaner |
| Rotor Dirt Holding Capacity | 8 Liters |
| Maximum Flow Rate | 100 Liters/min (adjustable, recommended 50-80 liters/min) |
| Revolving Speed | 3200R/Min |
| Main Motor | 2.2KW |
| Auxiliary Motor | 0.09KW |
| Power | 2.29KW 380V/50Hz-60Hz,3-phase |
| Control Panel | Touch Display |
| Width*Length*Height | 860*870*1550mm |
Packaging & Shipping
Our Services
Usually, for the simple machines, we supply the online instruction service,
if it is during the warranty period(one year), we supply the replaceable
parts for free charge, if it is our of the date, we will charge for cost price.
for complicated machines, we would send our engineer to repair the machine, and fees should be undertook by the buyer.
Company Information
FAQ
1.How can I buy this machine?
First, talk all machines details with our sales person, then talked about the price, after confirming the prices. you can choose the payment terms Trade assurance/TT/Escrow/Western Union etc.
Then, you arrange deposit, after getting the deposit, we produce the machine.
Last, packing and shipping the machine for you.
2.How do you guarantee that we can receive the goods ordered?
We are a legal company supervised by the government and also the Alibaba company as well as the third parties, what is more important,honesty and trustworthiness are our basic principle. Please trust us that we will offer the best to our client you.
3.Can the motor work with our local power supply?
When you place the order, you could tell us the power supply available
to your country.If our standard motor can not work with it, we would modify
it for you, maybe it will occurs few extra cost.
