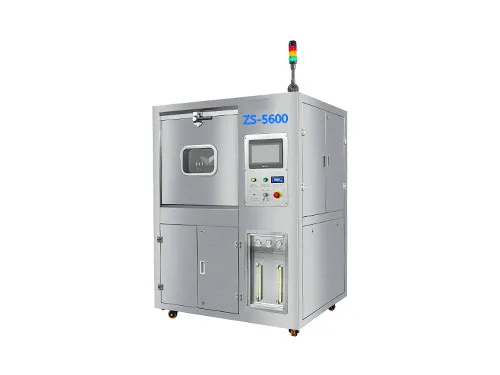

SMT ZS 5600 New/Used Offline Cleaning Machine for High accuracy PCB/PCBA Cleaning
- Category: >>>
- Supplier: Shenzhen Zens Electronic Co. Ltd.
Share on (11000002597717):
Product Overview
Description
Related Machine
Product Description
Specification
Item | Value |
Model | ZS-5600 |
Rinsing times | 1~99 times |
Liquid heating temperature | Room temperature~60℃ |
Drying time | 10~30min |
PCB drying temperature | Room temperature~99℃ |
Resistivity test range | 0~18MΩ |
Liquid circulation filtration | 0.2um |
Rinse and discharge filter system | 0.2um |
Dry air filtration | 10um |
DI water supply | 30~65L/Min |
DI water pressure | 0.2~0.4Mpa |
Exhaust outlet size | Φ76xH50(mm) |
Power/Air source | AC380V 3P, 50/60HZ, 30KW/0.5Mpa, 200~400L/Min |
Features
1.Comprehensive cleaning, which can thoroughly clean the residual rosin flux, water-soluble flux, no-clean flux, solder paste and other organic and inorganic contaminants on the PCB surface after soldering.
2.It is suitable for the cleaning of small batches and multiple varieties of PCBA.
4.The cleaning room is equipped with a visual window, and the cleaning process can be observed.
5.Simple Chinese operation interface, rapid setting of cleaning process parameters, cleaning procedures can be stored; hierarchical management passwords can be set according to the administrator's authority.
6.The washing liquid heating temperature control system can be heated to a suitable temperature according to the chemical characteristics of the washing liquid, which improves the cleaning efficiency and shortens the cleaning time.
7.The built-in filter device can realize the circulation of the solution and reduce the amount of solution. The compressed air blowing method is adopted at the end of the cleaning: the residual liquid in the pipeline and pump is recovered, which can effectively save 50% of the cleaning solution.
9.Many times of DI water rinsing, high standards of cleanliness, ion pollution in line with IPC-610D Class I standards.
10.304 stainless steel structure, exquisite workmanship, sturdy and durable, resistant to corrosion by acid and alkali cleaning solutions.
2.It is suitable for the cleaning of small batches and multiple varieties of PCBA.
3.The double-layer cleaning basket can load PCBA in layers; size 610mm(L) x560mm(W) x100mm(H), a total of 2 layers.
4.The cleaning room is equipped with a visual window, and the cleaning process can be observed.
5.Simple Chinese operation interface, rapid setting of cleaning process parameters, cleaning procedures can be stored; hierarchical management passwords can be set according to the administrator's authority.
6.The washing liquid heating temperature control system can be heated to a suitable temperature according to the chemical characteristics of the washing liquid, which improves the cleaning efficiency and shortens the cleaning time.
7.The built-in filter device can realize the circulation of the solution and reduce the amount of solution. The compressed air blowing method is adopted at the end of the cleaning: the residual liquid in the pipeline and pump is recovered, which can effectively save 50% of the cleaning solution.
8.Real-time resistivity monitoring system, conductivity control range 0~18MΩ.
9.Many times of DI water rinsing, high standards of cleanliness, ion pollution in line with IPC-610D Class I standards.
10.304 stainless steel structure, exquisite workmanship, sturdy and durable, resistant to corrosion by acid and alkali cleaning solutions.
Packing & Delivery
Packaging:1)Standard box package for light and small item;
2)Strong wood package for heavy and large equipment;
2)Strong wood package for heavy and large equipment;
