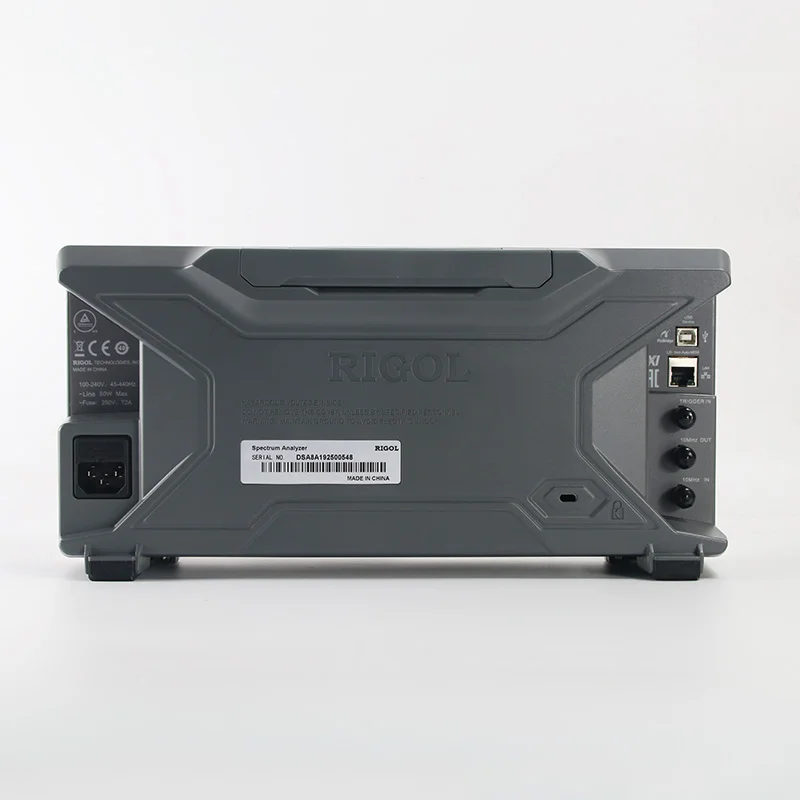

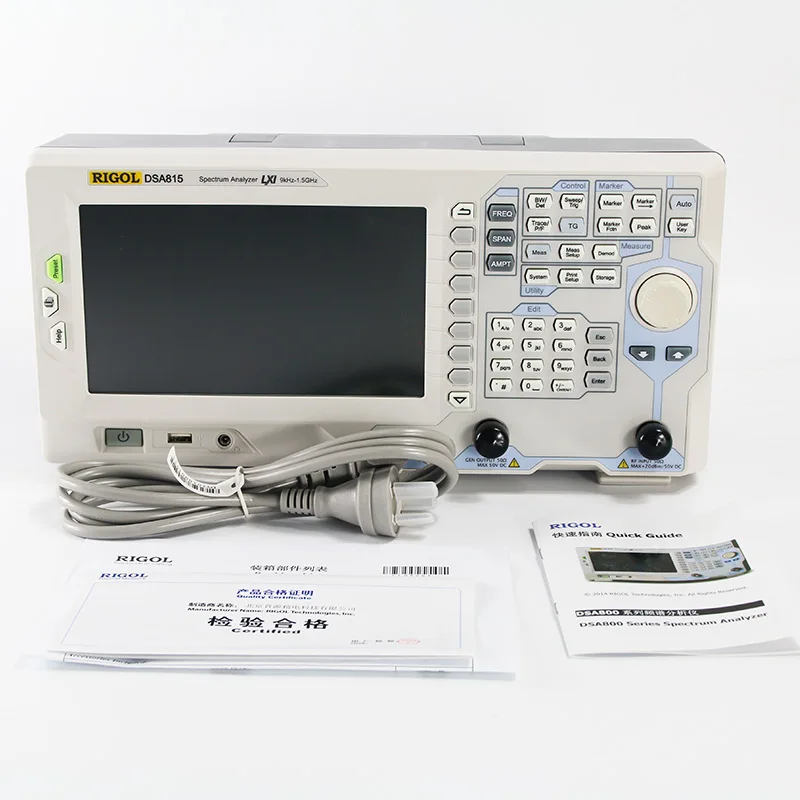

X AUTHENTIC DSA815 TG with Tracking Generator Digital Optical Spectrum Analyzer
- Category: >>>
- Supplier: Frys Sports
Share on (11000002598331):
Product Overview
Description
Description:
DSA815 series of small volume, light weight and high cost performance of portable spectrum analyzer. The realization of the digital intermediate frequency to ensure its excellent performance and stable performance. Original widescreen application, novel appearance for education, research and development, production test and other industries to provide an alternative.
Features
The digital intermediate frequency technology
9 kHz to 1.5 GHz frequency range
Shows the average noise level (DANL) - 135 dBm (typical)
Phase noise - 80 dBc/Hz (offset 10 kHz)
Whole range accuracy < 1.5 dB
Minimum resolution bandwidth (RBW) 100 Hz
The standard preamplifier
1.5 GHz tracking source (DSA815 - TG)
Equipped with abundant advanced measurement function
Equipped with EMI filter and peak detector
Pattern matching VSWR measurement suite
Rich interface: LAN, USB Host, USB Device and GPIB (optional)
8 "WVGA (800 x480) display, intuitive operation panel and the interface
Compact and lightweight
DSA815 series of small volume, light weight and high cost performance of portable spectrum analyzer. The realization of the digital intermediate frequency to ensure its excellent performance and stable performance. Original widescreen application, novel appearance for education, research and development, production test and other industries to provide an alternative.
Features
The digital intermediate frequency technology
9 kHz to 1.5 GHz frequency range
Shows the average noise level (DANL) - 135 dBm (typical)
Phase noise - 80 dBc/Hz (offset 10 kHz)
Whole range accuracy < 1.5 dB
Minimum resolution bandwidth (RBW) 100 Hz
The standard preamplifier
1.5 GHz tracking source (DSA815 - TG)
Equipped with abundant advanced measurement function
Equipped with EMI filter and peak detector
Pattern matching VSWR measurement suite
Rich interface: LAN, USB Host, USB Device and GPIB (optional)
8 "WVGA (800 x480) display, intuitive operation panel and the interface
Compact and lightweight
