Automatic Blow Molding Machine 4 Cavity Automatic Pet Blowing Machine
- Category: >>>
- Supplier: Taizhou Sico Machinery Co. Ltd.
Share on (11000002605309):
Product Overview
Description
Product Overview

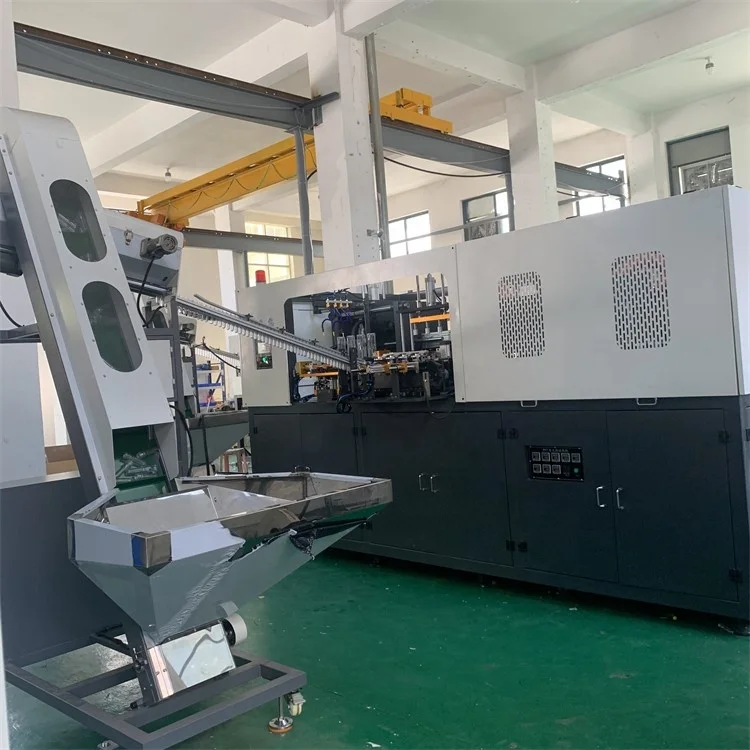

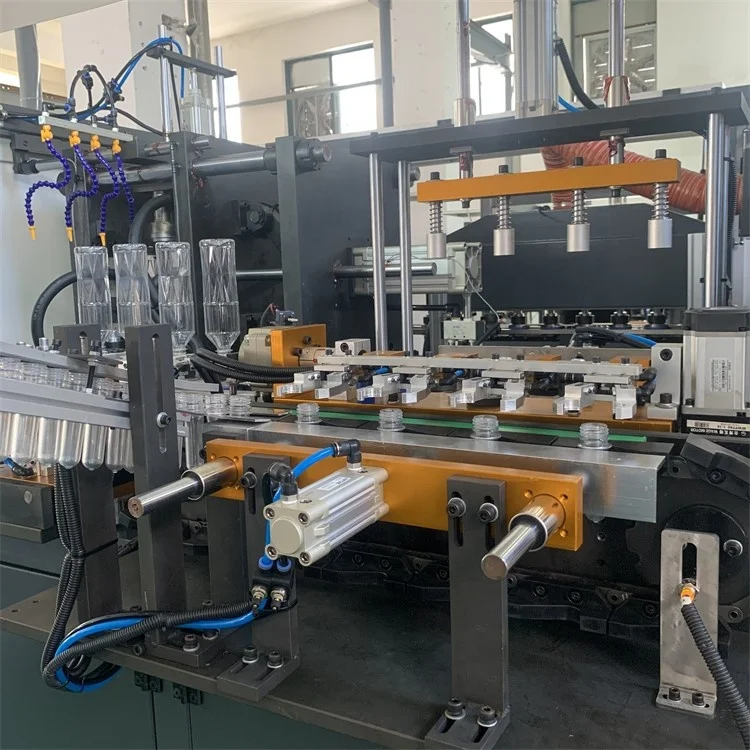

SC-4000 Model 4 Cavity Full Automatic PET Bottle Blowing Machine
FEATURES AT A GLANCE

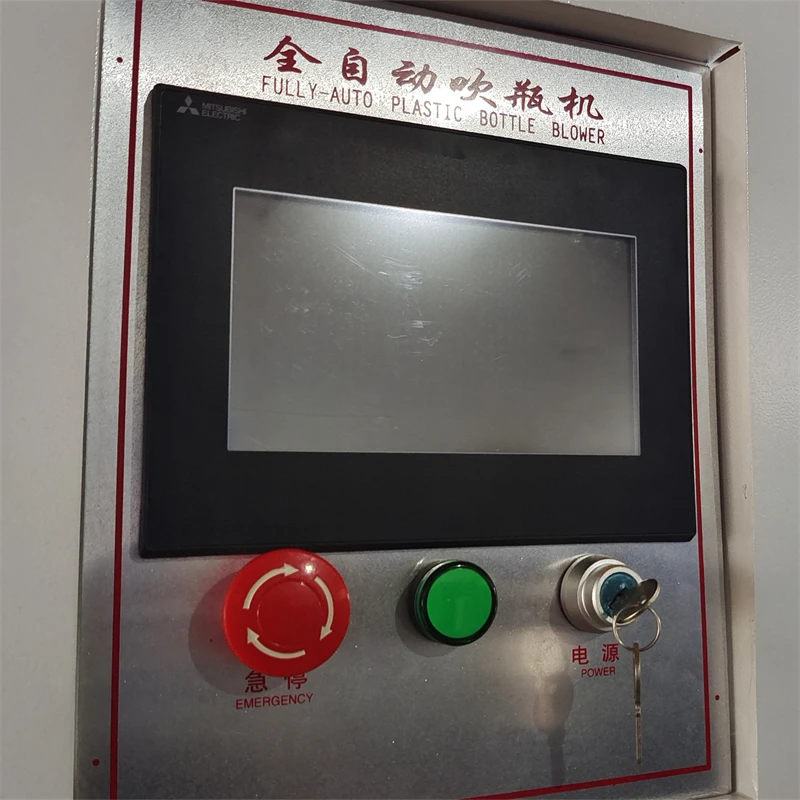

1. | Advanced Mitsubishi PLC control system with use-friendly touch screen,easy operate. |
2. | Stable,fast running and less noisy |

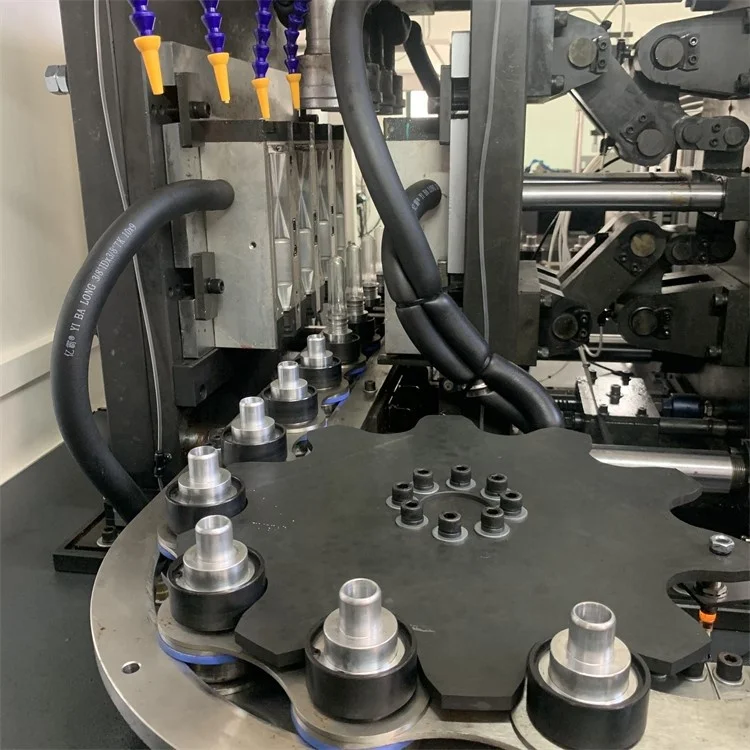

3. | Heating oven equipped with air cooling & water cooling system ensure the bottle neck not deform. |
4. | Equipped with mold clamping in-position sensing device to ensure safe production. |
5. | Each wire,button and meter mark with English,easy maintenance. |
PRODUCT SPECIFICATIONS
Model | SC-4000 Full Automatic PET Bottle Blowing Machine | ||
Theoretical output | 3600--4500 pcs/h | ||
Finished bottle | Max. bottle volume | 2L | |
Max. neck diameter | 38mm | ||
Max. bottle diameter | 110mm | ||
Max. bottle height | 365mm | ||
Mold specifications | Cavity | 4 cavity | |
Mold thickness | 180mm-240mm | ||
Open stroke | 130mm | ||
Electrical system | Power voltage | 380v/3Phase/50HZ | |
Installation power | 48kw | ||
Actual power consumption | 32kw | ||

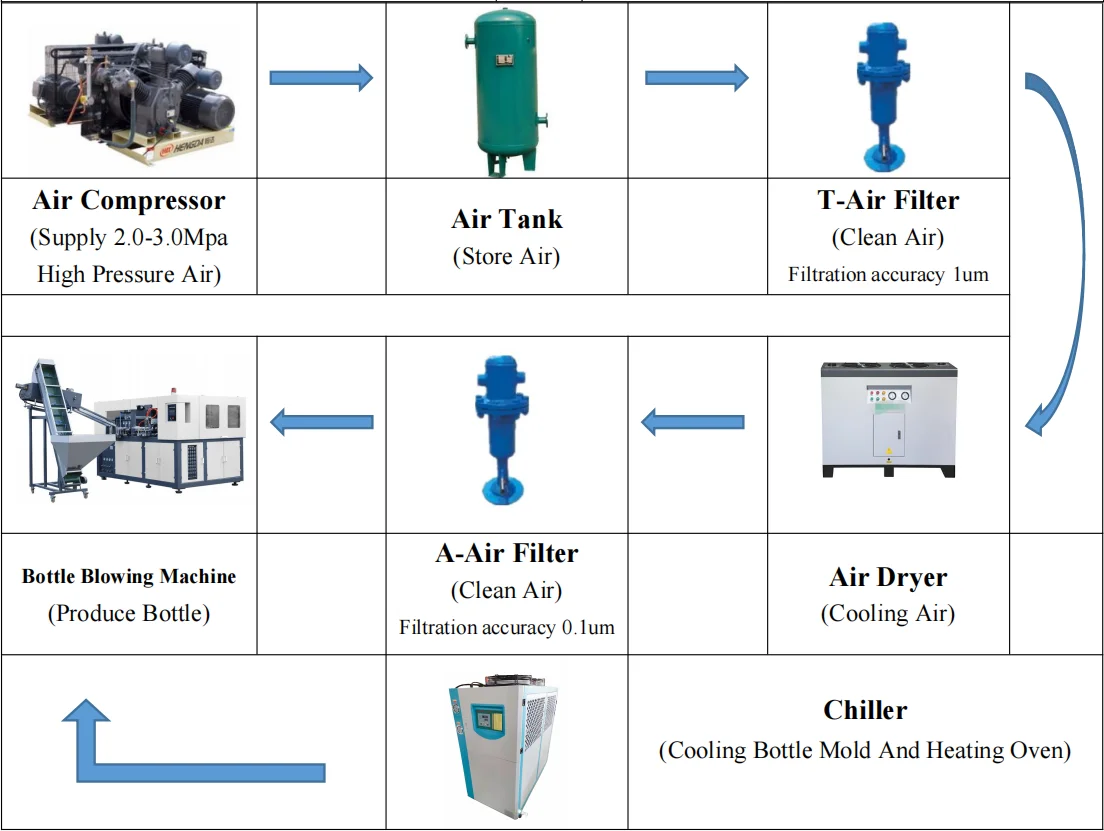

Air source | Recommend air compressor | 2.4m³/min 30Kg | |
Cooling water | Recommend water chiller | 5HP | |
Blowing machine size | Length*width*height/weight | 4800*2050*2300mm/3700kg | |
Auto Loader size | Length*width*height/weight | 1980*1300*2600 mm/250kg | |
PRODUCT CONFIGURATION
Components Name | Brand |

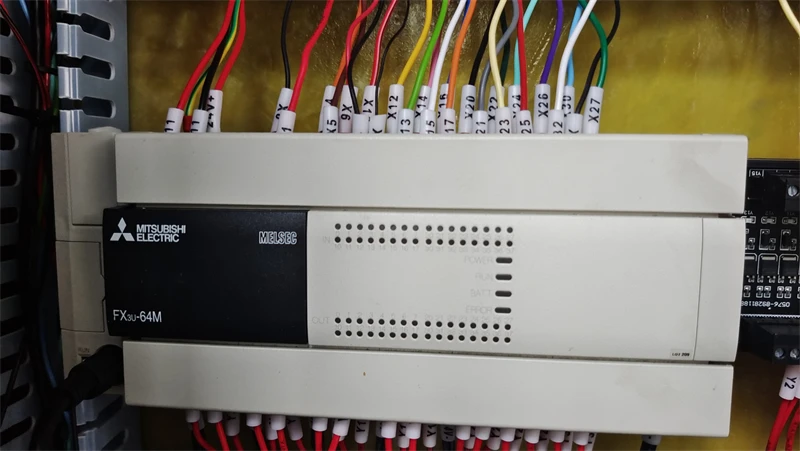

PLC | Mitsubishi |
Touch Screen | Mitsubishi |
Cylinder | Airtac |

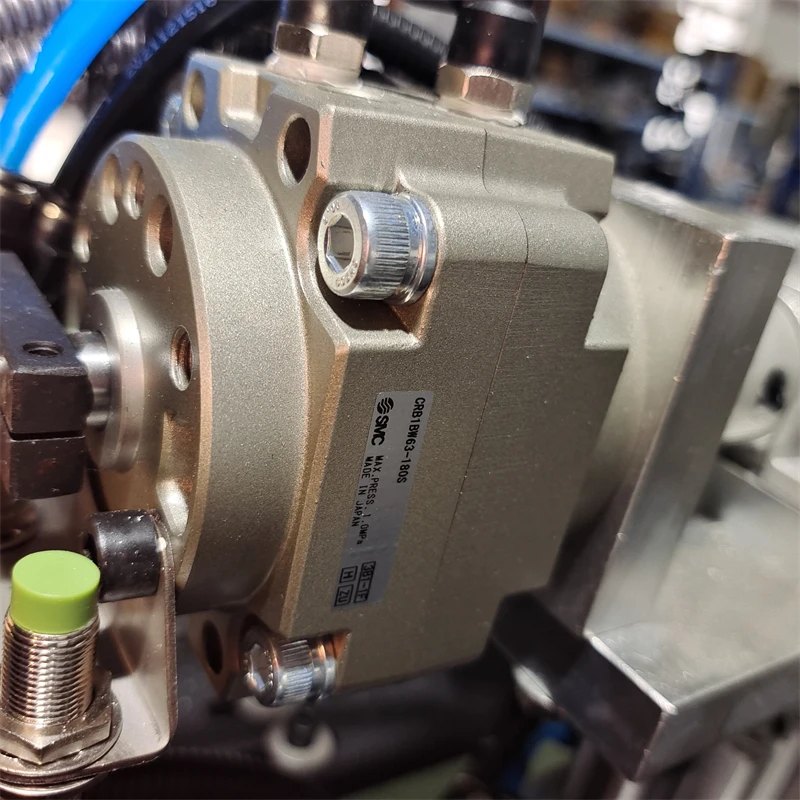

Flip Cylinder | SMC |

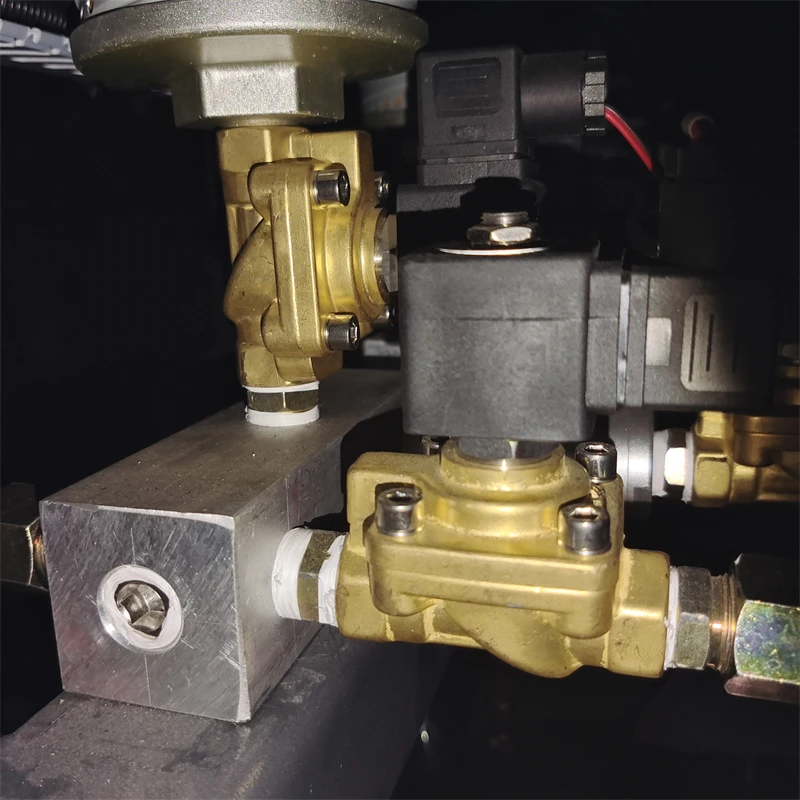

Blowing valve | Quanjia |

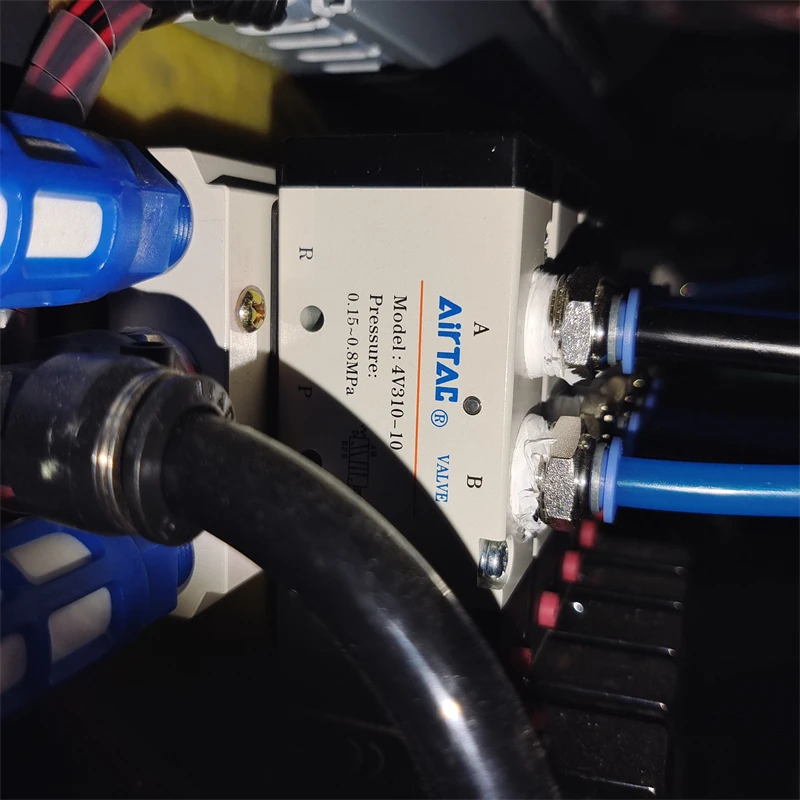

Operating valve | Airtac |
S.R.C | Zhen Yu |

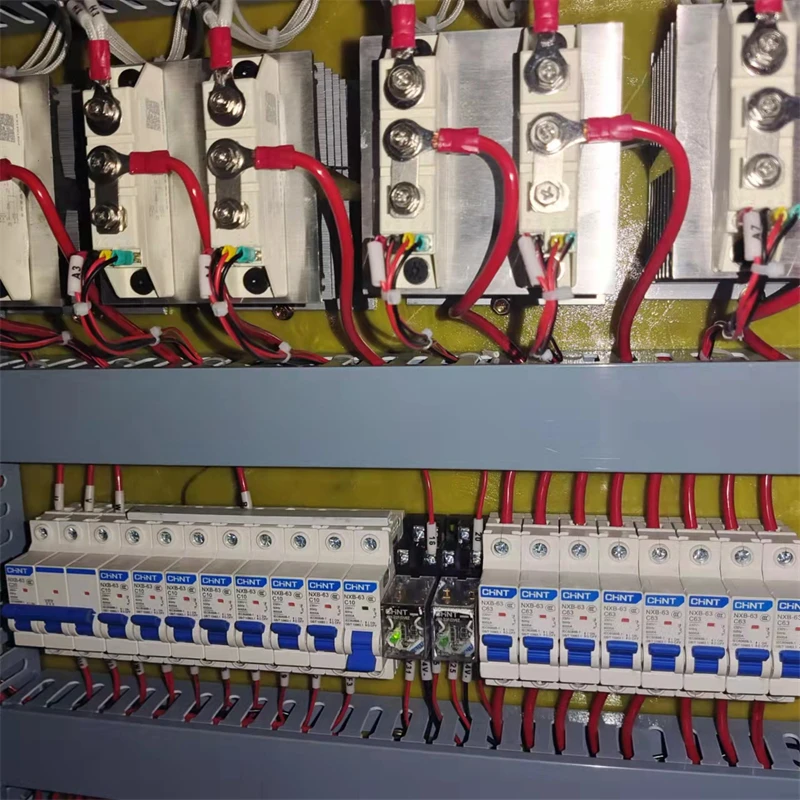

Circuit Breaker | CHNT |
