Super bright 180lm/w led t8 lamp tube driver v0 fire shatter resistant Shenzhen top 3 supplier
- Category: >>>
- Supplier: Strong Lumen Opto Co. Ltd.
Share on (11000002775255):
Product Overview
Description
Product Description
UL DLC CE Approved T8 Tube Light Indoor Project Lights
Product Features
1. Pretty and elegant appearance, G13 fixed end cap.

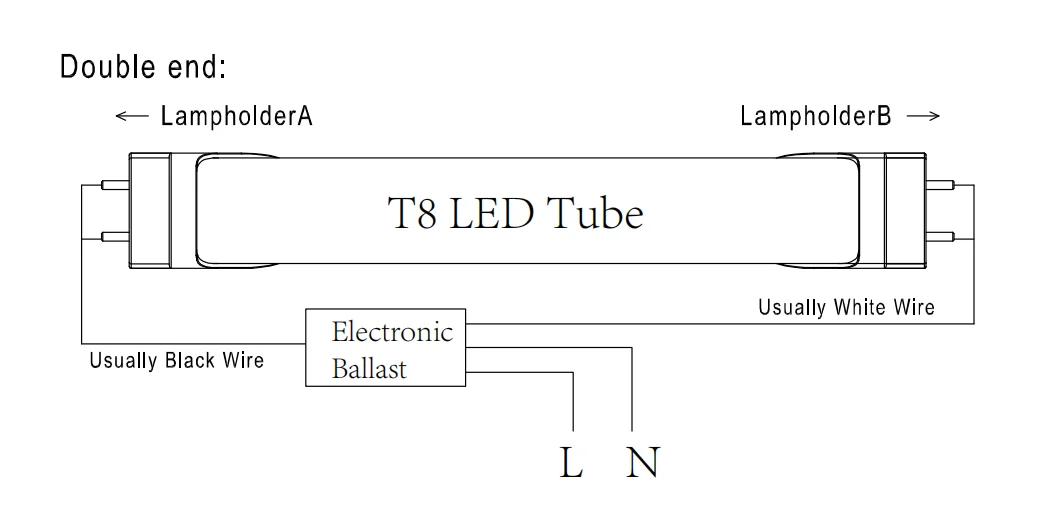

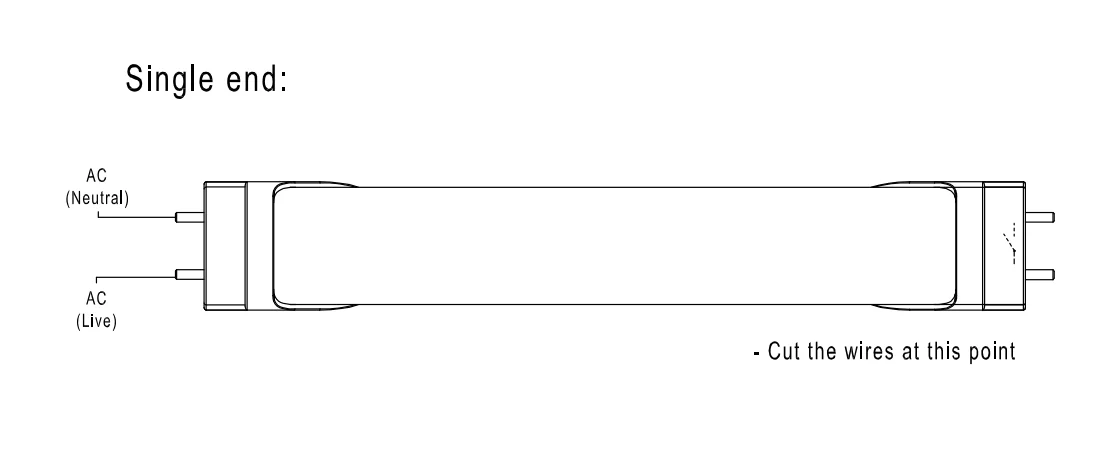

2. Type B, A+B, Plug and Play(Bypass/Compitable the ballast, Single/Double ended).
3. 6063 Aluminum shell, Japan PC cover, long lifespan.
2. Type B, A+B, Plug and Play(Bypass/Compitable the ballast, Single/Double ended).
3. 6063 Aluminum shell, Japan PC cover, long lifespan.
4. Professional design of optics, no shadow, no light spot.
5. Super efficiency up to 180lm to save 75% energy and electricity

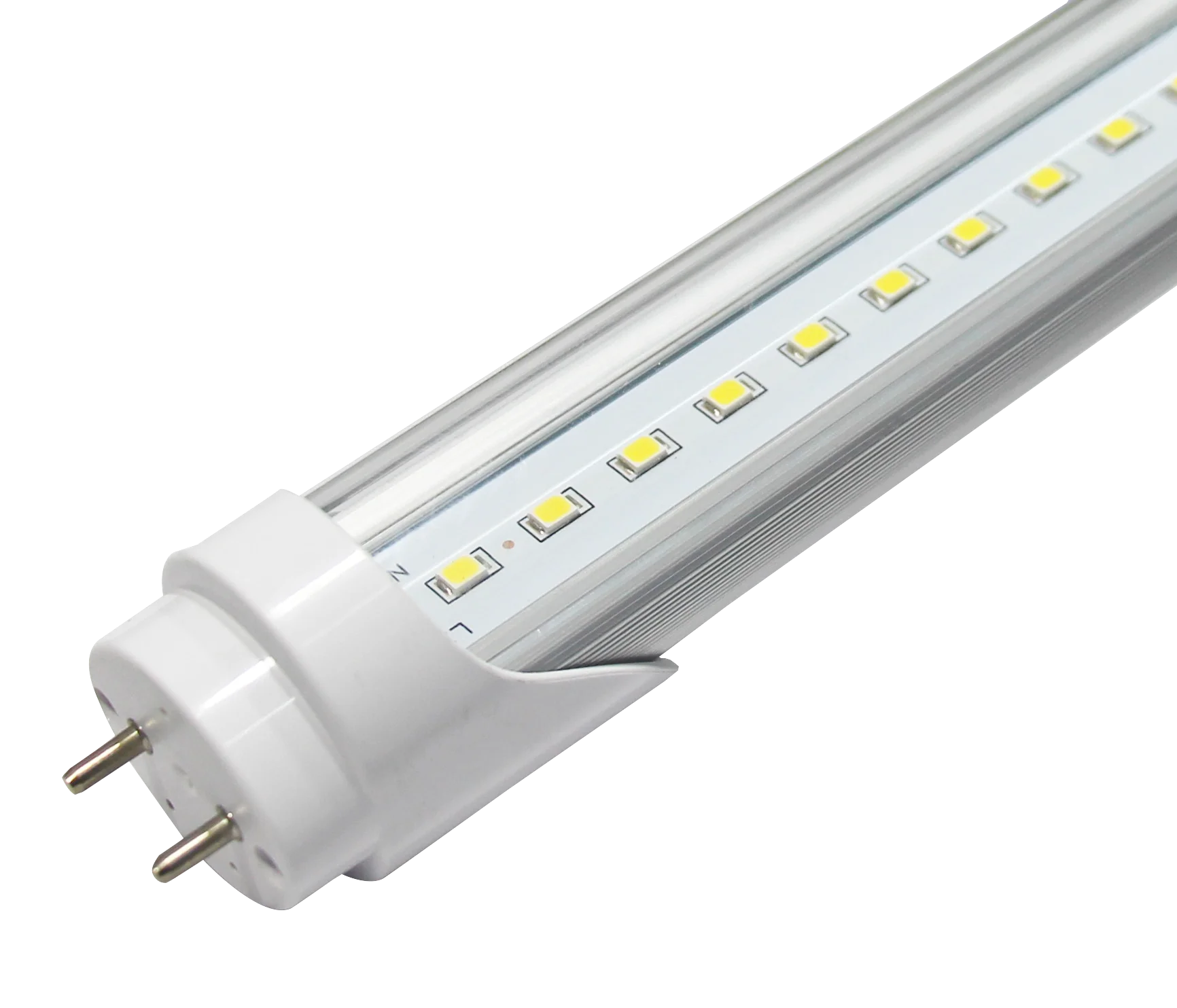

Detailed Images
Fronsted cover
Stripe cover

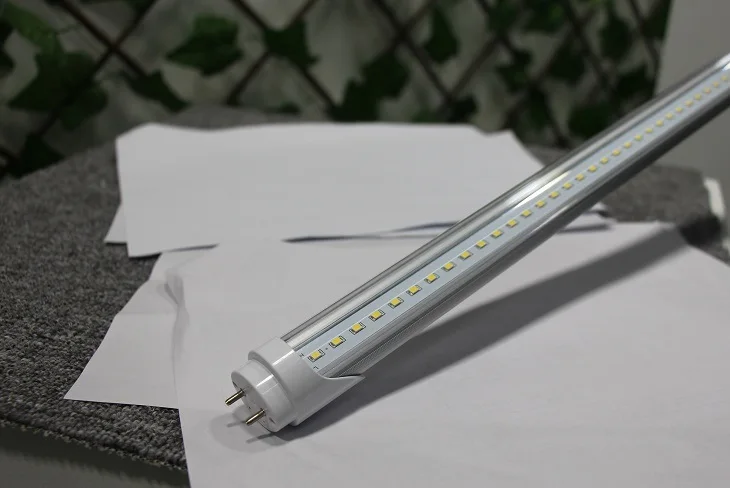

Clear cover
Advantages:
1. Less watt replaces big watt of traditional light, helping you to save 75% energy and electricity.
2. While the cost for Less watt light is much lower than big watt light.
1. Less watt replaces big watt of traditional light, helping you to save 75% energy and electricity.
2. While the cost for Less watt light is much lower than big watt light.
SL 180lm/w | fluorescent lamp | Energy Save | |
9W | Replaces | 20W | save 11W |
15W | Replaces | 32W | save 17W |
18W | Replaces | 40W | save 22W |
24W | Replaces | 52W | save 30W |
SL 160lm/w | fluorescent lamp | Energy Save | |
9W | Replaces | 18W | save 9W |
15W | Replaces | 30W | save 15W |
18W | Replaces | 36W | save 18W |
24W | Replaces | 48W | save 24W |
SL 130lm/w | fluorescent lamp | Energy Save | |
9W | Replaces | 15W | save 6W |
15W | Replaces | 24W | save 9W |
18W | Replaces | 30W | save 12W |
24W | Replaces | 40W | save 16W |
Product Presentation
Name | LED T8 tube light(oval shape) |
Type | TypeB, A+B Bypass/Compitable the ballast, Single/Double ended |
Voltage | 100-277V; 100-240V |
Size | 600mm 900mm 1200mm 1500mm |
Efficiency | UP to 180lm/w; 160lm/w 130lm/w |
Material | Aluminum body+PC lens |
LED Chip | SMD2835 |
Color index | Ra>80 |
power factor | PF>0.9 |
CCT | C: 5000K, K: 4500K, L: 4000K, M: 3500K, N: 3000K |
Beam angle | Clear cover:120°; Milky Cover:140° |
Warranty | 5 years |
Certificates | DLC UL CE ROHS |
The best meterials:
1. V0 fire-rated PC material from Japan, safe and high transtittance
2. Ultra bright SMD2835 LED, high lumen outupts
3. 19mm PCB with 35um copper thickness and thermal conductivity 1.0, good for cooling
4. Ultra high efficiency driver, good for cooling and providing high efficiency light
5. 0.8mm thickness heatsinking, good for cooling
6. double isolatation protection for LED driver, prong the lifespan

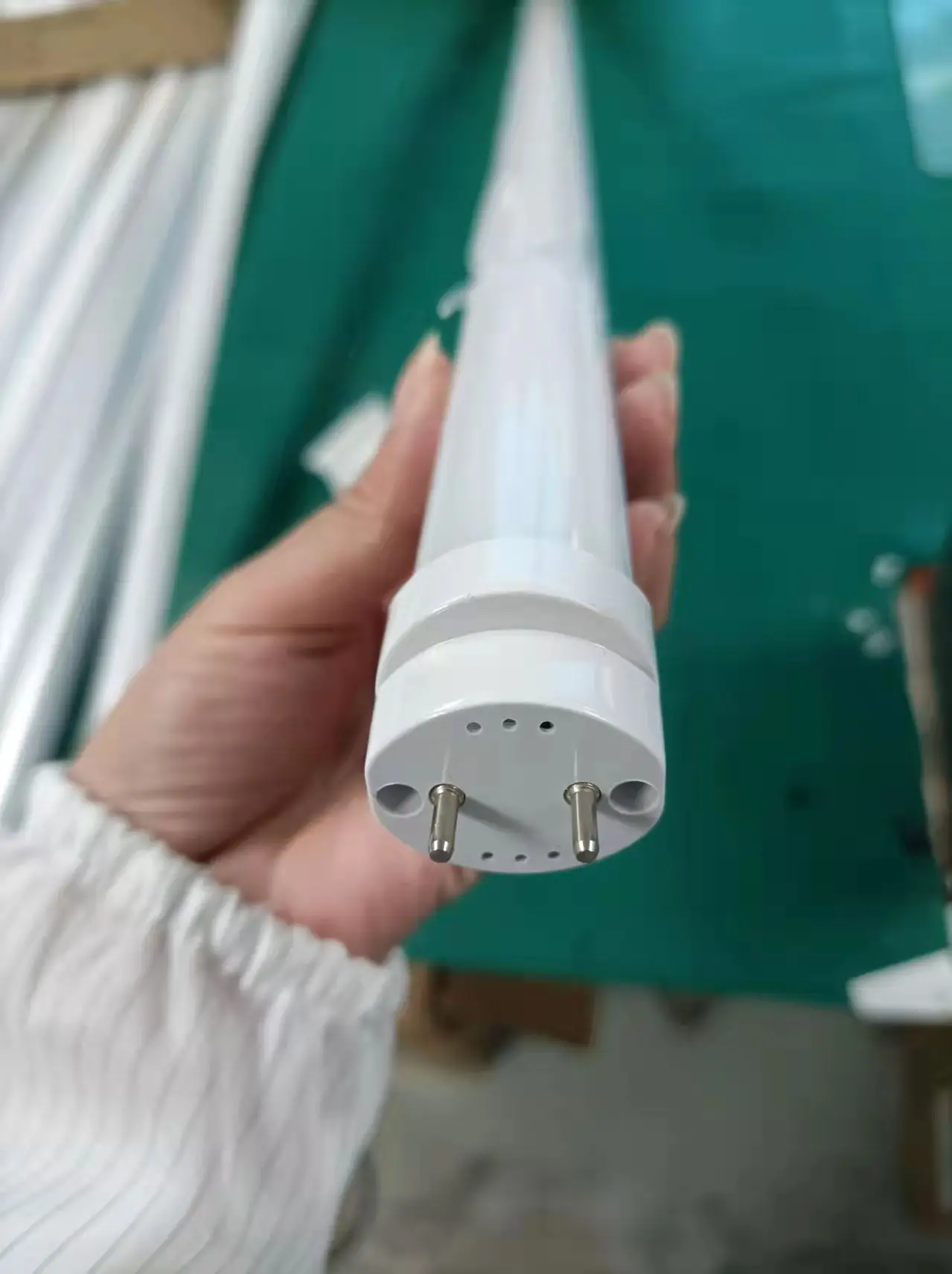

7. V0 fire-rated end cap
2. Ultra bright SMD2835 LED, high lumen outupts
3. 19mm PCB with 35um copper thickness and thermal conductivity 1.0, good for cooling
4. Ultra high efficiency driver, good for cooling and providing high efficiency light
5. 0.8mm thickness heatsinking, good for cooling
6. double isolatation protection for LED driver, prong the lifespan
7. V0 fire-rated end cap

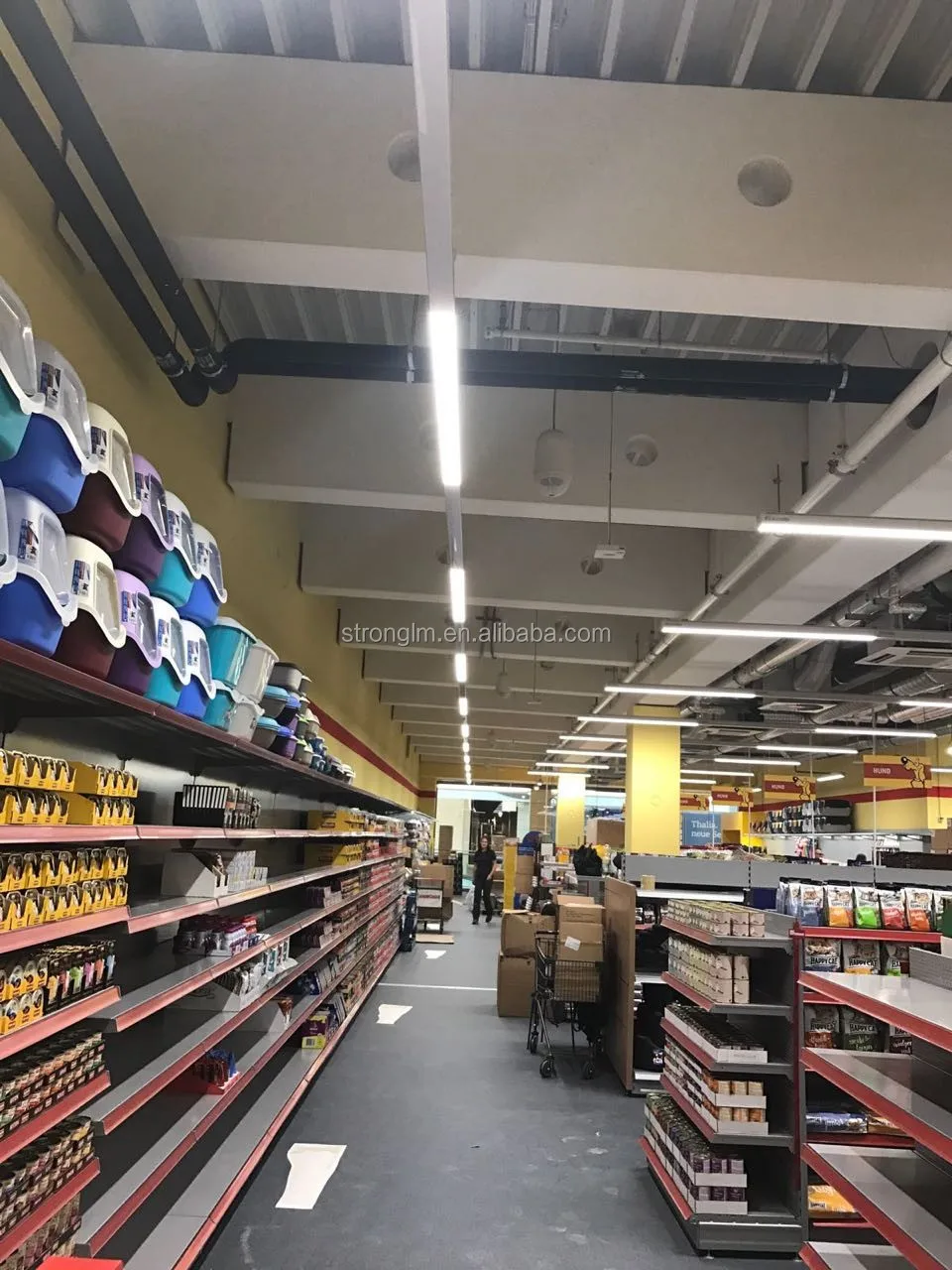

Application
Related Products

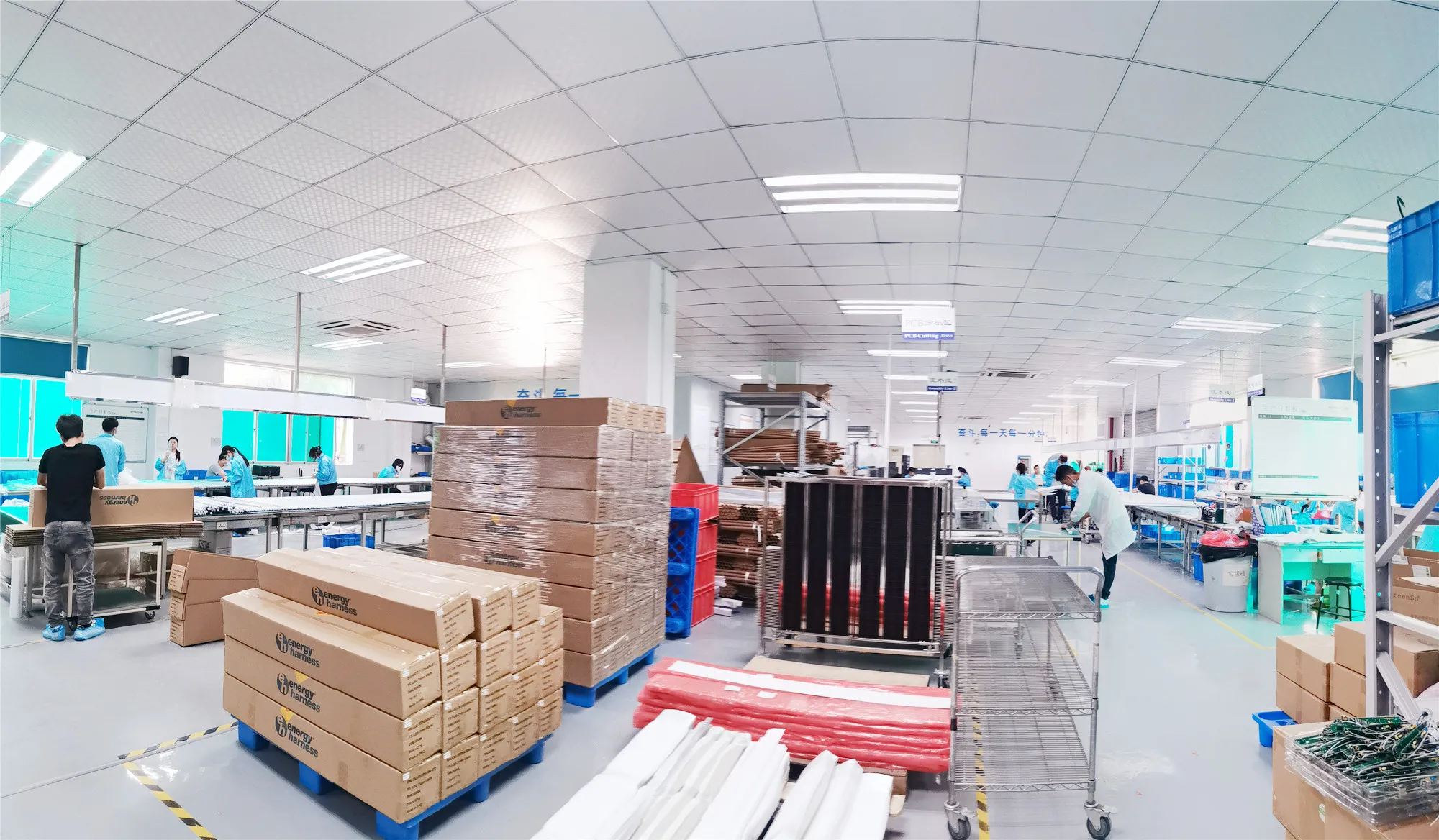

Company Introduction
Strong Lumen Opto Co.,Ltd, was established in 2008 in Shenzhen, specializing in high lumen output LED tube Light, LED panel Light, UFO LED Highbay light, which in compliance with standards of VDE, TUV, CE, SAA, UL, ETL, DLC, ROHS and are mainly exported to European and American markets more than 14 years.
Monthly capability:500,000PCs LED tubes, 30,000PCs UFO LED highbay lights, 50,000PCs LED panel lights.
ISO 9001:2014;
China National Hightech Enterprise;
China Enterprise Credit Grade AAA;
Shenzhen Top50 Innovative Enterprises
Shenzhen Top50 Innovative Enterprises
FAQ
1. Does your product really high to 175lm/w?
Yes, it's really up to 175lm/w, developed by our R&D Department 4 years ago, and has been sold to US, Canada, Netherlands,
Germany, France, Spain ect market already. We can send the IES file and datasheet if on need.
2. Can i use directly without doing anything? Like bypass the ballast? It's so difficult for me.
Yes you can use it directly, no need to do anything, just plug and play. It can bypass or compitable with the ballast, single or
double ended is ok. Easy installation and very connevient, most customers buy it in US, it's the best sales.
3.Does it have UL or DLC Listed?
Yes, it is approved UL & DLC listed, we already have customers selling there.
4. Can you send me a sample?
Yes, sample is available in 5-7days.
Yes, it's really up to 175lm/w, developed by our R&D Department 4 years ago, and has been sold to US, Canada, Netherlands,
Germany, France, Spain ect market already. We can send the IES file and datasheet if on need.
2. Can i use directly without doing anything? Like bypass the ballast? It's so difficult for me.
Yes you can use it directly, no need to do anything, just plug and play. It can bypass or compitable with the ballast, single or
double ended is ok. Easy installation and very connevient, most customers buy it in US, it's the best sales.
3.Does it have UL or DLC Listed?
Yes, it is approved UL & DLC listed, we already have customers selling there.
4. Can you send me a sample?
Yes, sample is available in 5-7days.
