Product Overview

Description





Type LD Workshop 5t 10 ton 16 ton 32 ton Electric Driving Motor Single Girder Overhead Travelling Lifting Bridge Crane EOT Crane
Single Girder Overhead Crane are mainly made up by main beams, end beams, trolleys, electrical parts and control rooms and other components.This type crane holds many characters of light structure, easy to install and maintain, widely used in plants,warehouses, material stocks to lift goods etc.

Overhead crane capacity: 0.5t~32t
Overhead crane span : 6m~31.5m
Overhead crane lifting height: 6m~30m
Overhead crane work duty:A3~A5
Overhead crane working temperature: -25℃ to 40℃
Overhead crane control method :Wireless remote control/Pendent control


Steel Mills
Material Workshop
Machinery and Equipment


Lift Heavy Objectes
Plant
Warehouse

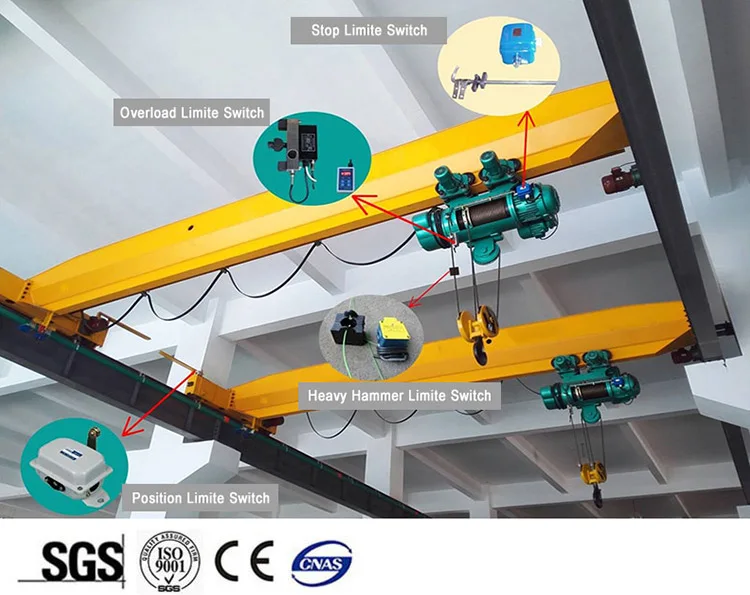

Overhead Crane Safety Device:
1. Weight overload protection system
2. Emergency stop system
3. Crane traveling limit switch
4. Voltage lower protection function
5. Current overload protection system




Advantage of Bridge Crane:
1.Cut Down Your Plant or Factory Building Investment.
2.Improve Your Production Efficiency, Create More Value for Your Investment.
3.Suitable different Operating Conditions, And Provide you One-Stop Solutions.
4.Compact Design, Low Headroom, Safety With High Performance.
5.Reduce Daily Maintenance, Easy Operation And Energy Saving.
6.Low noise, soft starting and stopping .


Main Girder
End Beam
CD/MD Hoist


wheel
Hook
Electric Cabinet/Slide Wire




Technical Parameter




Single Beam Overhead Crane
Capacity
t
1,2,3,5,10
16,20
Span
m
7.5-22.5
Lifting height
m
6,9,12,18,24,30
12,18,24,30


Speed
Lifting
m/min
8,8/0.8,7/07
3.5,3.5/0.35
Cross travel
m/min
20,30
20,30
Long travel
m/min
20,30,45,60,75
Electric hoist
type
CD/MD
CD/MD/HC
Working duty

A3
A3
Power supply
AC
380V/50HZ/3P
380V/50HZ/3P

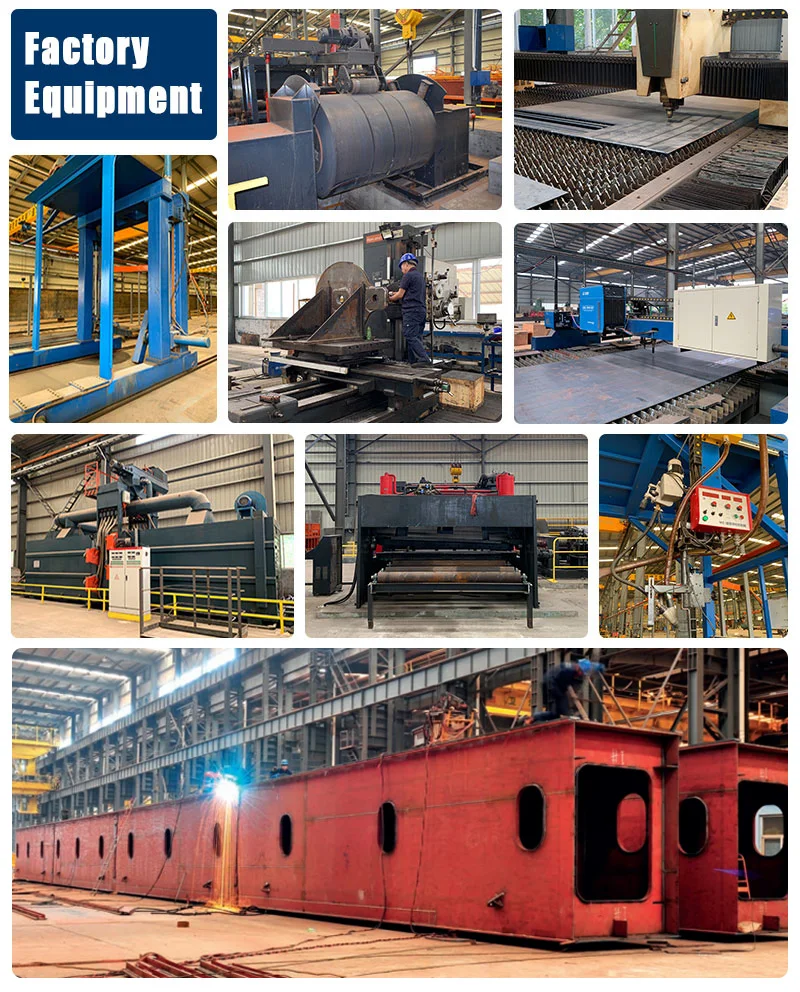

Machining Equipment




Certifications






Company Profile




Henan Chongpeng Machinery Co., Ltd
Henan Chongpeng Machinery Co., Ltd. mainly engaged in the research and development,design,manufacturing, installation, importand export business of various non-standard winches,kinds of industrial cranes and hoists.
To provide innovative, intelligent, green and environmentally friendly systemic complete equipment solutions as the starting point, take responsibility for the society, create profits for customers.


Packaging & Shipping

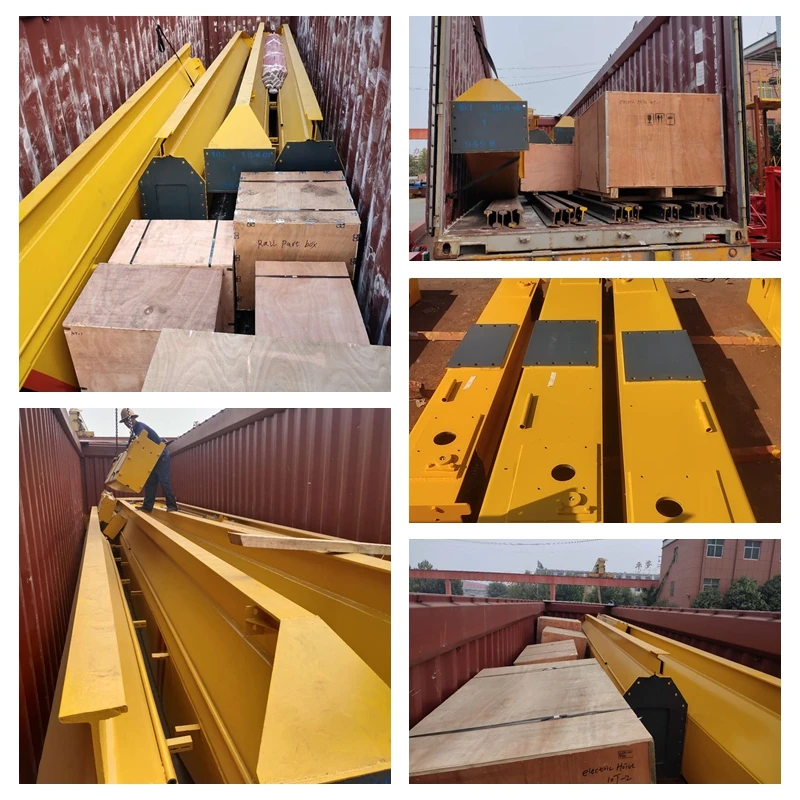

Product Packaging
1.Electric parts are packed by high quality plywood crate, to reduce distortion in conveying.
2.Crane beams and trolly/winch are packed bu plastic woven cloth can reduce abrasion.


Our Advantages
1.We can discuss details and solutions with you according to your needs, and produce high quality products suitable for you.
2.The company has professional business staff to answer your questions online 24 hours a day.
3.Perfect after-sales service, solve problems for you in time
4.Have a dedicated engineer to provide you with overseas guidance installation services.
5.We have trained service technicians who will be able to get your material handling equipment up and running , and have been providing our customers an effective service solution.


Recommend Products




FAQ




1. Q: What’s your MOQ?
A: 1 Set;

2. Q: What’s your delivery period?
A: Within 20-25 days after your prepayment received;

3. Q: What’s your warranty period?
A: 12 months from cranes accepted;

4. Q: Do you have engineer oversea installation service?
A: Yes; We have;

5. Q: Could we buy spare parts in local once they are out of work?
A: Our main electrical parts brand is Siemens or Schneider brand; it’s very easy to buy all the world. But if there is any
difficulty, we can post to you by express, such as DHL, UPS, FEDEX, Aramex, etc.

6. Q: What kinds of products do you have?
A: General Industrial material handing equipment,such as : Overhead Crane; Gantry Crane;Jib Crane; Electric Hoist; etc.
