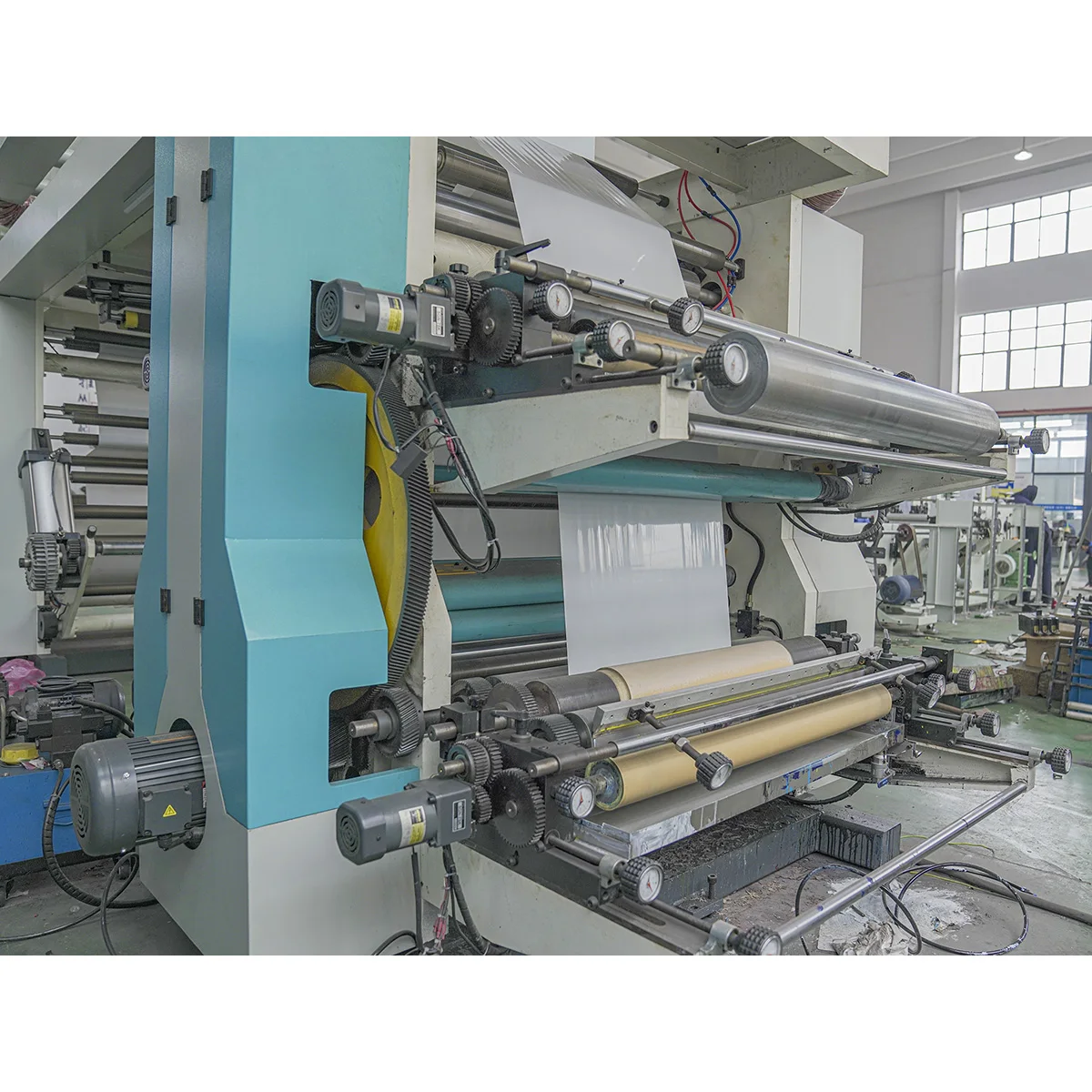

4 Colors 1000mm Improved Stack Flexographic Printing Machine Roll Paper Flexo Printing Machine
- Category: Printing Machine >>>
- Supplier: Hangzhou Xianghuai Machinery Technology Co. Ltd.
Share on (11000002800582):
Product Overview
Description
Product Description
Product Name:4 Colors 1000mm Improved Stack Flexographic Printing Machine Roll Paper Flexo Printing Machine
This is an improved stack type, adopting the CI central big gear to drive the whole 4 printing units to acheive a better color register; the drying unit uses hot air drying with electrical heating to have a quick and efficient drying on the material. It is suitable for various kinds of soft packing materials such as roll paper, plastic film, non-woven, etc.
Max width of material: 1000mm;
Printing color:1-4
Printing length:250mm-900mm
Manual Color register at ±0.20mm;
Max Printing Speed 100m/min(based on different materials and printing process);
Unwinding: single one, pneumatic auto loading; magentic powder control;
EPC and tension control

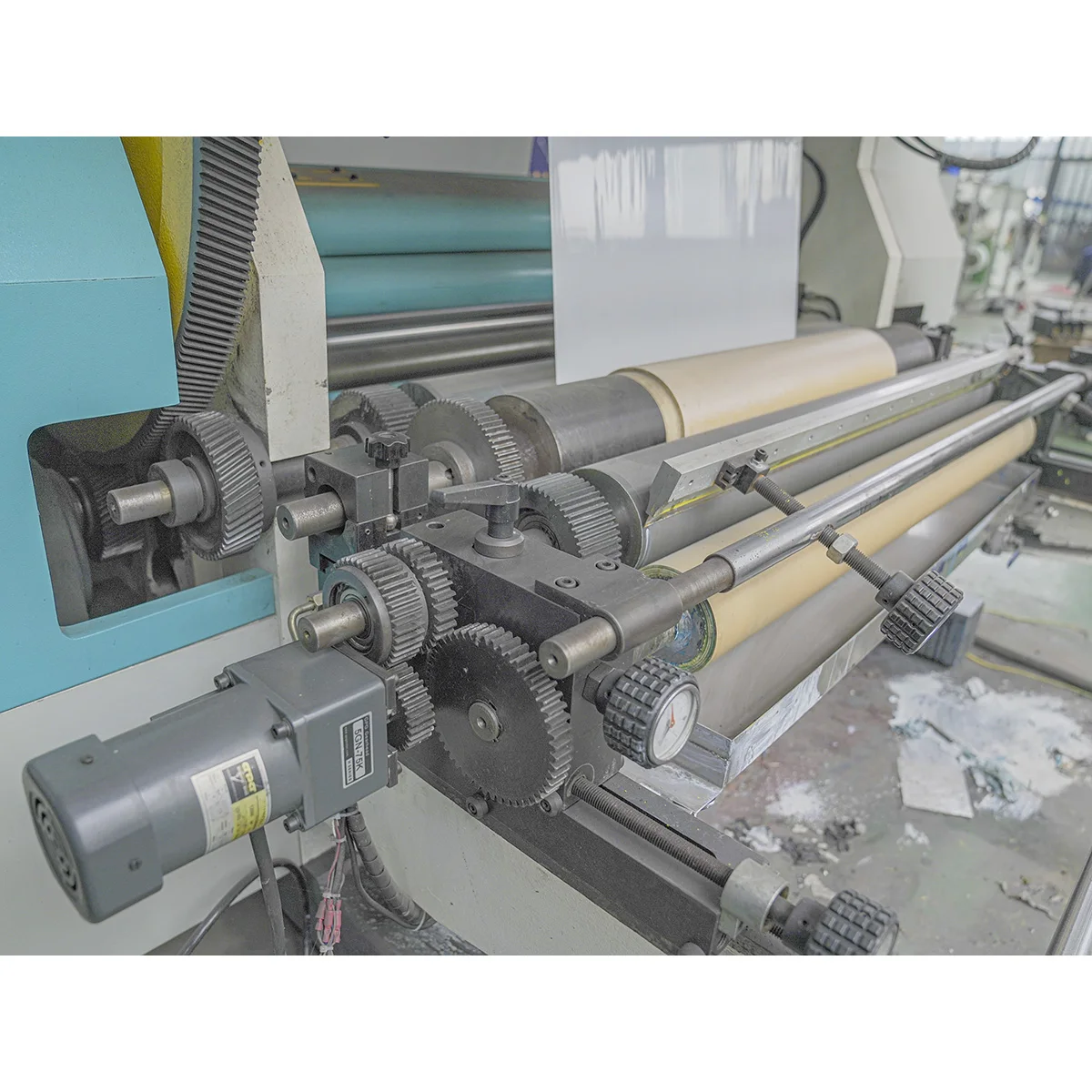

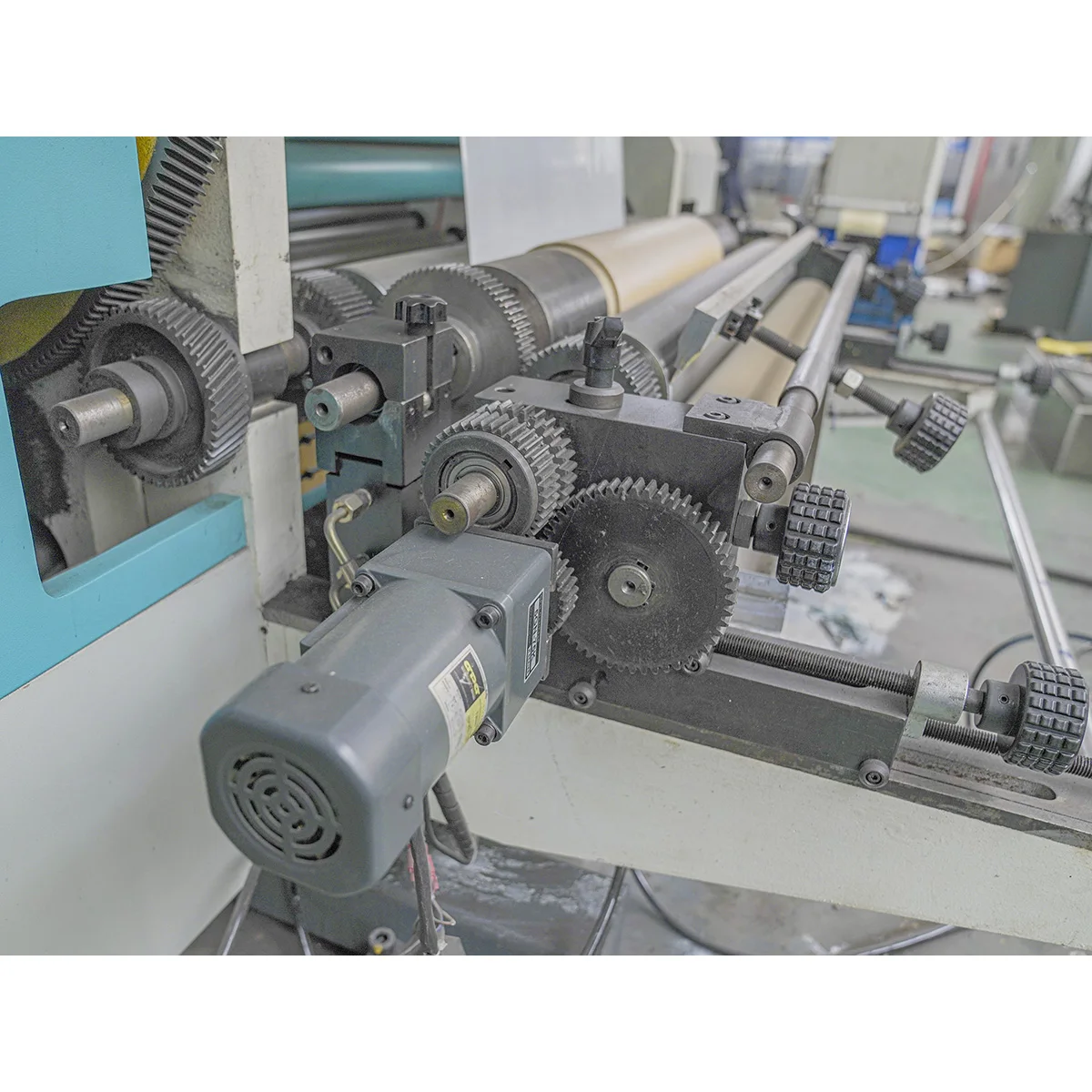

Printing units: big gear drive, 4 pcs shaft type plate rollers, 4 pcs cermamic anilox rollers, 4 pcs of enclosed doctor blade chambers; auto ink supply by membrane pumps;
Central drying system on top(hot air drying);
Rewinding: single station, manual loading; magetic powder control;
PLC and HMI(Siemens)
Model: | XHYT-H-41000mm |
Printing Color: | 4 Colors |
Max. Width of Material: | 1000mm |
Max. Width of Printing: | 960mm |
Max Roll Diameter | 1000mm |
Length of Printing: | 250mm-900mm |
Machinery Speed: | 10-120m/min |
Printing Speed: | 10-100m/min |
Register Precision: | Transverse:+-0.20 Longitude:+-0.20 |
Thickness of Plate | 1.7mm |
Anilox Roller: | Ceramic anilox roller |
Heating Power: | 30KW |
Total Power: | 42KW |
Power: | Voltage:380V,3PH,50HZ |
Simple Pictures
Plastic Film Printing Effect
Non Woven Fabric Printing Effect
Paper Printing Effect
Certifications
 |  |
 |  |
Packaging & Shipping
After Sales Service
Company Information
Hangzhou XiangHuai Machinery Technology Co., LTD. was founded in 2008, is a science and technology enterprise specialized in the production of flexible packaging equipment and related equipment, R & D, manufacturing flexographic printing machinery and equipment. Our company’s main products are: roll paper printing machine, four-color printing machine, paper printing machine, woven bag printing machine, printing machine, garment printing machine, heat transfer machine, garment printer, and related equipment etc. At present, our products have been widely used in printing, packaging, pharmaceutical and other related industries, the products are sold throughout the country and exported to the United States, Canada, Russia, Argentina, India, Brazil, Egypt, South Africa, Southeast Asia, dozens of countries and regions.
The company since its inception, and constantly improve the process equipment, technical team has continued to grow, with independent research and development, the printing industry related equipment independent design, manufacturing and installation debugging capabilities, access to the domestic and foreign customers praise. Customer service customer service based on the needs of the company established a perfect customer service platform technology consulting service system, welcome to cooperation with us!
FAQ
Q:Can your products be customized?
A:Almost all of our machines can be customized,including the size, color,logo, package and so on.
Q: I need a quotation/How much is your price?
A: Please tell us your materials, width of your material, how many colors do you need.
Then we will know which machine is suitable for your and suggest the right machine for you.
Q: What's your delivery time?
A: Usually finish the production within 30 workdays(for normal stack type machine) and 90~120 workdays(for CI type machine) after your 30% advanced payment.
Actually need to check according our stock & production plan.
Q: How to get machine's price?
A: Please provide follows informations:
(1) How many colors you need to print?
(2)Material width and effective print width.
(3)What material to print?
(4)The photos of printing sample quality.
Q: How long is your machine's warranty period?
A: All our machine have one year guarantee, starting from finished installation.
Q: How could we do if the parts broken within warranty?
A: We would express the free replacement parts during the warranty date.
