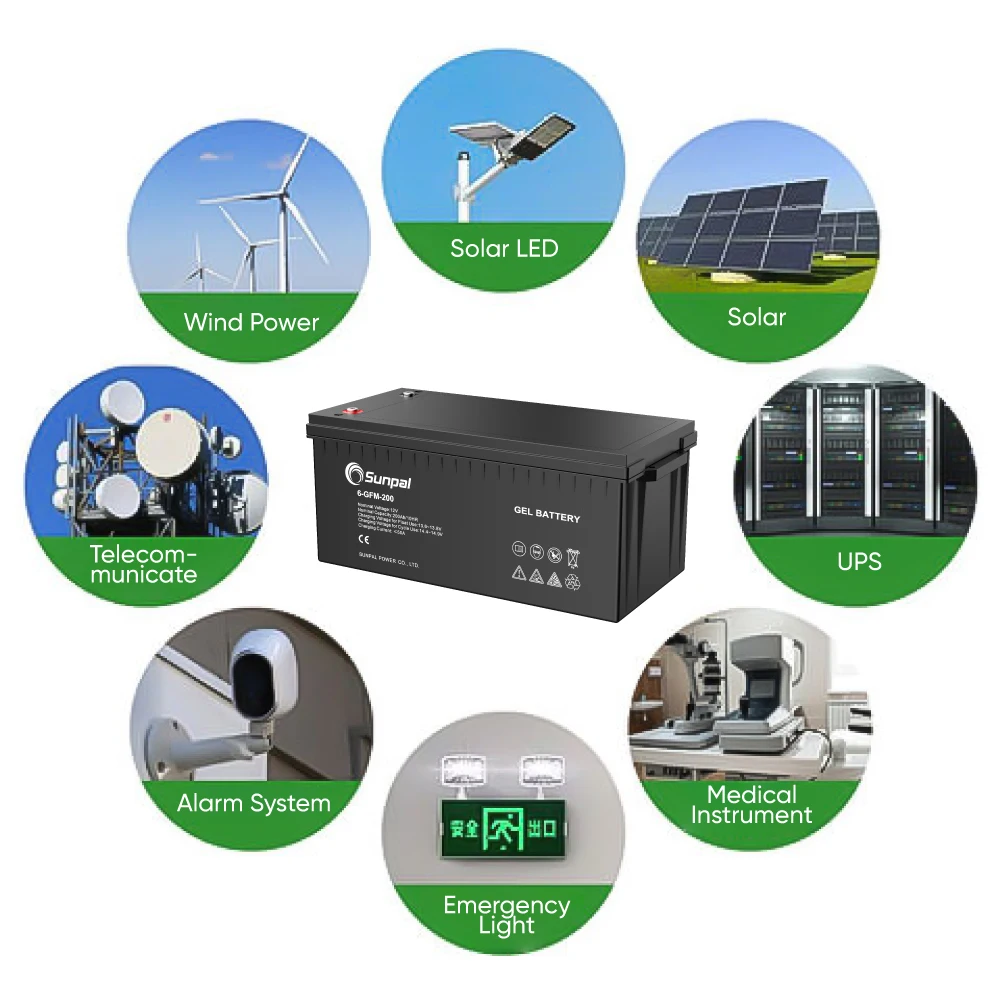

Sunpal Lead Acid Gel Batteries 12V 200ah 100ah 150ah 250ah Rechargeable Solar Gel Battery For Eenergy Storage System
- Category: >>>
- Supplier: Sunpal Power Co. Ltd.
Share on (11000002821583):
Product Overview
Description
Product Description

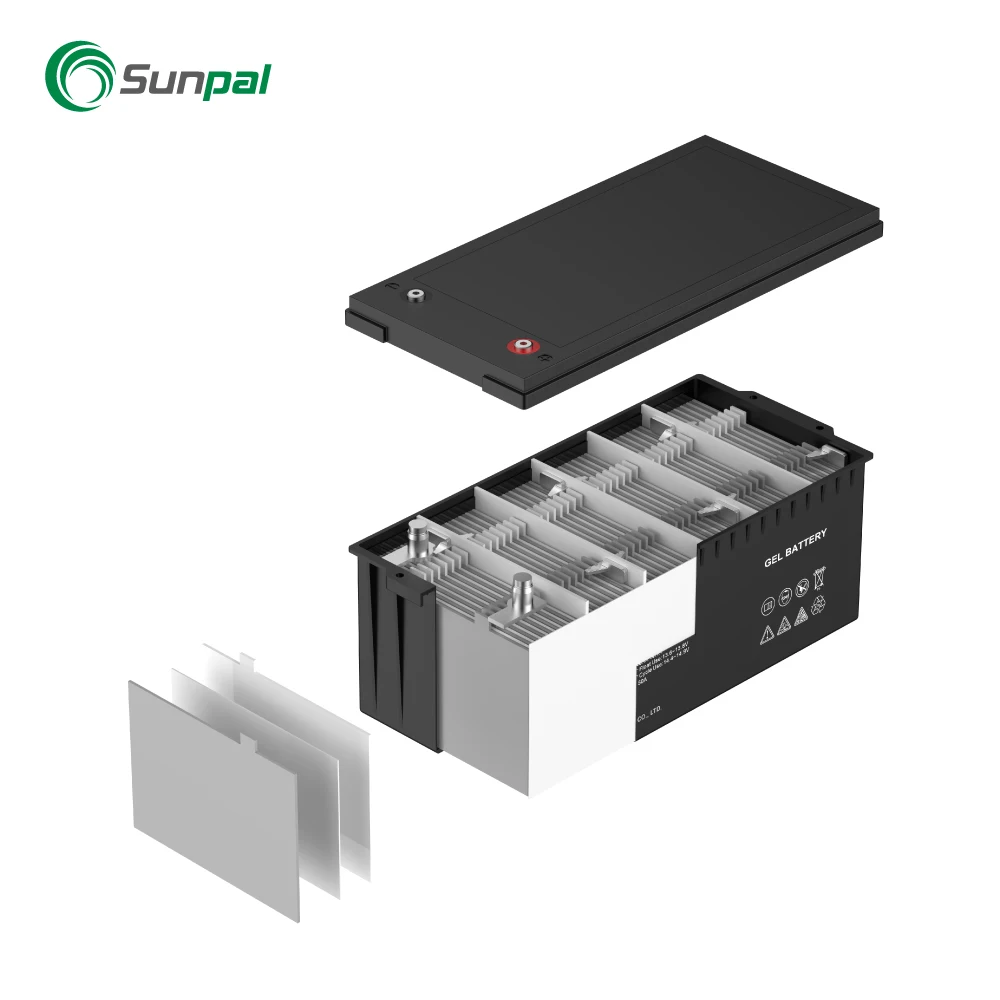

A gel battery is wholly enclosed and doesn’t need repairs.It contains electrolytes in a liquid condensed with silicone filler to form a gel. The electrolyte density and voltage decrease because the charge comes from a charged source,similar to acid batteries.Gel batteries also have a valve-regulated power source,are super strong,have a wide range of uses,generate negligible emissions,and may be used in areas with limited ventilation.
MODEL TYPE | 6-GFM-200Ah |
Rated Voltage | 12V |
Numbers of cells | 6 Cells |
Capacity | 200Ah@10hr-rate to 1.80V per cell @25°C |
Weight | 62.4kg |
Size | 522*240*223mm |
Internal Resistance | Approx. 3.5mΩ |
Terminal | F1 / F2 |
Max. Discharge Current | 3000A(5s) |
Short Circuit Current | 10000A |
Max. Charging Current | 50A |
Reference Capacity | C10 200.0AH C3 144.7AH C1 110.1AH |
Design Life | 10~15 years |
Float Charging Voltage | 13.6 V~13.8 V @ 25°C Temperature Compensation: -20mV/°C/Cell |
Cycle Use Voltage | 14.4 V~14.9 V @ 25°C Temperature Compensation: -30mV/°C/Cell |
Operating Temperature Range | Discharge: -20°C~60°C Charge: 0°C~50°C Storage: -20°C~60°C |
Normal Operating Temperature Range | 25°C±5°C |
Self Discharge | Less than 3% at 25°C per month |
Container Material | A.B.S. UL94-HB, UL94-V0 Optional |

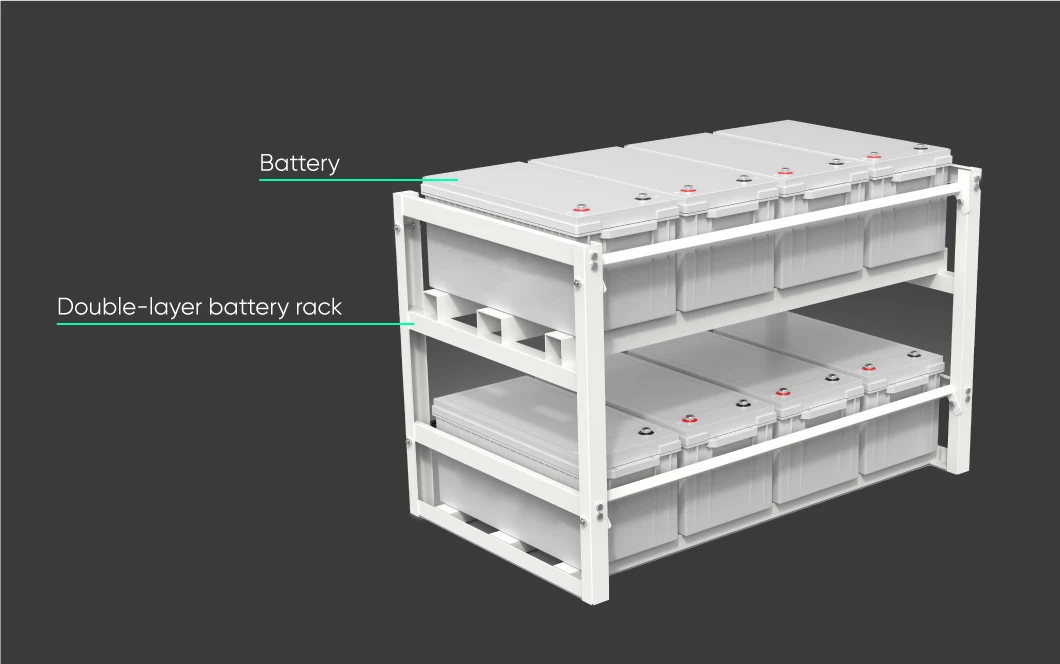

Steel mounting rack for gel batteries, the rack is made of steel, it is ideal to accommodate two rows of 4 batteries of GEL technology. Compatible batteries 48V system.
OEM&ODM Services

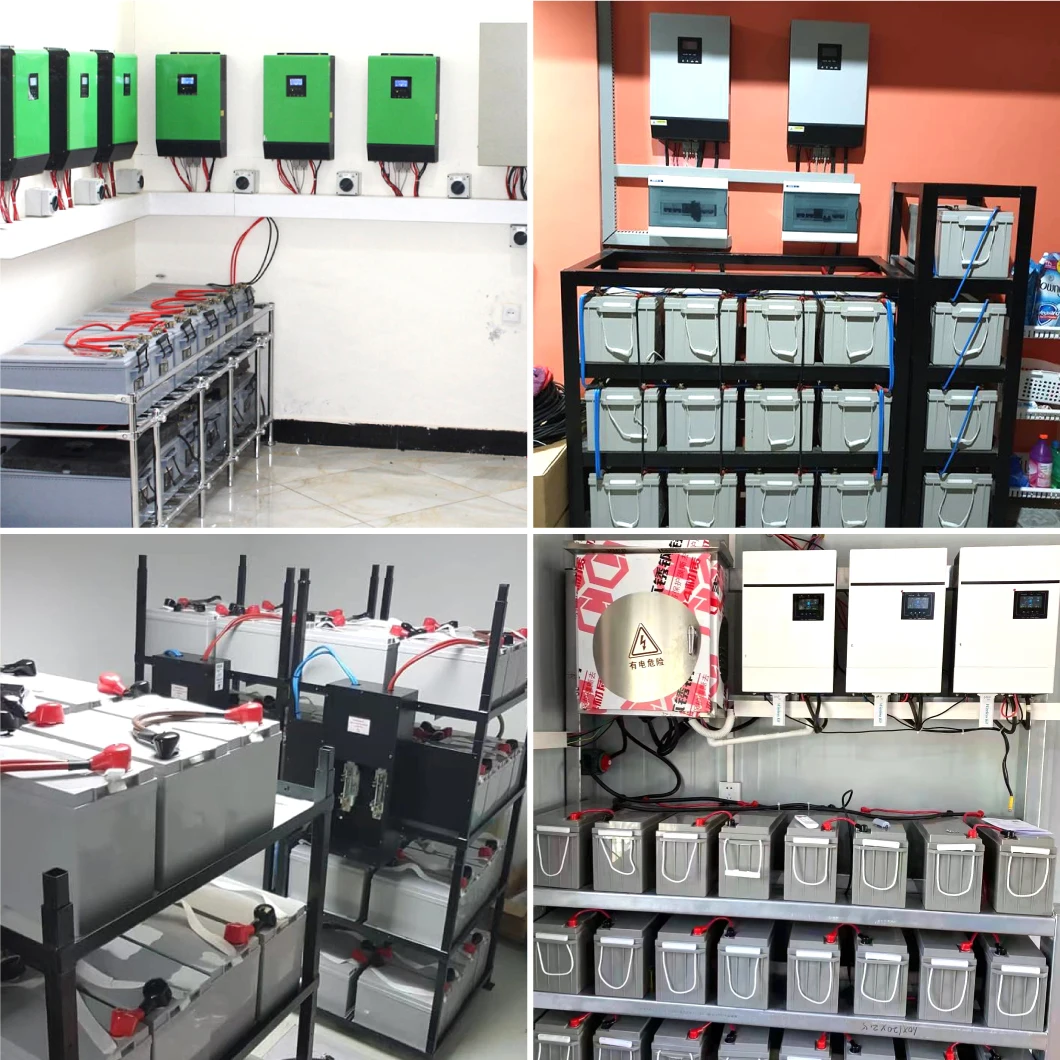

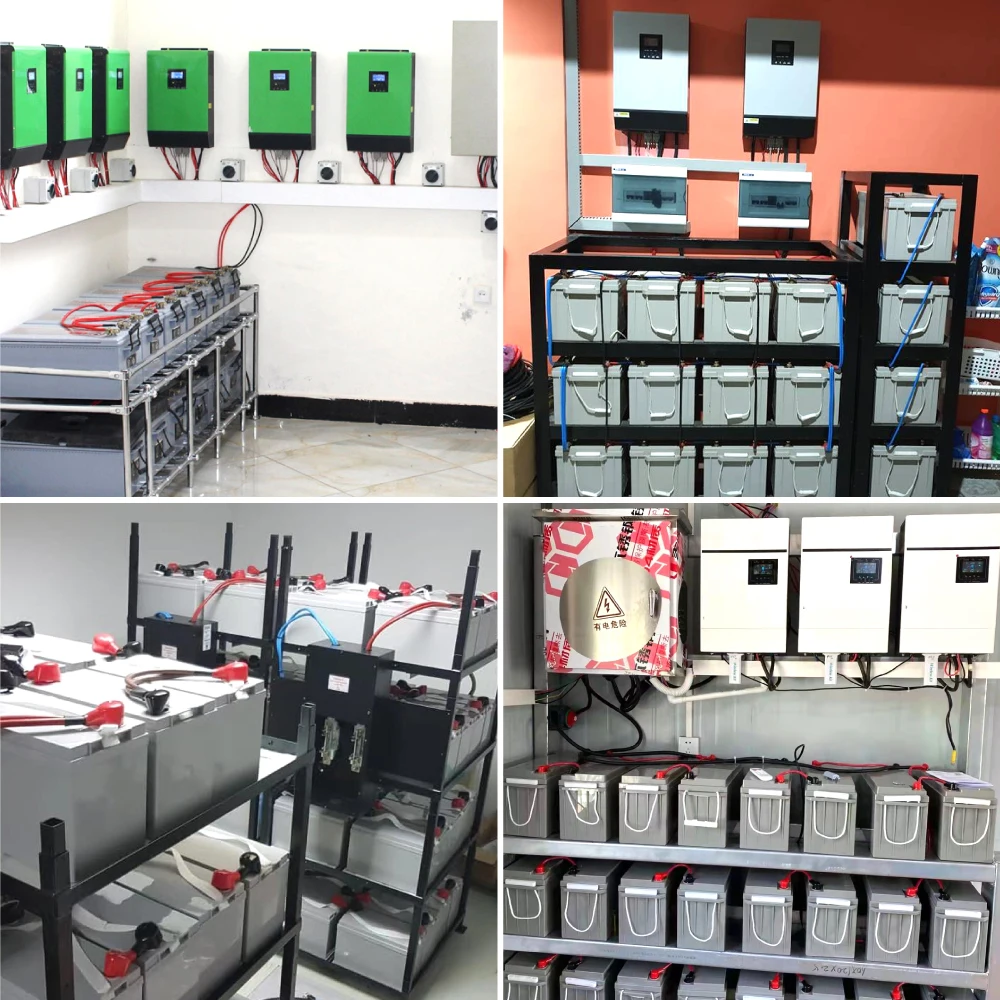

Global Project Case
