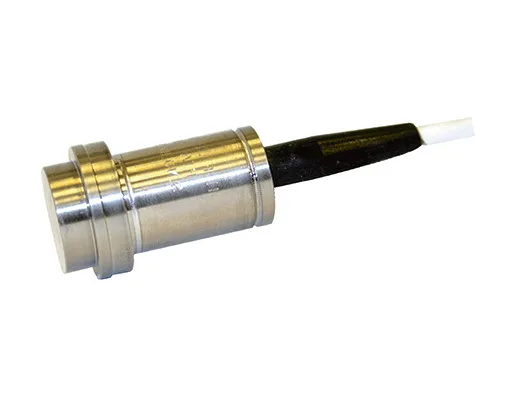

Compact, small, universally applicable, flush mounted diaphragm, made of titanium, not magnetic

This transducer can be used anywhere thanks to its small size. Designed to work without a measuring chamber (uses a flush front diaphragm instead), this transducer is ideal for any measurements where the material to be measured may leave problematic residues. The range of suitable applications is even greater thanks to a choice of screw-on or weld-on adapters.

Areas of use:
Bottling plants, food industry
Mixing facilities for the chemicals industry
Pharmaceuticals
Cosmetics industry
Bioengineering
These miniature pressure transducers are made entirely of titanium and therefore have outstanding resistance to corrosion. These convert the pressure-induced deflection of the diaphragm into a change in electrical resistance, which can be amplified, measured and processed by external electronic circuitry.

The transducers come in a choice of measuring ranges: up to 20 bar for measurements with respect to atmospheric pressure, or a range of 50 bar and above for measurements with respect to a sealed atmosphere.

FEATURES:
Measuring ranges between 0 ... 5 bar and 0 ... 1000 bar
Accuracy < 0.5 %
Flush mounted diaphragm
Made of titanium
Not magnetic
Protection class IP67

Characteristics:

Pictures:
