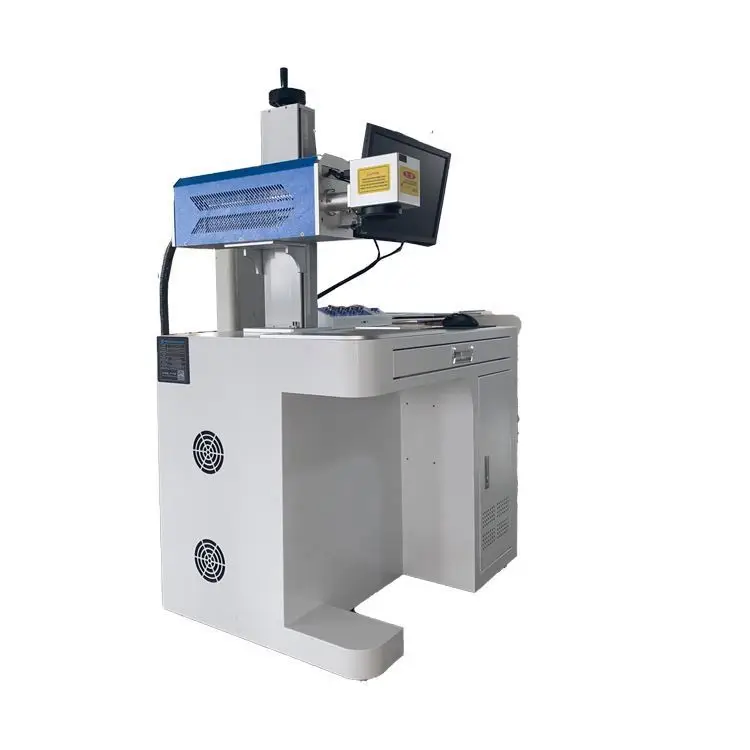

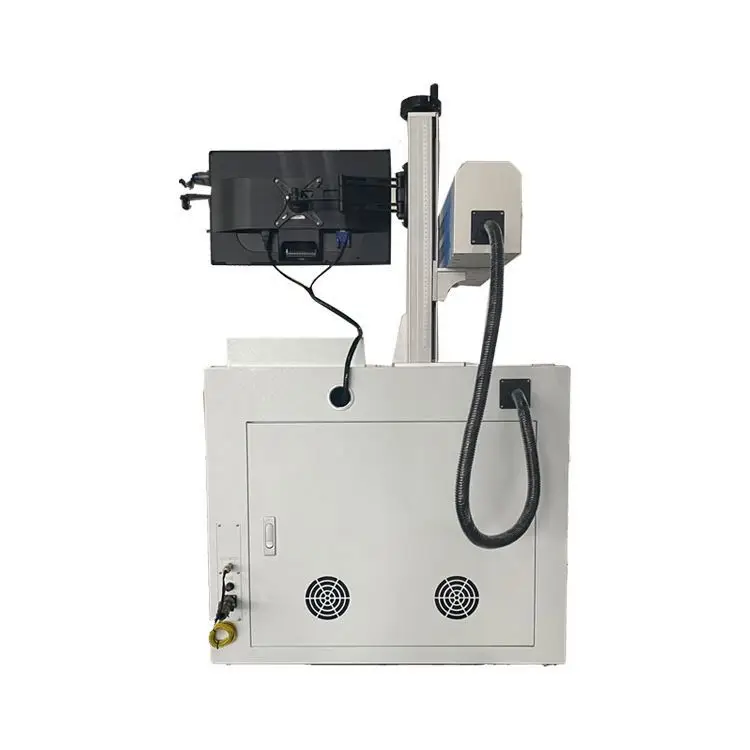

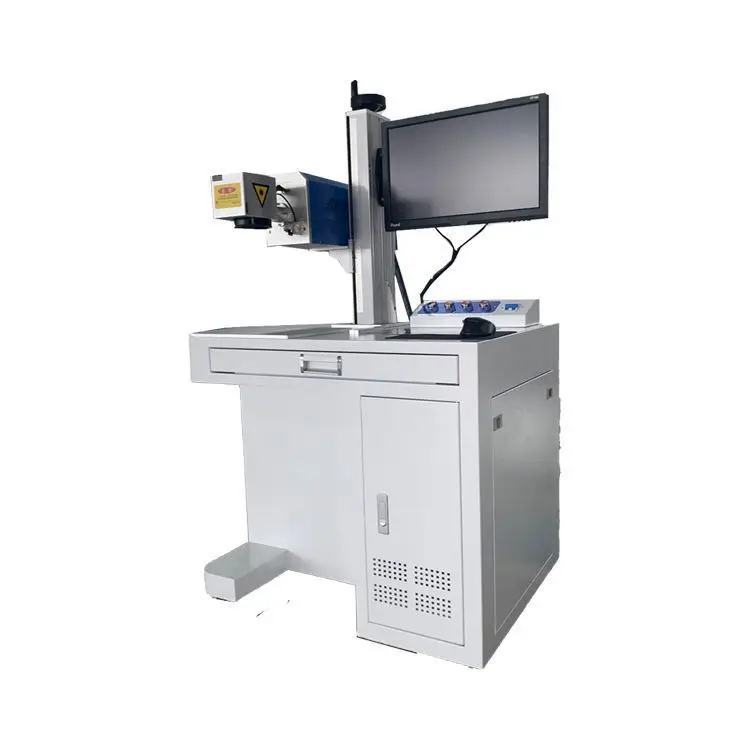

2022 Hot Sales High Speed Flying Laser Marking Machine For Nut
- Category: >>>
- Supplier: Zhangjiagang Kingmilan Delong Machinery Co. Ltd.
Share on (11000002838420):
Product Overview
Description
Product Details

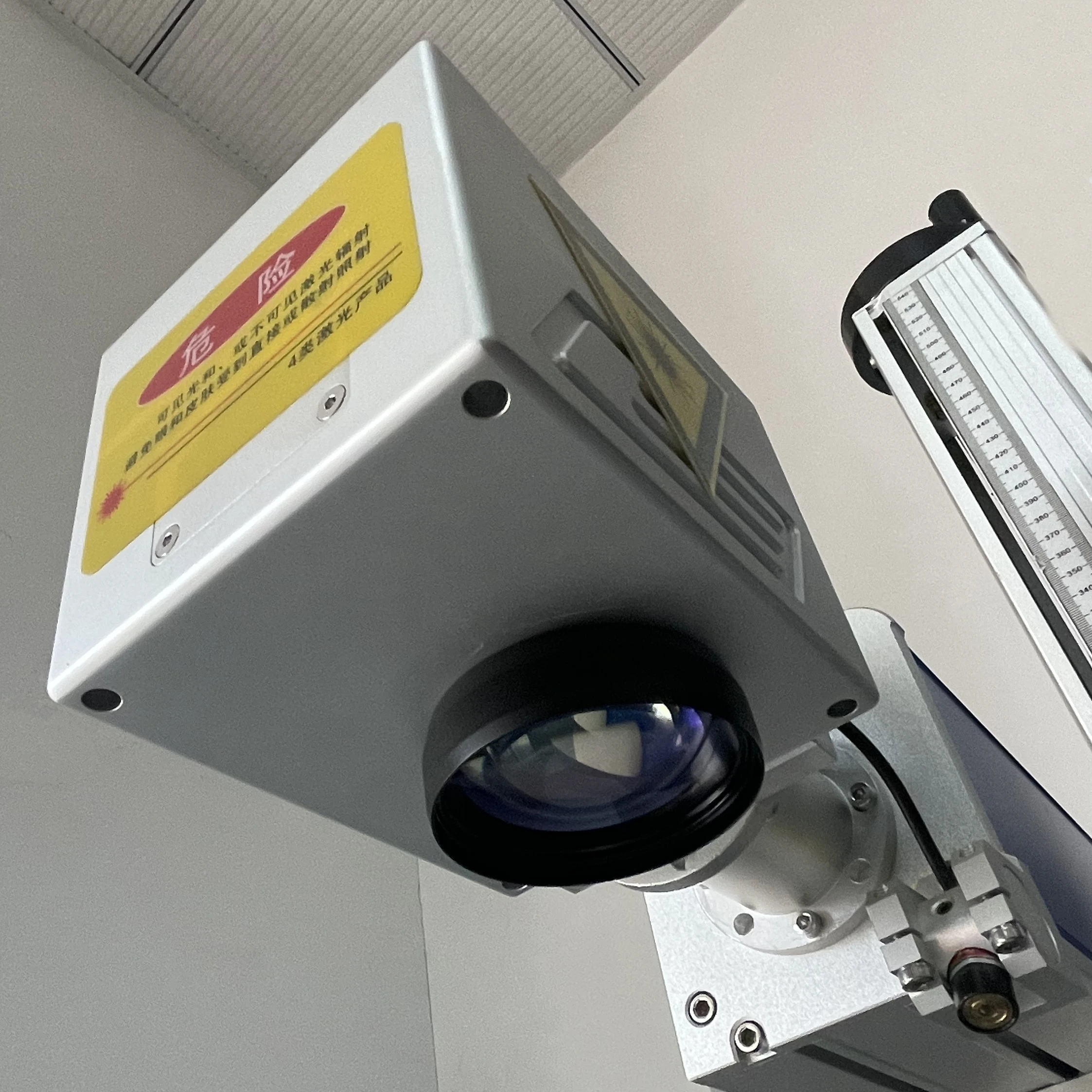

The galvanometer is an important factor in determining the marking quality. We use high-quality galvanometers to ensure the marking effect.
Raycus laser source
Domestic famous brand laser has the advantages of high electro-optic conversion efficiency (> 40%), good beam quality, high energy
density, wide modulation frequency, strong reliability, long service
density, wide modulation frequency, strong reliability, long service
Professional control software
Support two axis mobile marking, rotary marking Support high precision correction Supports 8 input and 8 output IO ports Support WinXP win7 win8 win10 32 / 64 bit system
Support software secondary development
Safe Power
Adopt safe power supply to make the machine run more stably and improve the efficiency of your production line output.
Features
1. Economic, with high performance cost ratio;2. High performance and stability;
3. High speed, efficiency and accuracy;
4. High optical quality and small light spot;
5. Advanced software and be compatible with mass production.
Configuration
1. Fully enclosed design, RAYCUS laser source;
2. Power 20W/30W/50W/100W/150w;
3. Marking area 110*110-330*330mm or to be customized;
2. Power 20W/30W/50W/100W/150w;
3. Marking area 110*110-330*330mm or to be customized;
4. Well-known and high-quality components can be optional.
If you want to know more details about KingMilan laser machines, welcome to send us an inquiry now~
Product Parameters
SPECIFICATIONS | ||
Laser Type | Fiber/ Co2/ UV | |
Laser Wavelength | 1064nm | |
Beam | ＜1.4M² | |
Laser Power | 20W/30W/50W | |
Cooling Method | Air cooling | |
Marking Area | 110mm×110mm/175mm×175mm | |
Focal Distance | 170mm | |
Min Line-width | 0.02mm | |
Min Character | 0.2mm | |
Marking Speed | 0-7000mm/s | |
Graphic Format Supported | BMP, PLT, AI, DXF etc. | |
Voltage | AC220V±10% | |
Frequency | 50Hz/60Hz | |
Machine Dimension | 750mm*600mm*1270mm | |
Machine Weight | (About) 80Kg | |
Work Environment | Temperature: 0~45°C; Humidity: 5%-95% non-condensing water, no dust or dust less temperature | |
Power | 1KW | |
Class of Safety Protection | IP54 | |
Laser Safety Level | level 4 | |
Adjustable Height Direction | 0-450mm | |
Front and Back Adjustable Distance | 0-250mm | |
Marking Angles | 0°，45°，90°，180° | |
Applicable Materials
Customer Feedback
Company Profile
Kingmilan
• KingMilan is a globally active machinery corporation, dedicated to the research and development of high-end laser solutions and intelligent robots.
• KingMilan laser has been actively cooperating with well-known enterprises and scientific research institutions at home and abroad. The company provides customers with high-quality products and comprehensive services, and can timely customize non-standard personalized equipments for customers according to customer needs.
• We are proud to provide support and solutions to more than 100 customers in 25 countries around the world, such as Russia, Australia, Turkey, Mexico, Chile, Brazil, India, Vietnam, Malaysia, Saudi Arabia, Egypt, etc. All of them are quite satisfied with our quality and after-sales service.
Why Choose Us
Our Service
* 24 hours online services through Whatsapp, Skype, Email or on the phone;* Friendly English manual and videos for machine using and maintaining
* 2 years guarantee of the machine and we give lifetime maintenance;
Product Quality
* In the processing of production, our professional technical engineers inspect the processing to ensure the quality of products;
* Machine has been adjusted before delivery. Every machine must be tested before delivery for 8 hours , all of them are absolutely qualified.
Certifications
FAQ
Q: What is the your warranty?
A: Two years. We seriously do as we said. No words games.
Q: What is your delivery time?
About 45-55days after we receive the prepayment.
Q: How can we guarantee quality?
A: Always a sample testing here for customer checking the machine status and quality; Always final Inspection before shipment.
Q: What is your shipping terms and payment terms?
A: Shipping terms: FOB, CIF, DDU；
Payment terms: T/T, L/C, PayPal, Western Union;
Currency: USD, RMB.
Q: How to install and run the machine?
A: The machine has been installed before shipping. For some small parts installation, we will send detail training video, user's
manual along with the machine. If you still have questions, we can talk by phone, Skype and E-mail.
Q: If some problems happen to this machine during warranty period, what should I do?
A：During the warranty period, we provide parts replacement or maintenance service, and professionals provide 24 hours online
technical support. Any question, please let us know in time, we will give you solutions.
IF YOU WOULD LIKE TO KNOW MORE INFORMATION ABOUT US, PLEASE DO NOT HESITATE TO CONTACT US
A: Two years. We seriously do as we said. No words games.
Q: What is your delivery time?
About 45-55days after we receive the prepayment.
Q: How can we guarantee quality?
A: Always a sample testing here for customer checking the machine status and quality; Always final Inspection before shipment.
Q: What is your shipping terms and payment terms?
A: Shipping terms: FOB, CIF, DDU；
Payment terms: T/T, L/C, PayPal, Western Union;
Currency: USD, RMB.
Q: How to install and run the machine?
A: The machine has been installed before shipping. For some small parts installation, we will send detail training video, user's
manual along with the machine. If you still have questions, we can talk by phone, Skype and E-mail.
Q: If some problems happen to this machine during warranty period, what should I do?
A：During the warranty period, we provide parts replacement or maintenance service, and professionals provide 24 hours online
technical support. Any question, please let us know in time, we will give you solutions.
IF YOU WOULD LIKE TO KNOW MORE INFORMATION ABOUT US, PLEASE DO NOT HESITATE TO CONTACT US
