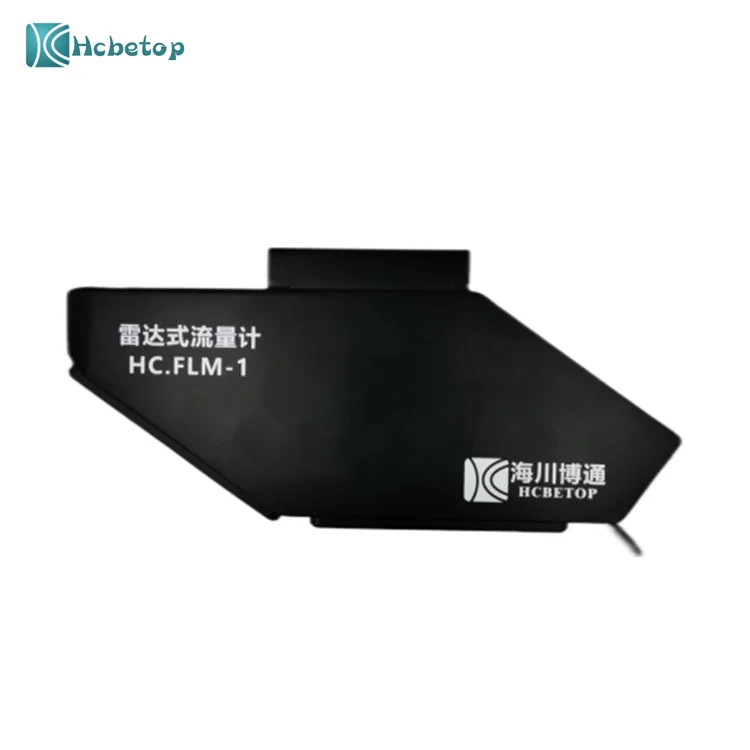

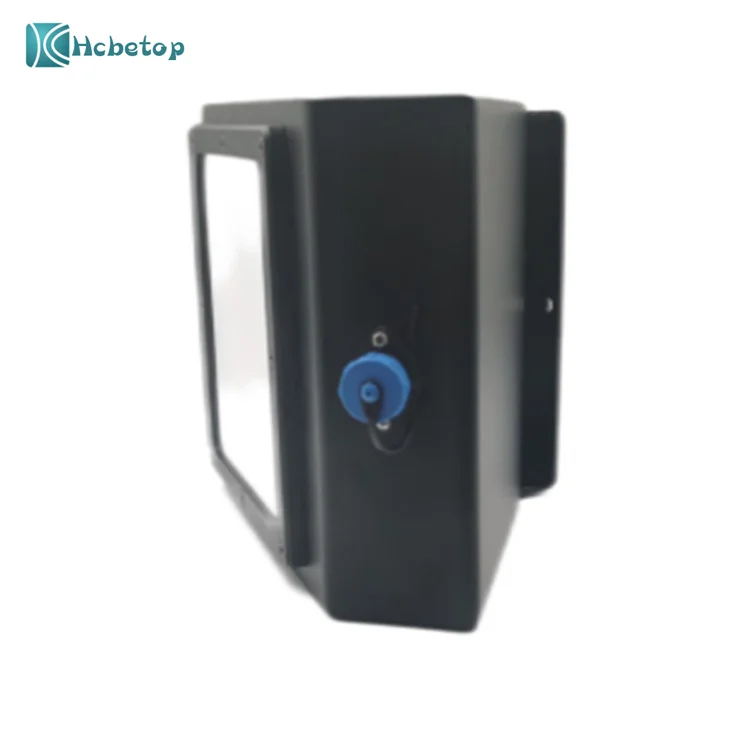

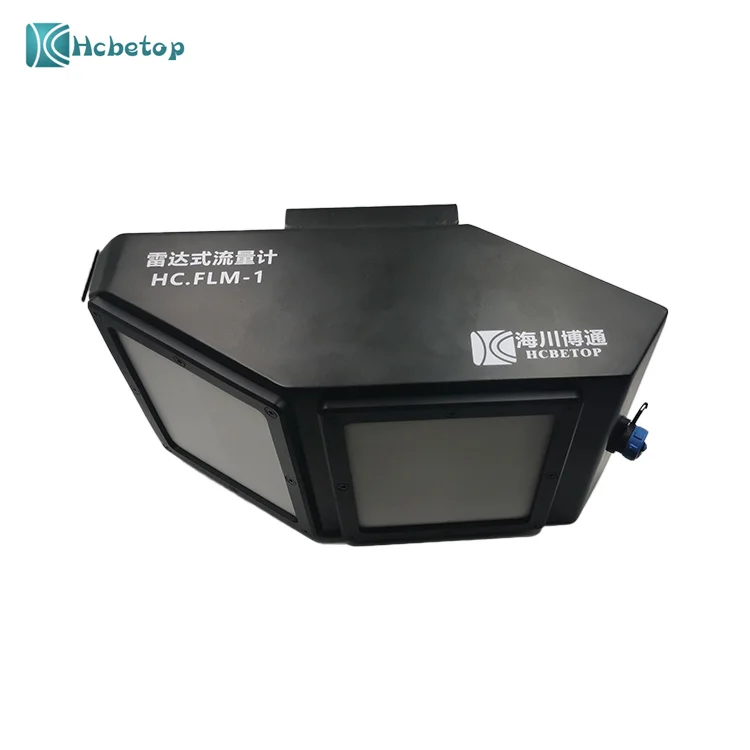

Radar Water Flow meter (HC.FLM-1)
Product introduction
222
HC.FLM-1 is a fully automatic flow meter based on microwave technology. It uses advanced K-band planar 24Ghz radar technology to measure the flow velocity and water level of the water in a non-contact manner. According to the built-in software model and algorithm, it calculates and outputs real-time cross-section instantaneous flow and cumulative flow.
Radar flow meter can be used in rivers, irrigation channels, reservoirs and underground drainage pipes. Non-contact flow measurement is carried out on occasions such as network and flood prevention warning.
Measuring Principle
Measuring principle：
Velocity: \\uD835\\uDC49 = \\uD835\\uDC360∙\\uD835\\uDC53\\uD835\\uDC51 /2∙\\uD835\\uDC53\\uD835\\uDC47\\uD835\\uDC65∙\\uD835\\uDC50\\uD835\\uDC5C\\uD835\\uDC60\\uD835\\uDEFC
\\uD835\\uDC53\\uD835\\uDC51：Doppler frequency；\\uD835\\uDC53\\uD835\\uDC47\\uD835\\uDC65：emission frequency（24G）；\\uD835\\uDC360：the speed of light；\\uD835\\uDEFC：install angle
Radar Level: \\uD835\\uDC37 = \\uD835\\uDC3602∙\\uD835\\uDC61
\\uD835\\uDC360：the speed of light；\\uD835\\uDC61：time
Velocity: \\uD835\\uDC49 = \\uD835\\uDC360∙\\uD835\\uDC53\\uD835\\uDC51 /2∙\\uD835\\uDC53\\uD835\\uDC47\\uD835\\uDC65∙\\uD835\\uDC50\\uD835\\uDC5C\\uD835\\uDC60\\uD835\\uDEFC
\\uD835\\uDC53\\uD835\\uDC51：Doppler frequency；\\uD835\\uDC53\\uD835\\uDC47\\uD835\\uDC65：emission frequency（24G）；\\uD835\\uDC360：the speed of light；\\uD835\\uDEFC：install angle
Radar Level: \\uD835\\uDC37 = \\uD835\\uDC3602∙\\uD835\\uDC61
\\uD835\\uDC360：the speed of light；\\uD835\\uDC61：time
Feature
1. Based on the radar working theory of 24GHz (ISM standard wave range ) speed detector.
2. CW horizontal microstrip radar non-contact detecting,which can be reliably working whole day.3. Also suitable for the flood period high speed ambient.
4. High accuracy with the horizontal angle auto-completion function.
5. The data communicating interface can be customized.
6. Low power consumption,waterproof and lightingproof design,suitable for all kinds of wide environment.
7. Compact design,easy to be installed and maintained.
8. Can be directly linked to the running equipment of city regime,pollution drainage and environment auto monitoring.
Specification
Parameter | Description | ||||||
Supply voltage | 8 ~ 16VDC (or 5V) | ||||||
Quiescent current | ≤1mA (12V) | ||||||
Operating current: | ≤100mA (12V) | ||||||
Level Measuring Range: | 0m~ 30m; 0m~ 70m | ||||||
Level Accuracy tolerance : | ±3mm (option ±1cm) | ||||||
Level Resolution: | 1mm | ||||||
Level Radar frequency: | 26GHZ | ||||||
Level Radar Antenna Type: | Planar Micro Strip array antenna ( Plate type) | ||||||
Level Radar Antenna structure: | Seal. Proof dew and condensationg / HART | ||||||
Level Wave angle: | 12℃X12℃ | ||||||
Speed measuring range | 0.15 ~ 15 m/s | ||||||
Flow Accuracy tolerance | ±0.01 m/s; ±1%; | ||||||
Flow Resolution | 1mm/s | ||||||
Flow Emission frequency | 24GHz | ||||||
Flow Antenna Type | Planar Micro Strip array antenna ( Plate type) | ||||||
Flow Antenna structure | Seal. Proof dew and condensation | ||||||
Flow Wave angle: | 25℃X12℃ | ||||||
Application
