China Nail Making Machine For Horseshoe Nail Making Machine With Kovopol Nail Making Machine
- Category: >>>
- Supplier: Beijing Double Dragon International Industrial & Mining Machinery Co. Ltd.
Share on (11000002849715):
Product Overview
Description

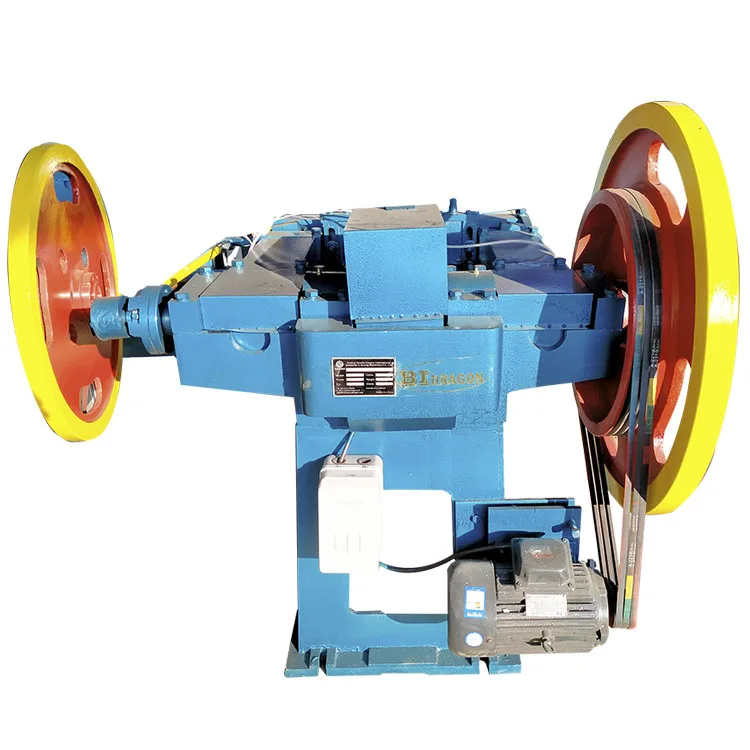

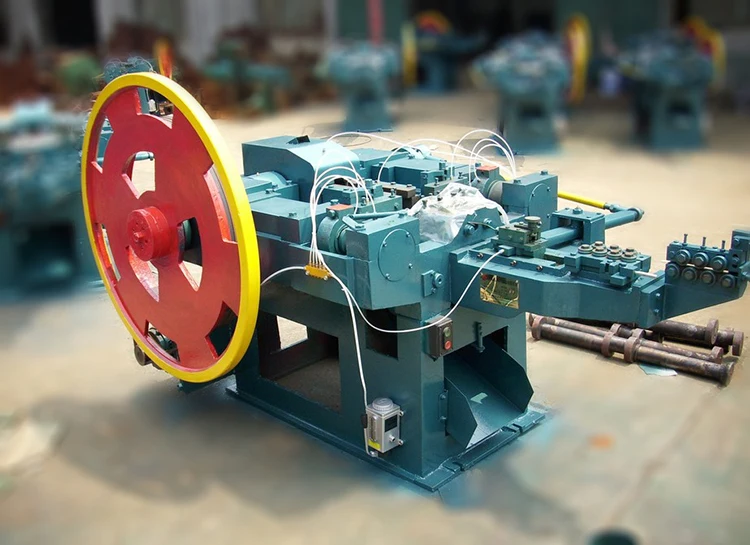

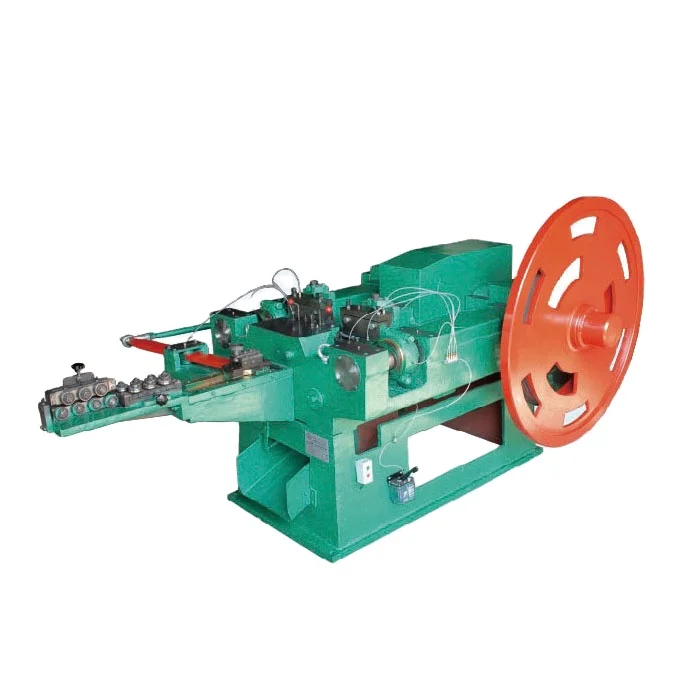

Nail Making Machine Introduction:
This nail making machine adopts plunger type structure so as to ensure the features such as high speed, low noise and less impact.Especially,it can make the high quality of oil rivet nail and other shaped nails used for high speed welding nailer and nail gun.
The assortment of our products is complete. The nail machine is used for producing various common nails and special nails. It has wide uses, simple operation, and reliable run. We can supply various machine parts and necessary fine auxiliaries for you.

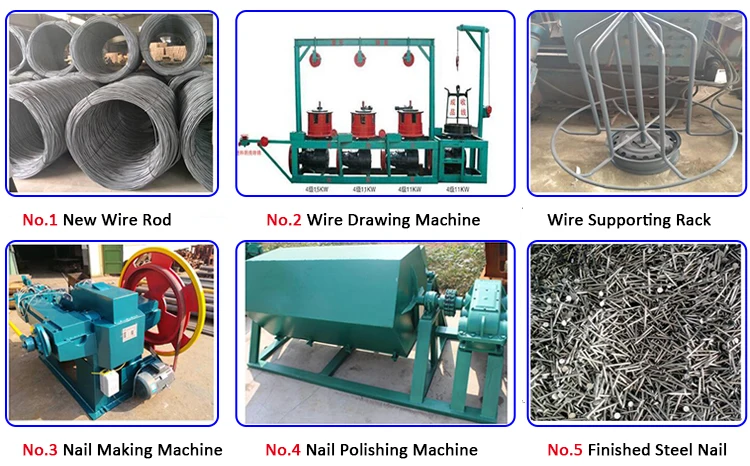

Nail Making Process:
Nail Output Effect:
Technical Parameter:
Technica | Unit | Z94-4C | Z94-3C | Z94-2C | Z94-1C | Z94-5.5C | Z94-6A |
Max diam | mm | 4.5 | 3.4 | 2.8 | 1.6 | 5.5 | 6.0 |
Min diam | mm | 2.8 | 1.8 | 1.2 | 0.9 | 4.1 | 4.1 |
Max length | mm | 100 | 75 | 50 | 25 | 150 | 180 |
Min length | mm | 50 | 25 | 16 | 9 | 100 | 100 |
Desiged output | Pcs/min | 260 | 280 | 300 | 450 | 220 | 220 |
Motor power | kw | 4 | 3 | 2.2 | 1.5 | 5.5 | 11 |
Weight | kg | 1900 | 1200 | 950 | 750 | 2500 | 6000 |
Packaing&Shipping:
Nail Making Machine Workshop
