Hydraulic Straddle Leg Drum Handling Truck
US $178.00-$195.00
Новый инвертор Toppy для поддонов Toppy, Инверторные сумки, устройство для замены поддонов для складов и пищевой промышленности
- Category: Other Material Handling Equipment >>>
- Supplier: TOPPY S.R.L.
Share on (11000002872596):
Product Overview
Description
Toppy Inverter
Toppy Inverter
Semi-automatic system;
Performance up to 40 pallets / h;
Maximum capacity of 1500 kg;
Change the pallet by tilting the load;
Quick pallet change;
Safe pressure of the products.
Performance up to 40 pallets / h;
Maximum capacity of 1500 kg;
Change the pallet by tilting the load;
Quick pallet change;
Safe pressure of the products.
Product Description
How does the pallet change operation take place?

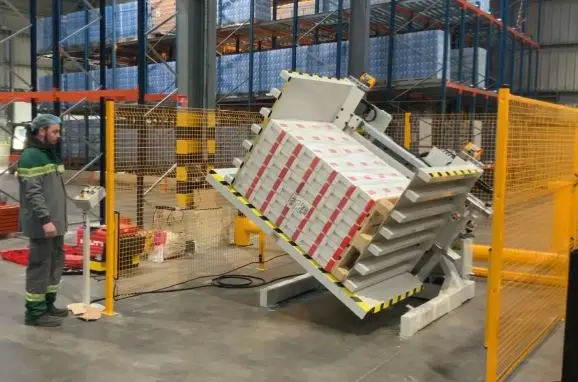

The pallet change operation start with the transport of the load (product + pallet) inside the machine. The operator use a push-button panel with commands in order to block the product that performs the overturning at 180°. Then the operator manually picks up the old pallet and insert the new one. At the end of this operation, the inverter pallet is turned to the starting position. The pallet change operation can also take place at 90 ° if the products are stable (eg boxes).
What products does it move?
It’s a pallet inverter able to move many types of products. Please find below some examples of products able to handle: boxes, vials, containers, bowls, bottles, packages, big bags, big boxes, barrels, paper barrels, buckets, cans, reels, large cartons, paper rolls, plywood etc.
It’s a pallet inverter able to move many types of products. Please find below some examples of products able to handle: boxes, vials, containers, bowls, bottles, packages, big bags, big boxes, barrels, paper barrels, buckets, cans, reels, large cartons, paper rolls, plywood etc.

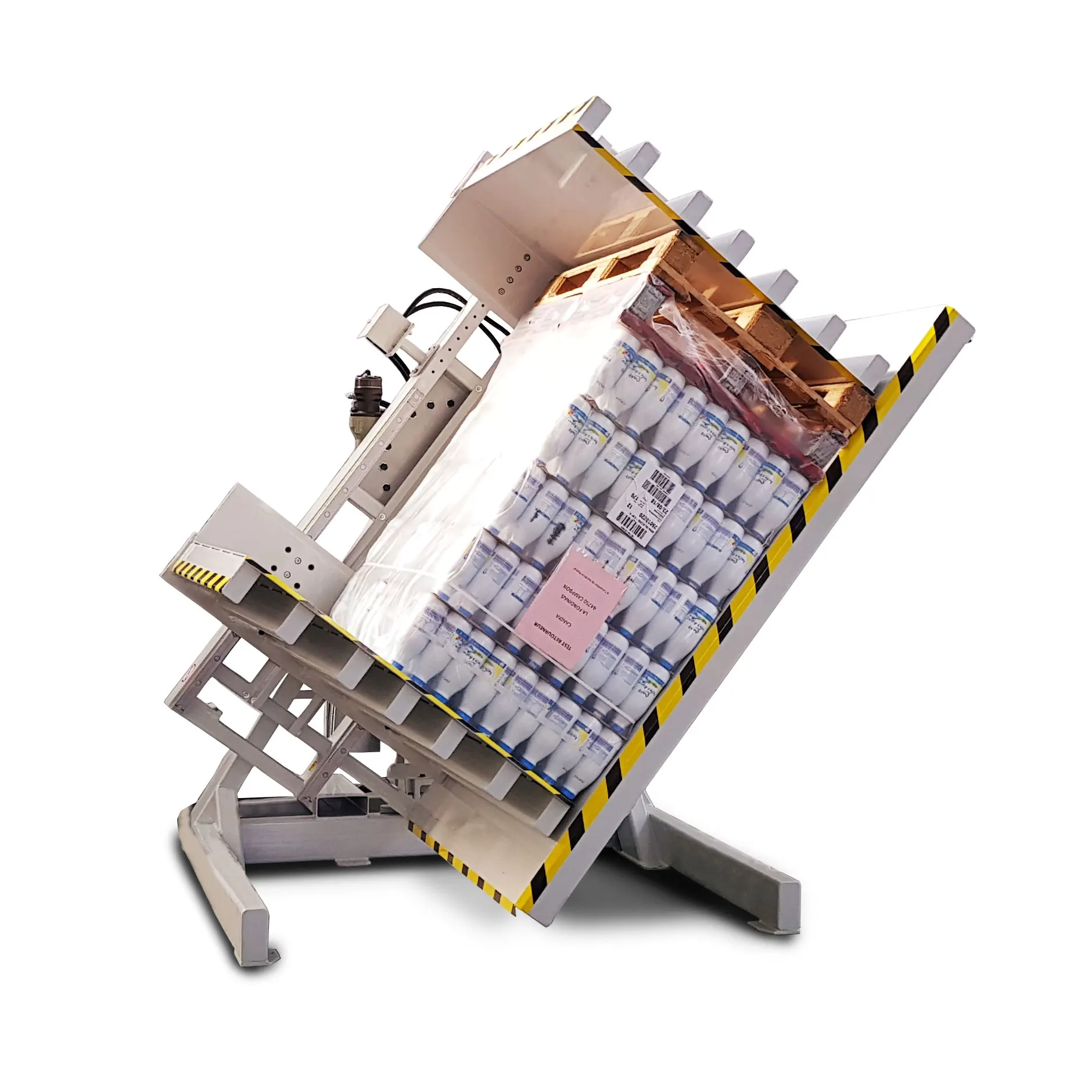

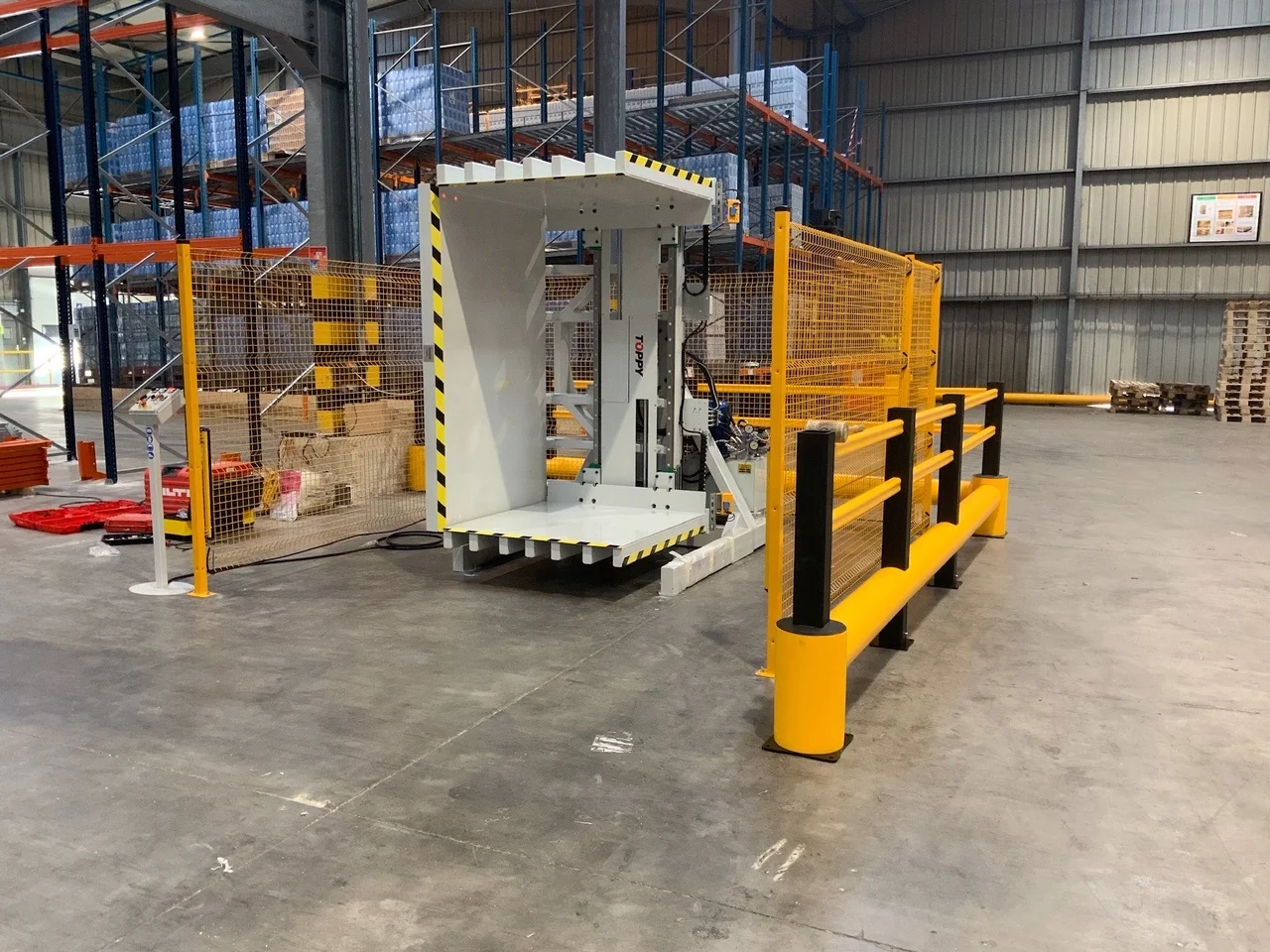

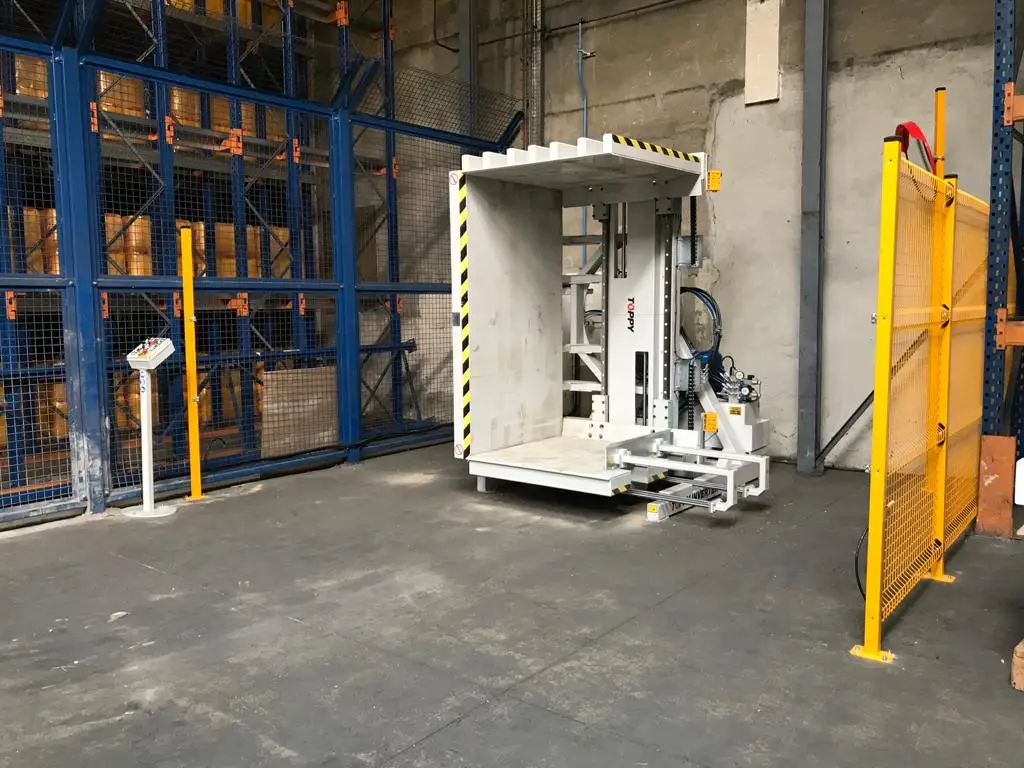

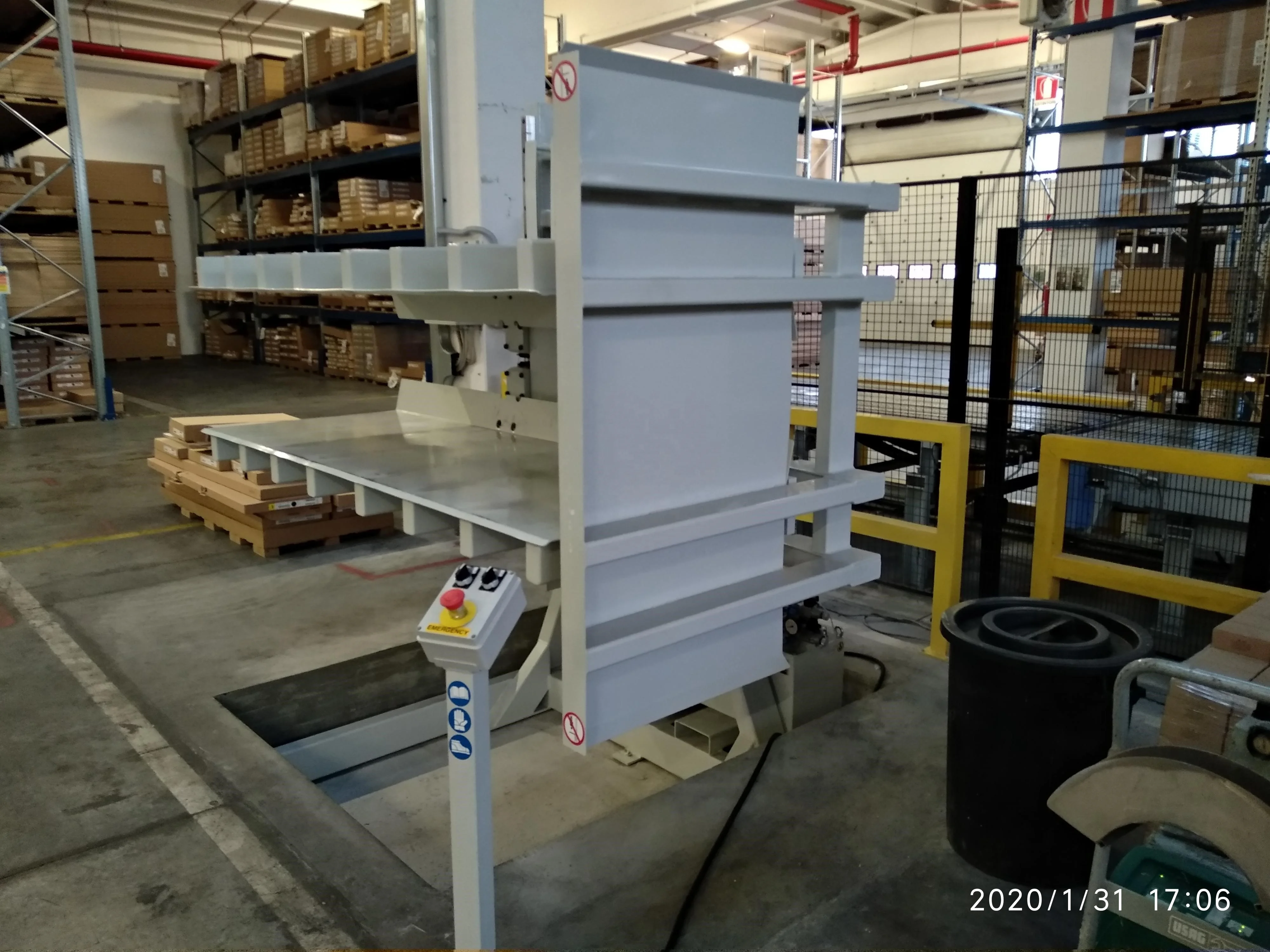

Description of the stationary pallet changer TOPPY INVERTER
The stationary Toppy Inverter pallet turner can turn loads on pallets up to a maximum weight of 1.500 kg and a height of 2.000 mm.
The inverter pallet is available in the manual version, with button panel or in the automatic version via PLC. It is an extremely versatile device suitable for various industrial sectors such as the pharmaceutical, food and beverage, cosmetic, ceramic sectors, etc.
Furthermore, TOPPY INVERTER is available for Logy/inline configuration (automatic pallet change logistics system), can be integrated with roller conveyors and automatic pallet magazines.
SAFETY
All the Toppy machinery are equipped with safety measurements to avoid work injuries, with an eye to GMP norms to ensure the appropriate quality standards.

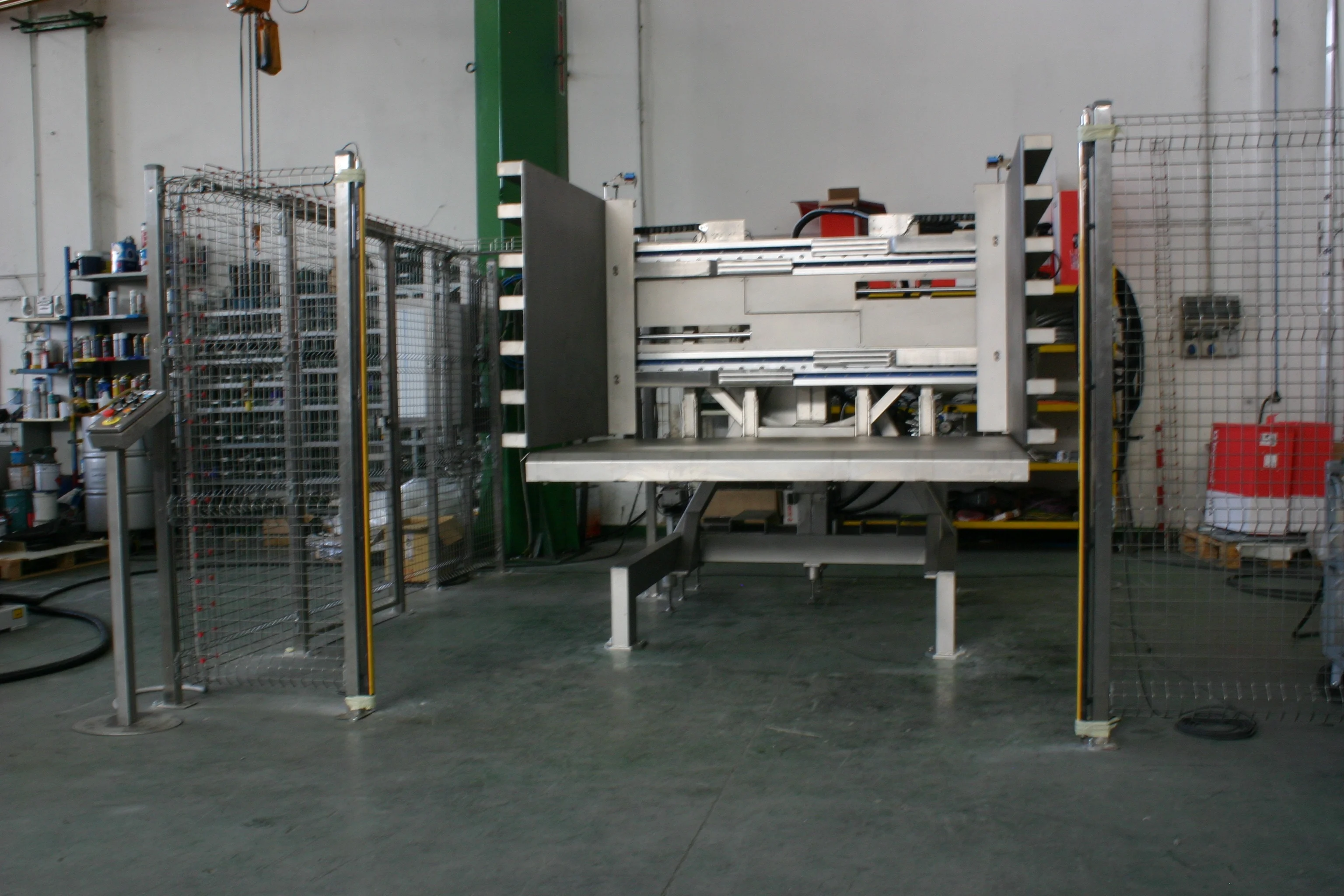

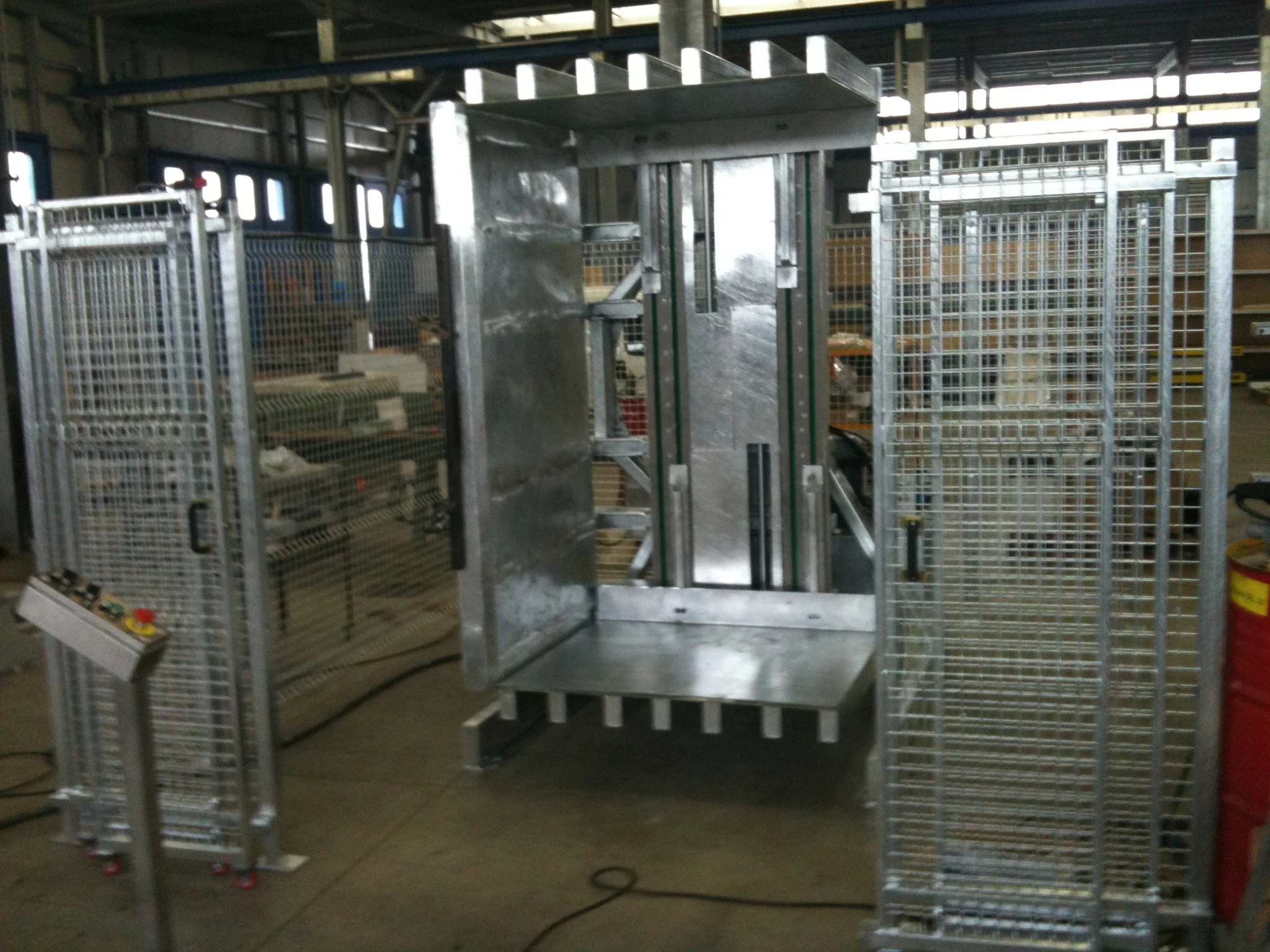

Our stationary pallet inverter systems are supplied with safety system that do not allow access to the operators in the area in front of the machine. These are optional systems such as metal perimeter protection nets and safety photocells to limit access.
The inverter pallet is available in the manual version, with button panel or in the automatic version via PLC. It is an extremely versatile device suitable for various industrial sectors such as the pharmaceutical, food and beverage, cosmetic, ceramic sectors, etc.
Furthermore, TOPPY INVERTER is available for Logy/inline configuration (automatic pallet change logistics system), can be integrated with roller conveyors and automatic pallet magazines.
SAFETY
All the Toppy machinery are equipped with safety measurements to avoid work injuries, with an eye to GMP norms to ensure the appropriate quality standards.
Our stationary pallet inverter systems are supplied with safety system that do not allow access to the operators in the area in front of the machine. These are optional systems such as metal perimeter protection nets and safety photocells to limit access.
Specification
Condition | New |
Applicable Industries | Food & Beverage Factory, warehouse, Pharmaceutical Industry, Food |
Showroom Location | Italy |
Place of Origin | Italy |
FAQ
1.Can “TOPPY INVERTER” be customized for special applications?
Yes, absolutely, we are able to customize the machines according to the customer’s needs.
2.Which products are suitable for this device?
This pallet inverter is able to work with many products, boxes, vials, flasks, trays, bottles, packs, big bags, big boxes,
barrels, paper barrels, buckets, cans, reels, large containers, paper rolls, plywood, battery etc.
barrels, paper barrels, buckets, cans, reels, large containers, paper rolls, plywood, battery etc.
3.What type of pallet it’s able to operate with?
It can operate with any pallet size, from standard to special ones. It is possible to use pallets of many materials (wood ,
plastic, aluminium, iron, etc.)
plastic, aluminium, iron, etc.)
4.How does the pallet change take place?
By tipping the load at 90 ° or 180 °
5.How are the products loaded or unloaded from the pallet changer devices?
They can be loaded and unloaded by forklift or forklift truck.
6.How does it operates with fragile products?
Even the most fragile products are securely locked by the upper platform in order to safe the product. The upper platform locks the products with a light pression managed by a shock absorber system and limit-switches that prevent the products to be crushed.
7.What’s the difference between “mobile” and “stationary” pallet?
The mobile pallet changers are really versatile systems as they do not need to dedicate a specific area for the operation so can be performed in any production area. The stationary pallet changers partially compensate the use of the transpallet as it allows the transport of the loads inside the dispenser.
Our stationary pallet changer are used by customers who need to change a substantial number of pallets per hour and can’t have a dedicated area dedicated for the pallet change operation.
Our stationary pallet changer are used by customers who need to change a substantial number of pallets per hour and can’t have a dedicated area dedicated for the pallet change operation.
