Medical Device YJ H7 accuracy blood hemoglobin analyzer for Medical use ultra portable hospital clinic laboratory
- Category: Clinical Analytical Instruments >>>
- Supplier: Henan,Forever,Medical,Co.,Ltd.
Share on:
Product Overview
Description

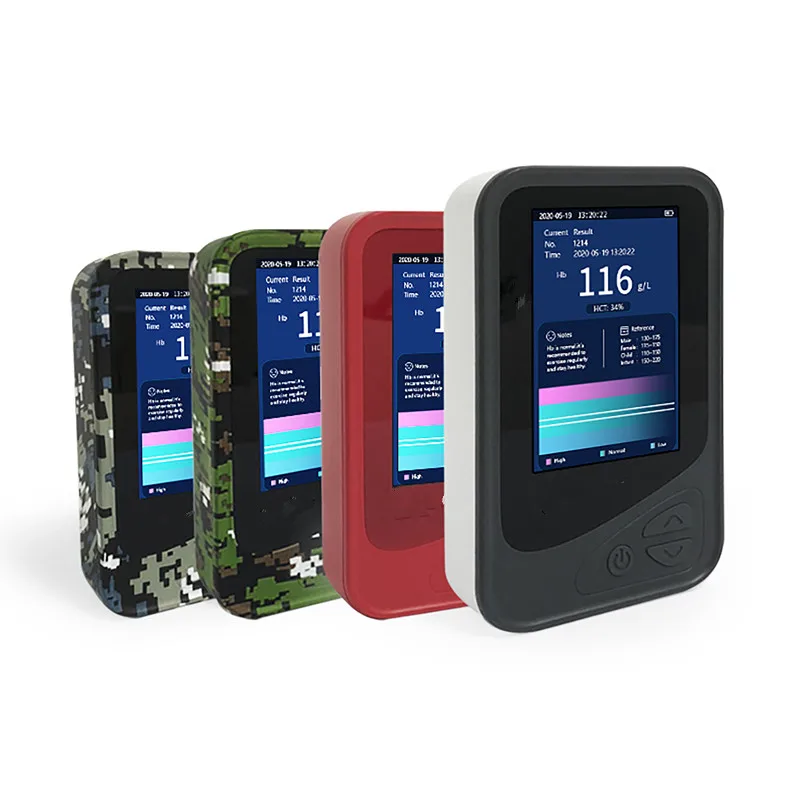

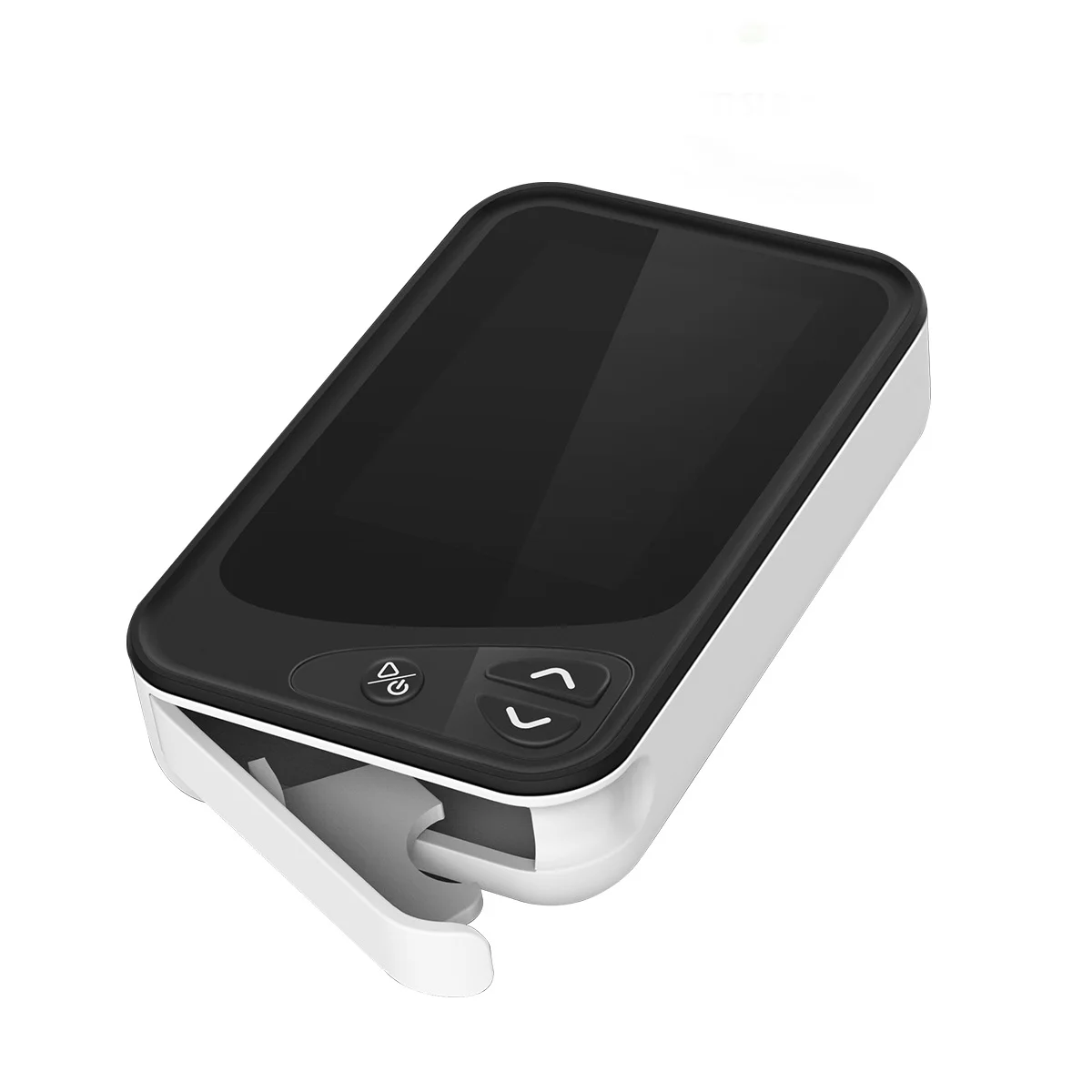

Features of Hemoglobin Analyzer YJ-H7
◆Immediate HB and Hct results: ≤3 seconds
◆Hand-held size with lab-quality accuracy: CV≤1.5%
◆Low sample volume: 7µl (capillary or venous blood)
◆Large memory stores: up to 2000 test results
◆Long time using with built-in battery: more than 6 hours
◆Easy and simple operation: 3 steps only
◆Reagent-free cuvette with long shelf life: 2 years
◆Ready to use, No coding needed
◆Hand-held size with lab-quality accuracy: CV≤1.5%
◆Low sample volume: 7µl (capillary or venous blood)
◆Large memory stores: up to 2000 test results
◆Long time using with built-in battery: more than 6 hours
◆Easy and simple operation: 3 steps only
◆Reagent-free cuvette with long shelf life: 2 years
◆Ready to use, No coding needed
Product Description
By using advanced multi-wavelength spectrophotometer + scattering compensation technology the compact ergonomically designed Hemoglobin Analyzer provides lab-quality results in less than 5 seconds without sample pre-processing.

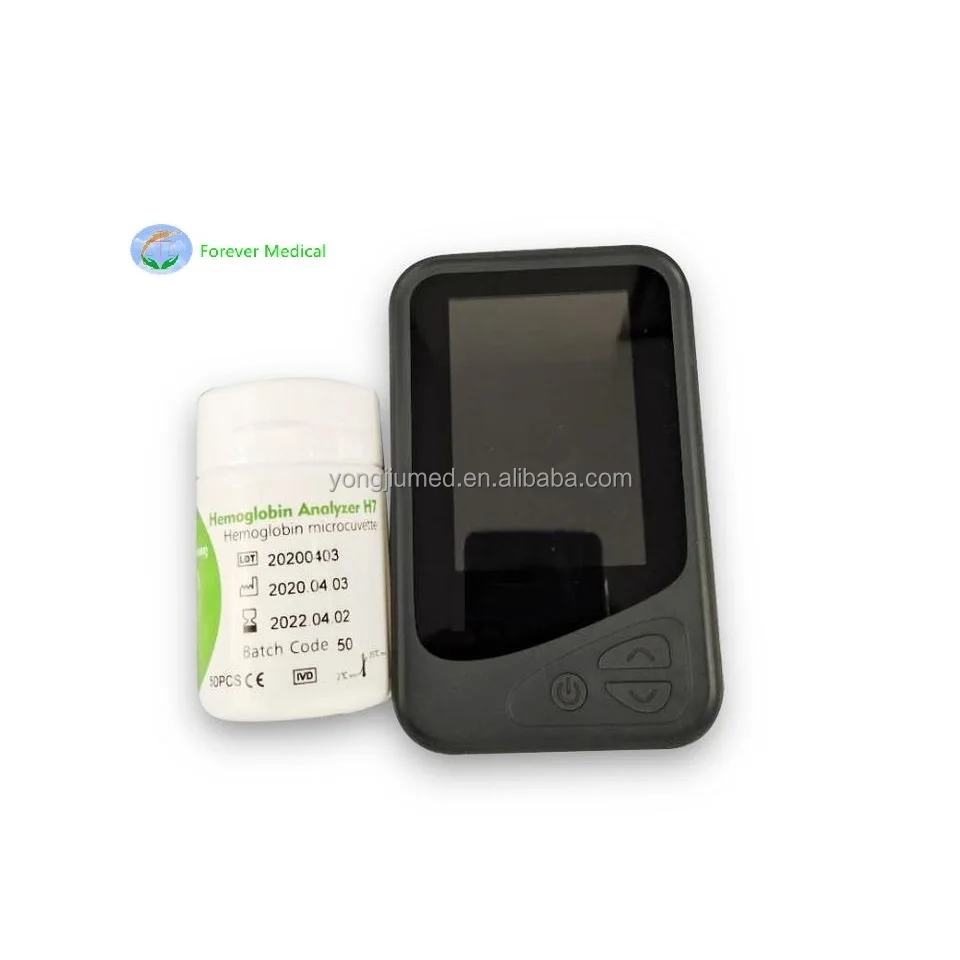

Disposable Microcuvette
Microfludic technology None contamination
Low sample volume: 7uL(capillary or venous blood)
Special Feature
Less than 10ul Blood
Microfluidic chip
≤ 5 seconds
≤ 5 seconds
APP
CV ≤ 1.5%
6 hours
6 hours
2000 test results
Optional printer
YJ-H7 provides lab-quality
results without compromising accuracy, even in demanding climates with high temperatures and humidity.
Technical specifications
Specification
Principle:Microfluidic and spectrophotometry with scattering compensation technology
Calibration:Factory calibrated needs no further calibration
Blood sample:7μL capillary or venous whole blood
Parameters:Hb and Hct
Measurement range:0- -25.6 g/dL
Results:≤3 sec .
Memory:2000 test results
Precision:CV≤1.5%
Calibration:Factory calibrated needs no further calibration
Blood sample:7μL capillary or venous whole blood
Parameters:Hb and Hct
Measurement range:0- -25.6 g/dL
Results:≤3 sec .
Memory:2000 test results
Precision:CV≤1.5%
Operating condition:5°C~35%C ;≤85% RH
Storage condition:Device:-20°C~60°C ;≤90% RH;Cuvette:2C~35%C ;≤85% RH
Cuvette shelf life:2 years, 3 months open stability
Power source:AC Adapter and rechargeable lithium battery
Interface :USB, Bluetooth, printer
Dimension:130mm X 82mm X 31 .5mm
Weight:220g(built-in battery included)
Storage condition:Device:-20°C~60°C ;≤90% RH;Cuvette:2C~35%C ;≤85% RH
Cuvette shelf life:2 years, 3 months open stability
Power source:AC Adapter and rechargeable lithium battery
Interface :USB, Bluetooth, printer
Dimension:130mm X 82mm X 31 .5mm
Weight:220g(built-in battery included)
Principle | Microfluidic and spectrophotometry with scattering compensation technology |
Calibration | Factory calibrated needs no further calibration |
Blood sample | 7μL, Capillary venous whole blood |
Parameters | Hb and Hct |
Measurement range | 0-256g |
Results | <5s |
Memory | 2000 test results |
Precision | CV≤1.5% |
Operating condition | 5°℃-35°℃ ·· ≤85% RH | ||
Device | -20°C-60°℃ ；≤90% RH | ||
Cuvette | 2°℃-35°℃ ；≤85% RH | ||
Shelf life | 24 months sealed, 3 months unsealed | ||
Power source | AC Adapter and rechargeable lithium battery | ||
Interface | USB, Bluetooth, wifi, printer | ||
Dimension | 130mm×82mm ×31.5mm | ||
Weight | 500g | ||
Testing in three easy steps
1. Fill the cuvette by placing the tip of the cuvette in the drop of blood.
2. Place the filled cuvette in the cuvette holder and push it back
3. Results appear in less than three seconds
