home use 5kva solar inverter off grid parallel 10 kw 15kw 20 kw 30 kw pure sine wave hybrid solar inverter 5kw
- Category: >>>
- Supplier: Foshan,Ouyad,Electronic,Co.,Ltd.
Share on:
Product Overview
Description
Products Description
MKSII Series

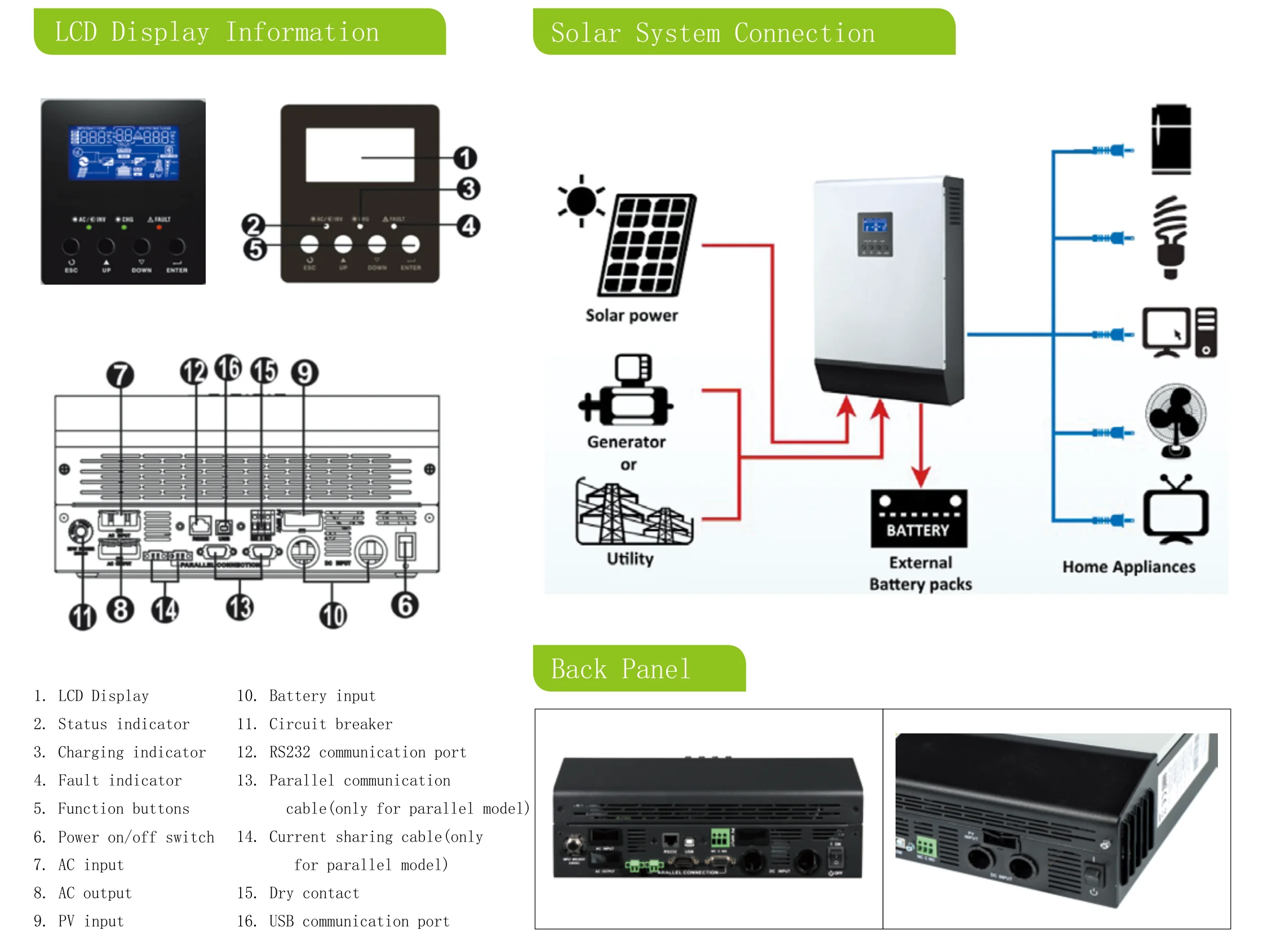

This is a multi functional inverter/charger, combining functions of inverter,solar charger and battery charger to offer uninterruptible power support in portable size. Its comprehensive LCD display offers
user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Main Features
1. High efficiency pure sine wave inverter(PF=1);Wide PV input range(120Vdc - 450Vdc) 80A MPPT SCC;Intelligent 3 stage 80A AC battery charger.
2. Surges to 2X continuous power for 5 seconds for motor loads.
3. Intelligent functionality enables utility and solar input prioritization.
4. Wide ulility input range ( 90V ac ~280Vac ) for unreliable grid even in the most challenging environments.
5. Field serviceable with replacement boards and spare parts.
6. Monitor, troubleshoot, or communication with USB/RS 232.
7. System configures quickly into compact, wall-mounted system.
8. This series inverters can work without batteries when there is the sun.
9. Parallel operation with up to 9 units.
2. Surges to 2X continuous power for 5 seconds for motor loads.
3. Intelligent functionality enables utility and solar input prioritization.
4. Wide ulility input range ( 90V ac ~280Vac ) for unreliable grid even in the most challenging environments.
5. Field serviceable with replacement boards and spare parts.
6. Monitor, troubleshoot, or communication with USB/RS 232.
7. System configures quickly into compact, wall-mounted system.
8. This series inverters can work without batteries when there is the sun.
9. Parallel operation with up to 9 units.
Model | MKSII-5K | |
Rated Power | 5000VA/5000W | |
Parallel Capabilty | Yes, 9 units | |
INPUT | ||
Voltage | 230VAC | |
Selectable Voltage Range | 170-280VAC(For Personal Computers), 90-280VAC(For Home Appl lances) | |
Frequemcy | 50Hz/60Hz(Auto sensing) | |
OUTPUT | ||
AC Voltage Regulation(Batt.Mode) | 230VAC±5% | |
Surge Power | 10000VA | |
Efficiency(Peak) | 90% | |
Transfer Time | 10ms(For Personal Computers), 20ms(For Home Appliances) | |
Waveform | Pure SineWave | |
BATTERY | ||
Battery Voltage | 48VDC | |
Floating Charge Voltage | 54VDC | |
Overcharge Protection | 66VDC | |
SOLAR CHARGER & AC CHARGER | ||
Maximum PV Array Power | 4500W | |
MPPT Range@ Operating Voltage | 120VDC-430VDC | |
Maximum PV Array Open Circut Voltage | 450VDC | |
Maximum Solar Charge Current | 80A | |
Maximum AC Charge Current | 80A | |
Maximum Charge Current | 80A | |
PHYSICAL | ||
Dimension， DxWxH(mm) | 120*295*468 | |
Net Weight(kgs) | 11kg | |
ENVIRONMENT | ||
Humidity | 5% to 95% Relative Humid ty(Non-condensing) | |
Operating Temperature | 0C-55°℃ | |
Storage Temperature | -15°C-60°C | |
Hot Sale

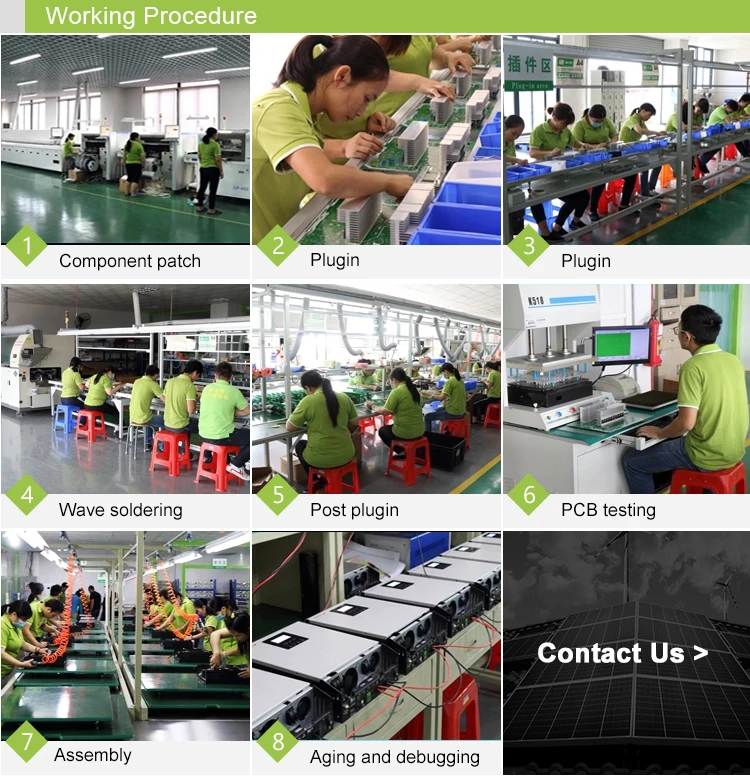

Working Procedure
