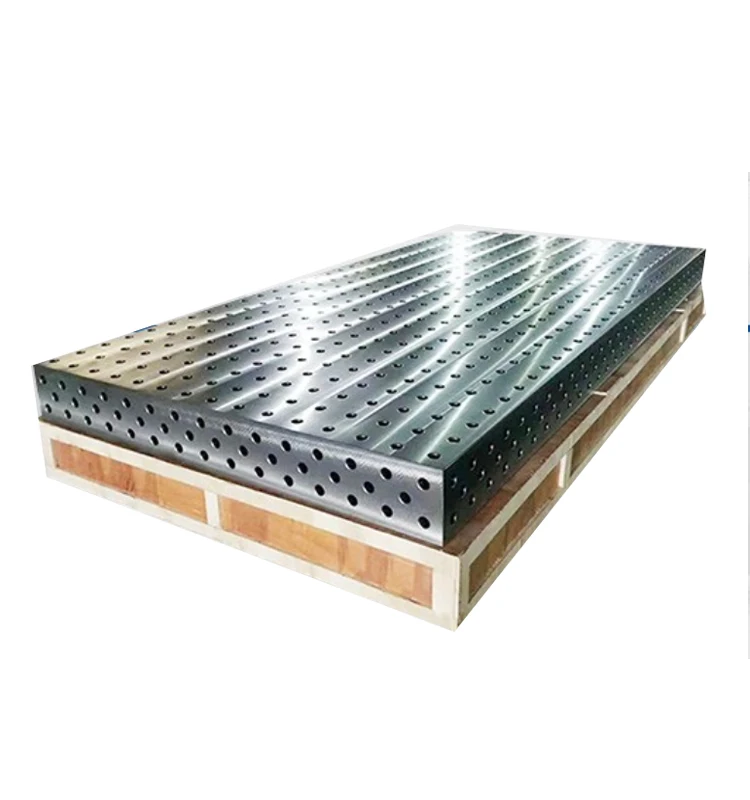

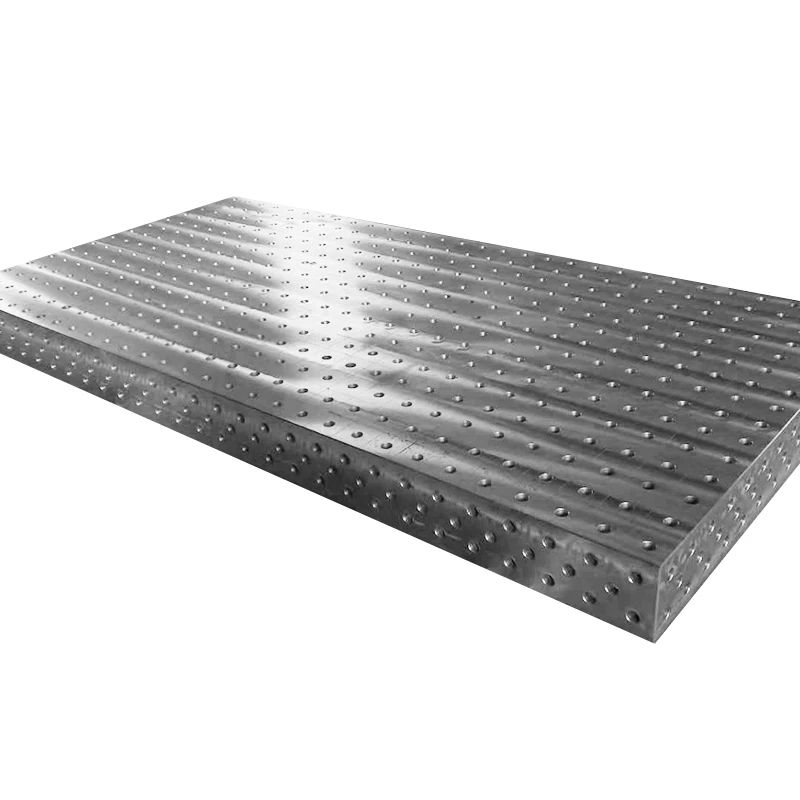

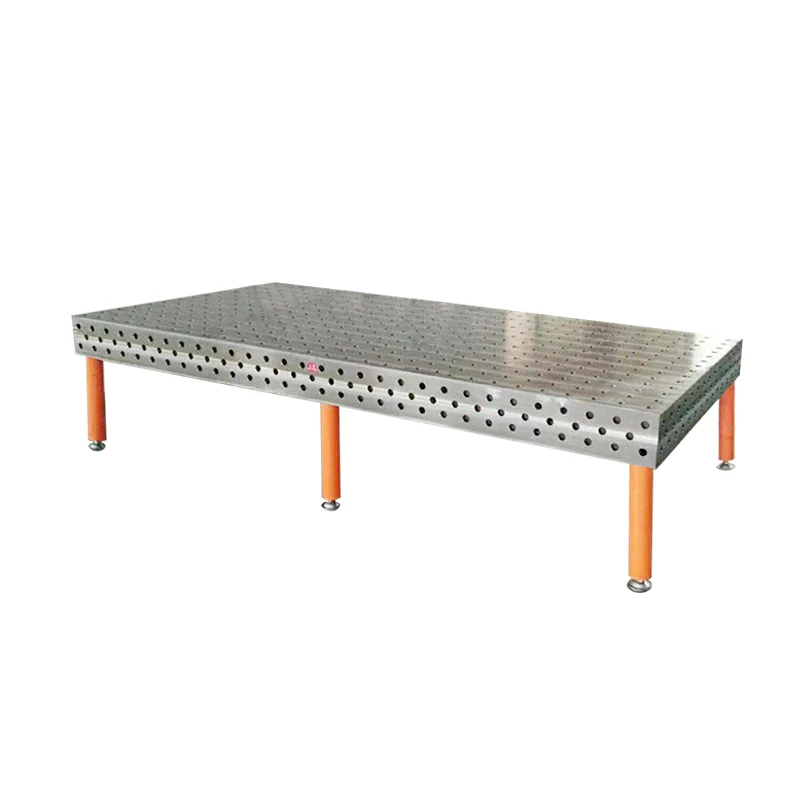

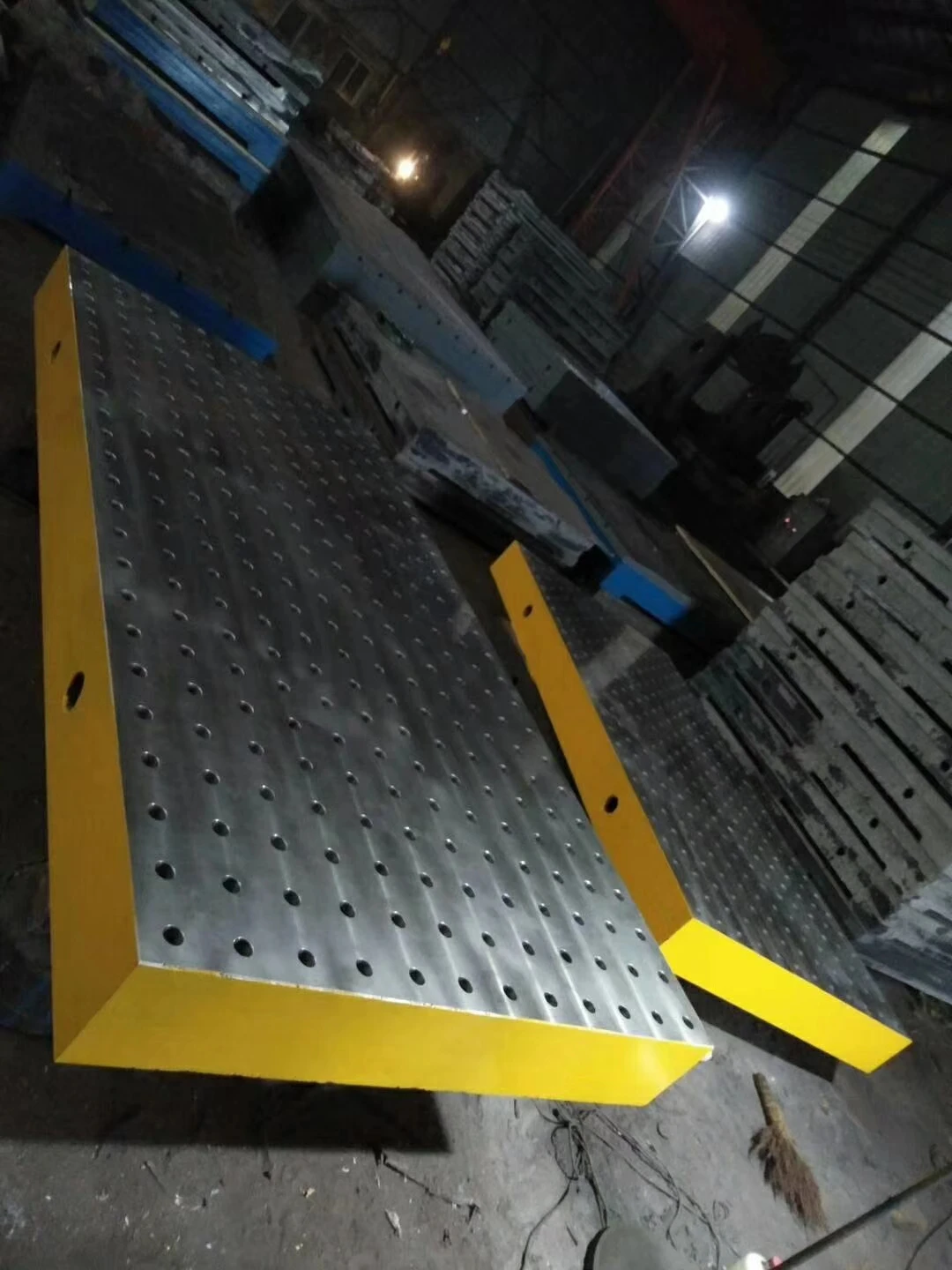

Direct sales 3d Clamping And Welding Table 3D Welding table system for welding works

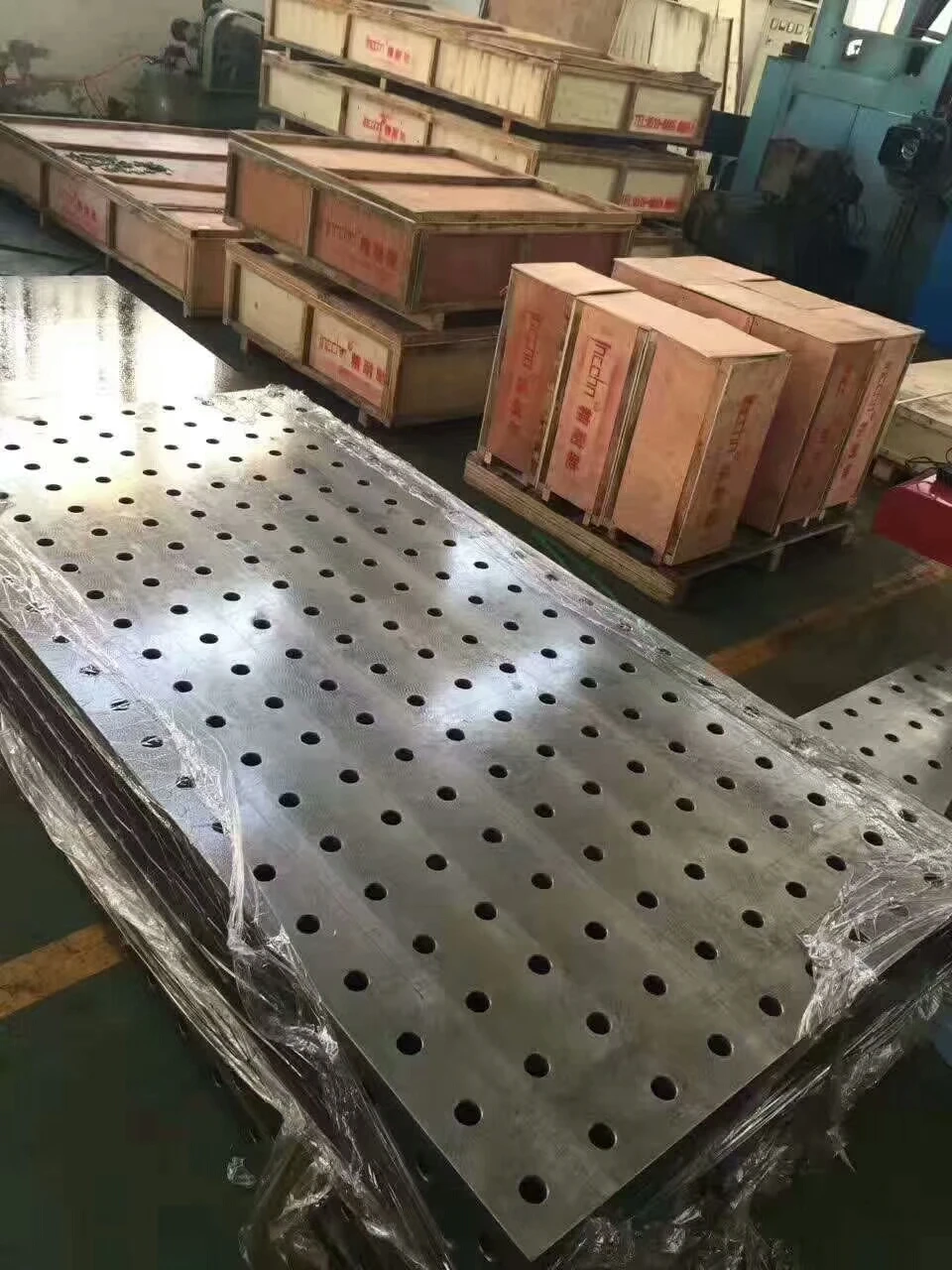

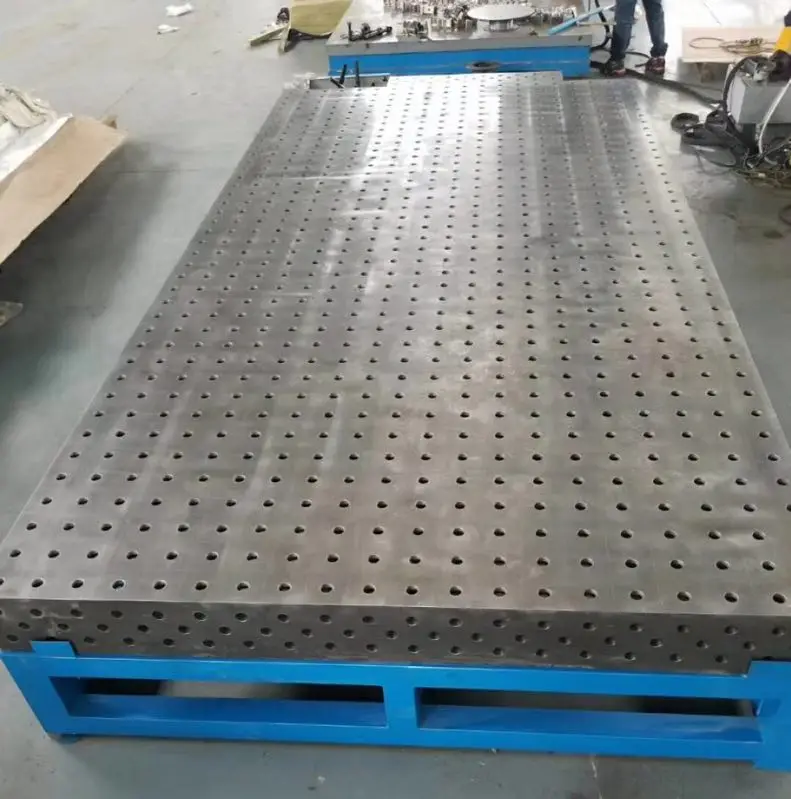

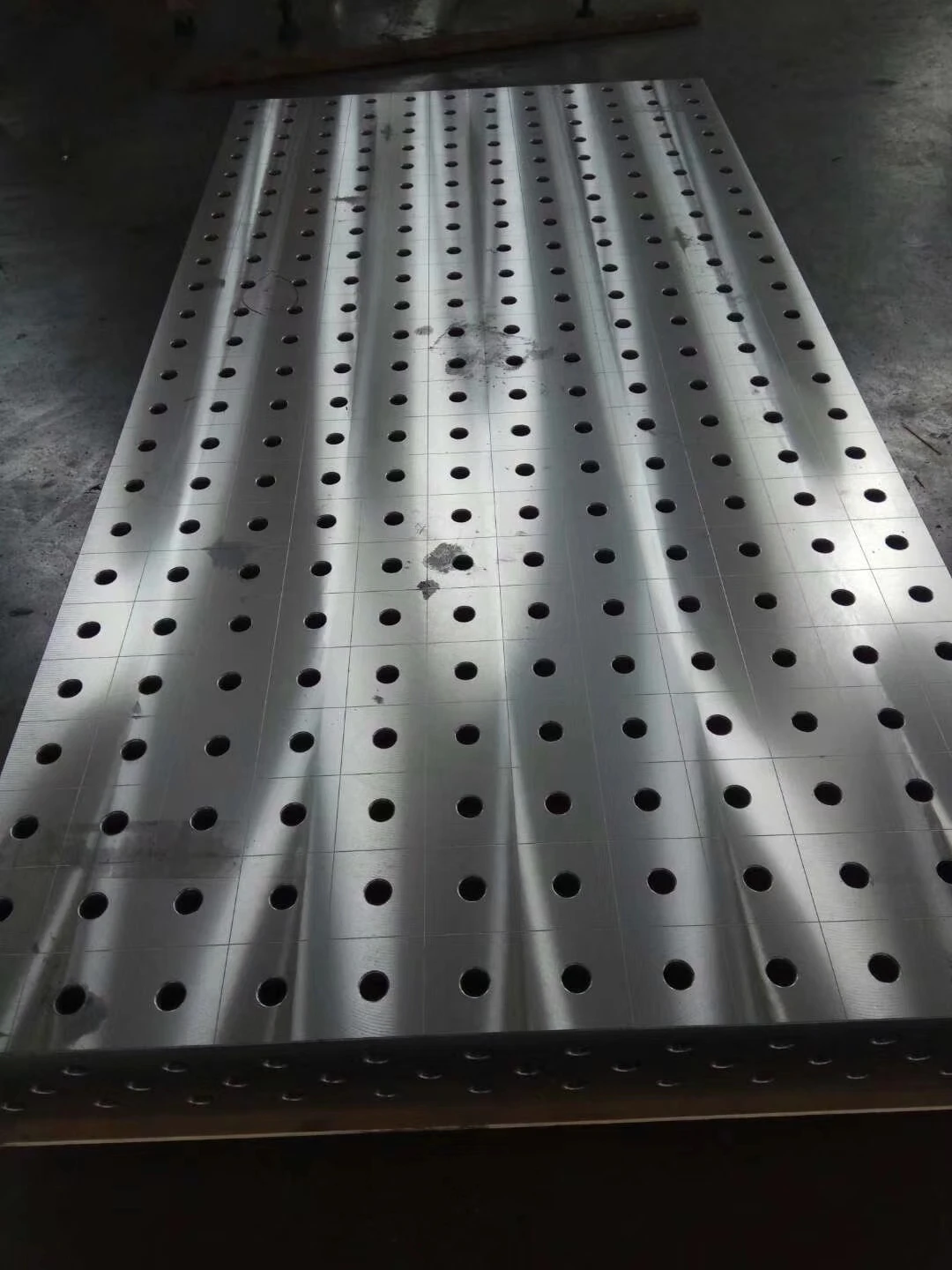

1) The surface of the platform is evenly distributed with φ28 or ∅16 holes, and the welding slag can be easily cleaned         through the holes.

2) Surface holes are evenly distributed. It is convenient to install the positioning fixture at any position.

3) Relying on the surface holes with uniform distribution, can insert the pressing part at any position.

4) The platform can be reused when changing the product model.

5) Strong interchangeability, high stability, high precision and high cost performance; suitable for small-volume multi-        variety and multi-standard workpiece welding and product assembly.

1. Flatness of the tooling platform: ≤0.15mm/1000mm

2. 3D platform plane and side perpendicularity: ≤0.1mm/1000mm

3.Material:Steel (low alloy steel Q345), subjected to integral step heat treatment to eliminate internal stress

4.Pitch position tolerance: Within ±0.05mm

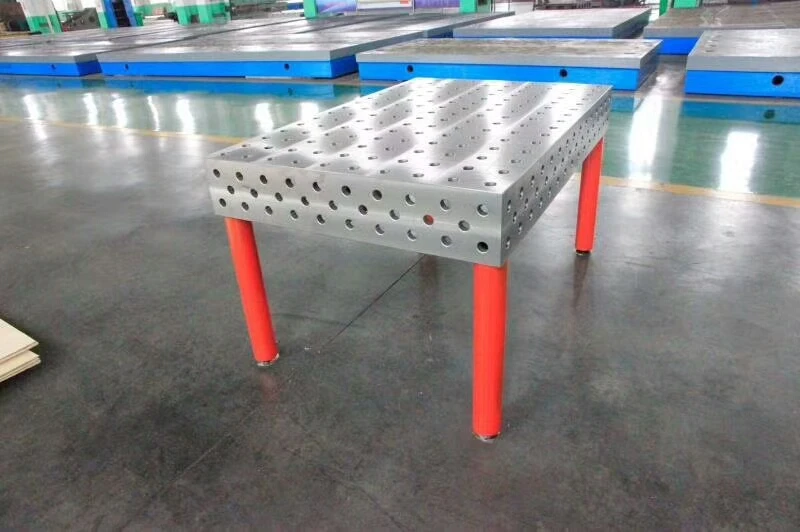

1.  Three-dimensional: Representing three directions, the general fixtures are vertical and horizontal without vertical. The large surface of the platform has two directions, and the four perimeters can be used for vertical installation to achieve a three-dimensional combination.
2. Hole: The main feature of this set of fixtures is that the standard holes from the platform to the accessories are not traditional thread or t-slot. With the quick lock pin, the assembly can be made faster and more convenient, and the positioning is more accurate.
3. Combination: Because all accessories are pre-prepared, they can be combined and adjusted according to the needs of the product.
4. Flexible: Because the above functions can be changed according to the changes of the product, a set of fixtures can complete the requirements of several products or dozens of products, which greatly accelerates the process of product development and trial production, saving a lot of manpower and material resources. And financial resources (environmental and low-carbon products).

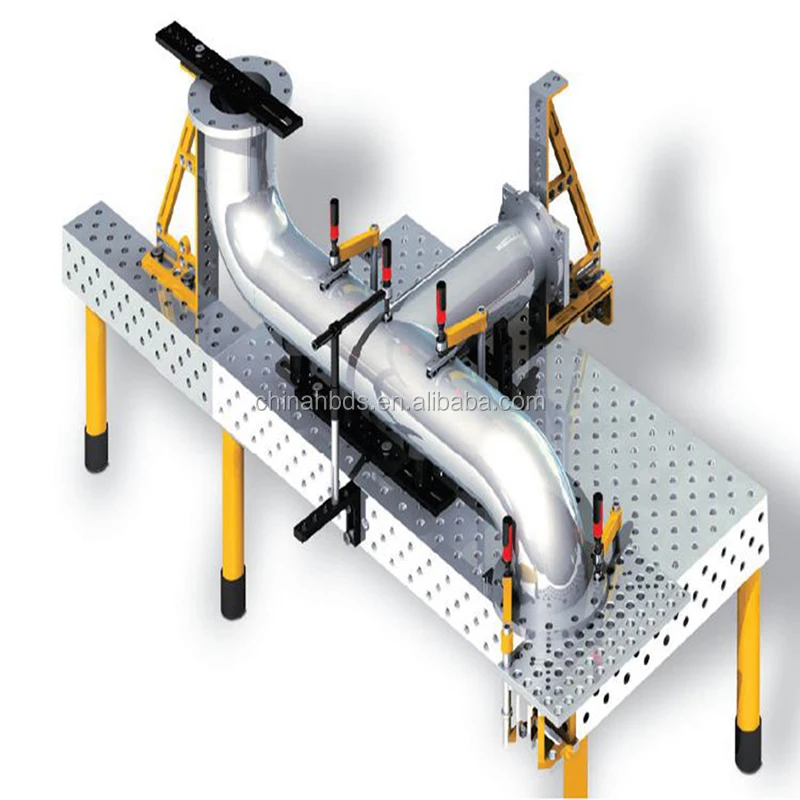

5. Welding: This product is a universal fixture designed for the manufacture of welded products; it is very convenient, flexible and accurate for welding, and is much more advanced than traditional welding methods.
