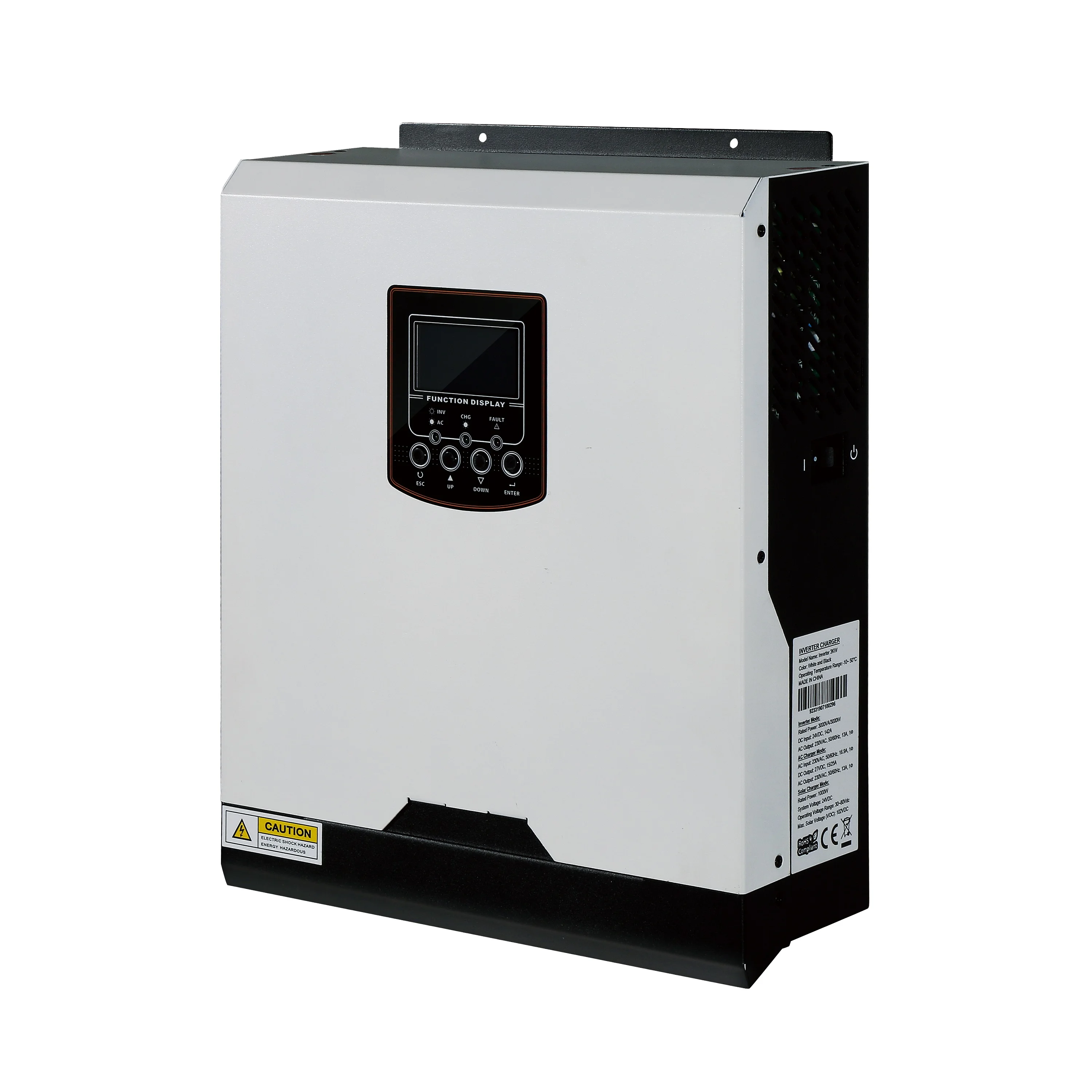

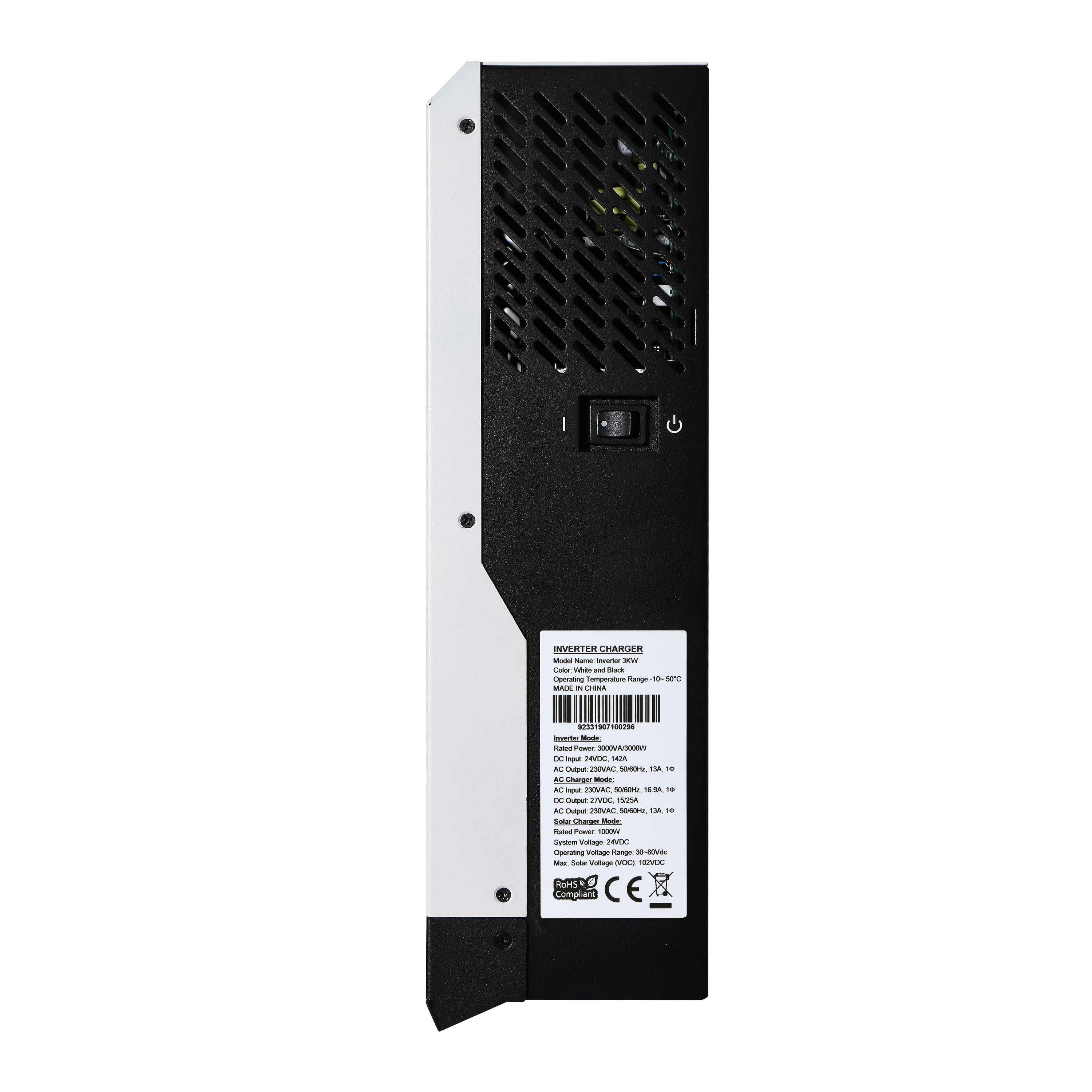

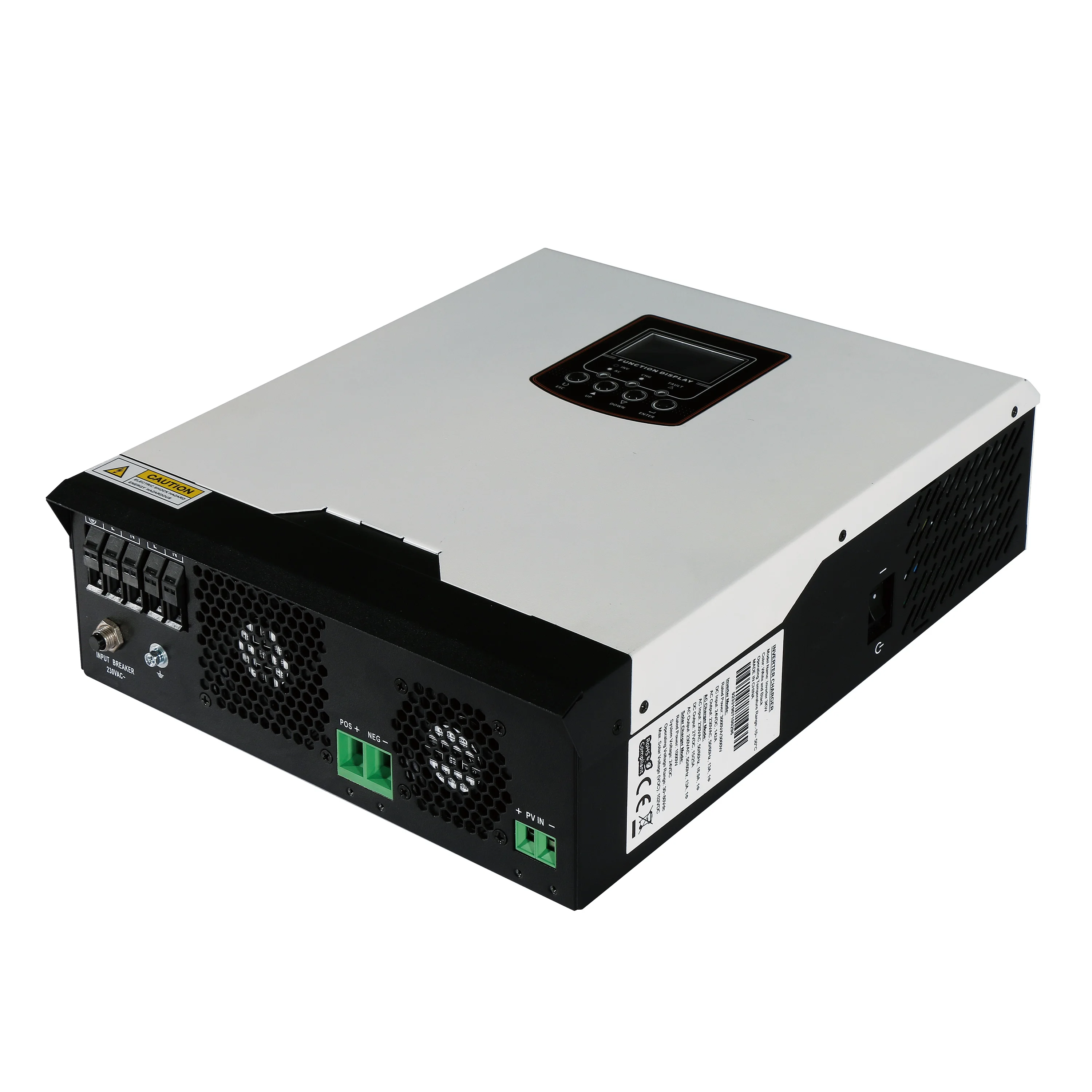

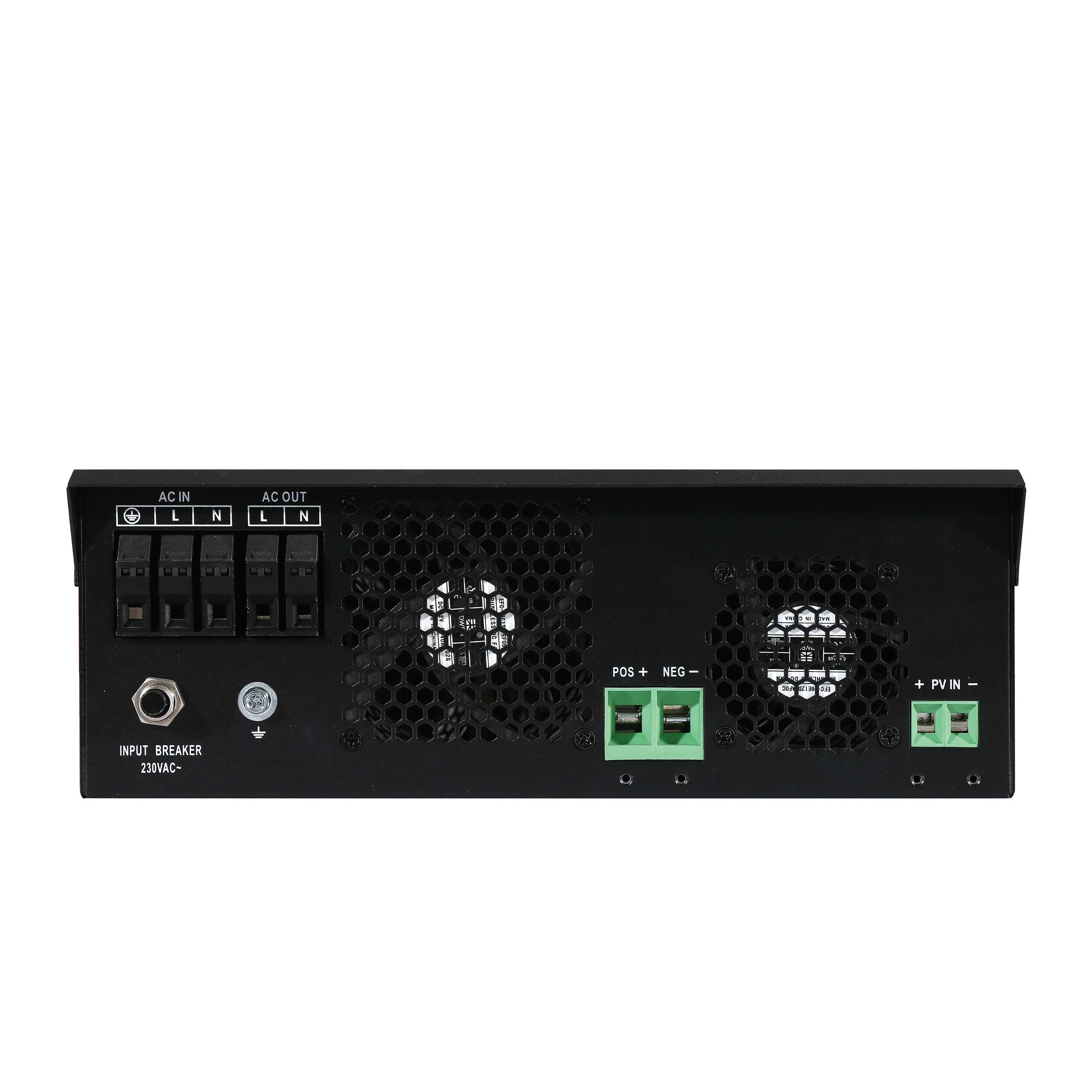

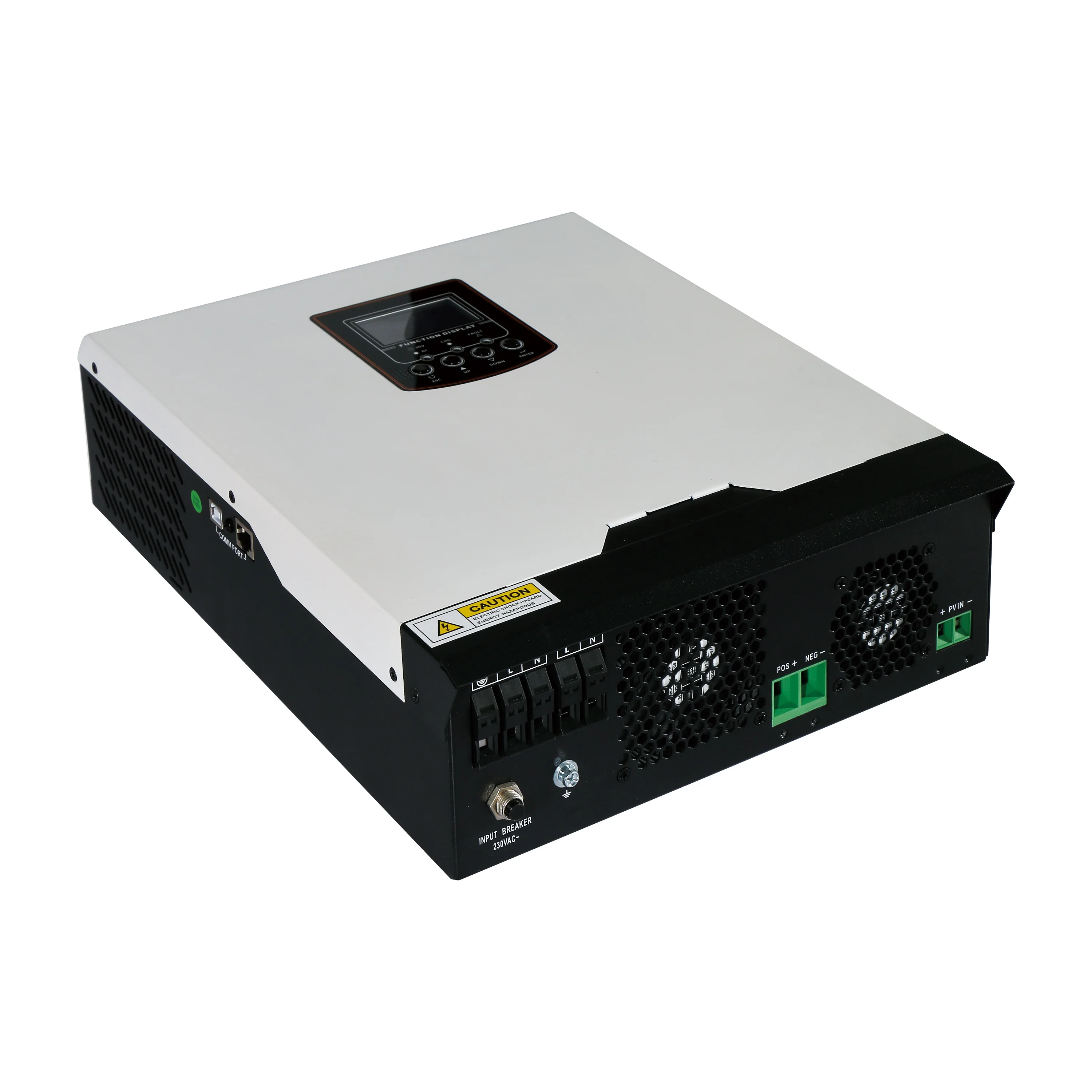

High frequency off grid 24v battery inverter with mppt charger pure sine wave solar inverter hybrid 3000w 3kw
- Category: >>>
- Supplier: Foshan Ouyad Electronic Co. Ltd.
Share on (11000002917100):
Product Overview
Description
Products Description
HY MPPT Series

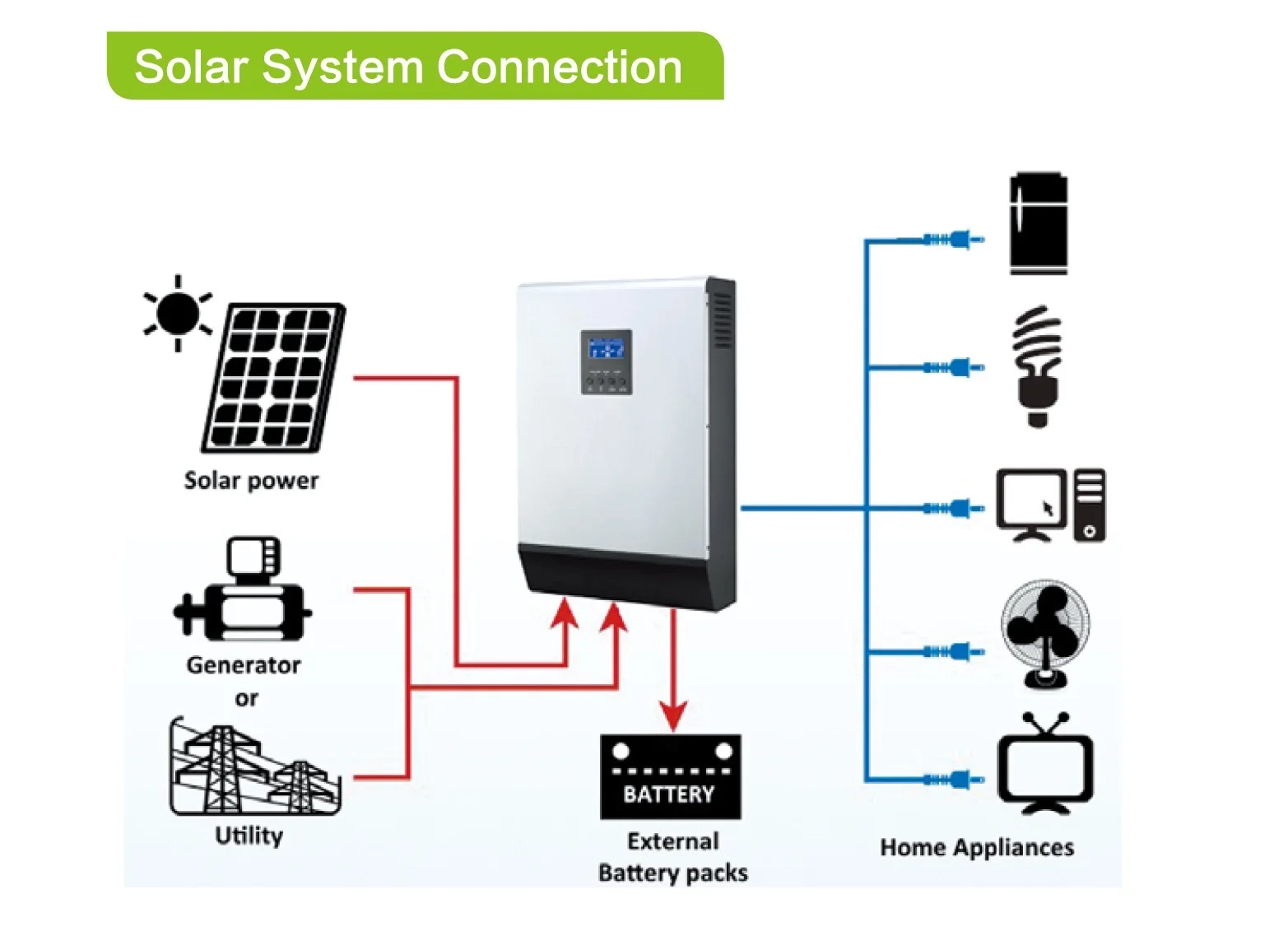

This is a multi-function inverter/charger, combining function of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers userconfigurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage
based on different applications.
based on different applications.
Main Features
1. Pure sine wave inverter
2. Built-in MPPT solar charge controller
3. Selectable input voltage range for home appliances and personal computers
4. Selectable charging current based on applications
5. Configurable AC/Solar input priority via LCD setting
6. Compatible to mains voltage or generator power
7. Auto restart while AC is recovering
8. Overload and short circuit protection
9. Smart battery charger design for optimized battery performance
10. Cold start function
11. Parallel operation with up to 9 units only available for 5KVA ( HYB5032M / HYB5032MN )
2. Built-in MPPT solar charge controller
3. Selectable input voltage range for home appliances and personal computers
4. Selectable charging current based on applications
5. Configurable AC/Solar input priority via LCD setting
6. Compatible to mains voltage or generator power
7. Auto restart while AC is recovering
8. Overload and short circuit protection
9. Smart battery charger design for optimized battery performance
10. Cold start function
11. Parallel operation with up to 9 units only available for 5KVA ( HYB5032M / HYB5032MN )
Model | HY3022VM HY3022VMN | HY3022VMN PLUS | HY5032VM HY5032VMN | HYB5032M HYB5032MN | ||||
RATED POWER | 3000VA/2400W 3000VA/3000W | 3000VA/3000W | 5000VA/4000W 5000VA/5000W | 5000VA/4000W 5000VA/5000W | ||||
Parallel Capacity | No | No | No | Yes, 9pcs | ||||
Input | Voltage | 230VAC | ||||||
Selectable Voltage Range | 170-280VAC (for personal computers) 90-280VAC (for home appliances) | |||||||
Frequency Range | 50Hz/60Hz (auto sensing) | |||||||
Output | AC Voltage Regulation (Batt.mode) | 230VAC±5% | ||||||
Surge Power (5 seconds） | 6000VA | 6000VA | 10000VA | 10000VA | ||||
Efficiency (peak) | 93% | |||||||
Transfer Time | 10ms(for personal computers); 20ms (for home appliances) | |||||||
Waveform | pure sine wave | |||||||
Battery& AC charger | Battery Voltage | 24VDC | 24VDC | 48VDC | 48VDC | |||
Floating Charge Voltage | 27VDC | 27VDC | 54VDC | 54VDC | ||||
Overcharge Protection | 33VDC | 33VDC | 63VDC | 63VDC | ||||
Max. AC Charge Current | 25A | 60A | 60A | 60A | ||||
MAX PV Array Power | 1000W | 1500W | 3000W | 4000W | ||||
MPPT Range@ Operating Voltage | 30~80V | 30~115V | 60-115V | 60-115V | ||||
Maximum PV Array Open Circuit Voltage | 102VDC | 145VDC | 145VDC | 145VDC | ||||
Max. Solar Charge Current | 40A | 60A | 60A | 80A | ||||
Max. Total Charge Current | 60A | 120A | 120A | 140A | ||||
Physical | Maximum Efficiency | 98% | ||||||
Standby Power Consumption | 2W | |||||||
Operating Environment | Dimension, D*W*H(mm) | 95*240*316 | 100*272*385 | 155*295*455 | 155*295*455 | |||
Net Weight (kgs) | 7KG | 7KG | 13KG | 13KG | ||||
Humidity | 5%-95% relative humidity ( non-condensing) | |||||||
Operating Temperature | 0℃ -55℃ | |||||||
Storage Temperature | -15℃ -60℃ | |||||||
