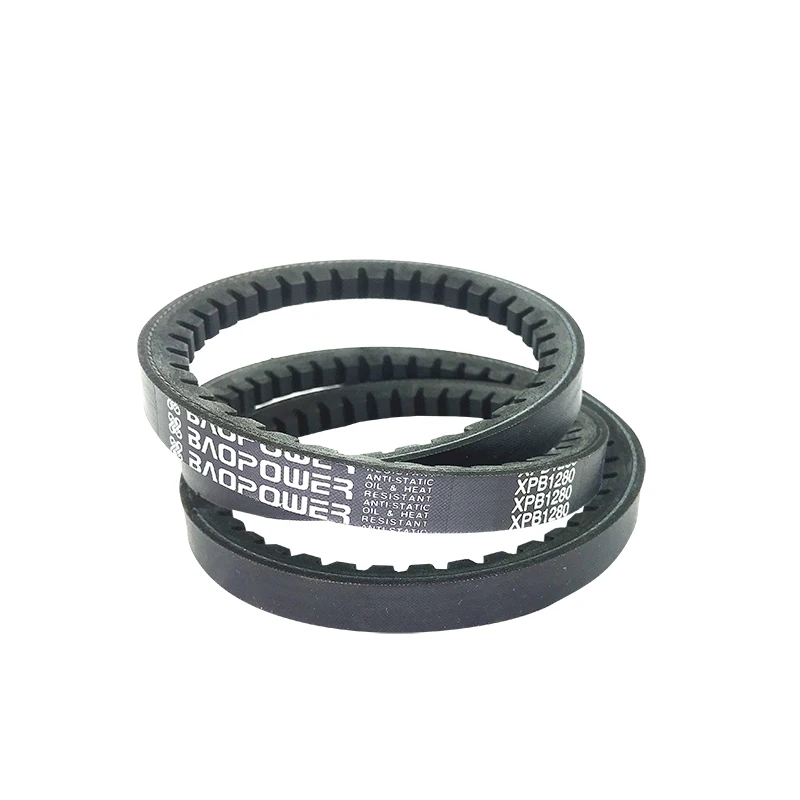

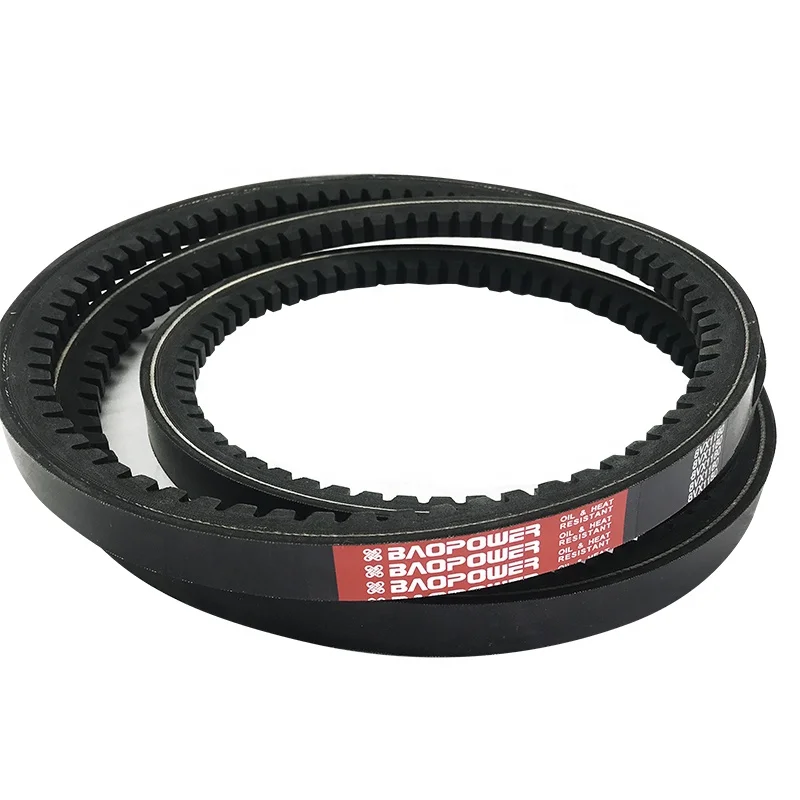

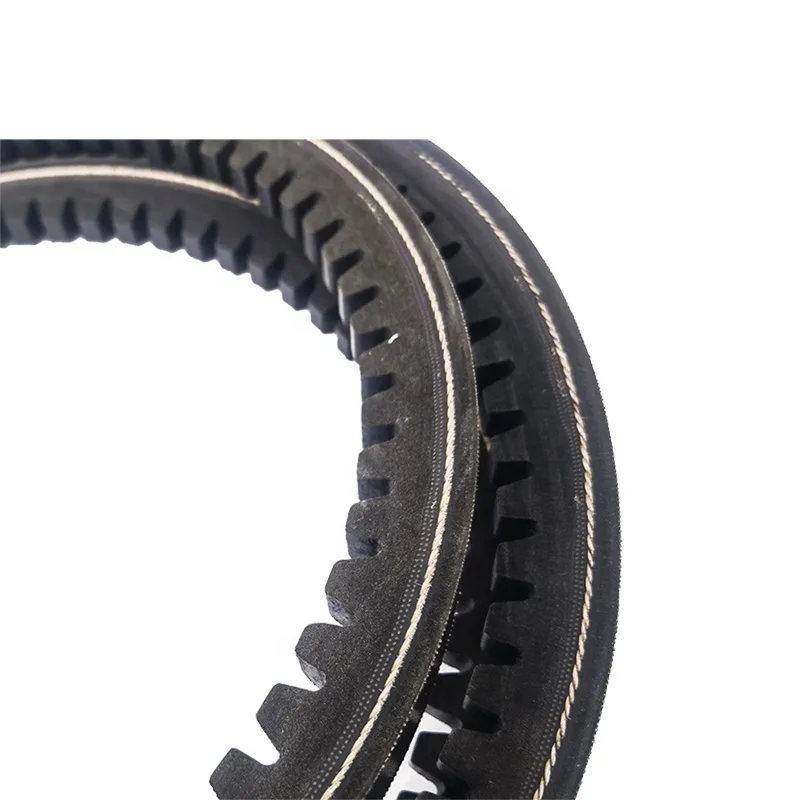

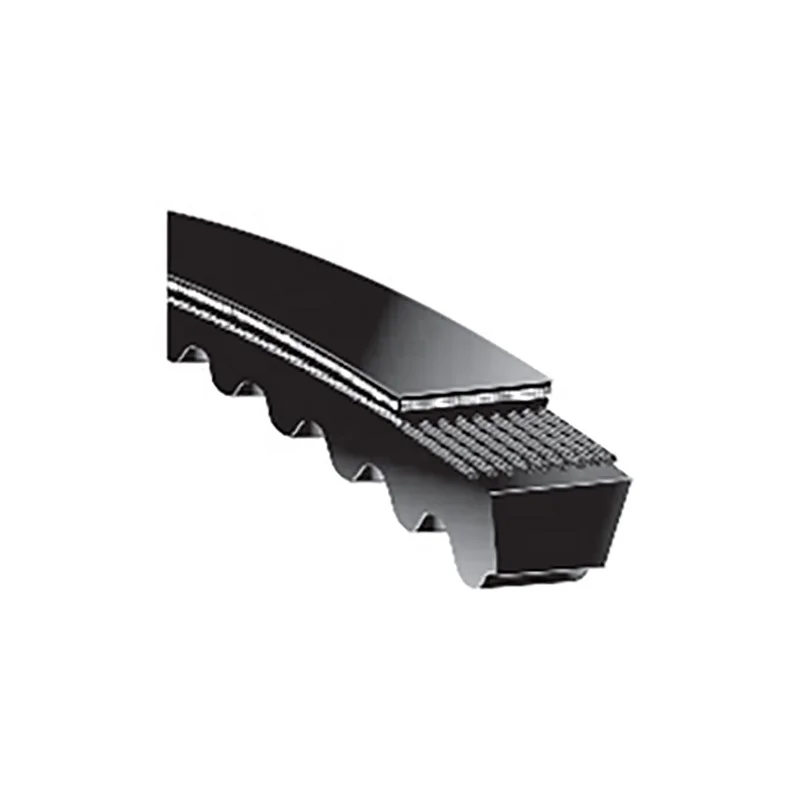

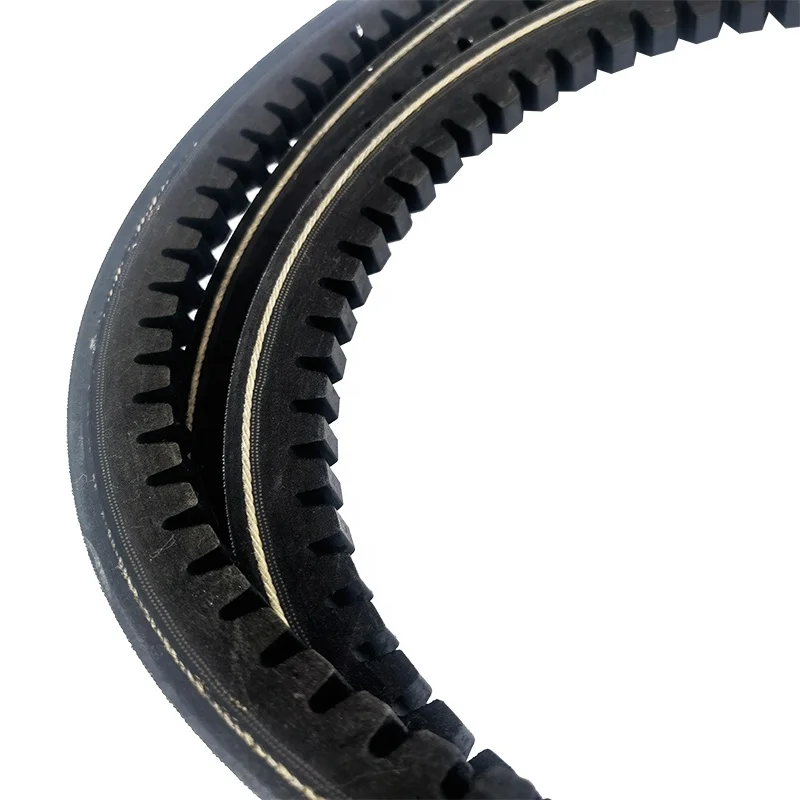

Baopower XPZ,XPA,XPB,XPC Professional Customized Rubber EPDM 10 PK 1267 Narrow Cogged V Belt
- Category: >>>
- Supplier: Zhejiang Powerbelt Co. Ltd.
Share on (11000002919839):
Product Overview
Description
Related Products
Product Description
1.Replacement on drives
that require narrow cross sections
2.Transmitting more horsepower than the classical
3.Temperature resistance : -45℃ - +70 ℃ , all belts are antistatic: ISO1813.
4.Standards : ISO4184, DIN7753.
that require narrow cross sections
2.Transmitting more horsepower than the classical
3.Temperature resistance : -45℃ - +70 ℃ , all belts are antistatic: ISO1813.
4.Standards : ISO4184, DIN7753.

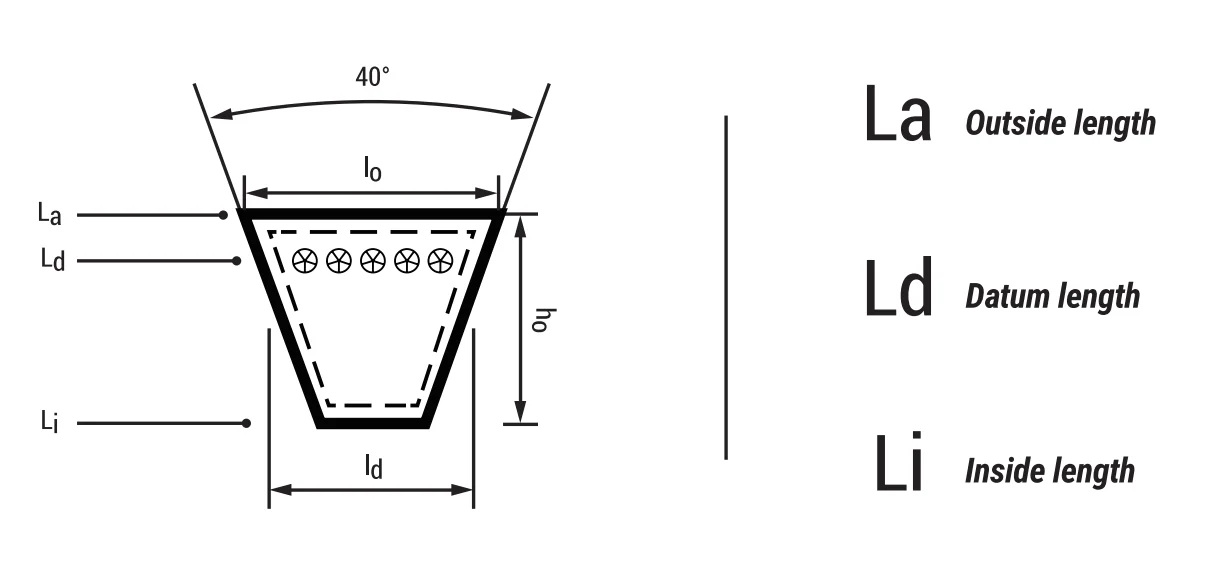

Type | Top Width(mm) | Pitch Width(mm) | Height(mm) | Wedge Angle | Weight/m(kgs) |
XPZ | 9.7 | 8 | 8 | 40 | 0.065 |
XPA | 12.7 | 11 | 10 | 40 | 0.11 |
XPB | 16.3 | 14 | 13 | 40 | 0.2 |
XPC | 22 | 19 | 18 | 40 | 0.323 |
Type | Conversion Table | Length Standard | Minimum Diameter of pulley (mm) | Weight/m(kgs) | ||
XPZ | Lw=La-13 | Li=La-50 | Lw | 50 | 0.065 | |
XPA | Lw=La-18 | Li=La-63 | Lw | 63 | 0.11 | |
XPB | Lw=La-22 | Li=La-88 | Lw | 100 | 0.2 | |
XPC | Lw=La-30 | Li=La-113 | Lw | 160 | 0.323 | |
Type | Top Width(mm) | Height(mm) | Wedge Angle | Weight/m(kgs) |
3VX | 9 | 8 | 40 | 0.063 |
5VX | 15 | 13 | 40 | 0.182 |
8VX | 25.5 | 23 | 40 | 0.51 |
Type | Conversion Table | Length Standard | Minimum Diameter of pulley (mm) | ||
3VX | Li=La-50 | Lw=Le-4 | La | 56 | |
5VX | Li=La-82 | Lw=Le-11 | La | 112 | |
8VX | Li=La-144 | Lw=Le-16 | La | ||

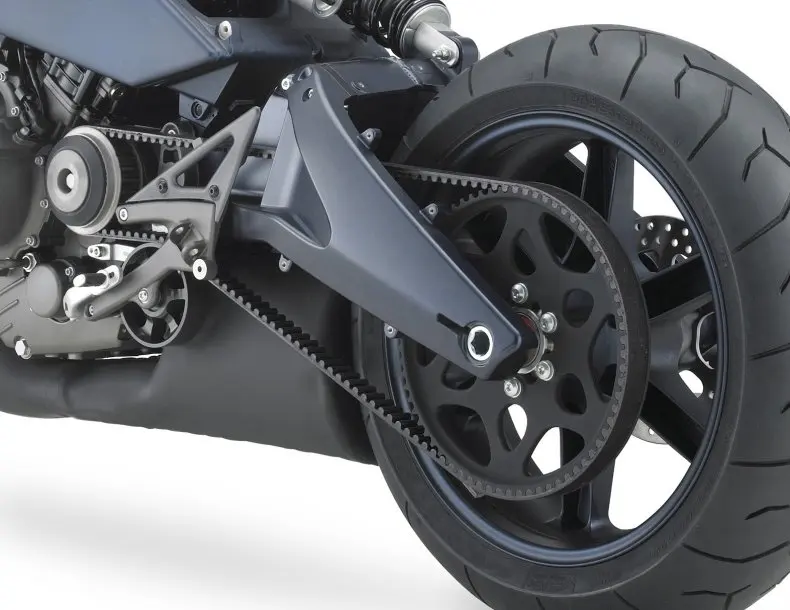

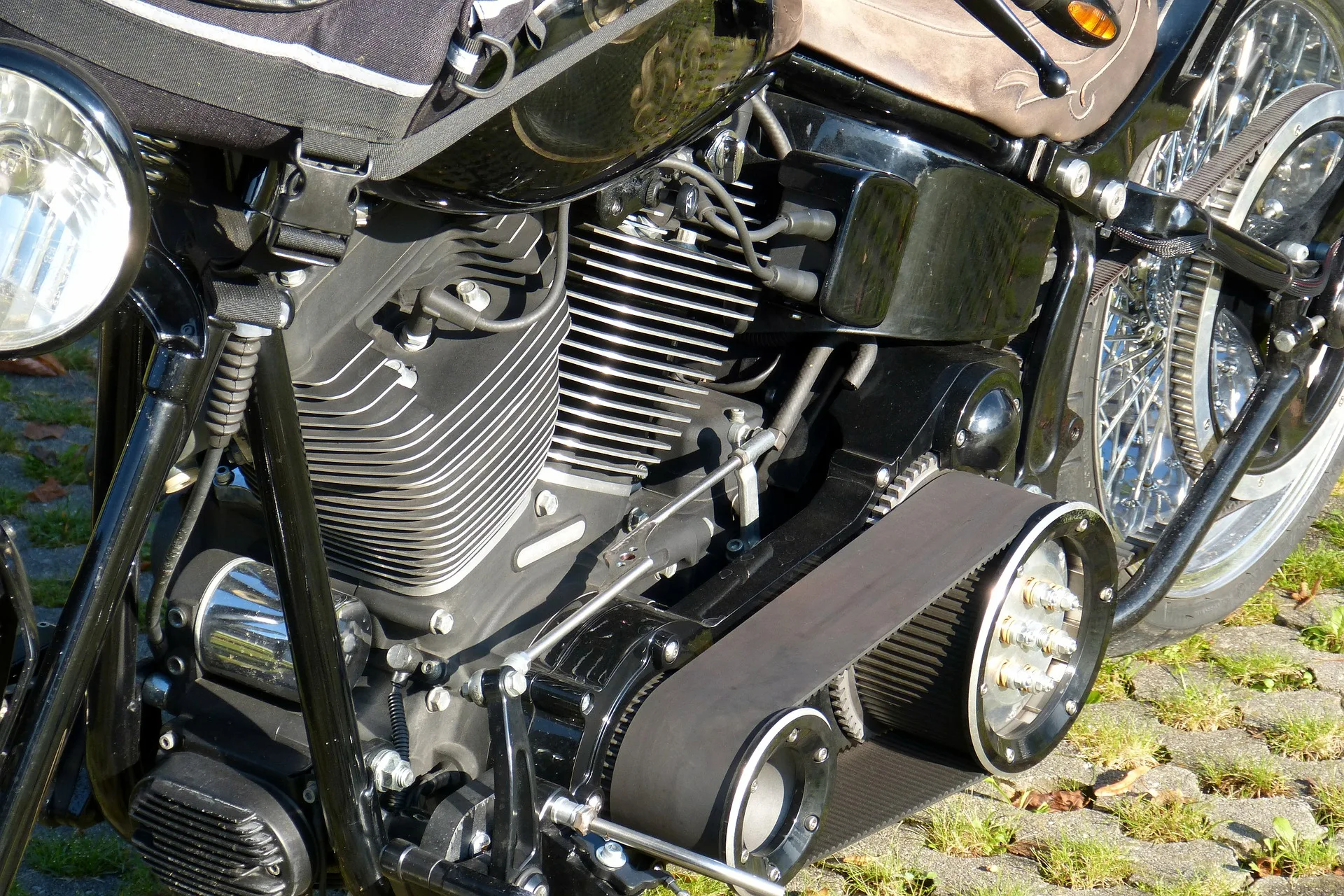

Why Customer Trust/Choose Baopower Motorcycle Belt?
Premium Quality Materail
--Nature Rubber
--Specially Treated Polyester Cord
--Wear Resistant Fabric
--Specially Treated Polyester Cord
--Wear Resistant Fabric
20+Years Experience
--Started since 1994
--Export to 50+ countries
--OEM for top brand in the world
--Export to 50+ countries
--OEM for top brand in the world
Best Service
-- Low MOQ & Fast delivery
-- Different OEM to help customer build their brands
-- Inquiry will be replied in 2 hours by professional team
Multi Styles to Meet Customers' Demands
-- Rubber Conveyor Belt/ V Belt/ Timing Belt
-- PU Conveyor Belt/ V Belt/ Timing Belt
-- Power Transmission Accessaries
Product Application
Baopower cogged v belt is suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. Recommend for use on all industrial heavy-duty, narrow section V-belts drives.
Company Introduction
ZHEJIANG POWERBELT CO. LTD.
Who Are We
-- Started since 1994
-- 20+years experience
-- 500+ workers
-- 100,000 m³ factory area
-- 40,000,000$ annual sales
-- 500+ workers
-- 100,000 m³ factory area
-- 40,000,000$ annual sales
What We Supply
--- Conveyor Belt
--- Wrapped V Belt
--- Cogged V Belt
--- Timing Belt
--- Poly V Belt
--- Cogged V Belt
--- Timing Belt
--- Poly V Belt
Our Aims
--Green specialist in power transmission
--World's leading transissin exterprises
Packing&Shipping
OEM Packaging is welcome in Baopower Belt. Below is some pictures of packaging for V Belt, Timing Belt. If you Have special requirments, please send us an inquiry for more details.
Availibale Packing: Cartton, Poly Bags, Pallets, Wooden Case
Shipping: By Sea/ By Air/ By Train/ By Express
Certifications
A1: We are the leading rubber belts manufacturers in China,which specializing in producing all kinds of high quality rubber belts.
Q2:Why choose us ?
A2.We are China's rubber belt industry standard drafting unit, we provide OEM for many world famous trademarks, Our products have high cost performance.
Q3. Can I have a sample before order?
A3. Yes. We could provide free sample for testing and quality checking, but we need customer afford the cost of freight.
Q4. What's the minimum order qty?
A4. Because we are factory and produce according to customers order, we do not have stock and need to produce in bulk, so the minimum order should be more than 1000USD.
Q5. Can we use our brand/LOGO ?
A5. Yes, we can print customers' brands/LOGO, Please send us your logo or design before mass production.
Q6. How to guarantee your quality?
A6. We have strict quality inspection standards, and will carry out quality inspection before leaving the factory, We can provide you with a report if you need.
Q7. What about the leading time?
Q7. About 25-35 days for bulk order. We will follow your order and let you know the condition regularly.
Q8: What is your terms of payment ?
A8: we can accept TT,LC .
For TT.30% T/T in advance ,balance before shipment. lf you have another question, please feel free to contact with our sells Manager.
Q2:Why choose us ?
A2.We are China's rubber belt industry standard drafting unit, we provide OEM for many world famous trademarks, Our products have high cost performance.
Q3. Can I have a sample before order?
A3. Yes. We could provide free sample for testing and quality checking, but we need customer afford the cost of freight.
Q4. What's the minimum order qty?
A4. Because we are factory and produce according to customers order, we do not have stock and need to produce in bulk, so the minimum order should be more than 1000USD.
Q5. Can we use our brand/LOGO ?
A5. Yes, we can print customers' brands/LOGO, Please send us your logo or design before mass production.
Q6. How to guarantee your quality?
A6. We have strict quality inspection standards, and will carry out quality inspection before leaving the factory, We can provide you with a report if you need.
Q7. What about the leading time?
Q7. About 25-35 days for bulk order. We will follow your order and let you know the condition regularly.
Q8: What is your terms of payment ?
A8: we can accept TT,LC .
For TT.30% T/T in advance ,balance before shipment. lf you have another question, please feel free to contact with our sells Manager.
