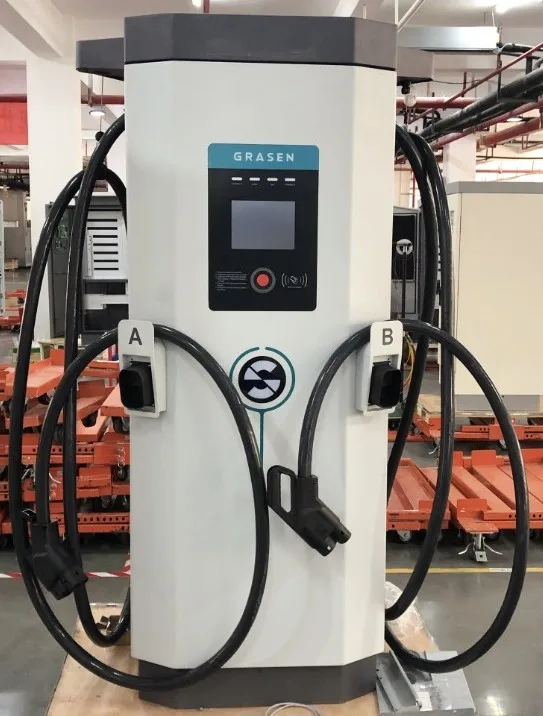

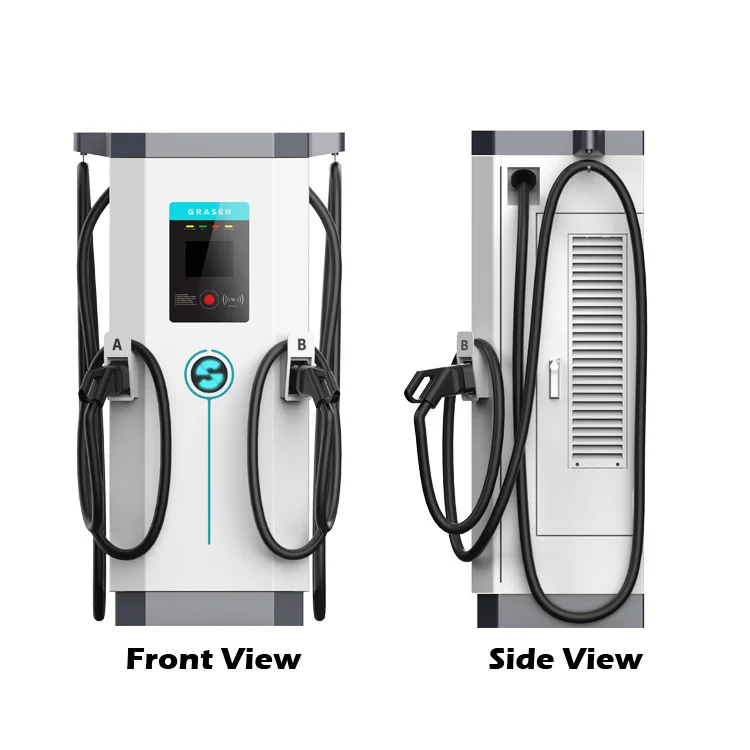

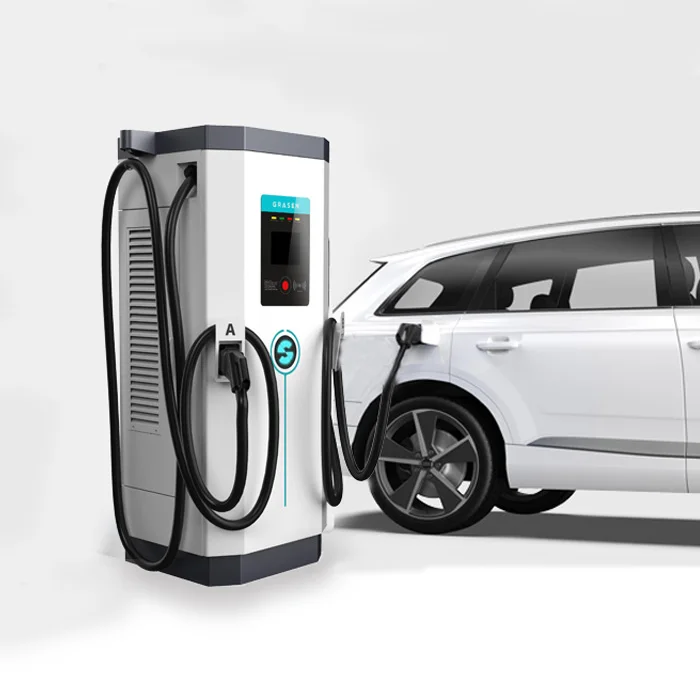

CE certified 3 phase ev supercharger 60kw 90kw 120kw 150kw OCPP CCS GB/T Chademo fast ev charger dc ev charger
- Category: >>>
- Supplier: Luoyang Grasen Power Technology Co. Ltd.
Share on (11000002929644):
Product Overview
Description
Products Description

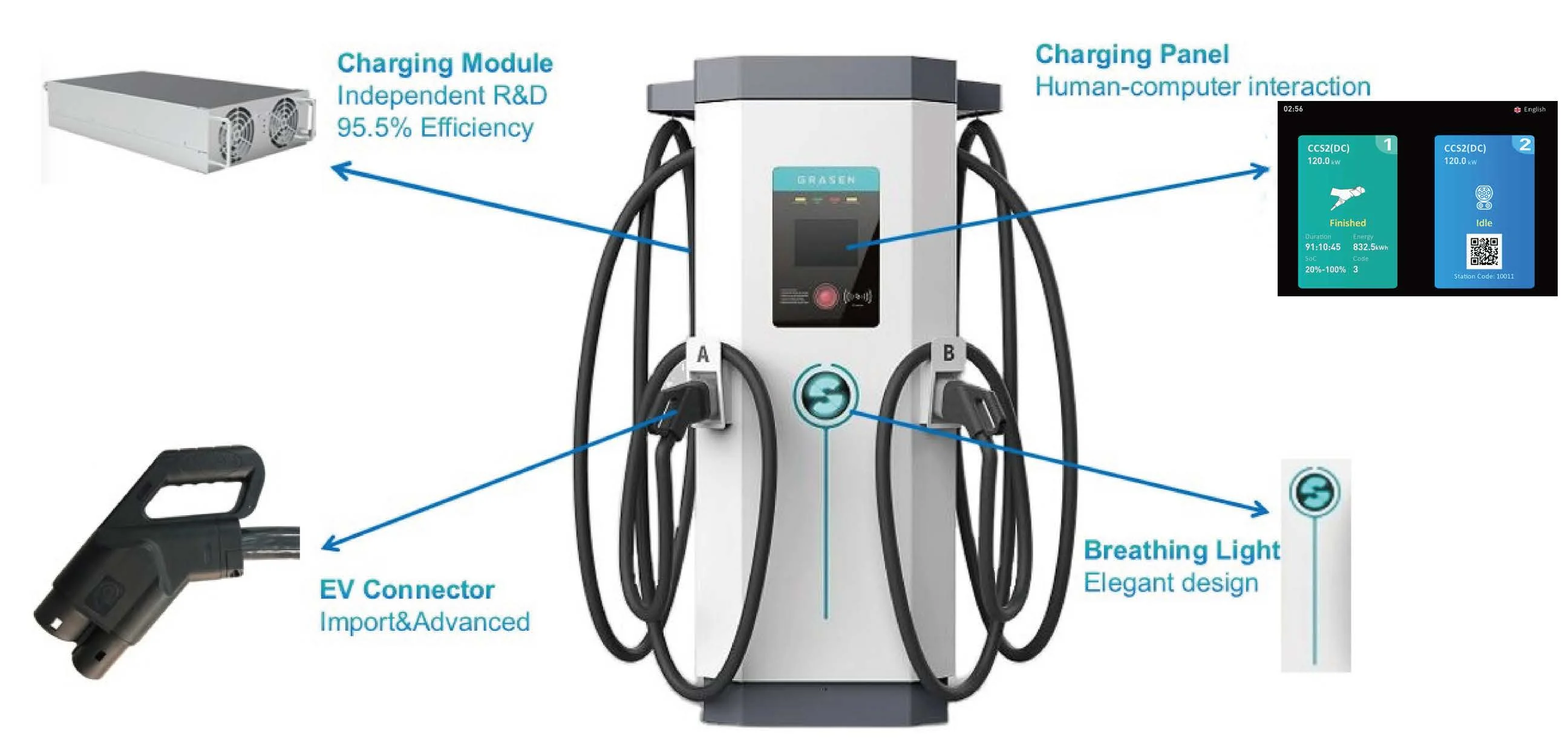

Auto charging, easy to use.
CE certified by TUV
High safety and performance
Introduction

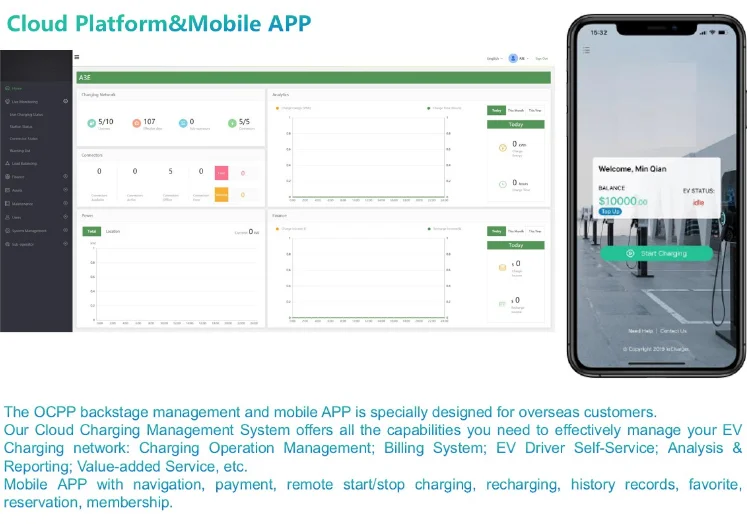

With OCPP 1.6J integrated, the charger can be easily connected to our cloud charging management system for easy operation, monitoring, and maintenance.
* Output power - 60KW, 90kW, 120kW, 150kW, 200KW
* Connector - CCS2 (Chademo/CCS1 optional)
* Networking way: 4G, Ethernet
* OCPP 1.6J supported
* TUV CE certification
* Suitable for public parking lot, bus station, gas station, freeway service area

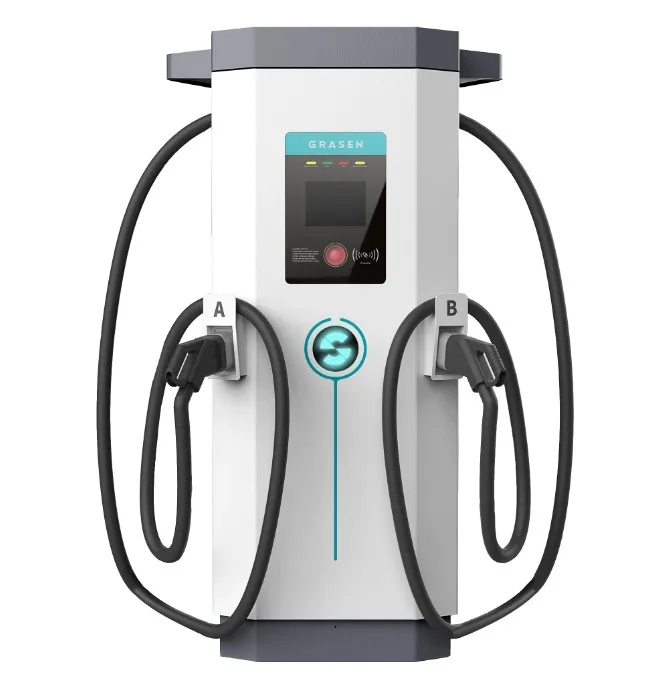

Type | DC Charging Pile with two CCS-2 plugs | ||||||||
Description | 60kW DC Pile | 90kW DC Pile | 120kW DC Pile | 150kW DC Pile | 200kW DC Pile | ||||
Model | GSCS750100A-T08 | GSCS750150A-T08 | GSCS750200A-T08 | GSCS750250A-T08 | GSCS750500A-T08 | ||||
Power | 60kW | 90kW | 120kW | 150kW | 200kW | ||||
Input Rating | 3-phase 400V±15% AC | ||||||||
Working frequency | 45~65Hz | ||||||||
Output voltage | 200~750V DC | ||||||||
Output current | 5-150A | 5-225A | 5-300A | 5-375A | 5-500A | ||||
Power factor | 0.99 | ||||||||
Efficiency | ≥95% | ||||||||
Communication interface | 4G, Ethernet | ||||||||
Screen size | 8” | ||||||||
Charging cable length | 5m | ||||||||
Mounting type | Floor-mounted type | ||||||||
Dimension | 702mm*1007mm*1815mm | ||||||||
Weight | Approx. 400KG | ||||||||
IP class | IP55 | ||||||||
Cooling method | Air cooling | ||||||||
Working temperature | -30℃～+55℃ | ||||||||
Storage temperature | -40℃～+70℃ | ||||||||
Altitude | Up to 6000 feet (≤2000 m) | ||||||||
Protection function | Over voltage over current | ||||||||
Certificate No. | 50347817 001_Certificate/AN504631360001 | ||||||||
Reference Standard | DIN70121/ISO15118/IEC61851/SAEJ1772 | ||||||||
Certificate | CE certified by TUV | ||||||||
Support Language | English, Spanish, or other languages required | ||||||||
Push Buttons | Emergency stop | ||||||||
User Authentication | RFID card reader, user name & password, mobile No. & pin code | ||||||||
Related Products
Company Introduction
Luoyang Grasen Power Technology Co., Ltd., located in Luoyang city, Henan province, China, established in March, 2010, with registered capital 100 million RMB, is a professional high-tech enterprise engaged in the R&D, manufacturing, sales and services of new energy electric vehicle charging equipment and products.
We are a wholly owned subsidiaries of listed company Jiangsu Yinhe Electronics (Stock code: 002519).
Our company has adopted ISO9001:2015, IATF16949:2016 Quality Management System Certification, Environmental Management System Certification, Occupational Health and Safety Management System Certification, Intellectual Property Management System.
We are a wholly owned subsidiaries of listed company Jiangsu Yinhe Electronics (Stock code: 002519).
Our company has adopted ISO9001:2015, IATF16949:2016 Quality Management System Certification, Environmental Management System Certification, Occupational Health and Safety Management System Certification, Intellectual Property Management System.
Grasen electronic industrial park was established at the end of year 2014, with total investment of 150 million RMB, covering 40,000 square meter and over 30 production lines, more than 500 employees and annual year production capacity 150,000 sets.

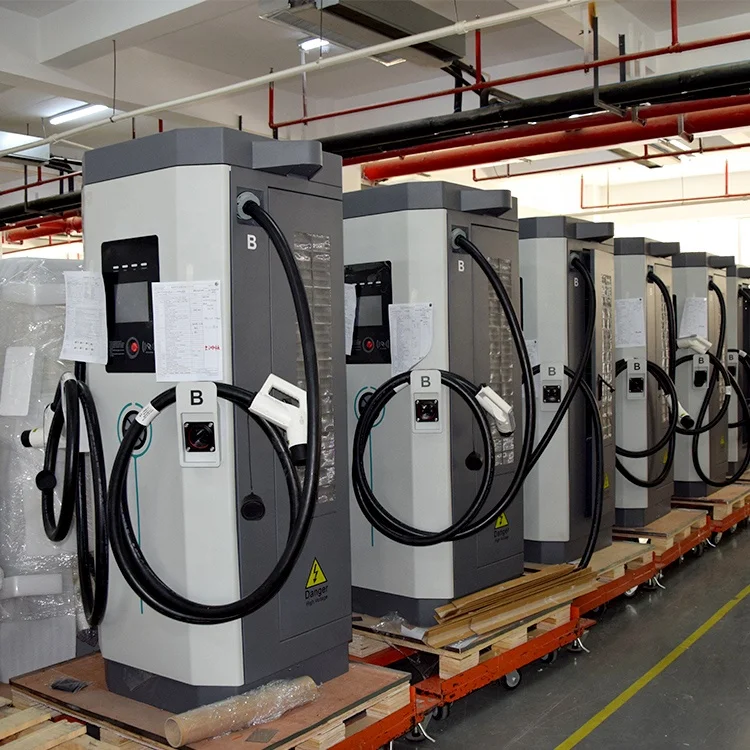

Factory equipment
Category of our EV charging stations
Certifications

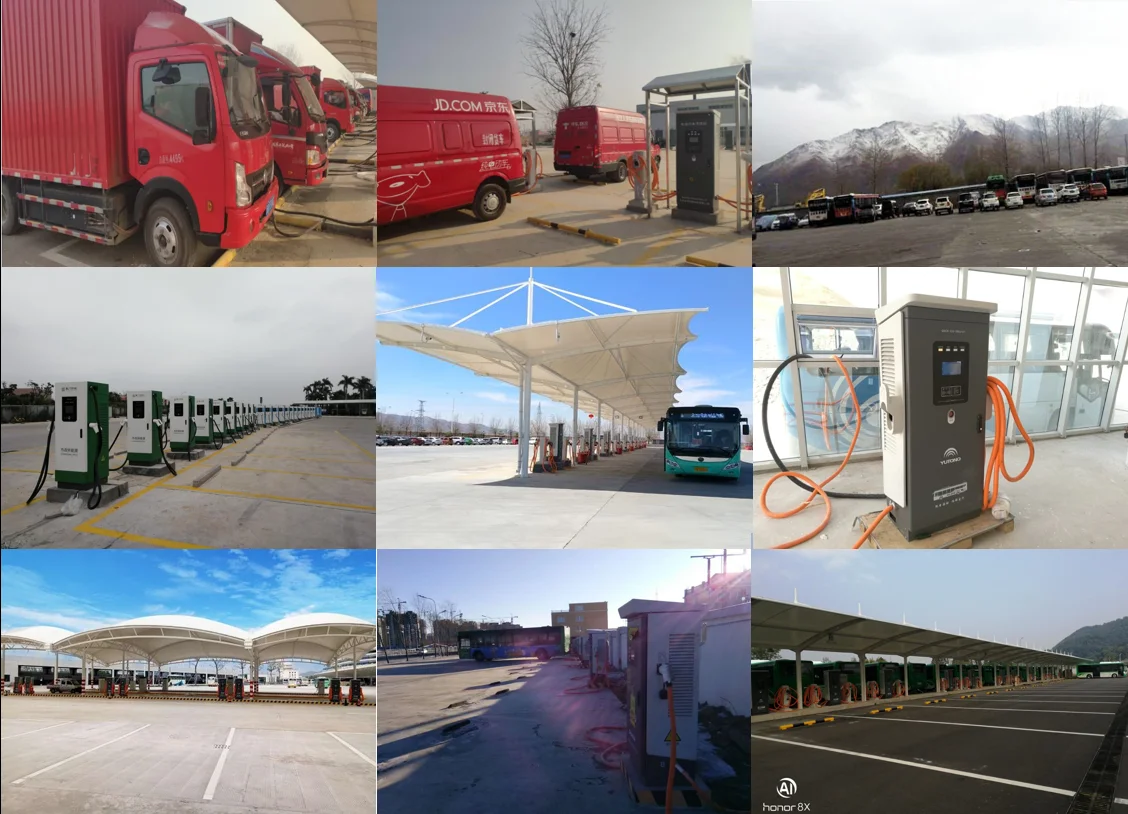

Customer Photos
After Sales Service
Packing&Shipping
FAQ
Here are some customers' common questions:
A: We are a professional EV charging station manufacturer for over 10 years.
Q2: How long is the lead time?
A: The lead time is 4-8 weeks, it depends on the quantity and production scheduling.
Q3: What charging connectors do you have?
A: We have Type 1 (J1772), Type 2, GB/T, CCS 1, CCS2, CHAdeMo, etc.
Q4: How many kinds of payment?
A: We accept Paypal, T/T, L/C, etc.
Our Service:
1. We will reply your inquiry within 12 hours.
2. Paypal, T/T and L/C payment terms are all accepted.
3. Shipment: By air, By sea, By train, By International express (DHL, Fedex, etc.).
4. Provide operating guide (instruction).
5. Customized design, sample and packing according to clients requirements.
4. Provide operating guide (instruction).
5. Customized design, sample and packing according to clients requirements.
We will quote you the best price and provide the best customer service.
