Product Overview
Description
Negative Pressure Fully Automatic Cashmere Carding Machine
1. Product Introduction
This machine is the latest generation of cashmere carding equipment,which meets the demand of cashmere products industry for the new high-grade cashmere carding machines,as well as could greatly promote the technological progress of cashmere carding equipment.
2. Configuration list of YQ-FN288-1 Production Line
Automatic Wool Feeder→ Double Roller Opening Machine→Cashmere Dehairing Machine→Wool Feeder→Dust Suction Cage Feeder +Cashmere Flat Carding Machine(3 sets)→Cashmere Carding Machine(2 sets)
3. Working Principle
4.1 Through the rational allocation of the above-mentioned single machines,the cashmere and other fibers can be opened, carding,and coarse wool and impurities will be removed step by step, in order to improve the extraction rate of cashmere and decrease cashmere loss.
4.2 The product can be divided according to its work width and output: 1020mm(YQ-FN288) and 1500mm (YQ-FN150)
5. Product Display

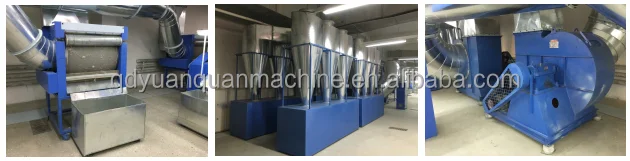

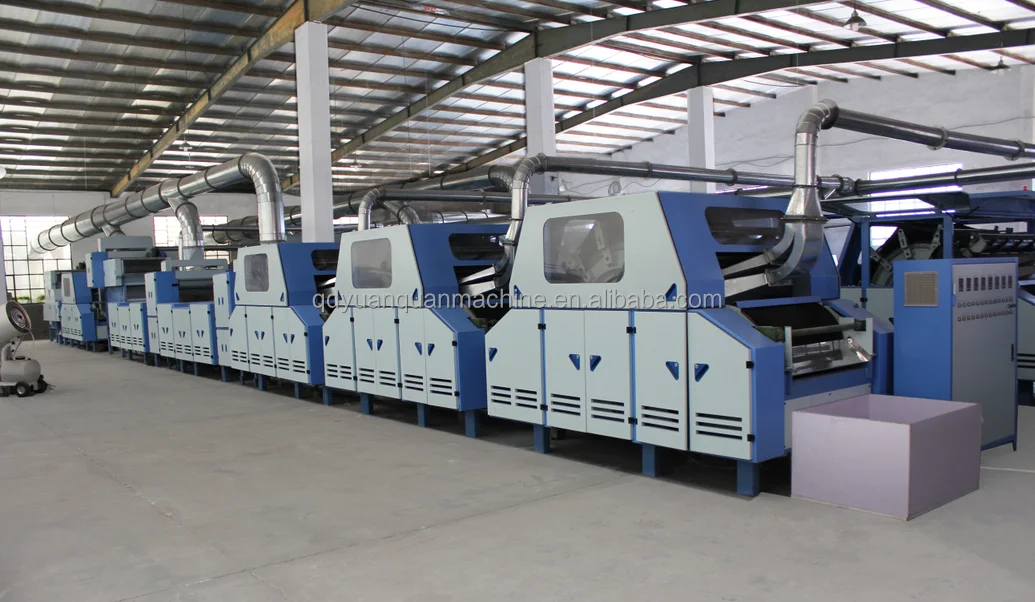

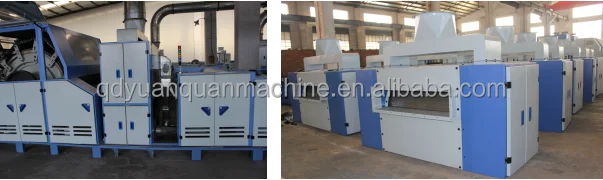

Totally Enclosed Housing Enterprise R & D Center Workshop

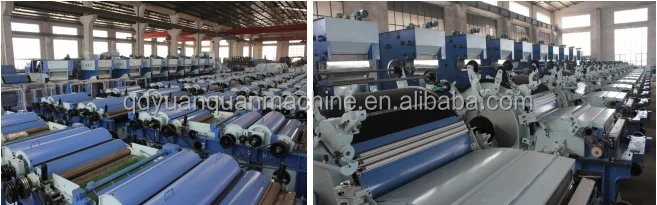

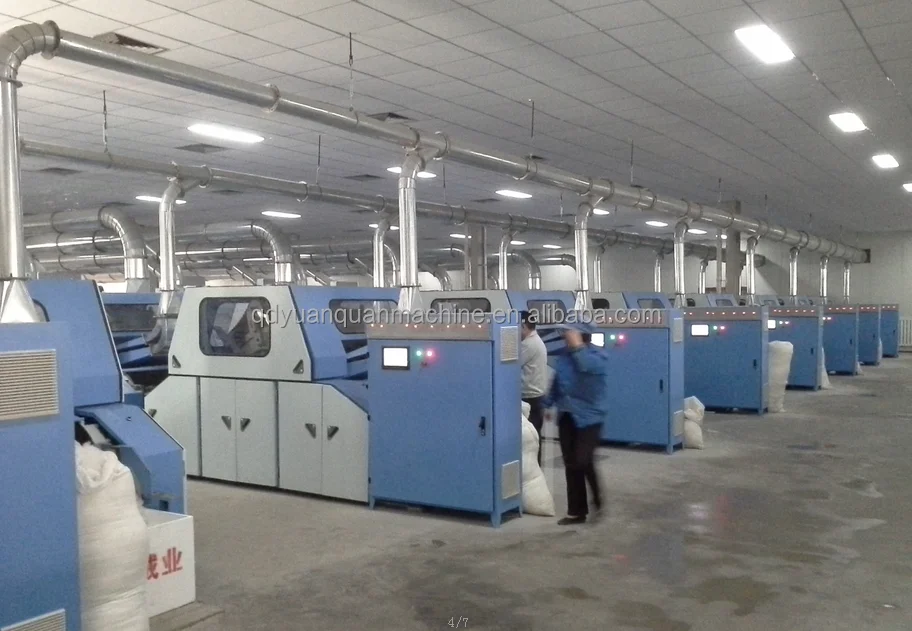

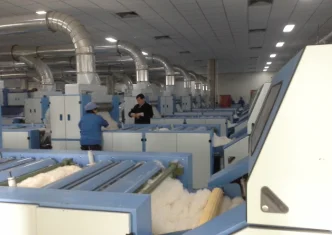

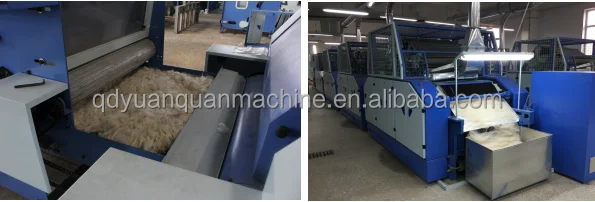

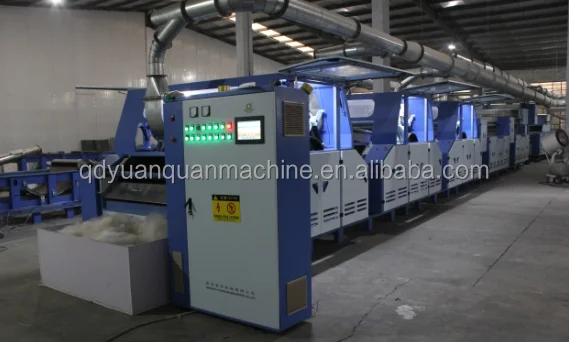

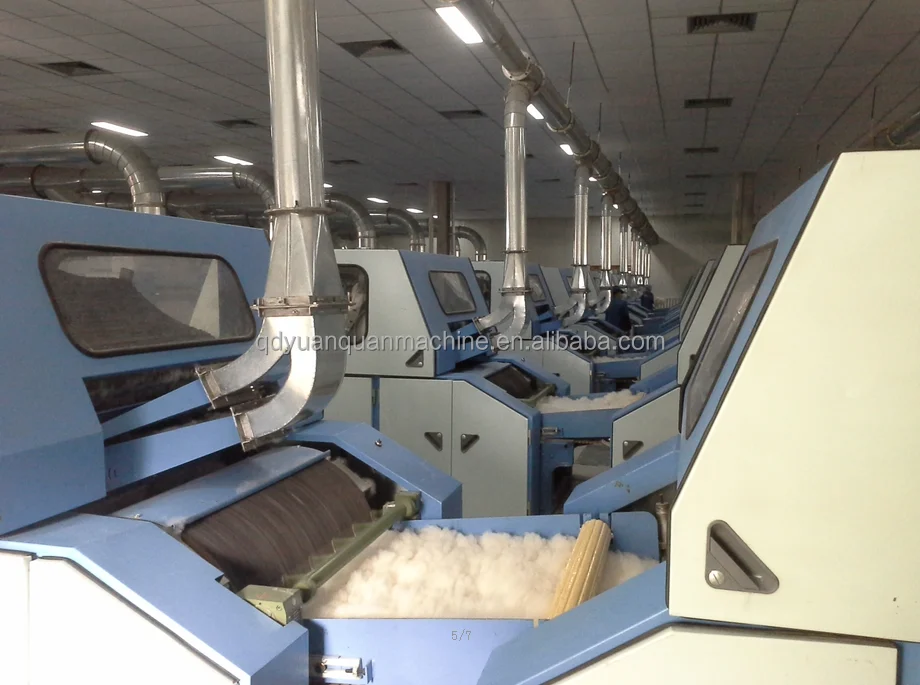

Intelligent Workshop of Cashmere Dehairing Production Line
6. Specifications & Technical Parameters
6.1 Model:YQ-FN288
6.2 Working Width:1020mm
6.3 Dimension
No. | Unit Name | Dimension |
1 | Wool Feeder(equipped with double roller opening machine) | 1870*1500*2300mm |
2 | Double Roller Opening Machine | 3200*2000*1600mm |
3 | Wool Feeder(equipped with flat carding machine) | 150*1500*2260mm |
4 | Flat Carding Machine | 2600*1900*1150mm |
5 | Dust Suction Cage Feeder | 800*1900*2250mm |
6 | Cashmere Dehairing Machine | 3270*1900*2000mm |
7 | Suction Device | 6000*3000*2500mm |
8 | Electric Control Cabinet | 450*1200*1800mm |
6.4 Dragging Power
No. | Name | Power | QTY |
1 | Wool Feeder(equipped with double roller opening machine) | 3kw | ONE SET |
2 | Double Roller Opening Machine | 2.8w | ONE SET |
3 | Wool Feeder(equipped with flat carding machine) | 3kw | ONE SET |
4 | Flat Carding Machine | 1.8kw | THREE SETS |
5 | Dust Suction Cage Feeder | 0.55kw | THREE SETS |
6 | A186 Cashmere Dehairing Machine | 2.8kw | THREE SETS |
7 | Suction Device | 15kw | ONE SET |
Remark:
- This product has been patented, and copying is not permitted.
- This production line is customized according to different customer requirements. Any questions about the specific price or technical parameters,please contact us!
7. Details of Negative Pressure Fully Automatic Cashmere Carding Machine
- Better working environment:The equipment adopts fully enclosed housing, which not only improves the appearance, but also increases the safety performance of the equipment,The dust in the workshop is collected through the dust box, which purifies the working environment and reduces dust pollution.
- Less artificial:The suction device and dust filter effectively guarantee the supply and recycle of raw materials. Through the professional design and production of the pipeline with the suck dust cage,under the premise of saving labor, the raw materials supply will be more uniform and automatic.What’s more, compared with traditional carding equipment, it can reduce the labor force by 60%, and alleviate the problem of enterprise employment.
- It can reduce power consumption by more than 30% than traditional carding equipment. And the extraction rate increased from 92% to 95%.
- Smaller floor space:The whole equipment is driven by wind suction, which increases the feeding volume and uniformity of raw materials, and greatly reduces the impurity content of dehaired cashmere.the same production capacity, the new suction fan system can reduce the area occupied by 30%

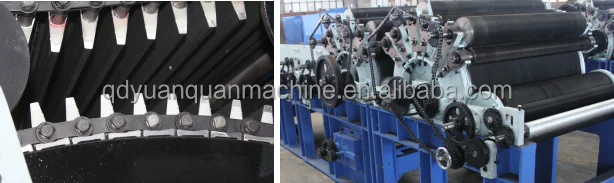

- More advanced technology:After the development of roller,needle cloth and other core components,the damage rate of fiber further reduced than tradition equipment,from 5% to 2%,to improve the quality of dehaired cashmere.

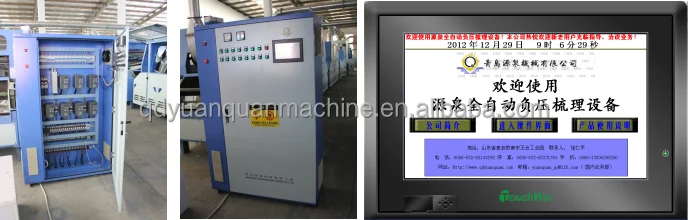

- More convenient operation:The control system adopts the PLC programmable controller HMI,It can automatic measure the speed,frequency conversion,control the interlock and automatic control and so on. In this way, it can achieve the crafts parameters detect and adjust online, to improve the whole intelligent machine control level.
8. Production and Delivery Scene

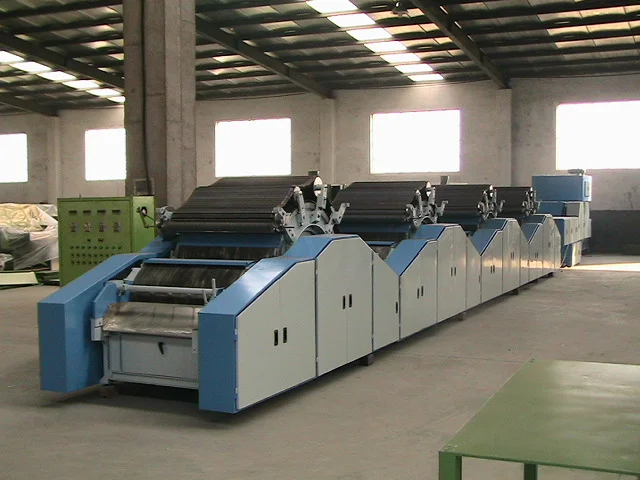

8.1 Our composing room
8.2 Domestic delivery
