Morn fiber laser cleaning surface machine price / 1000w laser cleaning machine rust removal
- Category: >>>
- Supplier: Morn Laser Technology Co. Ltd.
Share on (11000002934279):
Product Overview
Description
Product Description

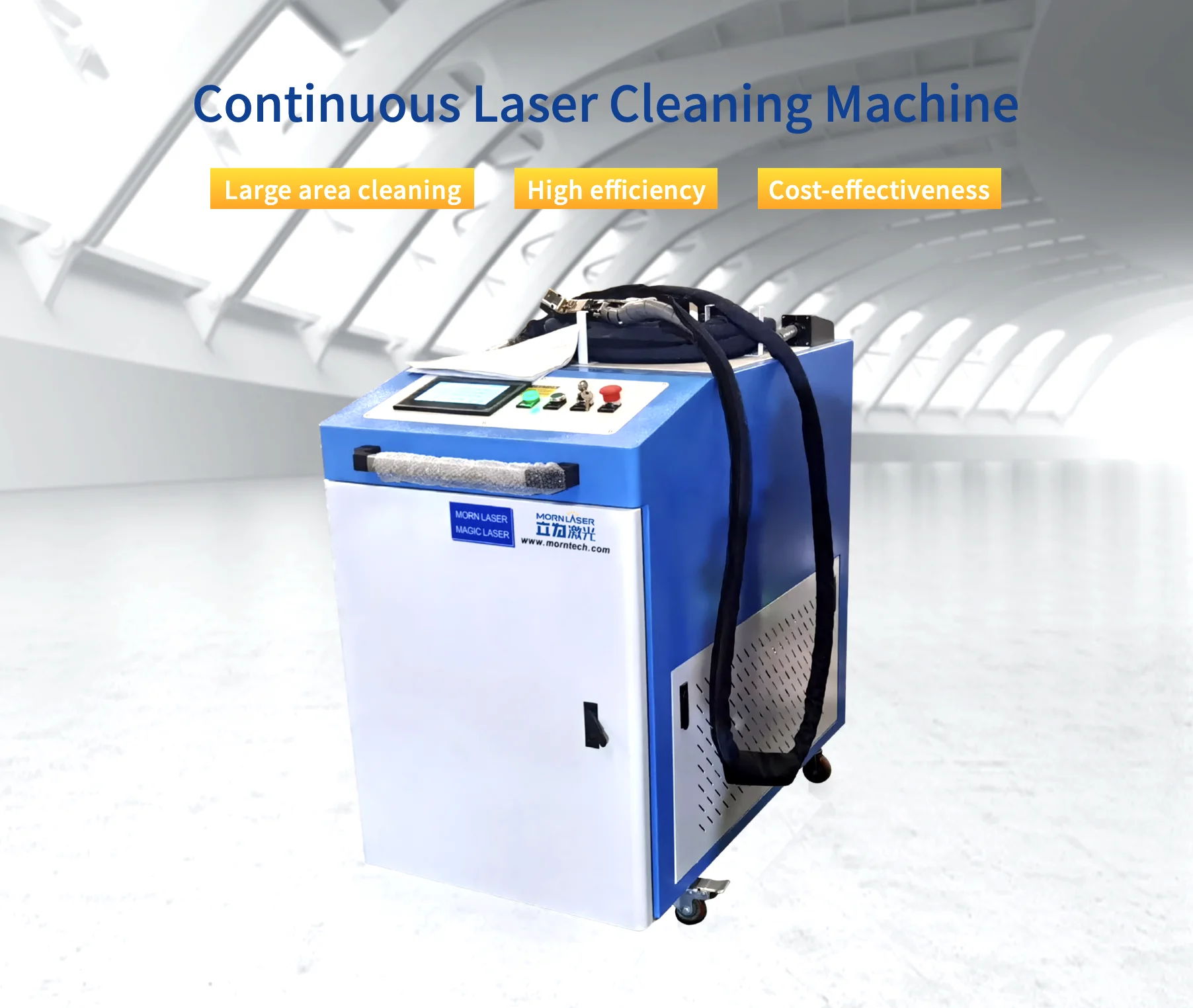

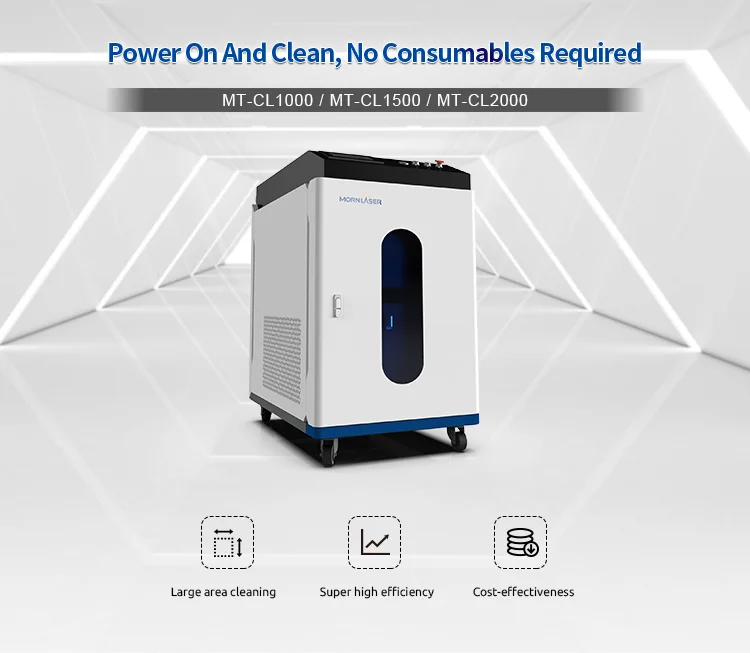

Continuous Fiber Laser Cleaning Machine
MORN fiber laser cleaning machine enables you to effortlessly get rid of organic pollutants and inorganic substances, including metal corrosion, rust, coatings, paints from metal, plastic, ceramics, glass, stone, or concrete.
This continuous-wave fiber laser cleaner is ideal for large area cleaning such as large steel structures or pipes.
Supporting non-contact cleaning mode and using no chemical agents, this advanced laser cleaner promises efficient and
environment-friendly cleaning.
Features
Non-contact cleaning, no damage to parent material
Precise clean of large area, efficient and excellent surface cleanliness
No cleaning agents required, safe and eco-friendly
Power on and clean with super efficiency
Machine Parameter
Model | MT-CL1000 / MT-CL1500 / MT-CL2000 |
Power | 1000w 1500W 2000W |
Supply voltage | Single-phase 220V ± 10%, 50 / 60Hz AC |
Work environment humidity | ≤80% |
Fiber length | 8m-10m (customizable） |
Scanning width | 10-60mm |
Laser average power | ≥200W |
Focus spot diameter | 0.08mm |
Center wavelength | 1064nm |
Cooling | Air cooling/water cooling |
Type of manipulator | Manual / Based on galvanometric laser scanner |
Manipulator weight | 2.75KG |
Size | 1180mm×730mm×1280mm |
Machine Weight | 200KG |
Online Customization

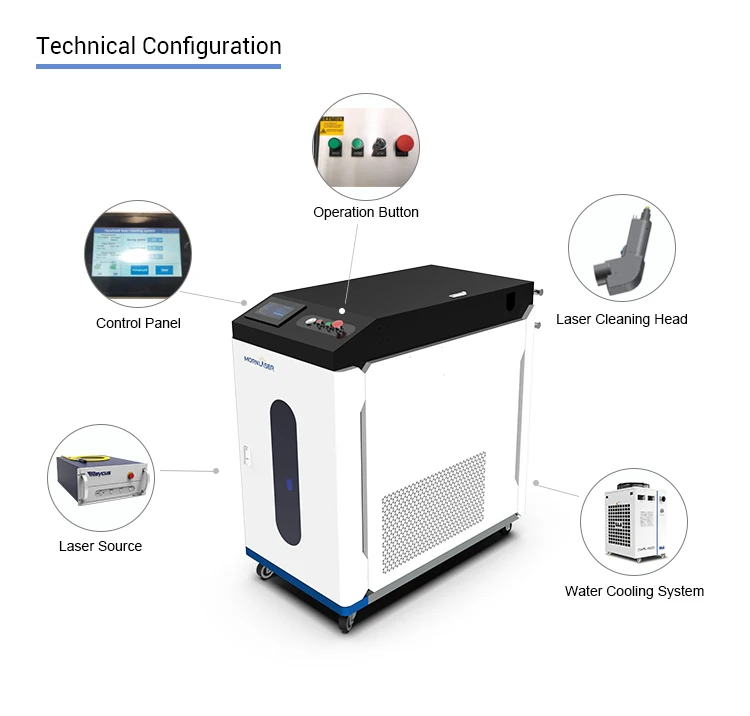

Machine Details

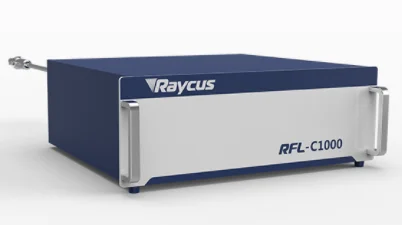

●100,000 hours of lifetime, free maintenance;
●High electro-optical conversion efficiency (up to 25-30%), excellent beam quality, high energy density, and reliability, a wide modulation frequency;
●Low energy consumption, only 20%-30% of the traditional CO2 machine.

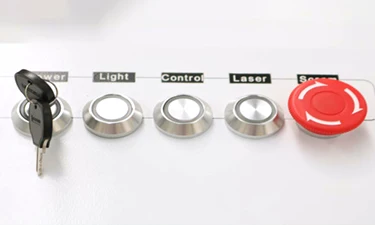

From left to right button are: power light, laser power, button, main power, emergency stop button.

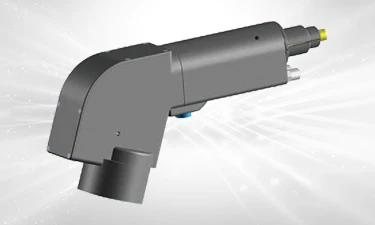

Movable and light, very easy to operate. Meantime, the cleaning width and output power is very easy adjust at here

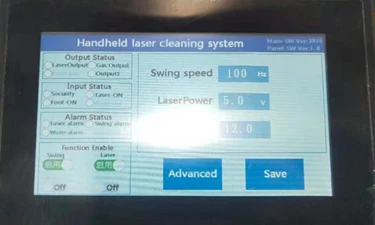

Control panel allows you to set laser output power, frequency and other parameters.
Intelligent dual temperature dual control mode provides effective temperature control solutions for fiber lasers in all directions

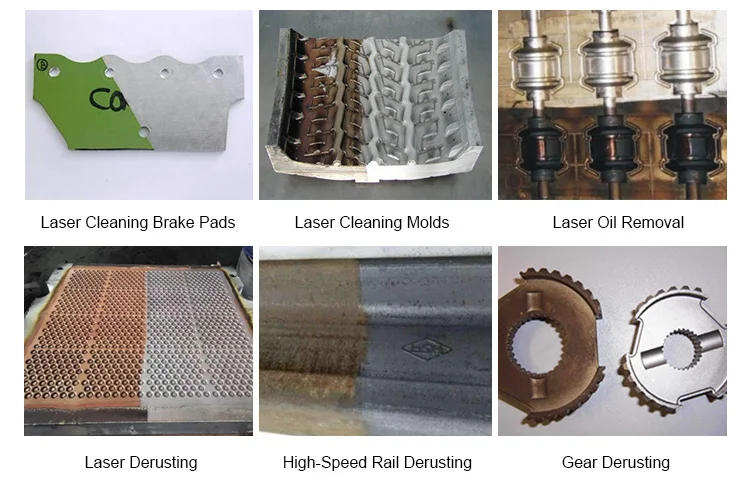

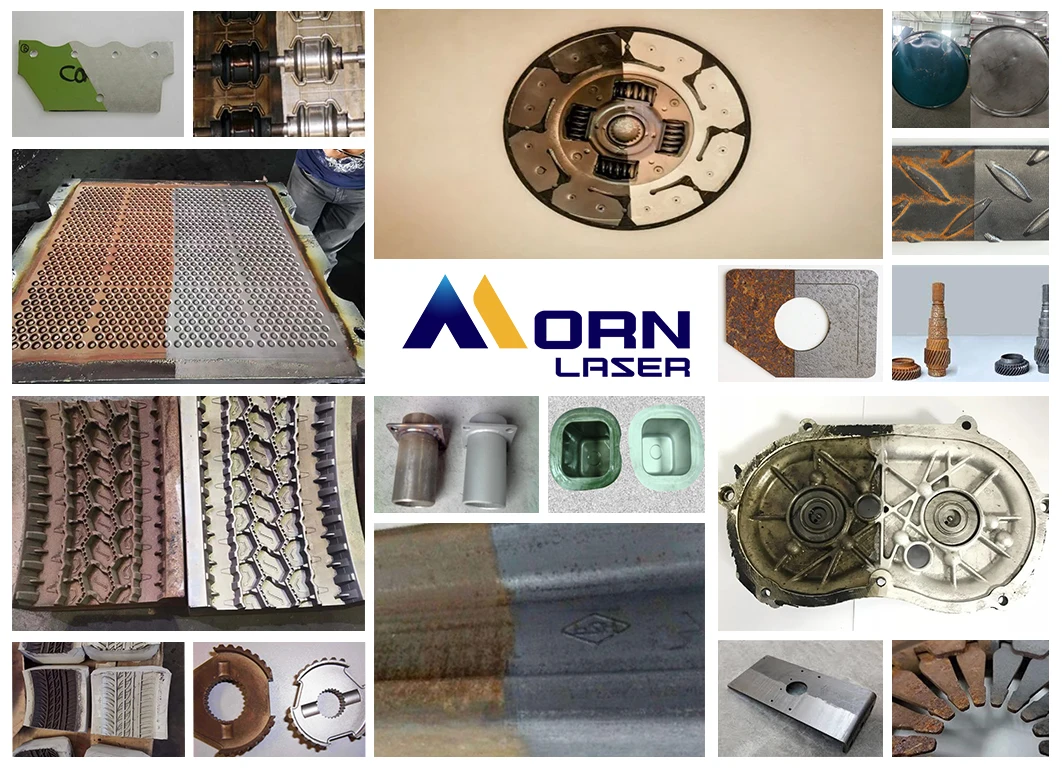

Application & Sample
Morn laser cleaning equipment is a new generation of surface cleaning high-tech products. It is very easy to install, manipulate and achieve automation. You just turn on the power and open the device, the machine will clean with no chemical agents, no media, no dust and no water. With the advantage of manual adjustment of the focus, it fits curved surface cleaning and makes superior surface cleanliness. Laser cleaning machine can clean the resin of subject surface, oil stains, stains, dirt, rust, coating, paint, etc.
About Morn Laser
FAQ
Q1: What is the speed of the laser cleaning machine?
A1:Different laser types determine the cleaning speed of the cleaning machine, and the cleaning speed is within the range of 0.5m2/h-15m2/h
Q2:How long is the delivery time?
A2:Ordinary laser cleaning machines will be delivered in 3-7 days, and customized machines will take 12-14 days.
Q3:Is there any damage to the cleaning material?
A3:Depends on what type you need, the pulse type has a finer cleaning effect, and the continuous type has a faster cleaning speed, little damage of material. You can choose your suitable laser cleaner according to your specific applications.
Q4:Do you support customization?
A4:Yes, we provide customized service for you according to the different cutting materials and thickness.
Q5:I don't know how to use it after receiving it, or I have problems in the process of using it. What should I do?
A5:We have detailed user manual and video for your reference In addition, we provide door-to-door service and 24/7h online after-sales engineer ready to answer any of your questions.
