High Safe Performance Plus High Efficiency Electro permanent magnet lifter for Billets,Slab and Blooms
- Category: >>>
- Supplier: Zhuzhou HVR Magnetics Co. Ltd.
Share on (11000002936131):
Product Overview
Description
Product Description

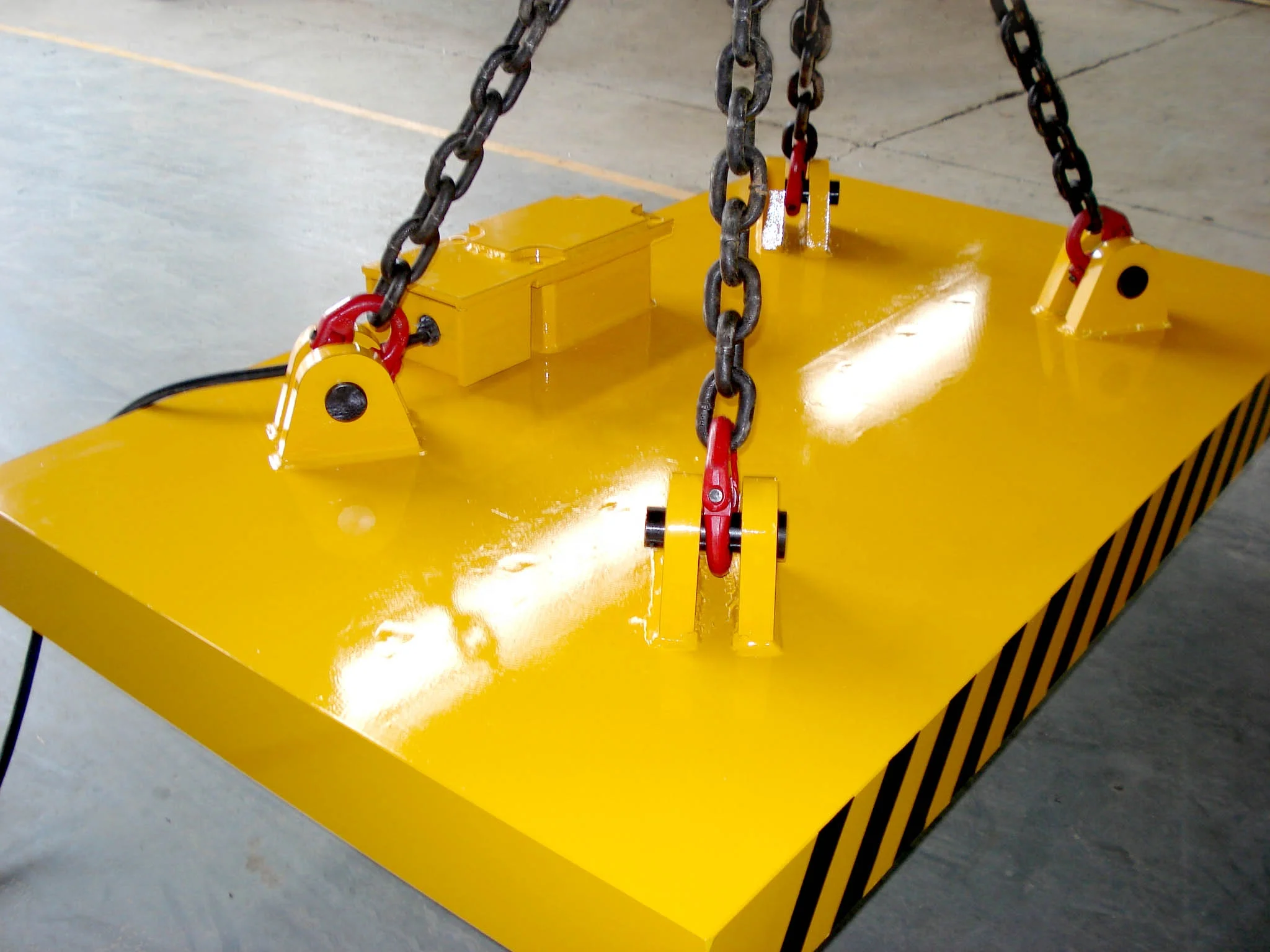

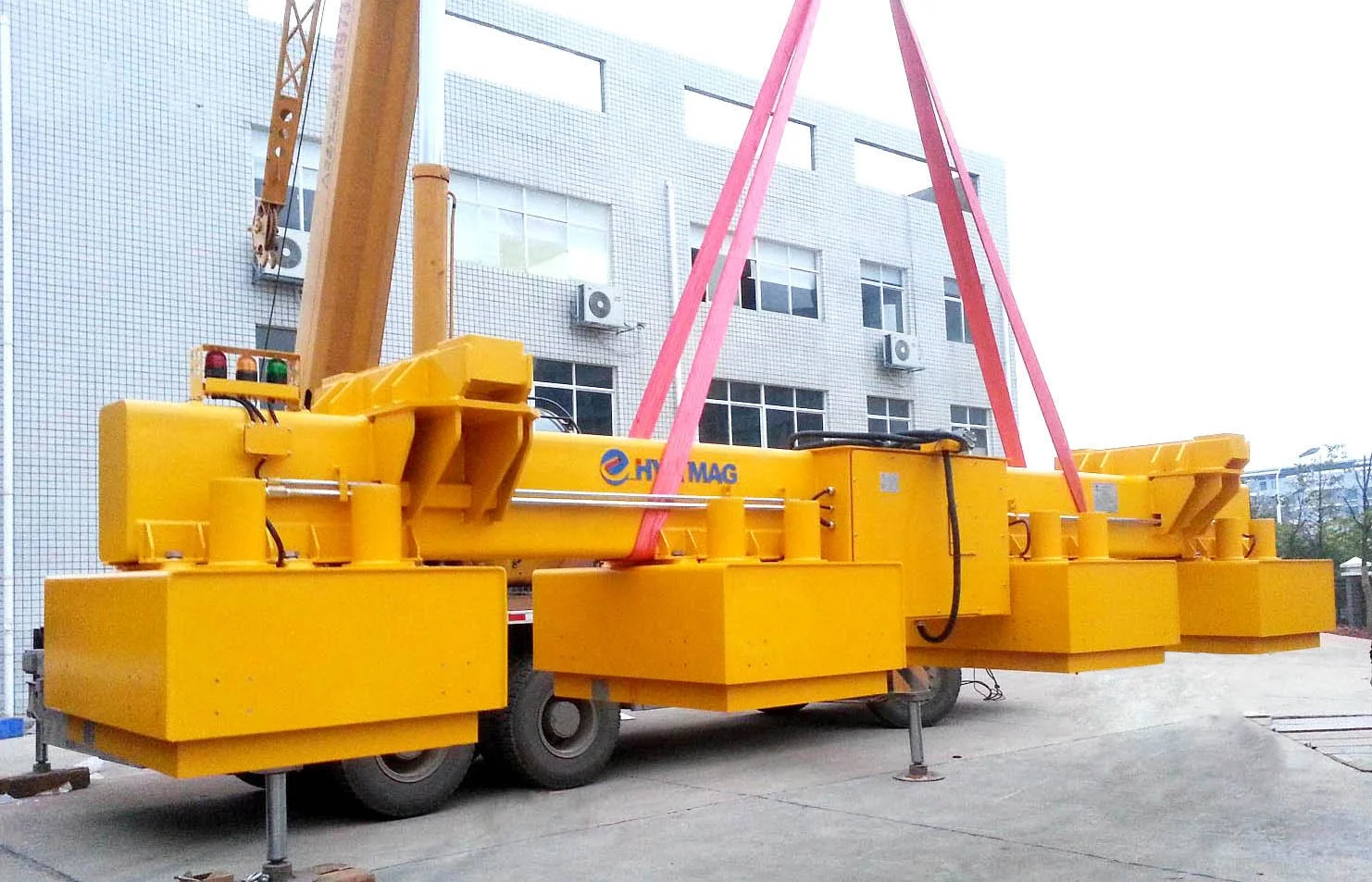

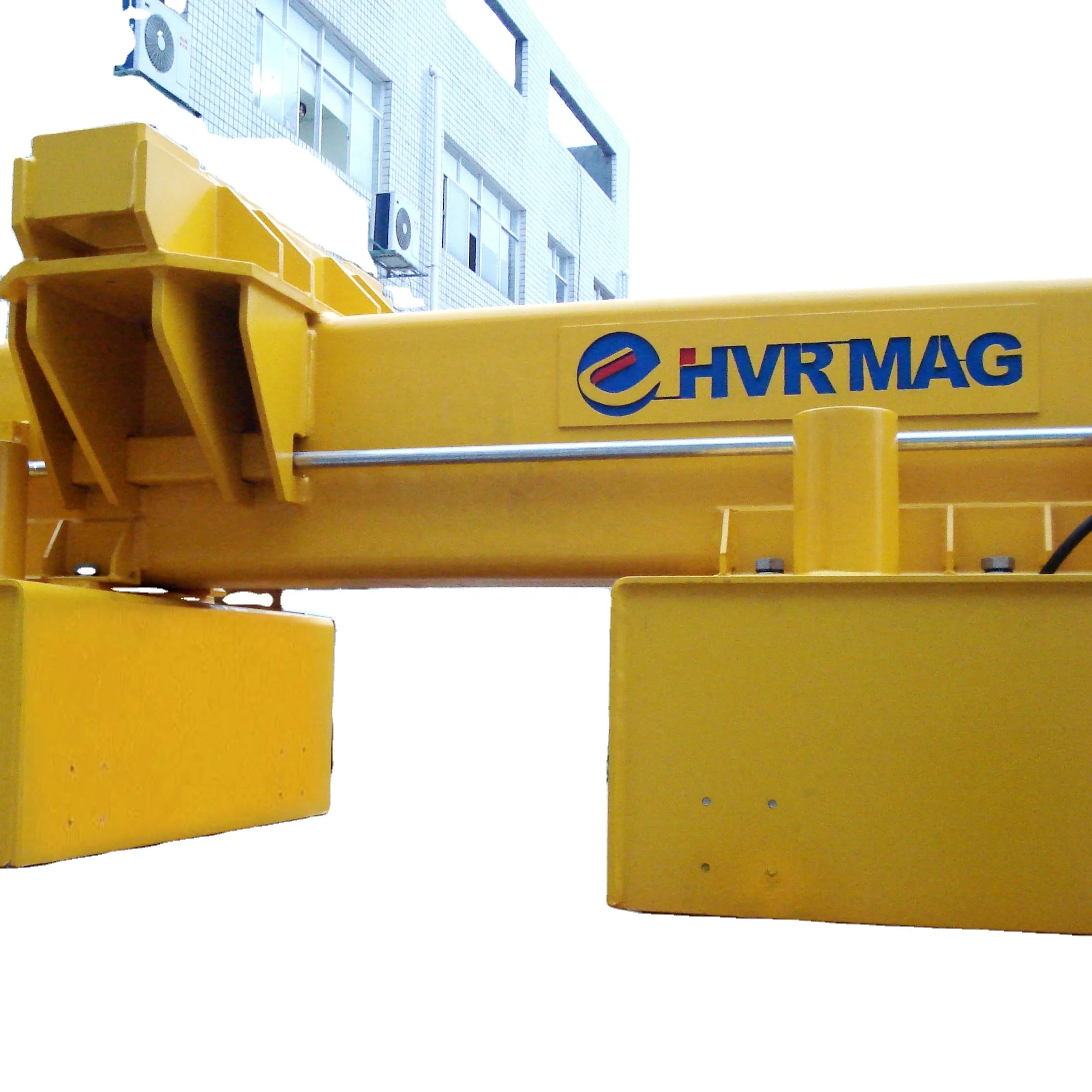

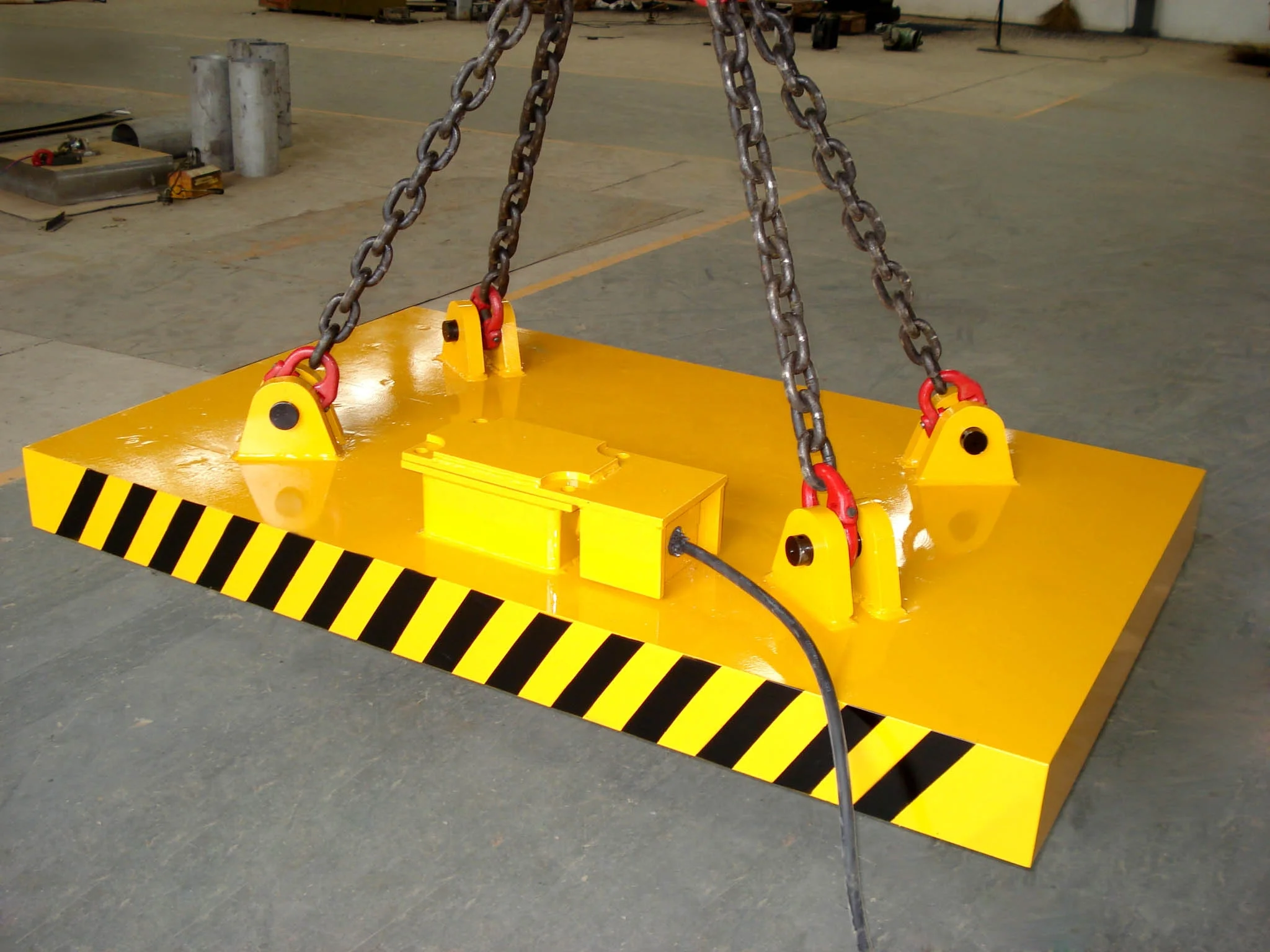

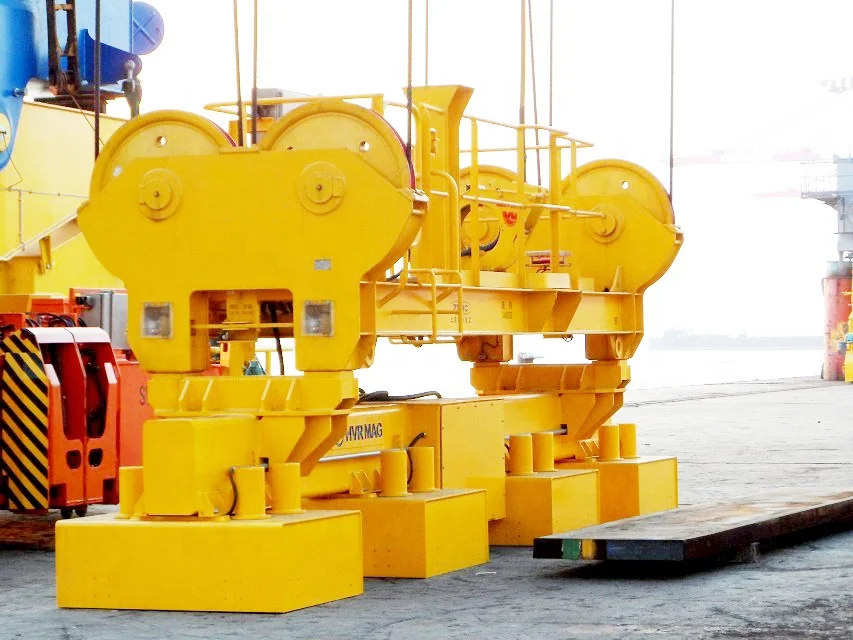

Electro-permanent magnetic lifter for Billets
The HB series product is special for lifting thick type billet,such as blooms,beam blanks.It can adopts single or multiple units in combination with a joint crane for lifting according to the specification or quantity of materials.The configuration of the movable guide magnet blocks is determined by the height difference between the plane of the object to be absorbed.
Advantages:
1. 100% safety. It would not affected by any electrical power failure.
2. 95% energy saving. The electricity is only used for a fraction of 3secconds during the MAG & DEMAG phase.
3. 90% cost saving. No need of back-up battery supporting, maintenance cost saved.
4. Distance detection, magnetic flux detection, landing detection and other necessary security devices also available.
2. 95% energy saving. The electricity is only used for a fraction of 3secconds during the MAG & DEMAG phase.
3. 90% cost saving. No need of back-up battery supporting, maintenance cost saved.
4. Distance detection, magnetic flux detection, landing detection and other necessary security devices also available.
1. Mechanical design for EP magnet in the most cost-effective way.
European technique is adopted.
3. All life time quality assurance.
Specification
Model | Rated lifting capacity（kg） | External dimensions (mm) | Weight(kg) | ||||||||
A | B | C | D | H | |||||||
HEPMB-7530 | 1300 | 710 | 350 | 250 | 400 | 655 | 472 | ||||
HEPMB- 10040 | 2300 | 1000 | 400 | 270 | 600 | 675 | 745 | ||||
HEPMB-7070 | 2600 | 700 | 700 | 250 | 400 | 655 | 945 | ||||
HEPMB-10080 | 4500 | 1000 | 800 | 280 | 600 | 690 | 1500 | ||||
HEPMB-12080 | 5700 | 1200 | 800 | 250 | 800 | 690 | 1800 | ||||
HEPMB-14080 | 6800 | 1400 | 800 | 280 | 800 | 690 | 2100 | ||||
HEPMB-16095 | 9800 | 1600 | 950 | 280 | 1000 | 720 | 2730 | ||||
Certifications
Packing & Delivery
Adopt plastic film and wooden case suit for export
Recommend Products
Company Profile
About HVR MAG
HVR Magnetics Co., Ltd is a high-tech enterprise that mainly researches and develops electro permanent lifting magnet, magnetics quick mold change system and electro permanent magnetic chuck .We have built stable cooperation with some famous companies as ABB,BOSCH, HITACHI, FUJISTU, FOXCONN and SUMITOMO.
HVR MAG designs and manufactures electro permanent lifting magnets for a wide range of applications. Our heavy duty lifting mangnets are designed for applications such as steel plate handling, coils, strips, profiles, piples, Billets, round bar, rail and more. These magnets are commonly used in steel structure shipyard. Metal cutting workshops. Warehouses , foundries, coil and pipe distributors, and other users of applicable steel products.
Why choose us
Our products and services have spreaded all the world ,and also have been recognized by customers.
FAQ
Q: HVR is a Factory or Trading company?
Q:How to guarantee the quality of products?
A: Zhuzhou HVR Magnetics Co.,Ltd is a professional manufacturer of magnetic products over 10 years, We bring the best lifting solution for steel sheets based on our innovative technology and superior product quality.
Q:How to guarantee the quality of products?
A: 1. Any goods go through strict inspection procedures before they leave the factory.
2. There is a global product liability insurance provided by Pingan of China for our products.
2. There is a global product liability insurance provided by Pingan of China for our products.
Q: Where is the factory?
A:Building C-3, Gaoke Industrial park, Tianyuan district Zhuzhou,Hunan ,China.
Q: How about quotation?
A: Before our exact quotation,we need confirm the usage scenario, size, grade, coating, magnetization direction and quantity ,only when the model is confirmed can we give a quotation.
Q: What’s the electro permanent magnet?
A: Electro permanent magnet is a magnet which can be controlled by electricity. It only needs electricity when it is magnetized or demagnetized, and then it can maintain magnetism without electricity. An electropermanent magnet is a combination of a permanent magnet and an electromagnet.
Q: Why should you buy from us not from other suppliers?
A: 1. 31 R&D engineers, 20 years technology accumulation, 29 R&D patents.
2. CE & ISO 9001:2015 standard.
3. Quality controller : 14 years experiences QC technicians. 4. 24 hours online service.
