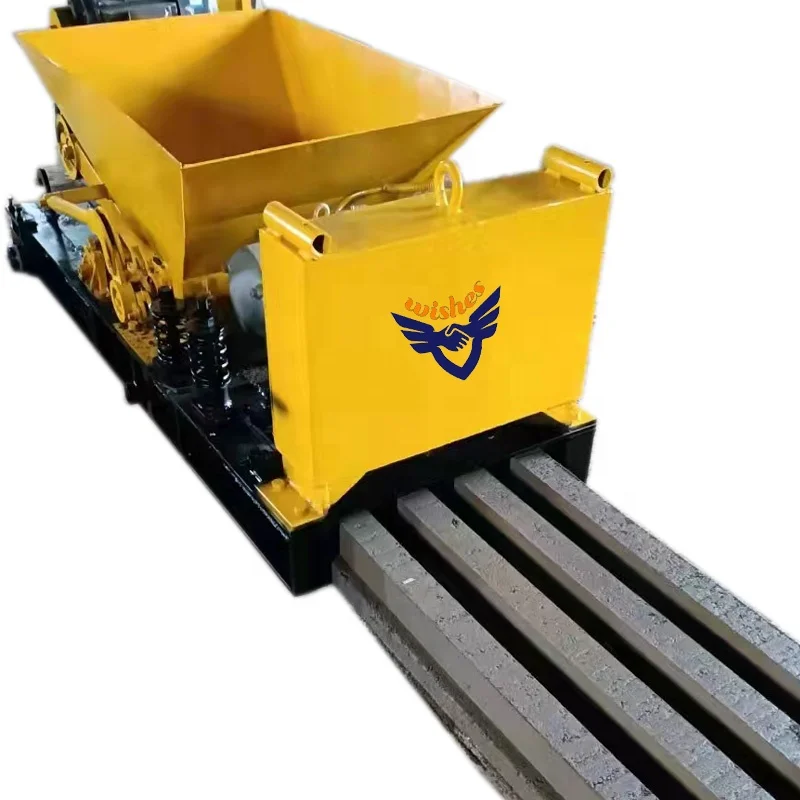

Precast Prestressed Concrete T Beam Machine
The prestressed concrete t beam machine is one of the new designs for manufacturing prestressed concrete T beams. The machine work on the principle of slipfomer. This gives them an exceptional amount of dimensional stability. Its production efficiency is 4-5 times compared to the traditional molding method. The finished concrete beams cast by the machine are very compact and smooth.
According to the different customers' requirements, we can design the machine to make the different sizes of T beams.
According to the different customers' requirements, we can design the machine to make the different sizes of T beams.
FEATURES AT A GLANCE
Features
1.Easy to operate and the operators do not require special skills
2. Efficient production. 4-6rows of concrete beams can be completed with few minutes
3. More compact concrete beam with good finished quality
4. The size of finished beam accurate
4. The size of finished beam accurate
5. The structure of mahcine is simple .Easy to maintain .
6. Only need 2-3 manpower for whole production progress

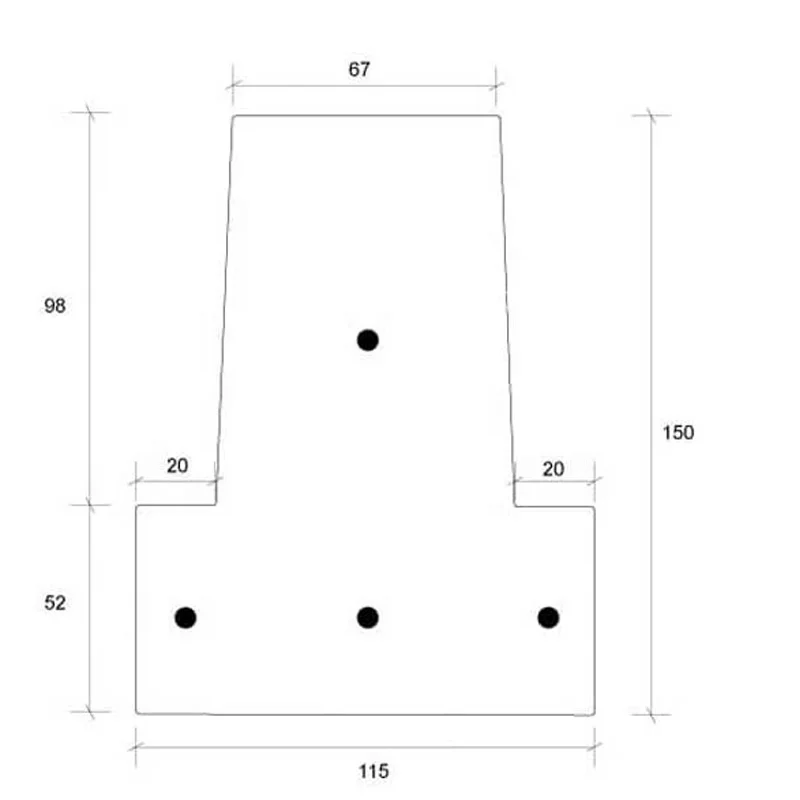

We can customize the machine as per your Required T beam sizes
The t beam can be reinforced with 3-6 steel wires
Vibration cores
PRODUCT SPECIFICATIONS
No | Models | Beam sizes | No. of beams | Motor Power |
1 | TWT13X10 | 13X10CM | 6 beams | 4 KW |
2 | TWT-12X12 | 12X12CM | 6 beams | 4.5KW |
3 | TWT13X15 | 13X15CM | 4|6 beams | 5.5KW |
4 | TWT-15X22 | 15X22CM | 4 beams | 7.5KW |
5 | TWT-22X25 | 22X25CM | 3 beams | 10KW |
Finshed Products And Applications

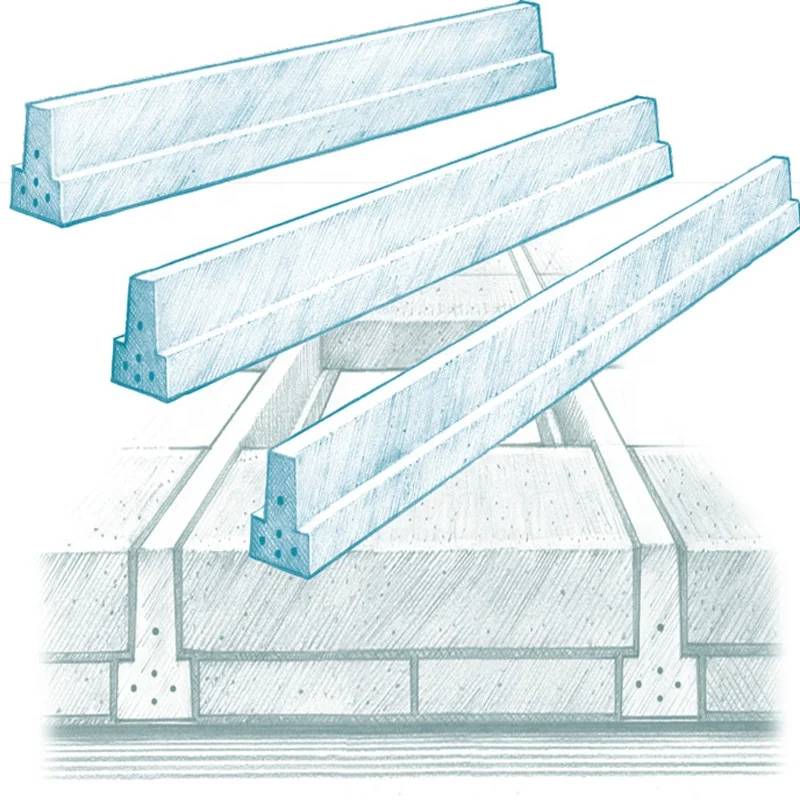

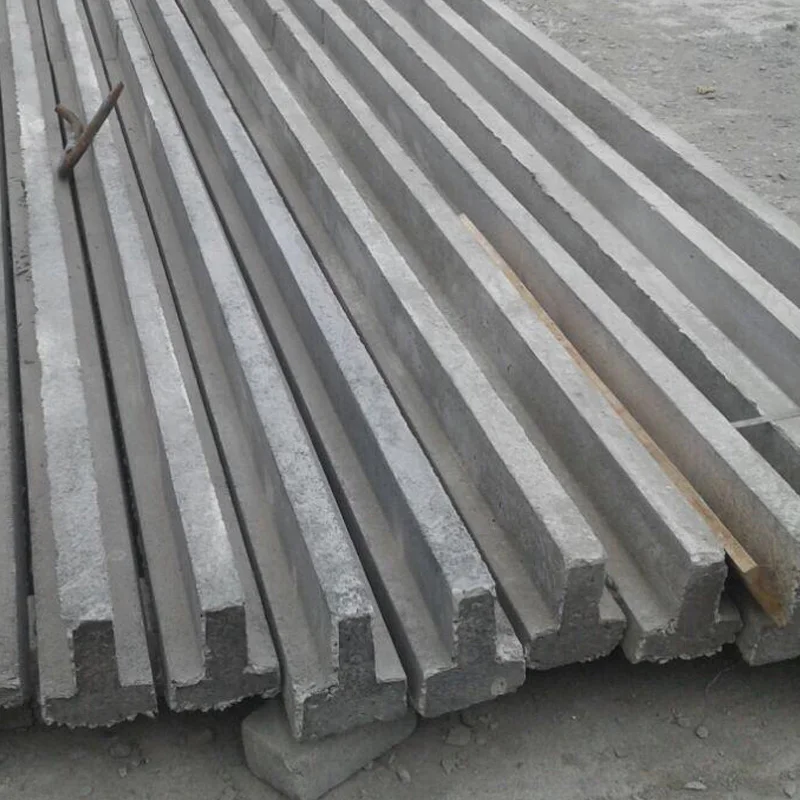

Finished Concrete Beams
Beam specifications can be pre-customized

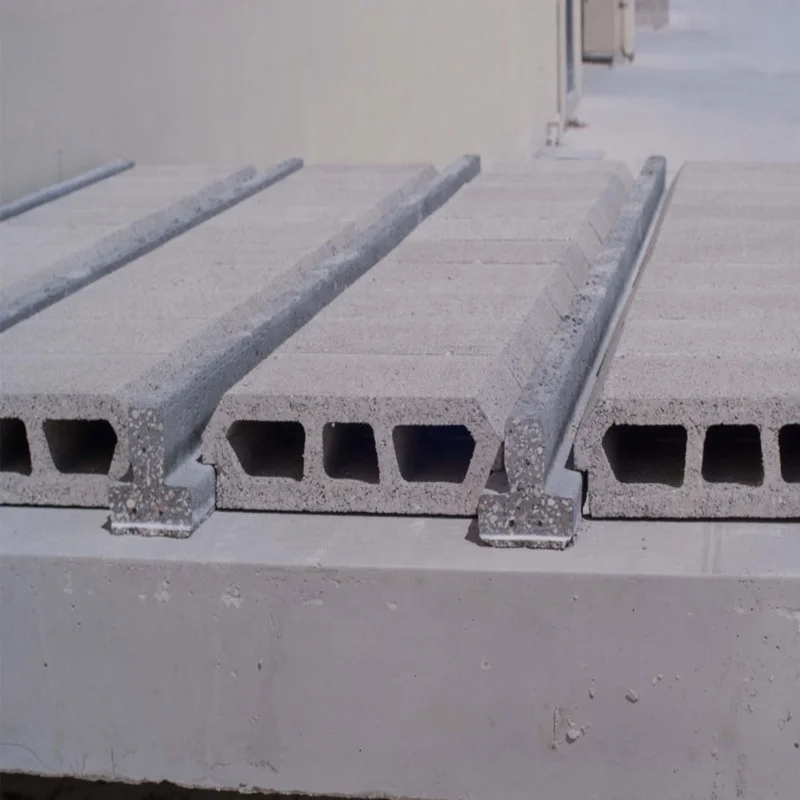

Concrete Lintel beam
The lintel beam can be used for brick structure or steel concrete structure buildings
Load bearing beam
Load bearing beams or supporting columns
FAQ
Q1：What sizes of beam your machine can make ?
A1： We can customize the machine as per your requirement
Q2: How long is your lead time?
Q2: How long is your lead time?
A2： 10- 15working days
Q3: How is this machine packed and shipped
A3：wood case for LCL or nude packed in the container
