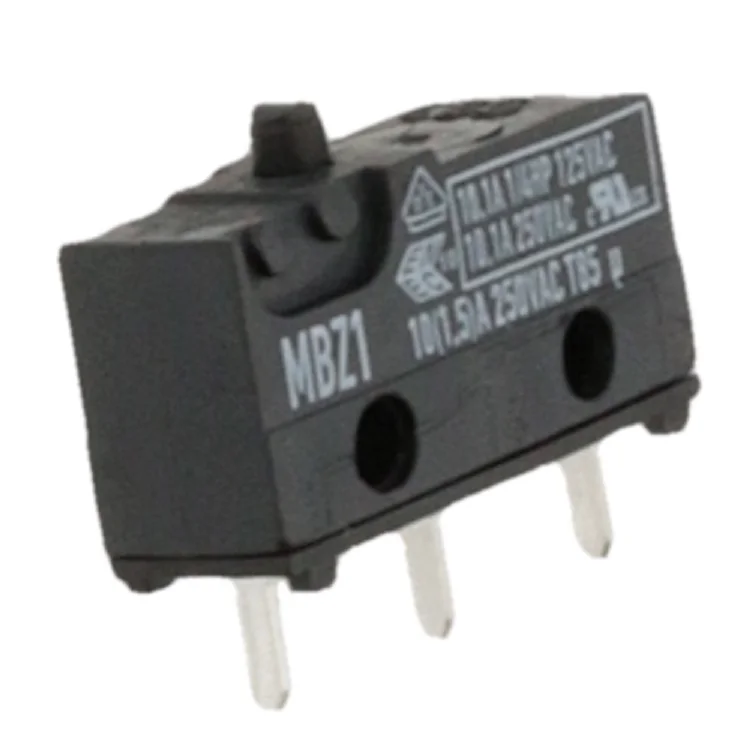

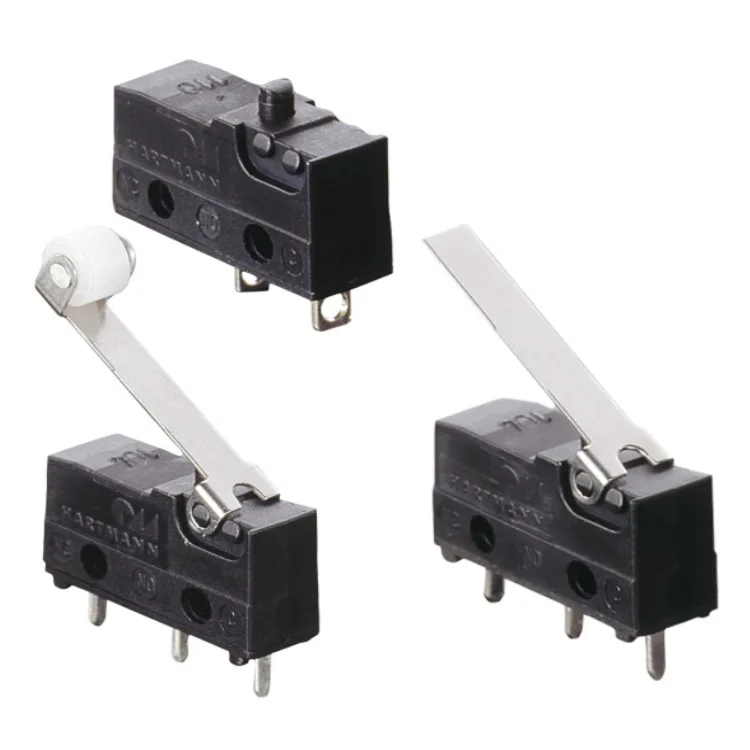

HARTMANN limit switch microswitch MBZ1
Main features

Tension spring mechanism
Design in accordance with DIN 41635
Electrical life : 10,000 cycles min.
Optional version 100mA 12VDC with Au plated contacts
Approvals: UL approved; VDE approved, depending on version
Mechanical lifetime : 10,000,000 cycles
Electrical lifetime : min. 10,000 cycles (depending on switching capacity)
Operating temperature :-40 °C ~ +85 °C (40 °C - +130 °C on request)
UL
mechanical specifications
Movement differential ≤ 0,13mm
Pretravel: ≤ 1 mm
Overtravel: 0.3 - 0.6mm
Operating position: 8.4 ±0.3mm
Contact opening: <3 mm (μ)
Material
Base: PBT (UL94-V0)
Body: PBT (UL94-V0)
Terminals: CuZn Ag plated
Contacts:AgNi, AgNi Au plated
Contact spring: CuBe
MBZ101: 10(1,5)A 250VAC
MBZ102: 6A 250VAC
MBZ106: 100mA 12VDC
MBZ101: 10(1,5)A 250VAC
MBZ102: 6A 250VAC
MBZ106: 100mA 12VDC
MBZ101A01C08B02
MBZ101A01C08A01
MBZ101A01C01X01
MBZ101A01C08A02
MBZ101A01C05A02
MBZ101A01C06B02
MBZ101A01C05B02
MBZ101A01C02X02
MBZ101A01C06A02
MBZ101A01C07A01
MBZ101A01C06B01
MBZ101A01C02X01
MBZ101A01C07A02
MBZ101A01C04B01
MBZ101A01C04B02
MBZ101A01C03B01
MBZ101A01C08B01; 10(1.5)A 250VAC; 2,8N; -40...+85°C; 1NO+1NC

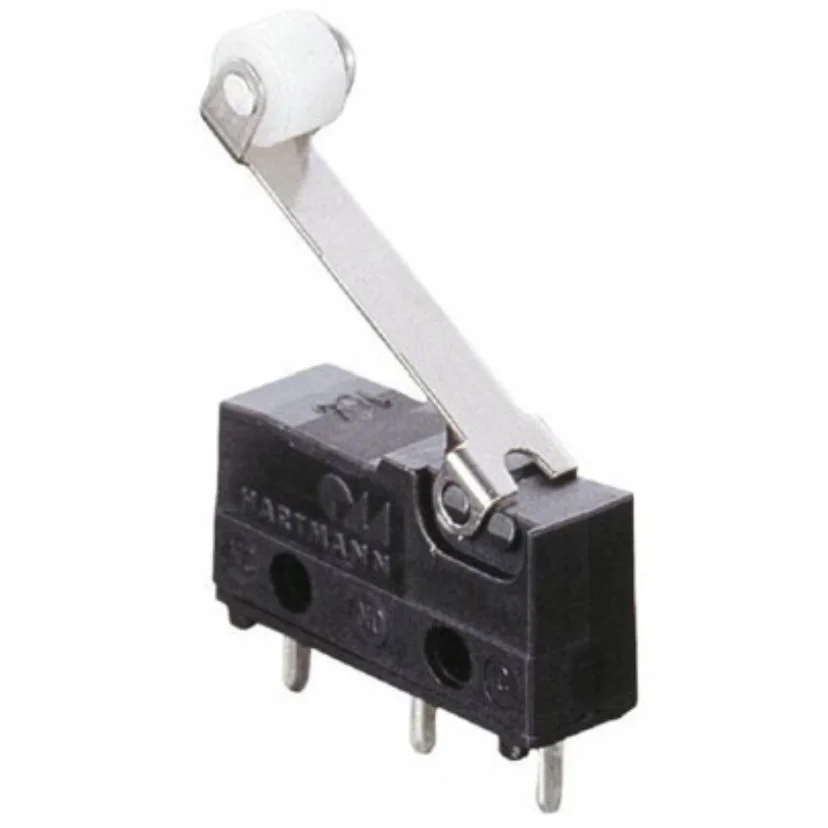

Simulated roller lever long;
MBZ101A01C03B02
