600L series Wheel Drive Planetary Speed Reducer Gearbox replacement of bonfiglioli
- Category: Gearboxes >>>
- Supplier: Hangzhou,Ever-Power,Transmission,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Superior Performance

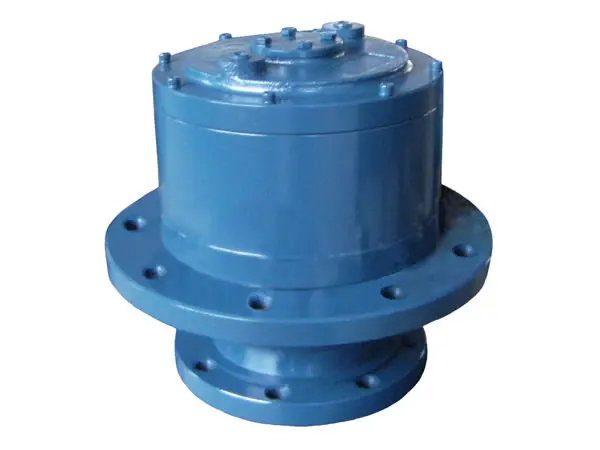

The NBPG NB600L Serieswheel drive planetary gearbox is designed for self-propelled vehicles with hydraulic or electric motors. Available in a wide range of ratios, the gearbox allows the power system to operate at optimum efficiency. The NB600L planetary gear reducer for wheeled vehicle has the capacity to drive whatever the type of machine with up to 2.5m of tire diameter and 50 tons each wheel. Thanks to the wide ratio range, there is a solution for any type of transmission and application. The manual declutch system can disengage the gearhead from the motor for emergency towing.
Key Features
1. Output torque range: 1000-60000 N.m
2. Gear ratios: i=5.3-142
3. Support: thegearbox has rotating housing flanges to fit wheel
4. Applicable motors: axial piston hydraulic motors, hydraulic orbit motors or others
5. Hydraulic motor options: pressure relief valve, overcenter valve
6. Bearing: robust bearing system absorbing the forces exerted by the ring gear
7. Brake: hydraulically released parking brake
8. Others: NB600L Series wheel drives with manual disconnect application
9. Large radial and axial load capacity due to the use of strong tapered roller bearings.
10. Reliable oil seal protection, designed according to our field experience.
11. Universal and SAE input direct mounting flanges
12. The units are designed for their direct mounting into the wheel rims.
13. Technical data and installation dimension of NB600L Series gearbox are same as those of Rexroth GFT…W Series and Bonfiglioli 600 Series, so these three can be used interchangeably.
The NBPG NB600L Serieswheel drive planetary gearbox is designed for self-propelled vehicles with hydraulic or electric motors. Available in a wide range of ratios, the gearbox allows the power system to operate at optimum efficiency. The NB600L planetary gear reducer for wheeled vehicle has the capacity to drive whatever the type of machine with up to 2.5m of tire diameter and 50 tons each wheel. Thanks to the wide ratio range, there is a solution for any type of transmission and application. The manual declutch system can disengage the gearhead from the motor for emergency towing.
Key Features
1. Output torque range: 1000-60000 N.m
2. Gear ratios: i=5.3-142
3. Support: thegearbox has rotating housing flanges to fit wheel
4. Applicable motors: axial piston hydraulic motors, hydraulic orbit motors or others
5. Hydraulic motor options: pressure relief valve, overcenter valve
6. Bearing: robust bearing system absorbing the forces exerted by the ring gear
7. Brake: hydraulically released parking brake
8. Others: NB600L Series wheel drives with manual disconnect application
9. Large radial and axial load capacity due to the use of strong tapered roller bearings.
10. Reliable oil seal protection, designed according to our field experience.
11. Universal and SAE input direct mounting flanges
12. The units are designed for their direct mounting into the wheel rims.
13. Technical data and installation dimension of NB600L Series gearbox are same as those of Rexroth GFT…W Series and Bonfiglioli 600 Series, so these three can be used interchangeably.
Track drives type | Max torque N.m | Range of ratio(i) | Max input speed(rpm) | Braking torque(N.m) |
EP601L1A | 1750 | 5.77 | 1000 | 450-600 |
EP603L2A | 4000 | 19-23-32-40 | 3000 | 210 |
EP603L2B | 4000 | 19-23-32-40 | 210 | |
EP602L2 | 5000 | 12.4-25.8 | - | |
EP605L2 | 7000 | 22-27-30-42-53 | 220-310 | |
EP606L2, L3 | 12000 | 30-35-43-68-79 | 300-800 | |
EP607L2, L3 | 17000 | 33-75-108 | 300-600 | |
EP609L2, L3 | 23000 | 33-142 | 300-800 | |
EP610L2, L3 | 30000 | 20-111 | 300-800 | |
EP611L2, L3 | 36000 | 41-47 | 300-800 | |
EP613L3 | 45000 | 108 | 300-800 | |
EP615L3 | 60000 | 108 | 300-1000 |
The installation dimensions of planetary gearbox, wheel drive gearbox, winch drive gearbox and track drive gearbox produced by us are exactly the same as those of trasmital Bonfiglioli, and the performance parameters are very close to those of trasmital Bonfiglioli, which can be used instead of trasmital Bonfiglioli's products.
bonfiglioli model | 601R | 603W | 605W | 606W | 609W | 611W | 613W, 615W |
our model | EP601R | EP603W | EP605W | EP606W | EP609W | EP611W | EP613W, EP615W |
Application
Construction
(dryers, crushing machines, mixing mills, cranes, mobile scaffolds)
Material handling
(gantry cranes, mobile dock cranes, movable stocks, bridge cranes)
Waste and sewage treatment
(rotating filters, thickeners, clarifiers, Warm hoists, agitators)
Mine and quarry machines
(drilling and excavation, machine, selectors, classifiers, conveyors, crushing machines)
Wind energy
(pitch drives, yaw drives)
Substructures
(movable roofs, movable gantries, piling)
Steel processing machines
(conveyors, extruders, cutting machines, roll benders, rolling mills)
Food industry
(mixing machines, mixers, conveyors, fruit extractor machines)
(dryers, crushing machines, mixing mills, cranes, mobile scaffolds)
Material handling
(gantry cranes, mobile dock cranes, movable stocks, bridge cranes)
Waste and sewage treatment
(rotating filters, thickeners, clarifiers, Warm hoists, agitators)
Mine and quarry machines
(drilling and excavation, machine, selectors, classifiers, conveyors, crushing machines)
Wind energy
(pitch drives, yaw drives)
Substructures
(movable roofs, movable gantries, piling)
Steel processing machines
(conveyors, extruders, cutting machines, roll benders, rolling mills)
Food industry
(mixing machines, mixers, conveyors, fruit extractor machines)
