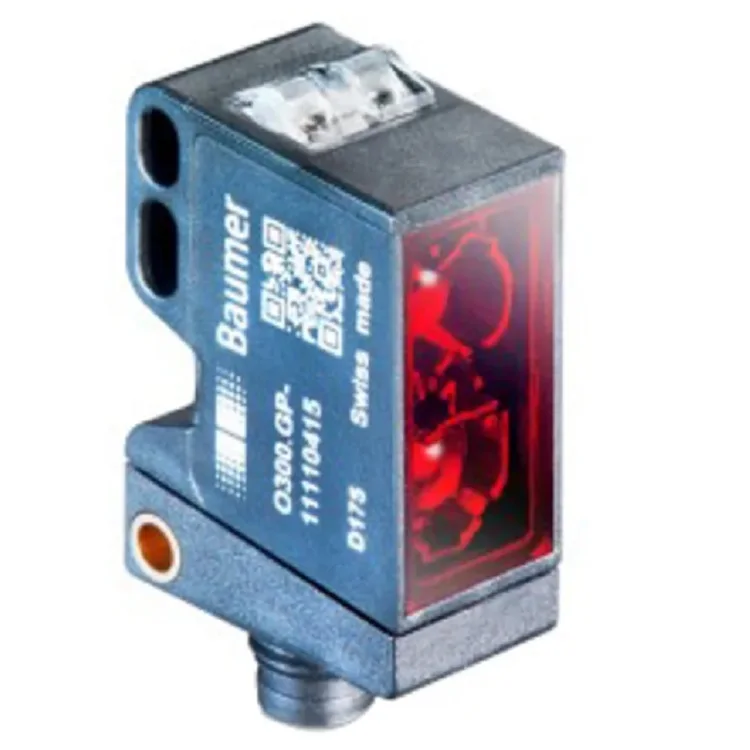

Baumer background suppression miniature Diffuse Photoelectric Sensor O300.GR IO LINK water proof switch

Product Overview

Description

Baumer background suppression miniature Diffuse Photoelectric Sensor O300.GR IO-LINK water proof switch
O300.GR-GW1T.72N
Diffuse sensors with background suppression - miniature
pulsed red LED
Type : Background suppression
Light source : Pulsed red LED
Sensing distance Tw : 30 … 300 mm
Sensing range Tb : 15 … 300 mm
Power on indication : LED green
Light indicator : LED yellow
Sensing distance adjustment : qTeach
Wave length : 630 nm
Suppression of reciprocal influence : Yes
Alignment optical axis : < 2°
Response time / release time : < 1 ms
Voltage supply range +Vs : 10 ~ 30 VDC
Current consumption max. (no load) : 45 mA
Current consumption typ. : 30 mA
Voltage drop Vd : < 3 VDC
Output function : Light / dark operate
Output circuit : Push-pull
Output current : < 100 mA
Short circuit protection : Yes
Width / diameter : 12.9 mm
Height / length : 32.3 mm
Depth : 23 mm
Type : Rectangular
Housing material : Plastic (ASA, PMMA)
Front (optics) : PMMA
Connection types : Connector M8 4 pin
Degree of Protection class : IP 67
Operating temperature : -25 ~ +60 °C
