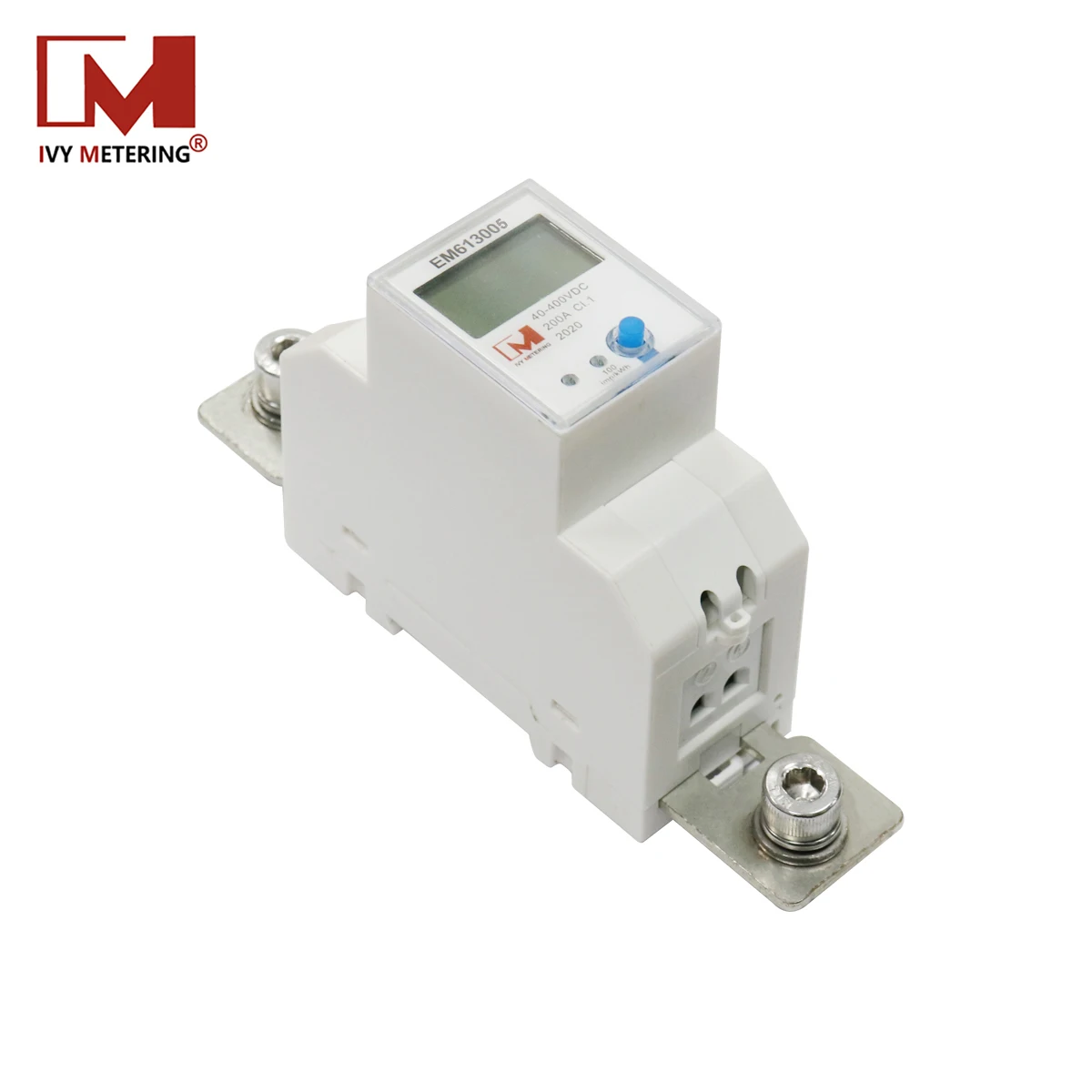

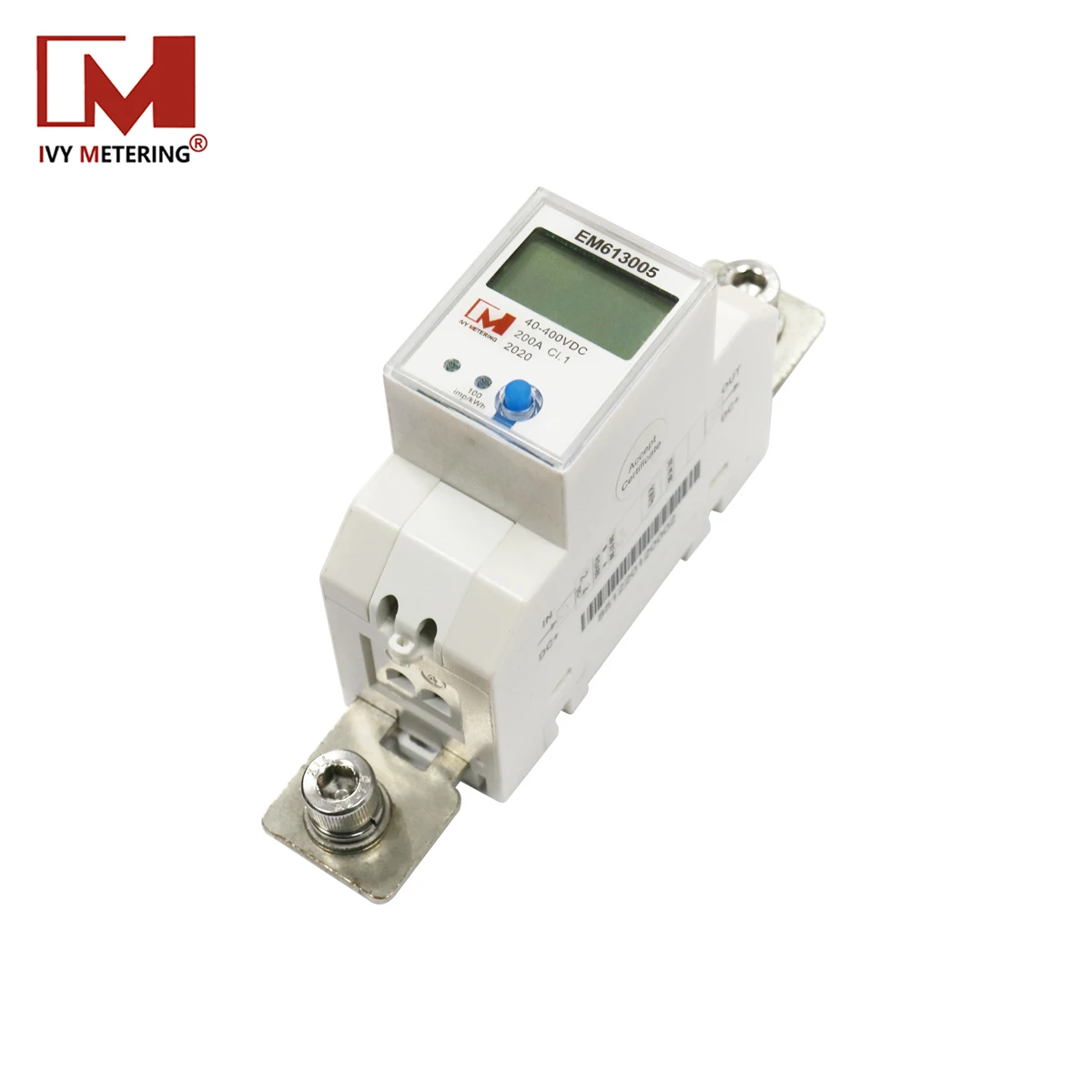

Low Voltage 8 48V Shunt RS485 DC Din Rail Energy Monitor Smart Meter for Battery Energy Storage
- Category: >>>
- Supplier: Shanghai Ivy-Metering Electronic Technology Ltd.
Share on (11000002999629):
Product Overview
Description

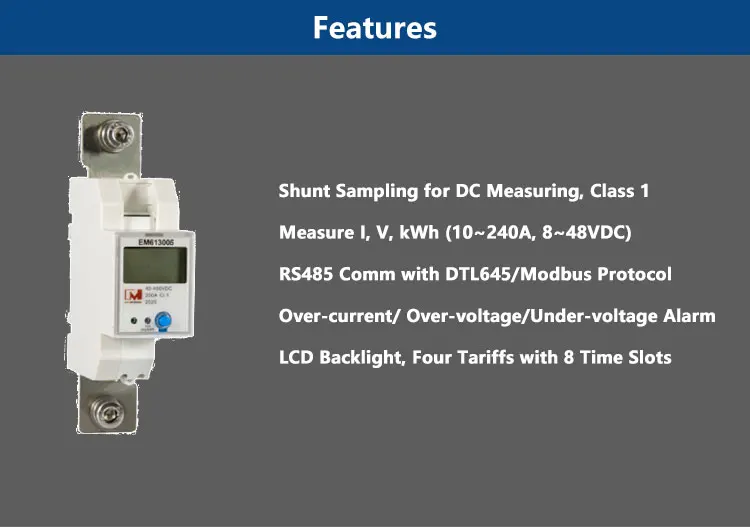

1.EM series DC energy meters are designed for measuring and monitoring in DC systems.
2.The din rail DC energy meters can measure of important DC parameters: Voltage, current, power and energy etc. It also support bi-directional measurement. All data in the meter are accessible via RS485 using Modbus RTU/DTL645.
3.The meter working with DC power supply. Input voltage range up to 1000VDC, and current inputs are flexible with DC shunt.
4.The multi-tariff version has a RTC equipped inside, it can provides multi-tariff information and monthly records.
2.The din rail DC energy meters can measure of important DC parameters: Voltage, current, power and energy etc. It also support bi-directional measurement. All data in the meter are accessible via RS485 using Modbus RTU/DTL645.
3.The meter working with DC power supply. Input voltage range up to 1000VDC, and current inputs are flexible with DC shunt.
4.The multi-tariff version has a RTC equipped inside, it can provides multi-tariff information and monthly records.
5.It can also be equipped with digital inputs for switch monitoring, relay outputs for remote control, and an over-range alarming

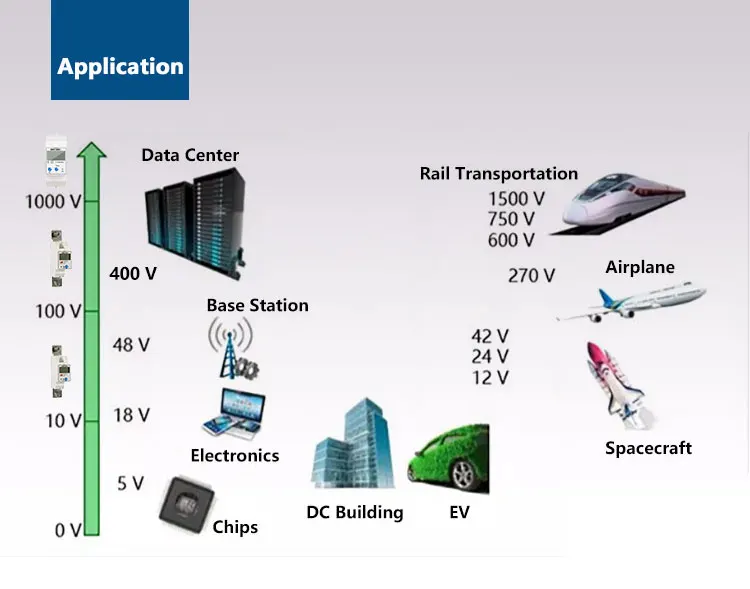

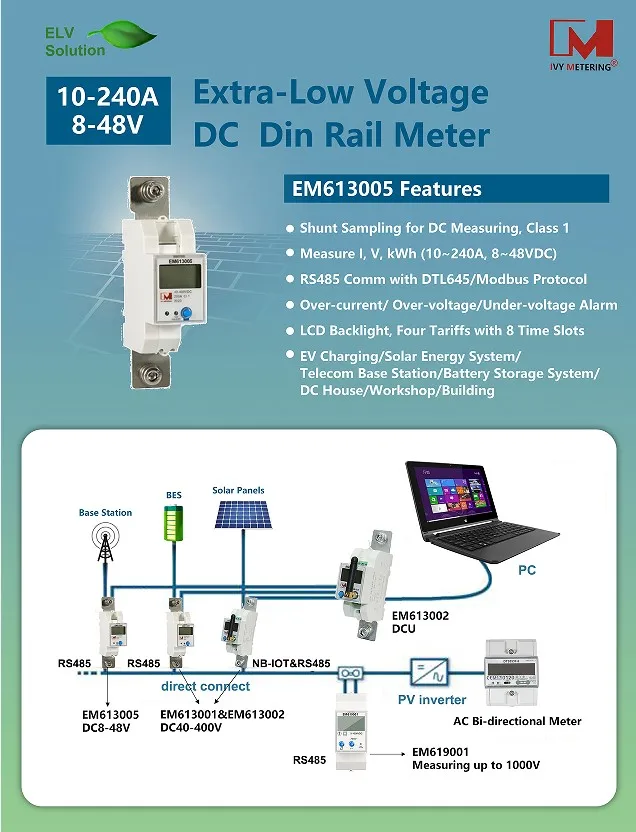

6.EM series dc meter is designed for scenarios such as DC panel, solar PV system, battery storage system, EV charging pile, telecom base stations, transportation systems, power distribution systems, smart home and smart city.
6.EM series dc meter is designed for scenarios such as DC panel, solar PV system, battery storage system, EV charging pile, telecom base stations, transportation systems, power distribution systems, smart home and smart city.

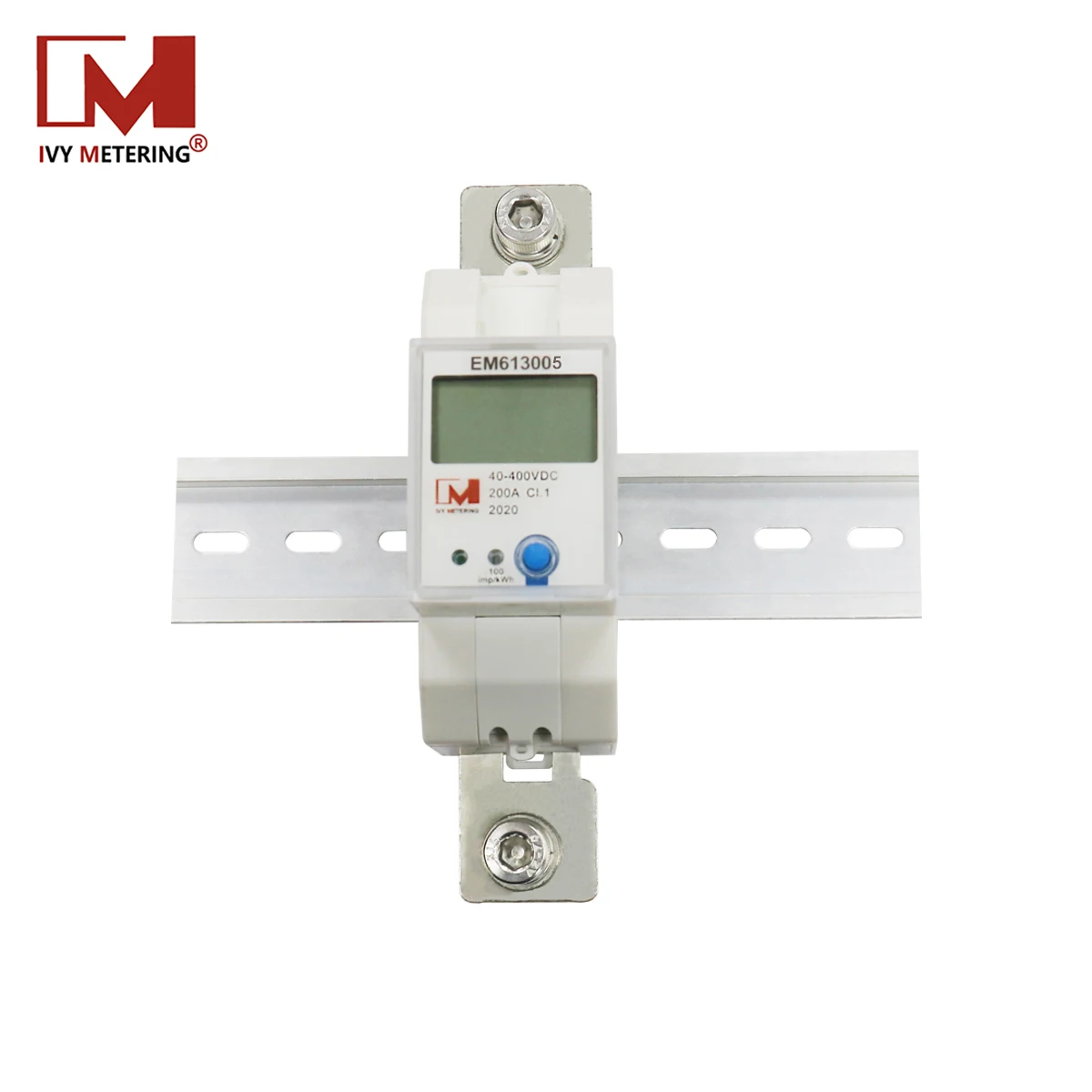

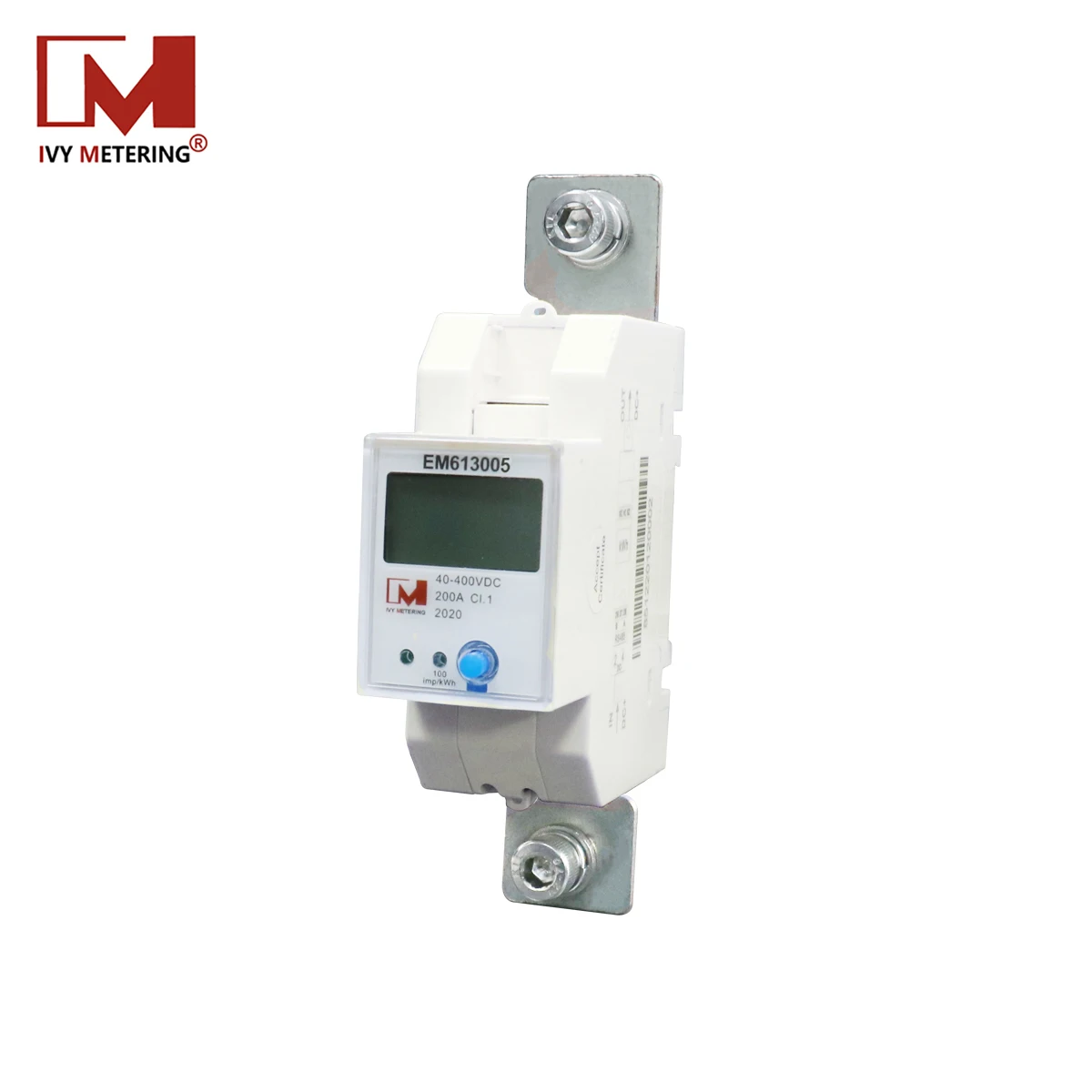

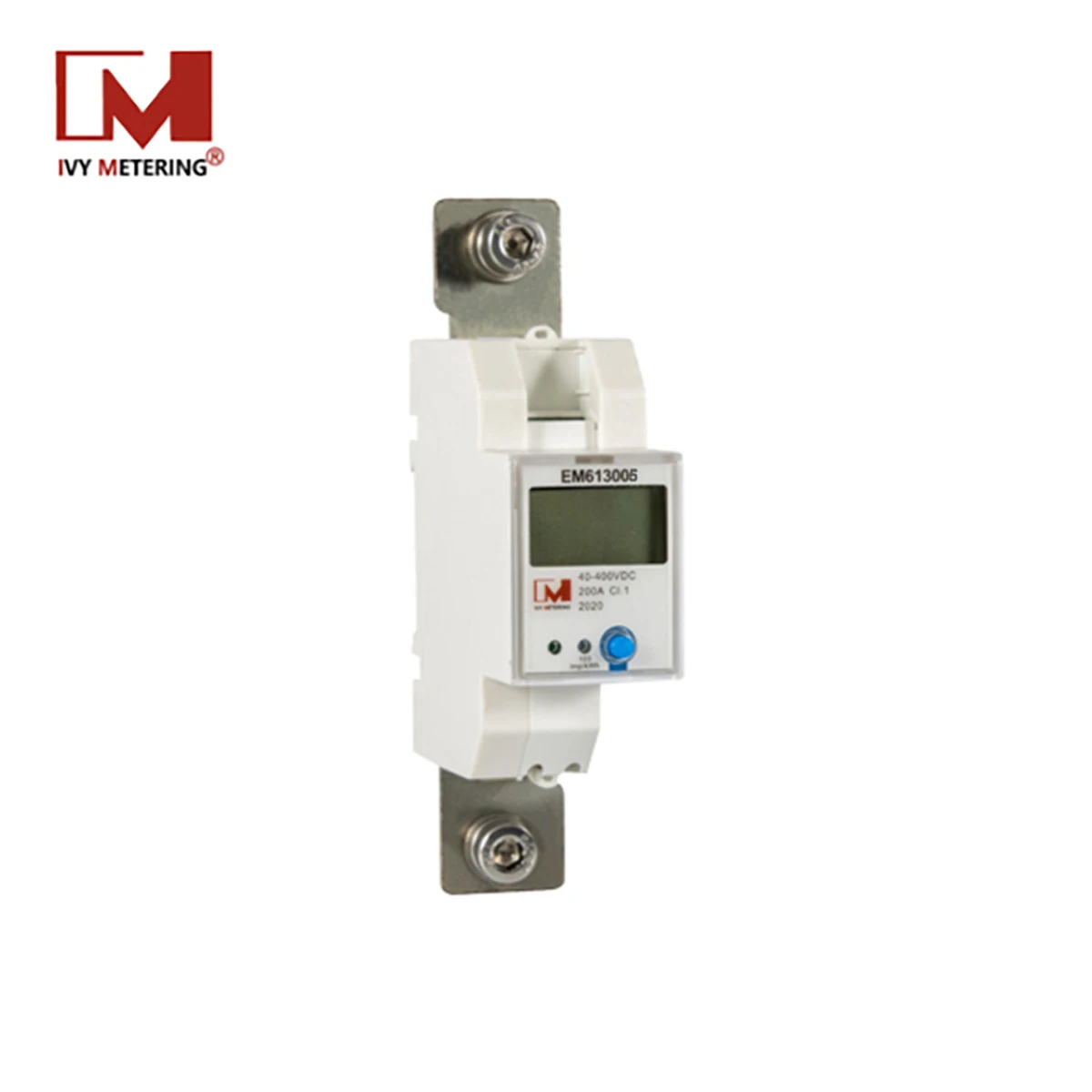

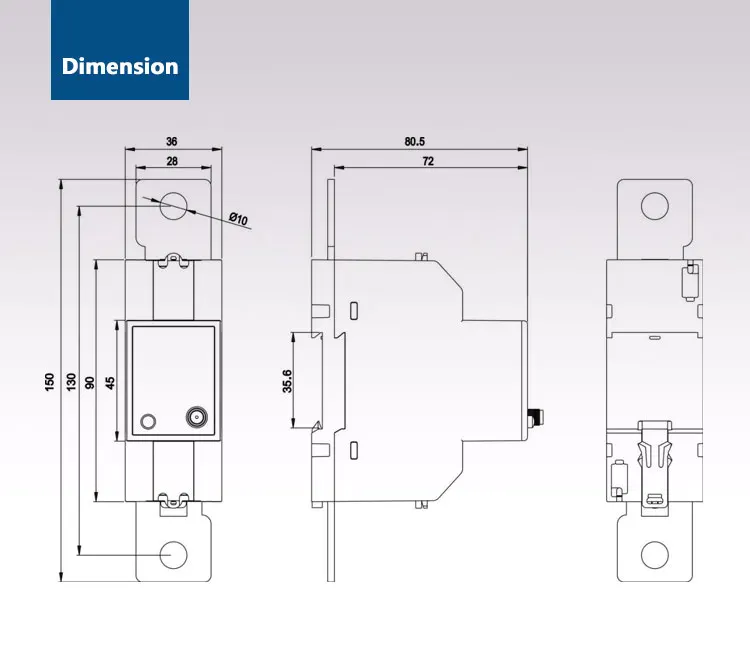

Specification | EM613005 | Din Rail DC Measuring Device |
Reference voltage | DC8V-48V(Simultaneous power supply during measurement) | |
Current | 10~240A | |
Operation temp. | -20℃~+70℃ | |
Accuracy class | Cl.1.0 | |
Average humidity | 75% | |
Relative humidity | 95% | |
Communication | RS485 Communication | |
Communication protocol | DTL645/Modbus RTU | |
Impulse constant | 1000 imp/kWh | |
LCD display | LCD 6+2 | |
Power consumption | ≤0.4W,≤8VA | |
Standard compliant | GB/T 17708-2017 Static DC Energy Meter |
Caution of DC type Din Rail Meter :
1.About AC/DC & Application
(1) AC- Generally speaking alternating current usually means the input voltage , for example 220/230Vac for house
(1) AC- Generally speaking alternating current usually means the input voltage , for example 220/230Vac for house
appliance, 380Vac. However DC for industrial field. In a word AC type energy meter is necessary when measuring in
such condition.
(2) DC- Comparing with AC type meter, or AC whole current static energy meter, DC type Din Rail Meter was mainly
used for direct current measuring. It also means not for household and it;scarce.
(3) The application of DC din rail meter mainly exist where power storage for example power storage system, power
generator, battery system etc. It was also used for recharging such as EV charging pile.
(2) Communication- RS485 Communication or RS485 & NB-IOT communication optional, which can also serve as
2.About Function
(1) Measuring- current measuring achieved by shunt sampling which is cost-efficient and of good accuracy. (2) Communication- RS485 Communication or RS485 & NB-IOT communication optional, which can also serve as
DCU -sending data to the icloud.
(3) Tariff-4 tariffs with 8 slots
(3) Tariff-4 tariffs with 8 slots
3.Cautions
(1) Installation-Experienced electricians or professionals are required to install electricity meters and make sure
that you have read this user guide.In the process of installation, if the cover has obvious damage marks caused by
severe impact or fall,please do not install or power up, and contact with us immediately;Electricity meters can be
installed and used directly if they pass the inspection before leaving the factory;The electricity meter should be
installed in the indoor or outdoor electricity meter box.The mounting base shall be fixed on a solid fire-resistant
wall, and there shall be no corrosive gas in the air;Electricity meters should be wired according to the wiring

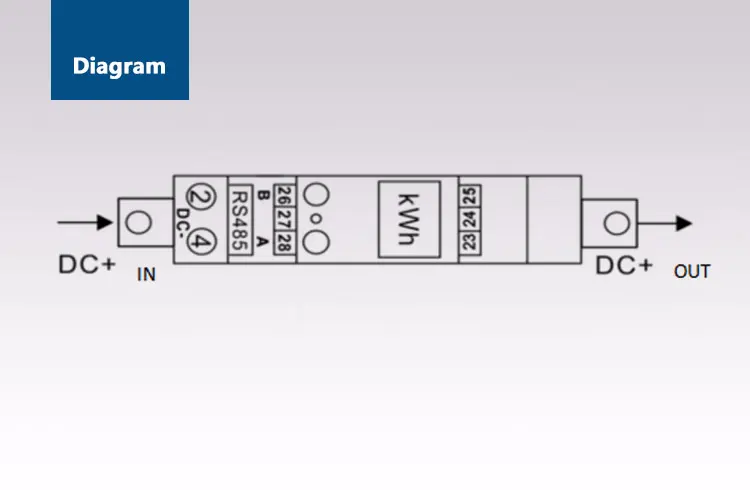

diagram on the terminal.Copper wire or copper wiring connector are the best ways to access.
(2)Sealing- Plz fasten the sealing bolts or seals after installation in case of tamper events.
(3)If you have further questions while using plz contact us any time.
(3)If you have further questions while using plz contact us any time.
