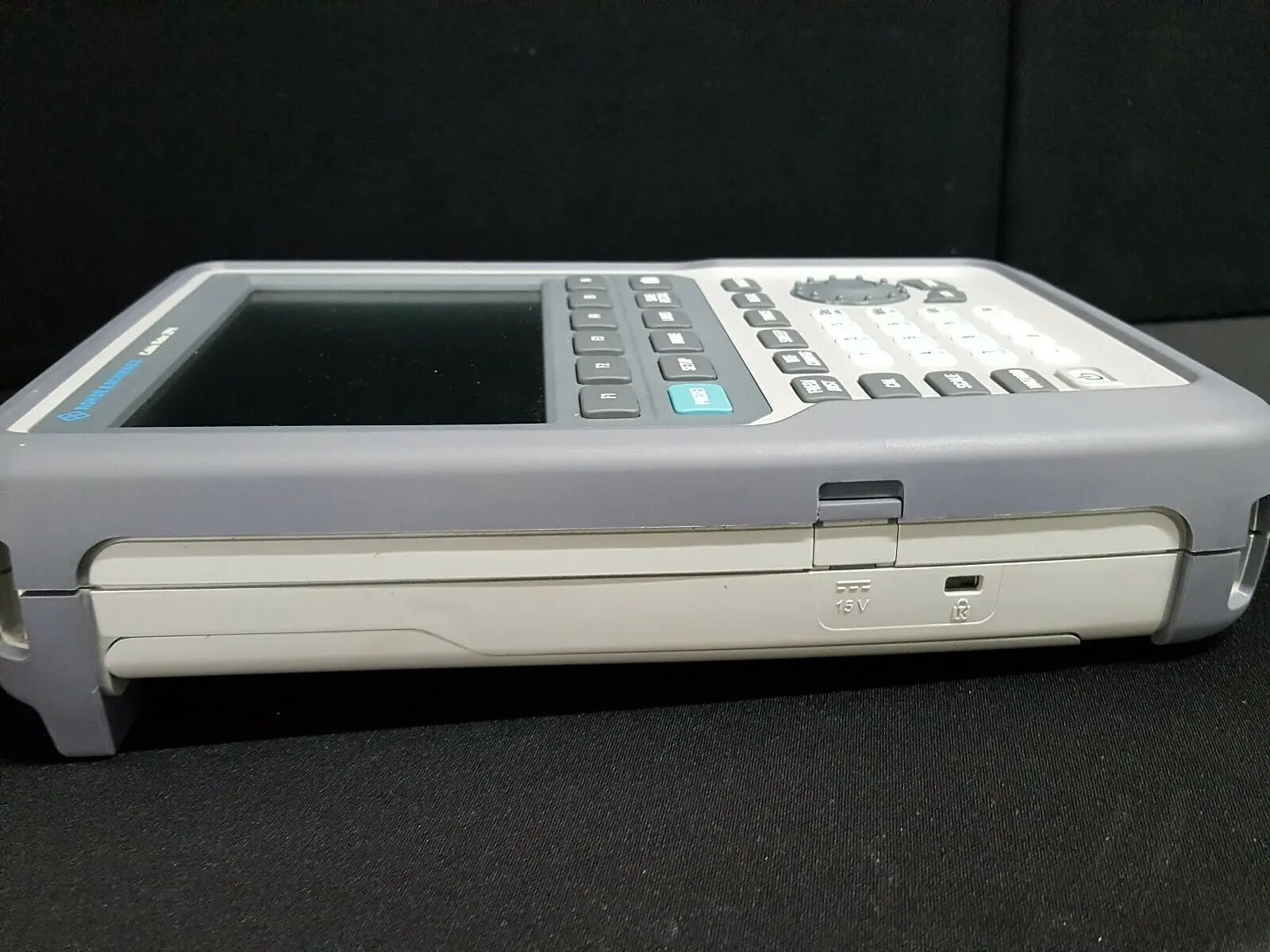

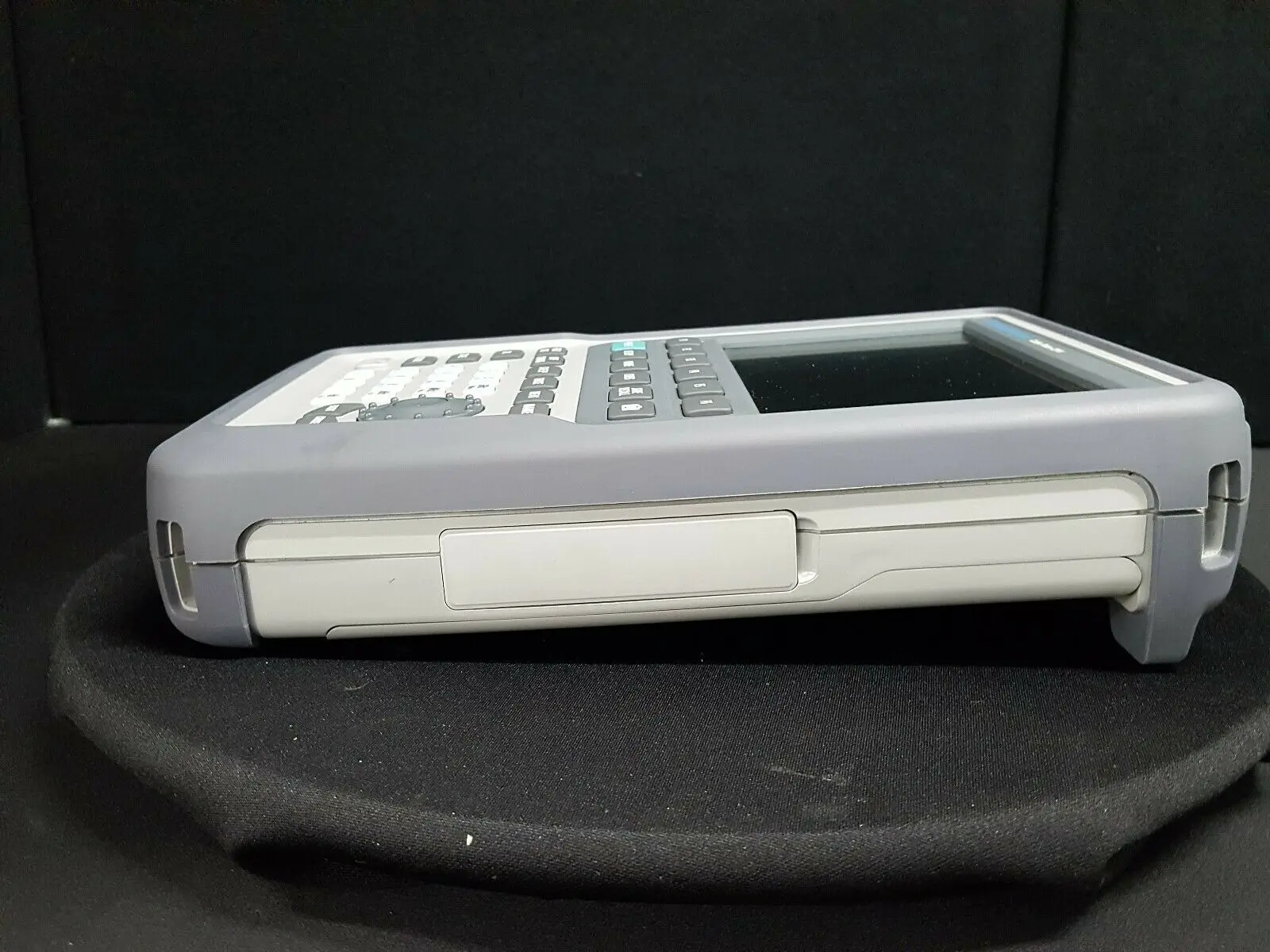

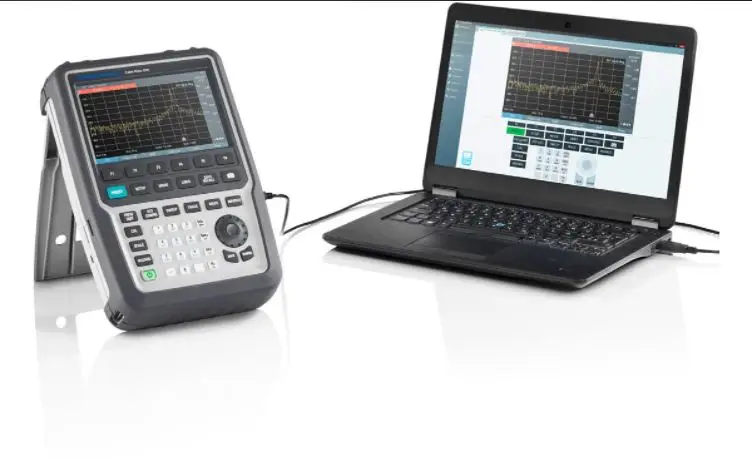

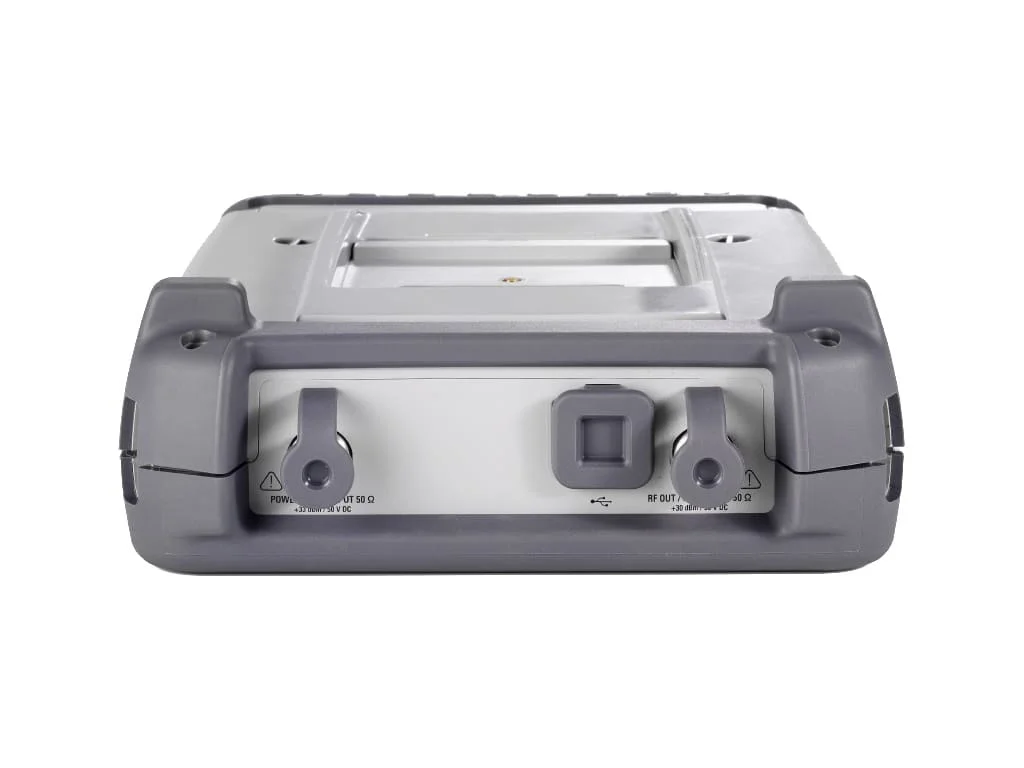

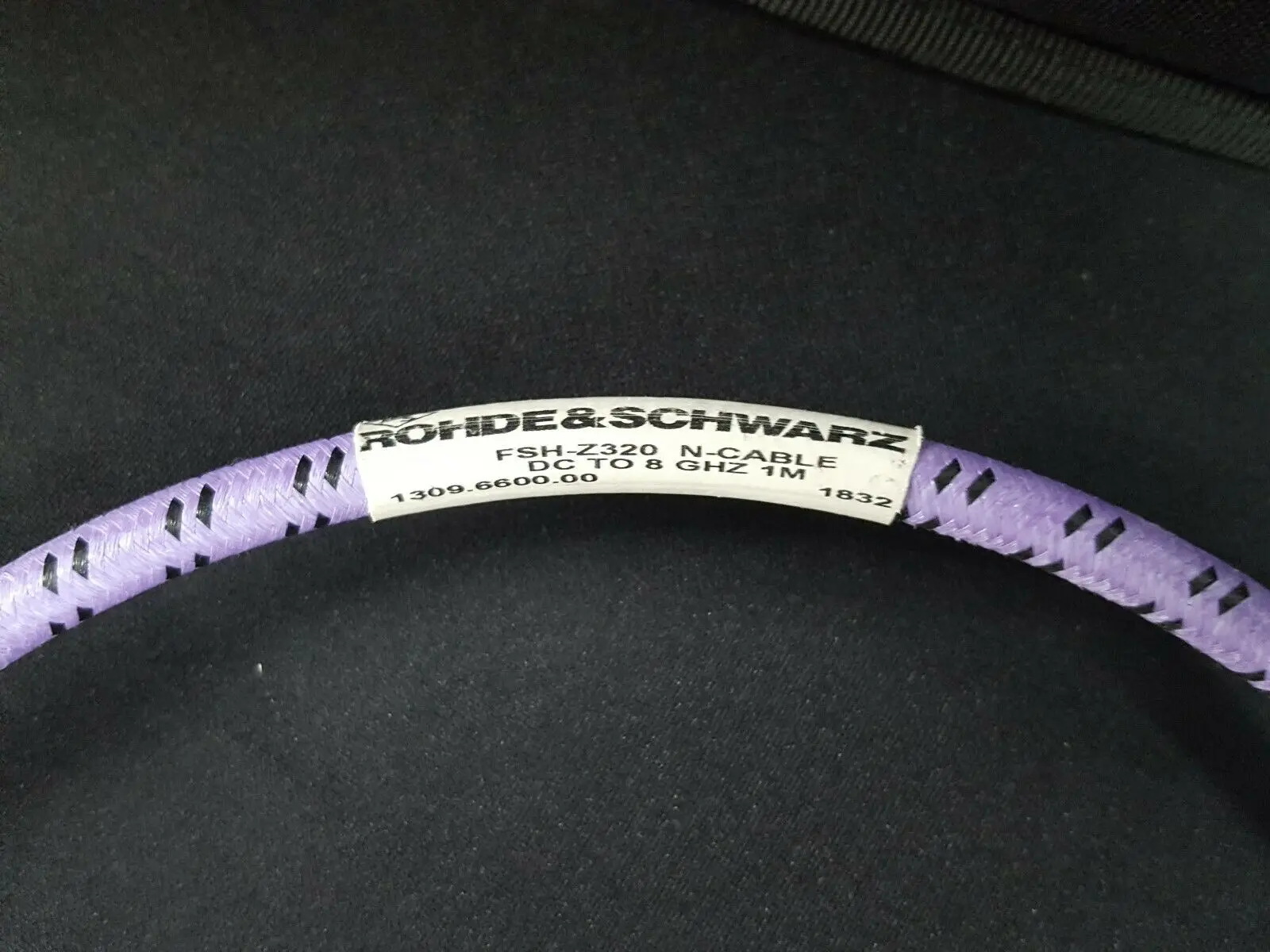

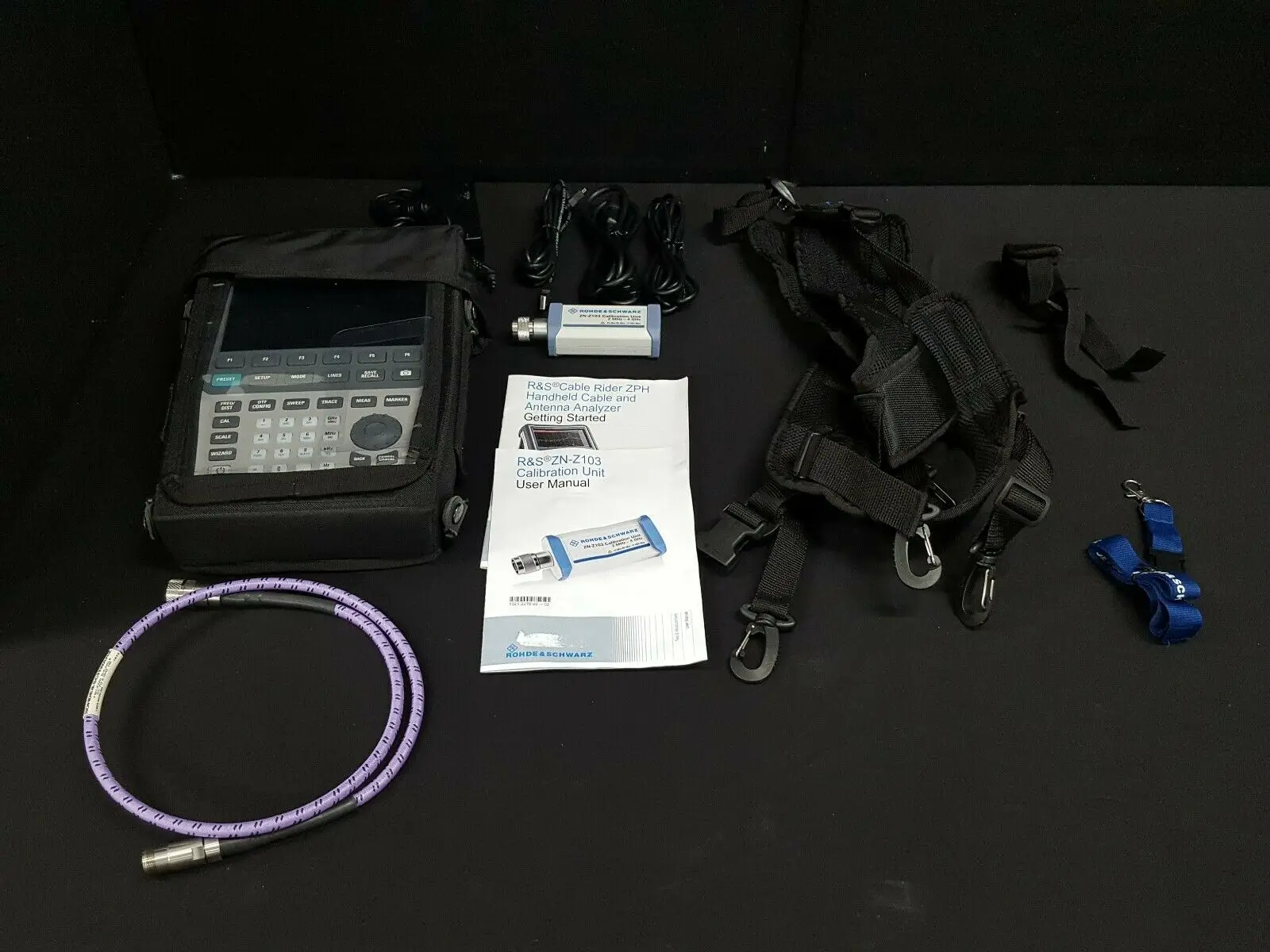

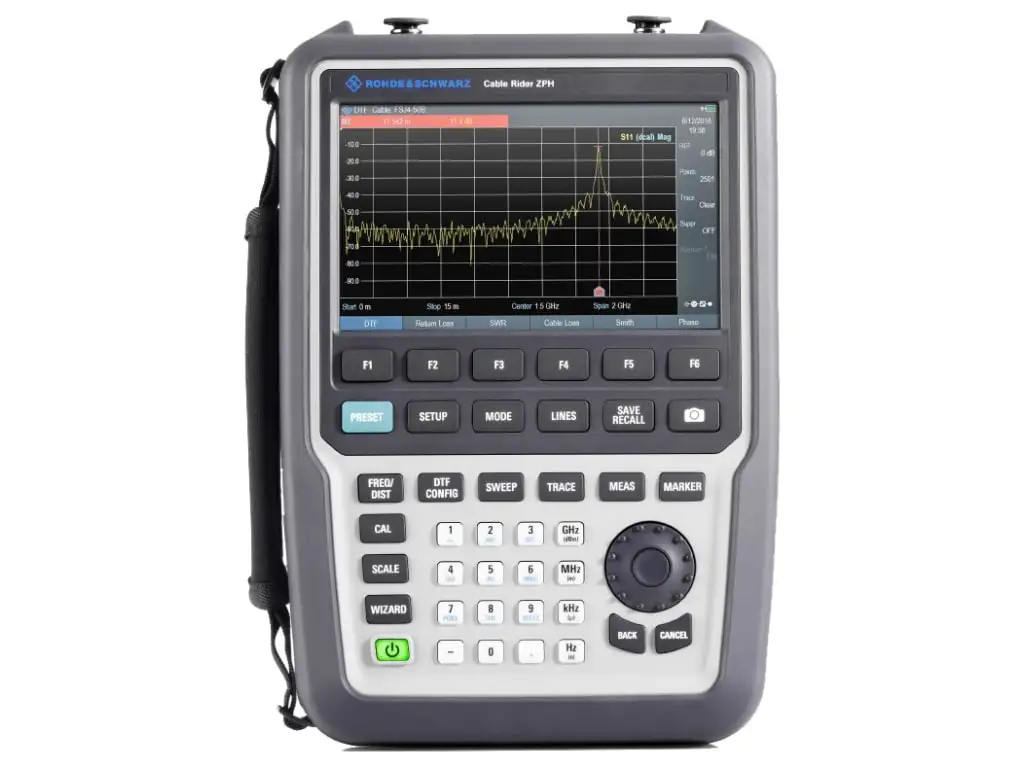

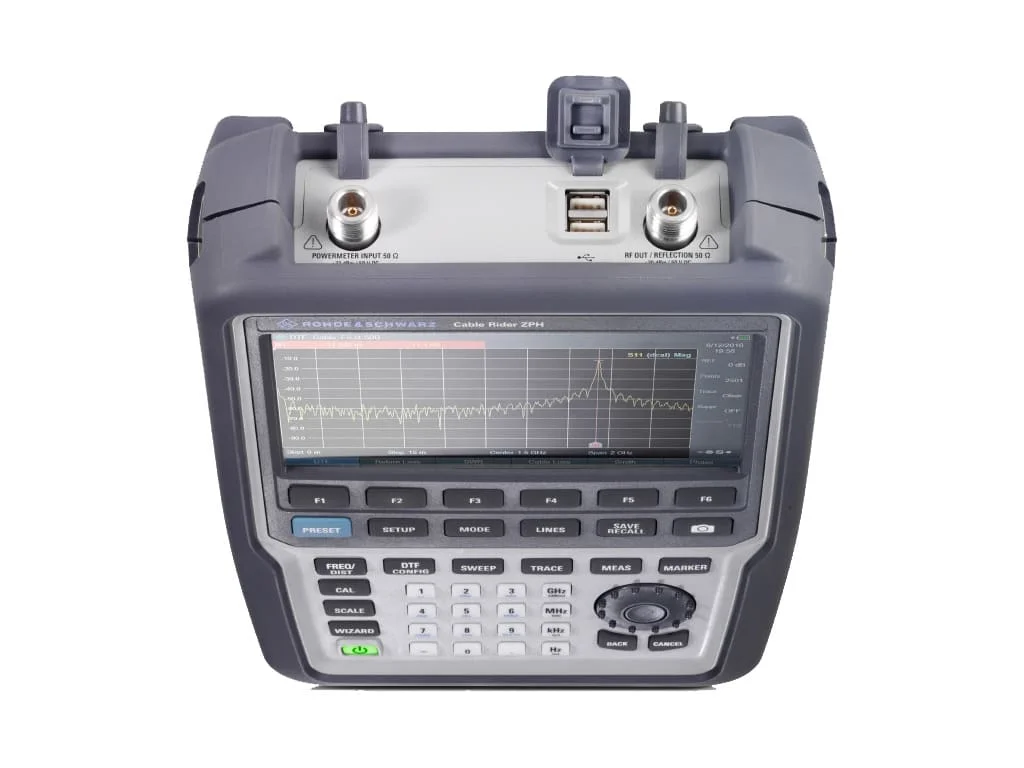

BRAND NEW ROHDE & SCHWARZ ZPH CABLE RIDER, CABLE & ANTENNA ANALYZER WITH B4 FSH Z320 HA Z321 HA Z322 03 ZN Z103 (1531)

Product Overview

Description



Rohde and Schwarz ZPH Specifications
Frequency range	R&S Cable Rider ZPH (one-port model .02)	2 MHz to 3 GHz

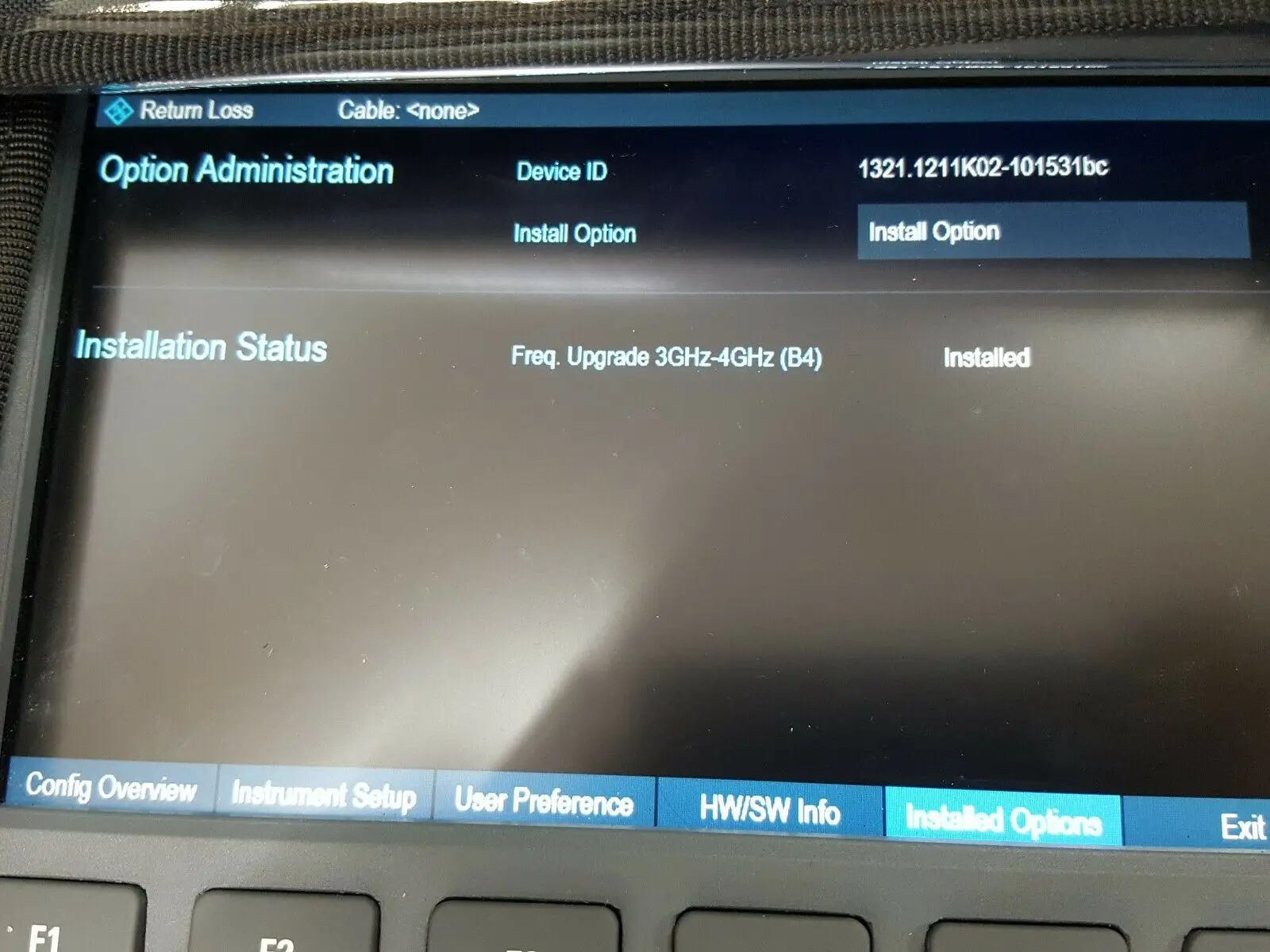

	with R&S ZPH-B4 option	2 MHz to 4 GHz
Frequency resolution		1 Hz
Individual measurements		reflection (S11), one-port cable loss, distance-to-fault
Port output power	controlled via tracking generator attenuation	-10 dBm (nom.)
Maximum permissible spurious signal	measurement = reflection (S11)/one-port cable loss/distance-to-fault analysis	+17 dBm (nom.)
Data points	selectable	101 to 2501
Reflection measurement S11

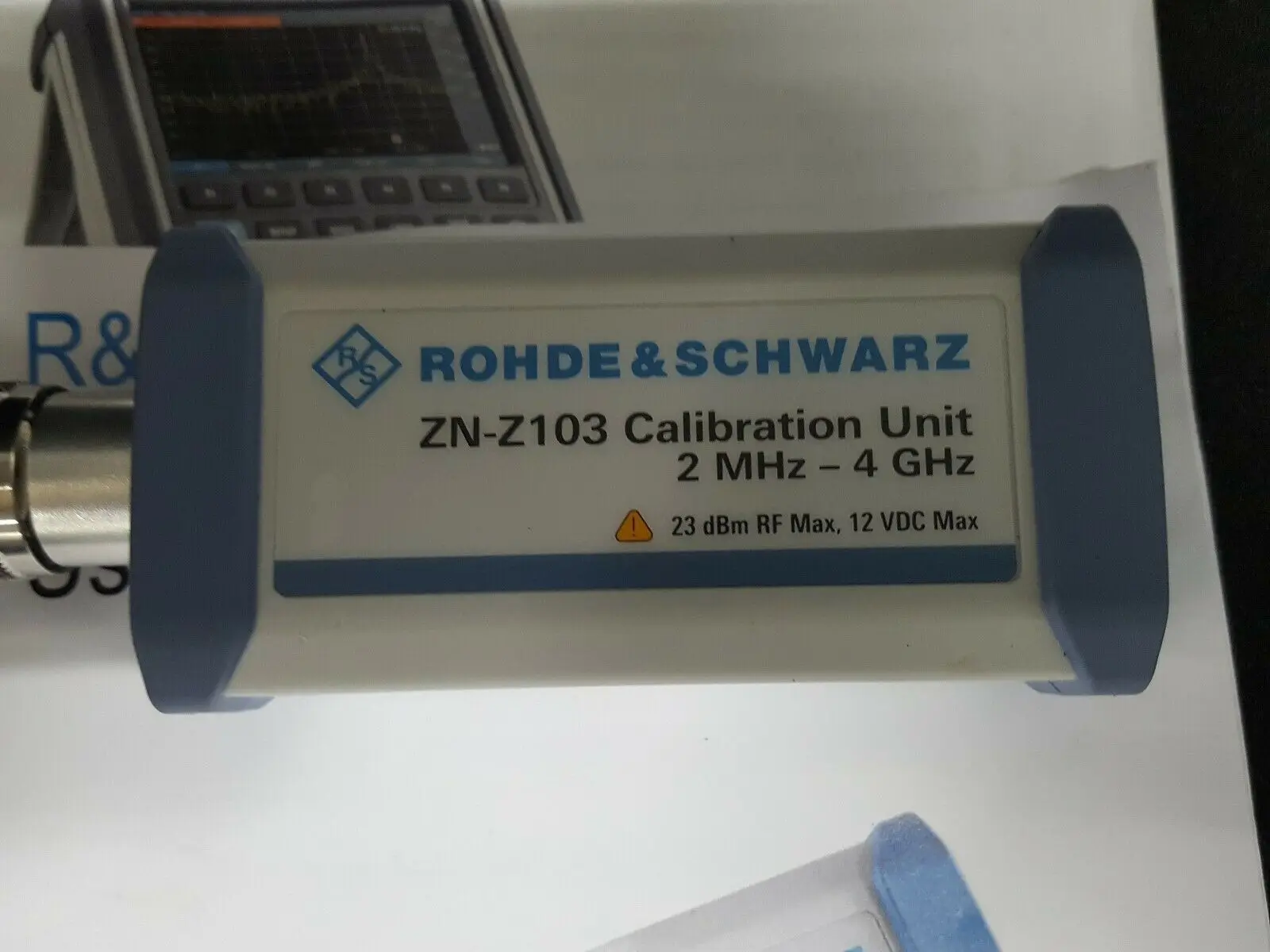

Corrected directivity with R&S®ZN-Z103 option	2MHz ≤f ≤4GHz (with R&S ZPH-B4 option)	>42dB (nom.)
Measurement speed		0.3 ms/point
Result formats		magnitude, VSWR, magnitude and distance-to fault, VSWR and distance-to-fault
One-port cable loss measurement
Result format		magnitude
Range	selectable	1/2/5/10/20/50/100/120/150dB
Distance-to-fault analysis
Result formats		return loss (dB), VSWR
Fault resolution		1.5 m × 108 m × velocity factor/span
Maximum cable length	depending on cable loss	1500 m (nom.)
Maximum rated input levels
DC voltage		50 V

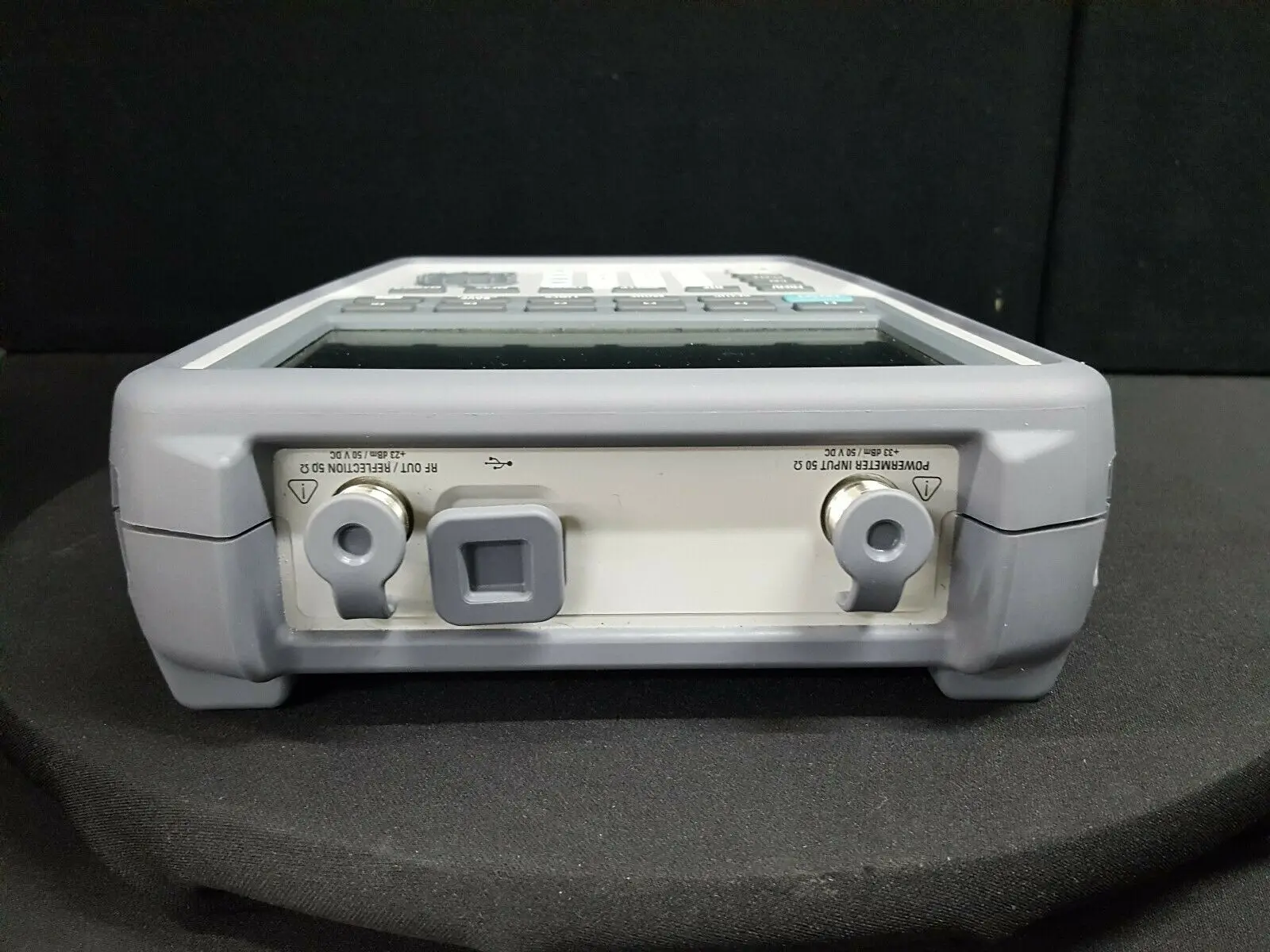

CW RF power	model .02: port 1 (power meter input)	30 dBm
General data
Display resolution	WVGA	800 × 480 pixel
Battery (R&S HA-Z306 option)	capacity	72 Wh
	voltage	11.25 V (nom.)
Operating time with new, fully charged battery	one-port model .02	9 h
Dimensions	W × H × D	202 mm × 294 mm × 76 mm (8.0 in × 11.6 in × 3 in)
Weight	2.5 kg (5.5 lb)	2.5 kg (5.5 lb)
