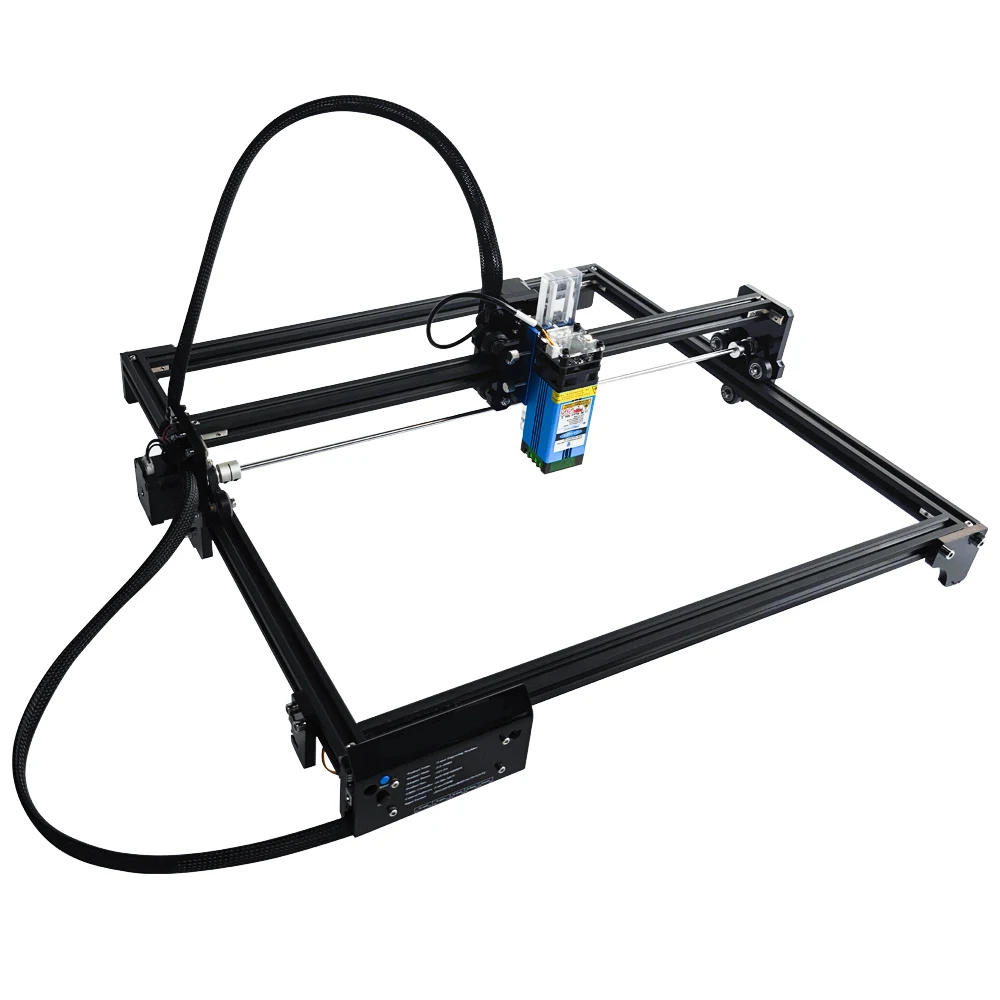

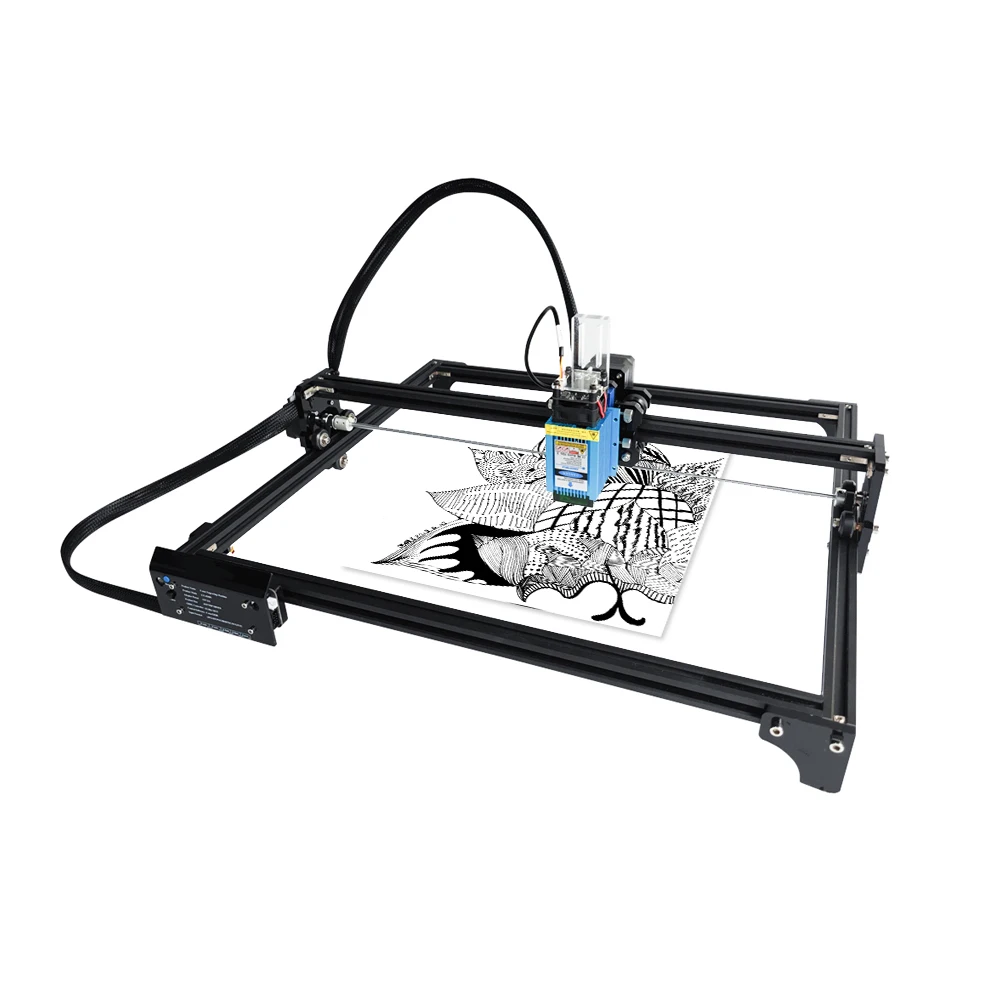

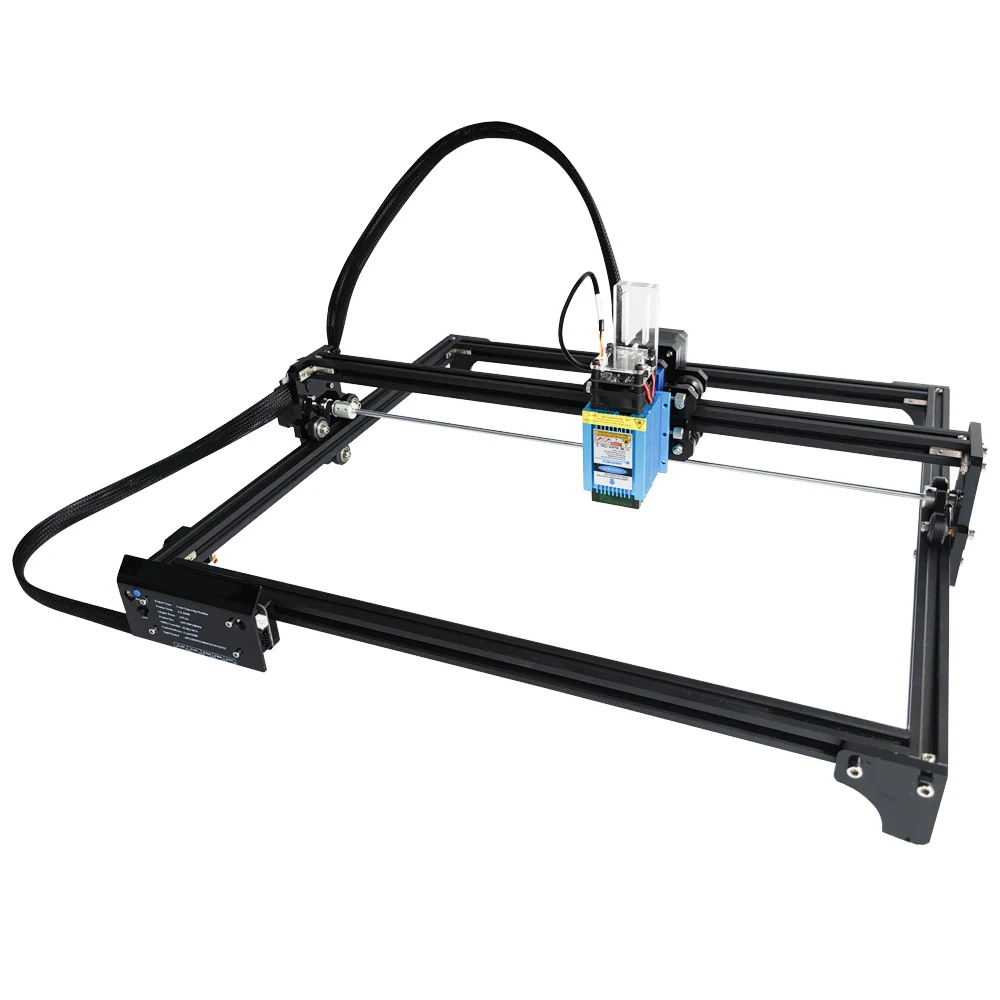

Laser Engraving Machine 40W Updated Design
- Category: >>>
- Supplier: Wuhu R3D Technology Co. Ltd.
Share on (11000003049011):
Product Overview
Description
Laser Engraving Machine
Laser Power | 7W | 15W | 20W | 40W | |||
Actual output power | 1600MW | 4500MW | 5500MW | 6000MW | |||
Laser wavelength | 450nm | ||||||
Spot type | Dotted | ||||||
Input Format: | NC, BMP, JPG, PNG, DXF, etc. | ||||||
Carving Speed: | 0-50000mm/min | ||||||
Machine power | 12V 5A | ||||||

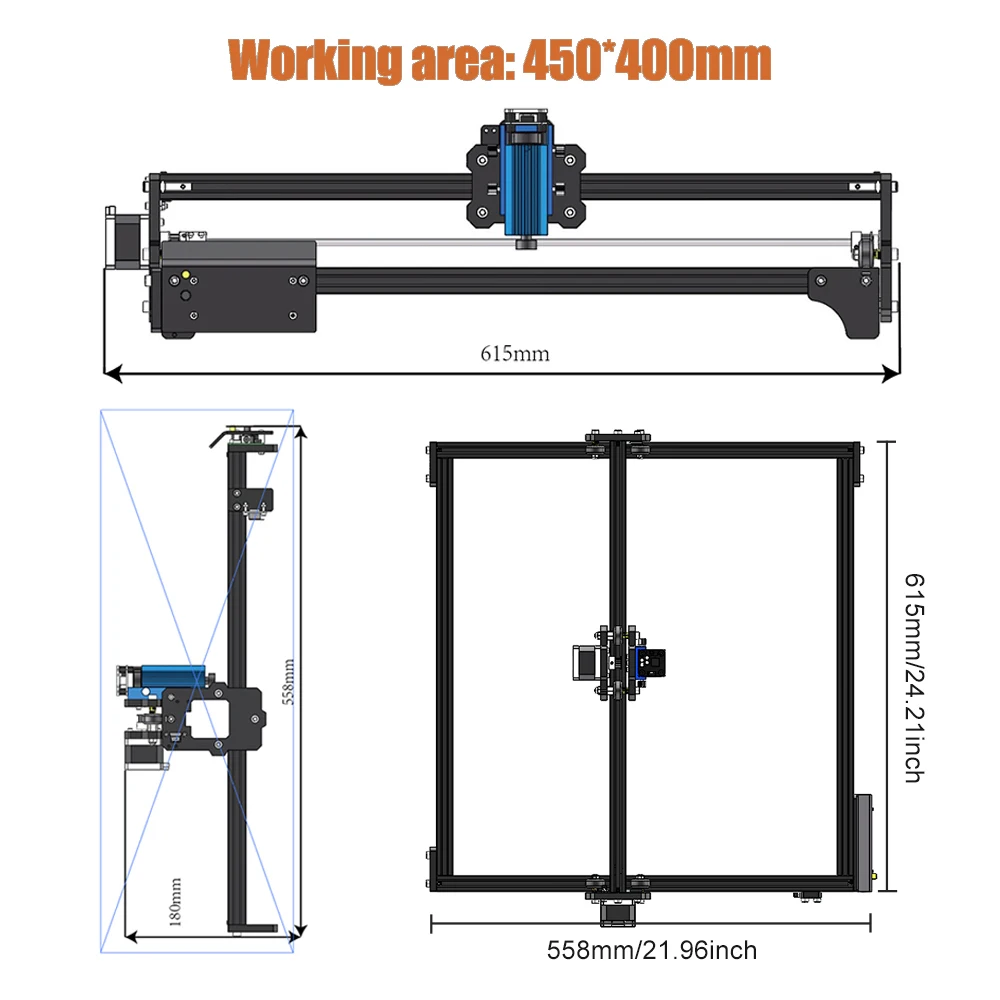

Working area | 450*400mm | 450*380mm | 450*380mm | 450*370mm | |||
Focus | within 5-10cm adjustable | within 3cm adjustable | fixed focus can not be adjusted | fixed focus can not be adjusted | |||
Spot size | 0.15*0.01mm | 0.03*0.04mm | |||||
Drive mode | external ACC constant current drive | ||||||
Cooling method | Forced Air Cooling | ||||||
Operating voltage | 12V DC | ||||||
Power supply | 12V 3A | 12V 5A | |||||
Shell material | Aluminum, Surface Anodized | ||||||
Module material | Copper | ||||||
Life Time | 20000hours | ||||||
Working temperature | -40-75Celsius | ||||||
Remark | We suggest 7W laser for Image Engraving | We suggest 15W laser for Engraving Flammable materials | We suggest 20W laser forcutting 1-3mm corkwood and 1-3mm plywood. | We suggest 40W laser for cutting 1-5mm corkwood/plywood; 1-3mmMDF, engraving metal，Better heat dissipation | |||
