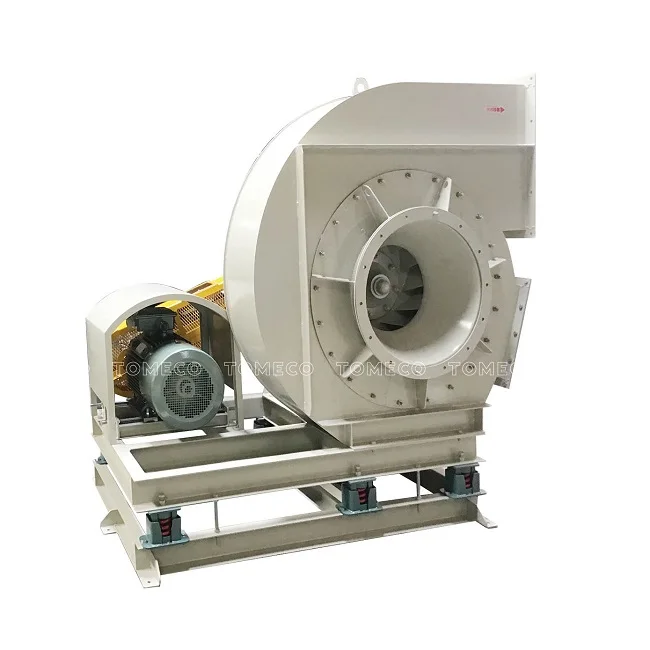

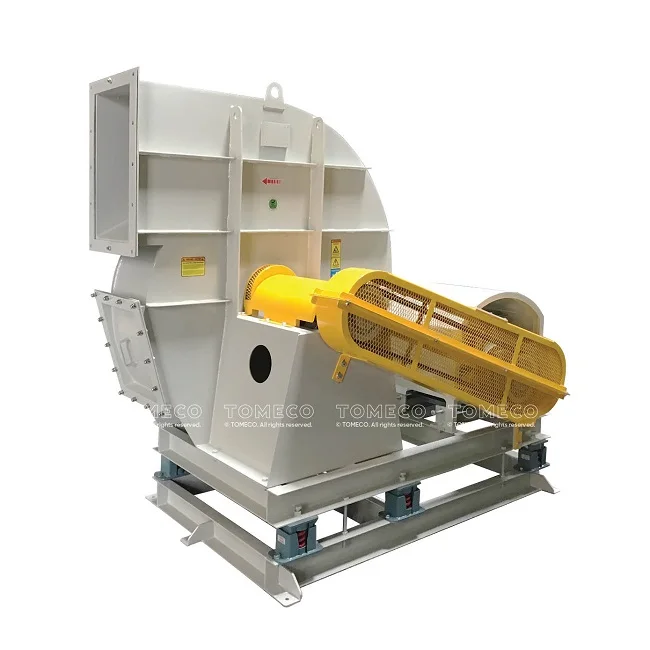

HIGH EFFICIENCY ENERGY SAVING CENTRIFUGAL FAN FOR AC TOWER CFC.LQ08 WHOLESALE
- Category: >>>
- Supplier: TOMECO MECHANIC ELECTRICAL JOINT STOCK COMPANY
Share on (11000003050839):
Product Overview
Description

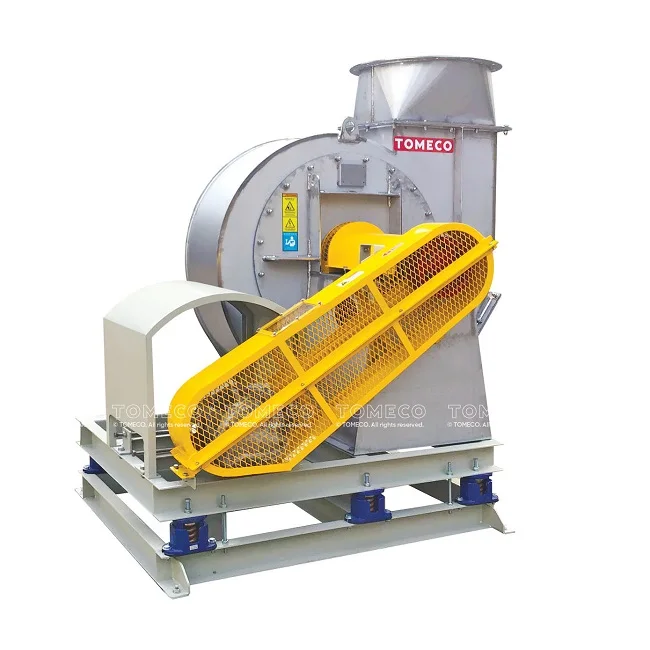

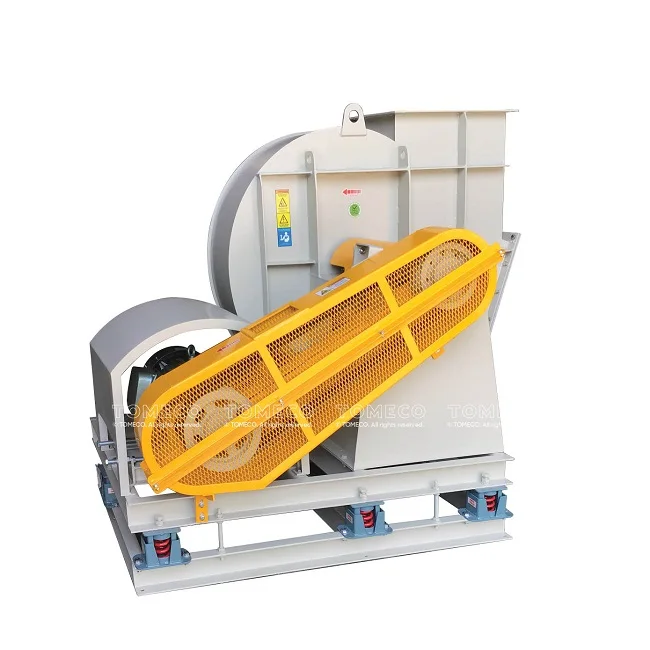

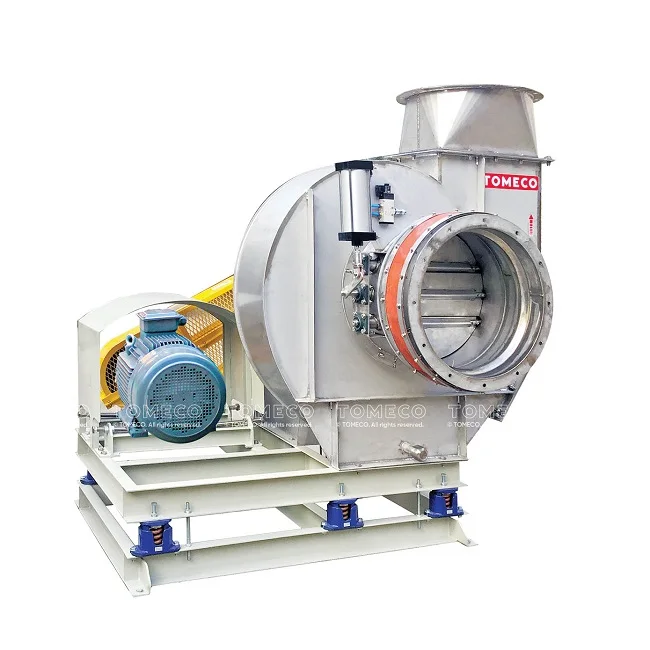

Product Photo
Application
The CFC.LQ08 belt drive centrifugal fan products designed and manufactured by TOMECO are widely applied to the needs:
Impellers are constructed of steel using flat, single thickness blades that are solid welded to the rim and backplate. The inlet-side rim is designed as a proper companion for the inlet cone. All impellers are statically and dynamically balanced to grade 6.3 and provide smooth operation prior to being assembled in the fan, followed by final balance of the entire rotating assembly. All CFC.LQ08 fan housings are continuously-welded and reinforced with rigid bracing to increase structural integrity.
With the use of bearings with clearance C3 it is possible to effect the suction of fluids at a temperature higher than 40°C up to max 80°C.
Handle large volumes of relatively clean air as required in heating, ventilating and air conditioning systems as well as many industrial air supply and exhaust applications.
With the use of bearings with clearance C3 it is possible to effect the suction of fluids at a temperature higher than 40°C up to max 80°C.
PREMIUM CHARACTERISTICS
Meeting all the demands of large flow: The superior design with dual blades and two intakes allows the LQ01-2X product lines to achieve flow parameters up to over 600,000 m3/h with advantages in size and capacity.
High efficiency - energy saving: The blades are designed and engineered with a rear-curved aerodynamic profile to help TOMECO's dual-suction and dual-blade fan products operate with outstanding efficiency. up to 83%.
Quiet operation - low noise: The inboard blade design with two side supports helps the fan achieve maximum reliability in operation. Fans are dynamically balanced and calibrated on a digital dynamic balancer, in accordance with ISO 10816. Materials and important components such as motors and bearings are imported from international manufacturer.
Durable in all harsh operating conditions: Depending on the degree of corrosion, chemical composition, temperature and humidity of the gas stream, TOMECO can propose solutions to choose materials such as wear-resistant steel. , stainless steel,...

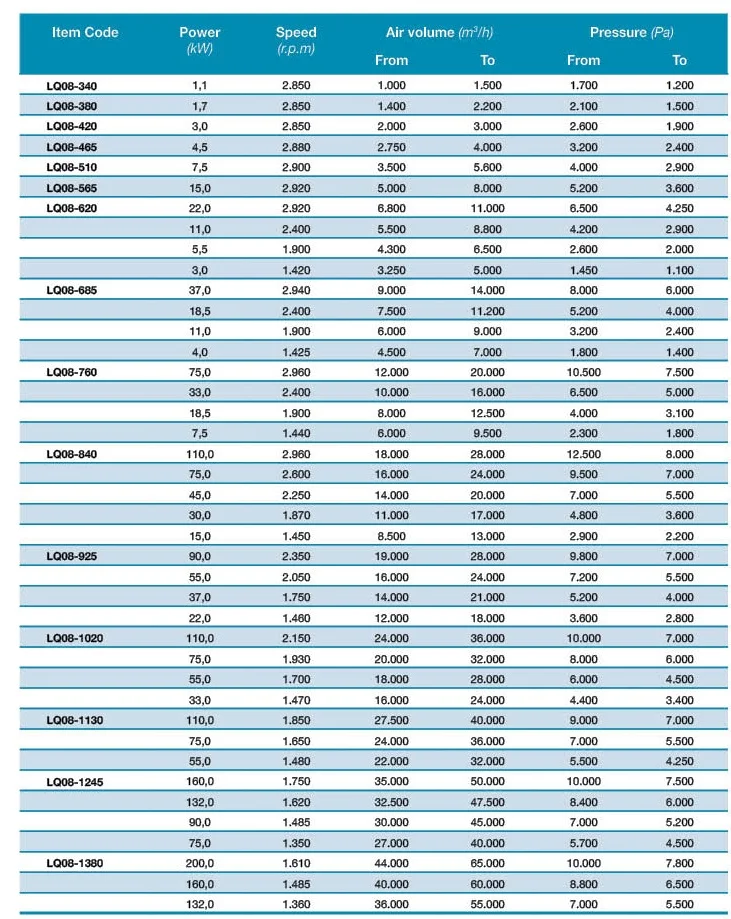

Technical Specifications
Air volume | 50.000-600.000 | m3/h |
Pressure | 500-3.000 | Pa |
Motor power | 37-560 | kW |
Speed | 720-1450 | Rpm |
Impeller diameter | 400-2.300 | mm |
Voltage | 380/3/50; 6kV/3/50 | V/Ph/Hz |
CONFIGURATION
Material | SS400/SUS201/SUS304/SUS316/Wear Resistance Steel/High strength steel |
Drive type | Direct Coupling |
Motor brand | ABB/SIEMENS/WEG/HEM(VIETNAM) |
Motor type | Foot mount |
Impeller design | Backward Curved |
Finish | Powder coated, Epoxy coated, hot dip galvanized |
Accessories
Inlet Flow Control Damper
Oulet damper
Actuator
Flexible Joint
Spring & Rubber Isolators
Electric Control Box
Company Profile
TOMECO is a leading company in Vietnam in the field of researching, designing and manufacturing industrial fans. With great diversity, industrial fans manufactured by TOMECO can serve from small products, small capacity to large capacity, specific requirements to mass production to meet the demand of the Vietnamese market as well as foreign counterparts . We are known as a professional unit, knowledgeable about the system and own absolute technology solutions. TOMECO's mission is to bring customers the perfect experience, beyond expectation, with the motto of "Prestige and quality in every detail."
