200-800 Tons Per Day Active Lime Production Line Equipment With Low Price



Product Description










 Crushing and screening plant

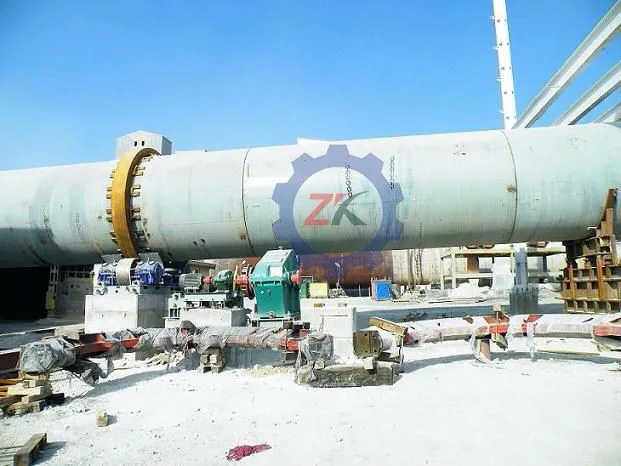

Active lime plant 1





The 0~200mm limestone is transported to the storage yard and one month stock shall be kept.


The yard limestone is unloaded to the limestone silo by the loader, then goes to the double-layer vibrating screen through the vibrating feeder at the bottom of silo. After screening, the limestone is divided into three kinds which are 0~10mm, 10~40mm and 40~200mm. The 0~10mm limestone is directly sent to the powder pile; the 10~40mm limestone is sent to bucket elevator through belt conveyor, then lifted up to the top silo at the rotary kiln end; the 40~200mm limestone is sent to the jaw crusher for crushing to 0~40mm size through the belt conveyor, then sent to the vibrating screen to get the 10~40mm qualified size.





Calcination and finished product transportation

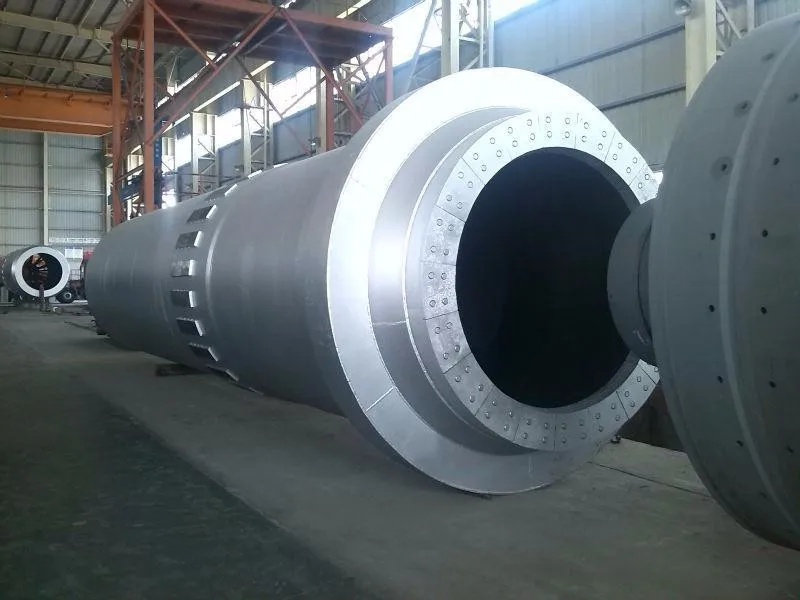

Active lime plant 2





The limestone in the silo goes into the rotary kiln through the vibrating feeder and chute. The material gradually moves from the tail to the head of rotary kiln and then being discharged. The limestone is calcined to active lime by 1300°Ctemperature in the rotary kiln, then goes to the cooler for cooling down to 70°C. Then the finished lime is lifted to the finished product silo by bucket elevator.


 Active lime plant 3








The flue gas from the rotary kiln will be discharged to the atmosphere by natural suction force through the chimney after going through the dust collecting chamber.

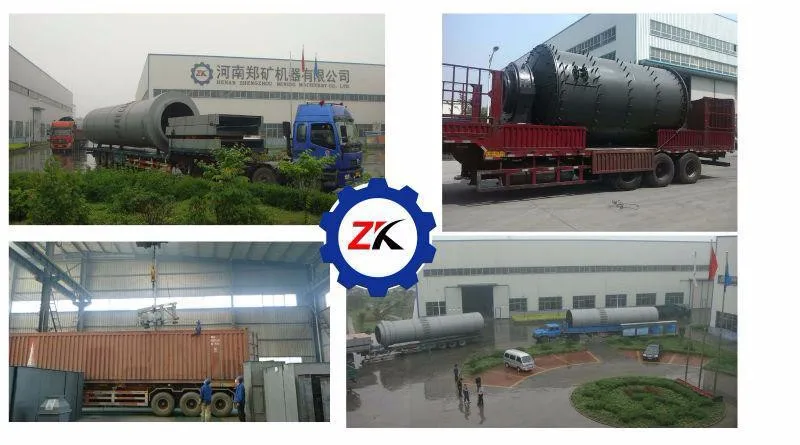

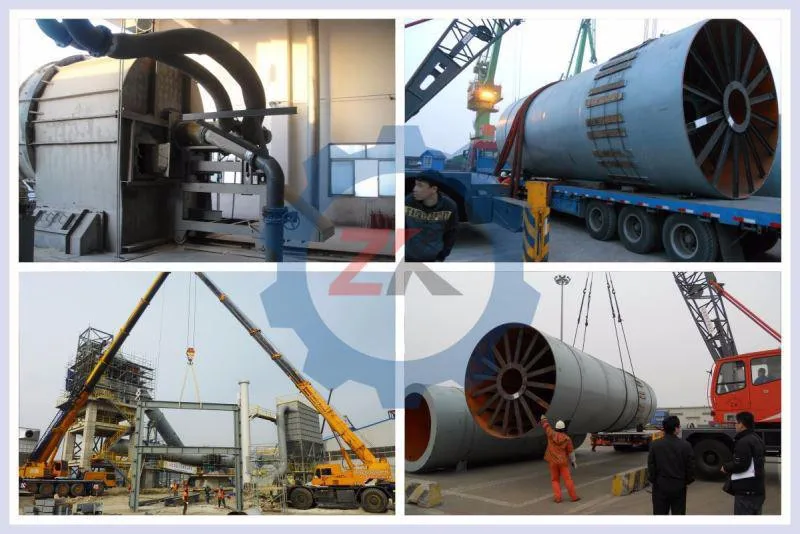

Packaging & Shipping


“Dlivery and payment on time" is the maxim firmly abided by us.

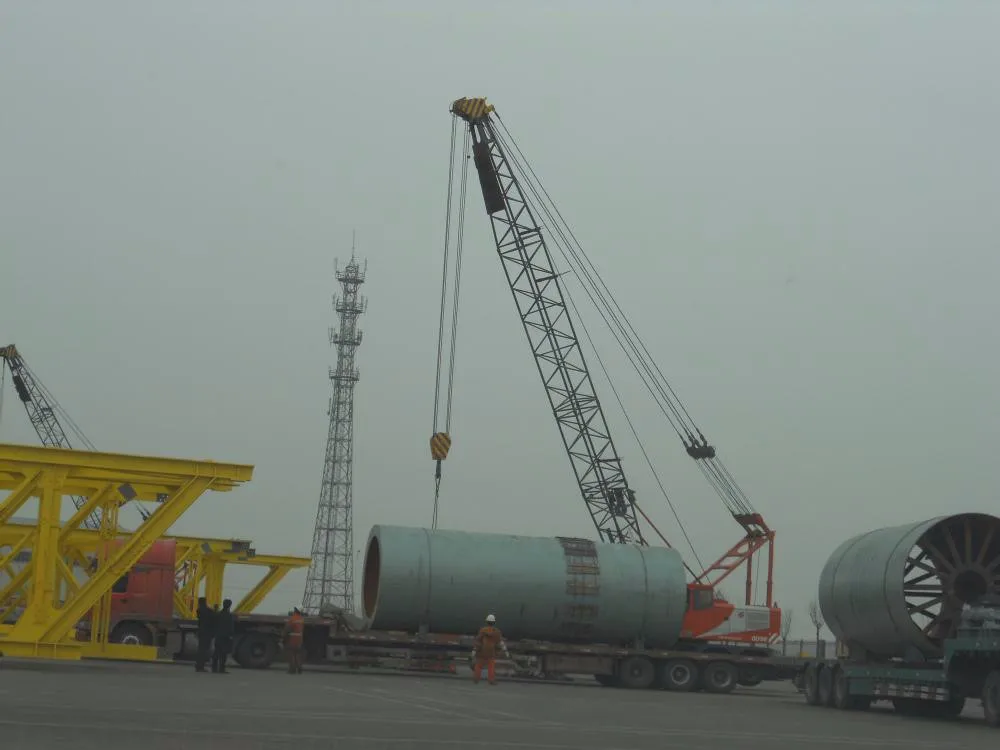

Active lime plant 4Active lime plant 5Active lime plant 6Active lime plant 7








Our Services


 1. Excellent installation team or installation service for you;


2. Provide you with operating and training services;


3. Help with the equipment commissioning and solve problems in trial operation;


4. Check before acceptance of single equipment or whole production line;


5. Service items including follow-up visit, customer satisfaction surveys and so on;


6. Timely provide you with necessary accessories after acceptance;


7. Provide you with warranty services of repair, replacement and refund if conditions are fulfilled.


8. Help you solve other problems.








Company Information

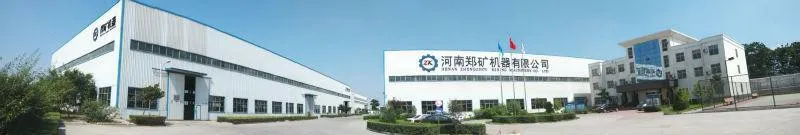

Active lime plant 8


Company introduction


Henan Zhengzhou Mining Machinery Co., Ltd was founded in 1956 and it is the designated manufacture plant of National Mechanical & Electrical Industry Bureau in Henan Province for cement building materials and beneficiation equipment. After more than half a century of development, Henan Zhengzhou Mining Machinery Co., Ltd has developed to an area of 70000 square meters, plant construction area of 40000 square meters with six modern workshops, two heavy machinery workshops, one Municipal Technology Center and more than 260 sets of machining, assembling, welding and other equipment. Its fixed asset value has exceeded 100 million RMB. Henan Zhengzhou Mining Machinery Co., Ltd has become an integrated modern enterprise with scientific research, design, development, manufacturing, sales, installation, commissioning and training services.


Active lime plant 9

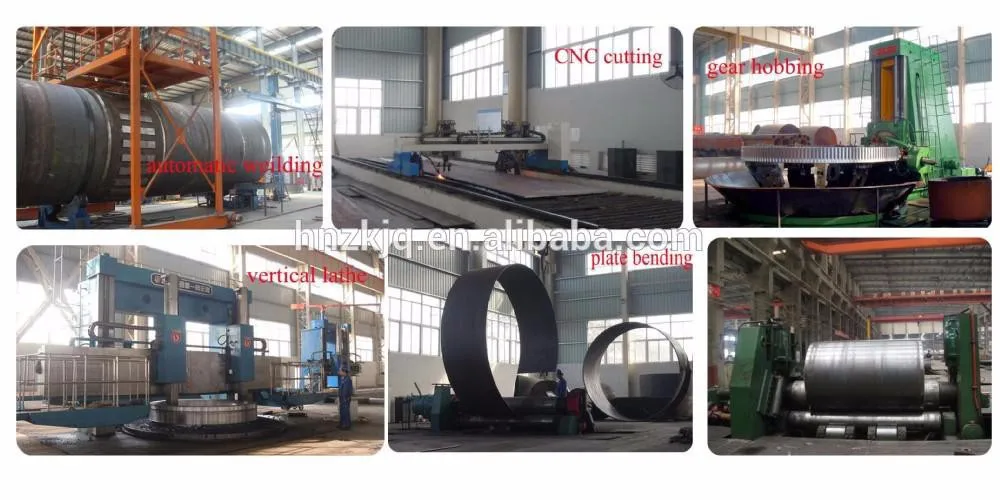

Processing equipment


Active lime plant 10


QC


Active lime plant 11


Customer Visit


Active lime plant 12Active lime plant 13

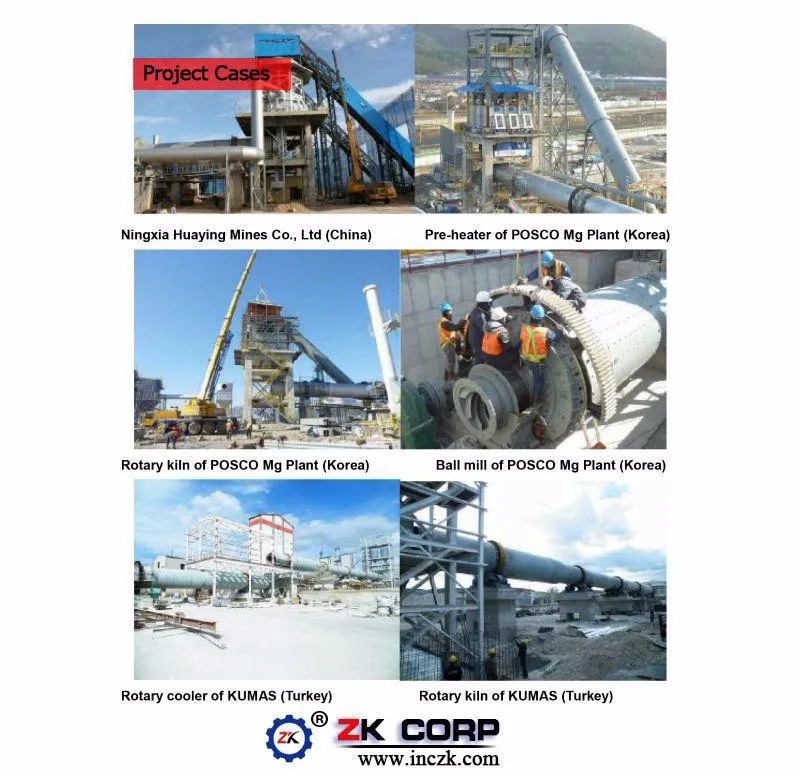

Project Cases


Active lime plant 14











Certifications


Active lime plant 15
