Japan smart tv display renew small lcd liquid crystal panel medical
- Category: >>>
- Supplier: Recycle Tech Japan Co. Ltd.
Share on (11000003092259):
Product Overview
Description
Products Description

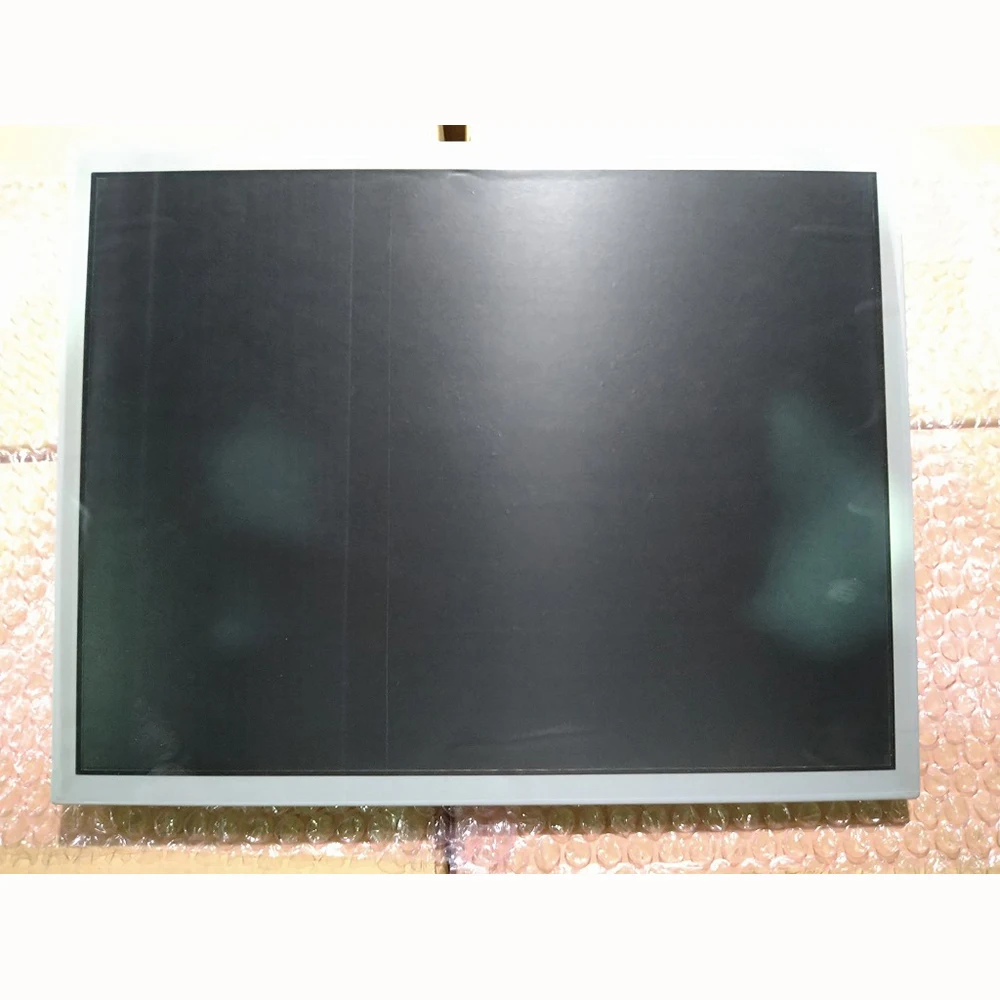

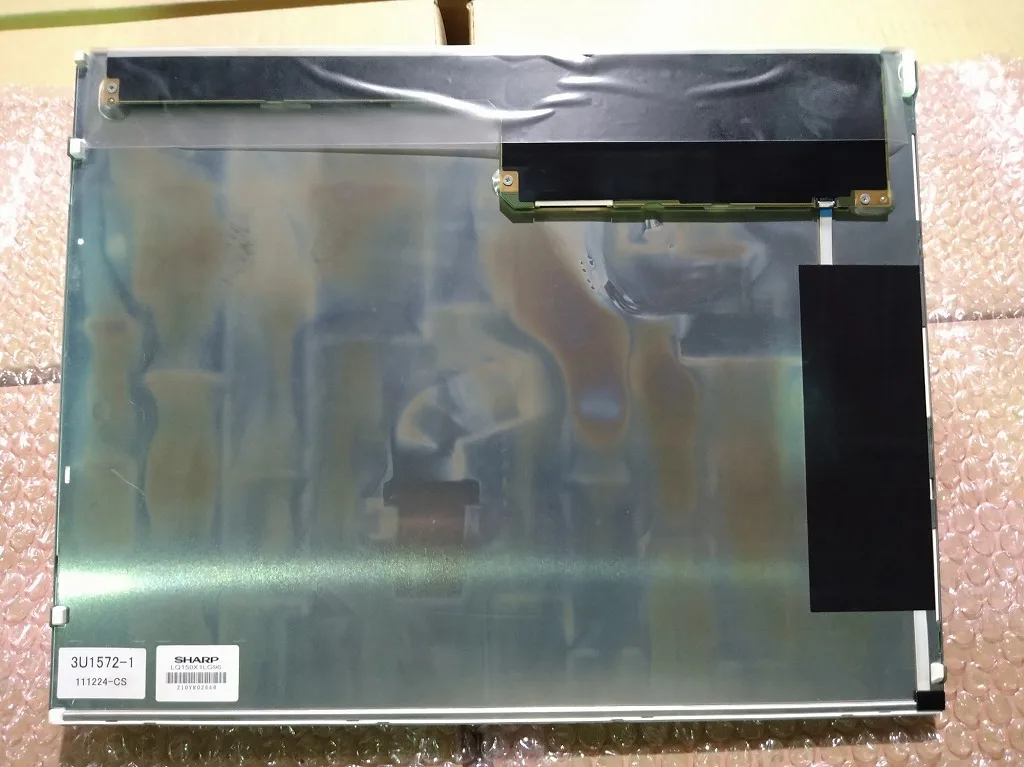

High-quality LCD Panels
Various brands of LCD panels are available in many sizes.
Luminance inspections are available for some LCD panels.

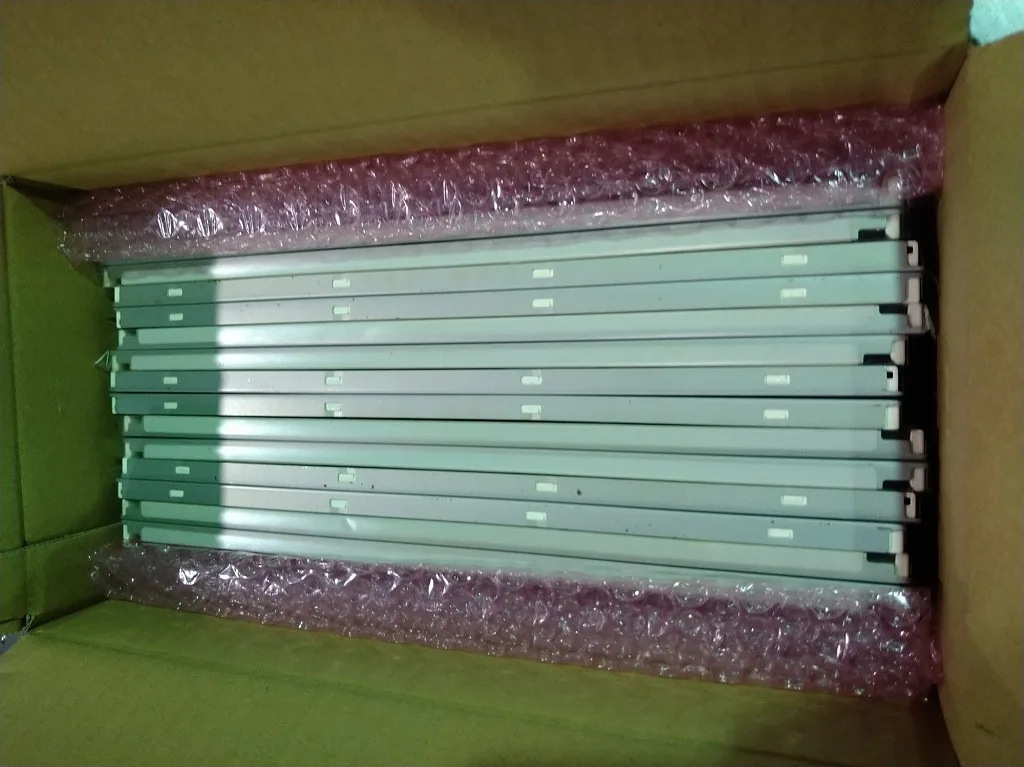

Annual Shipment: Different depending on the model number, around hundreds to tens of thousands of panels.
Various brands of LCD panels are available in many sizes.
Luminance inspections are available for some LCD panels.
Annual Shipment: Different depending on the model number, around hundreds to tens of thousands of panels.
Monitor Details | ||
Screen resolution | 1024 X 768 | |
Screen brightness | 1050 (Typ.) | |
Viewing angle | 80/80/60/80 (Typ.)(CR>=10) | |
Contrast | 800 : 1 (Typ.) ( Transmission ) | |
Display colors | 16.2m 70% (CIE1931) | |
Pixel pitch | RGB Vertical Stripe | |
Display Area | 304.128 X 228.096(mm) | |
Display model | TN， Normally White ， Transmissive | |
Backlight | WLED 30k Hours With LED Driver | |
External dimensions | 326.5 X 253.5 X 10.1(mm) | |
Surface finish | Matte，Hard coating (3H) | |
Weight | 950g (Max.) | |
Response time | 35 (Typ.)(Tr+Td) ms | |
Refresh rate | 60Hz | |
Port types | LVDS (1 ch 8-bit) 20 pins | |
Power source | 3.3v (Typ.) | |
Operating Temp. | Operating Temp.: 0 ~ 65°c; Storage Temp.: -30 ~ 70°c; | |
Production Status | In Production | |
Product Usage
Door intercoms, order panels, etc.\t
Company Profile
We deal in all aspects of Japan's unique pachinko gaming industry.
Pachinko machines are made up of many different components, including LCD panels, motors, sensors, and electronic components.
It takes many finely engineered parts to build highly reliable pachinko machines, which require precise controls.
In order to meet the needs of our customers, we provide services for disassembling, removing, and reusing these parts.
We enjoy among the highest recovery volumes in the entire industry, and can leverage our volume to satisfy a wide range of requests.
Pachinko machines are made up of many different components, including LCD panels, motors, sensors, and electronic components.
It takes many finely engineered parts to build highly reliable pachinko machines, which require precise controls.
In order to meet the needs of our customers, we provide services for disassembling, removing, and reusing these parts.
We enjoy among the highest recovery volumes in the entire industry, and can leverage our volume to satisfy a wide range of requests.
