Good insulation Japan making production line electrostatic epoxy powder coating paint /PCE 650 2A
- Category: >>>
- Supplier: PELNOX LTD.
Share on (11000003153183):
Product Overview
Description
Products Description
Heat cycle resistance, insulation, flexibility Short time heat curing type powder epoxy/PCE-650-2A

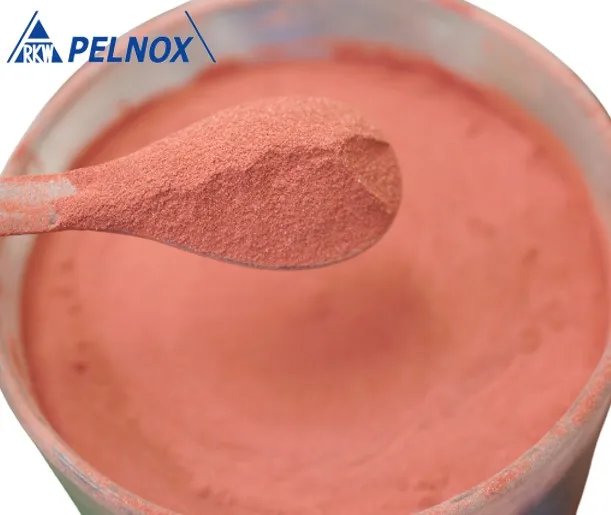

PCE-650 is a powder coating product based on solid epoxy resin.
It maximizes the advantages of solid epoxy resins such as mechanical strength, insulation, and heat resistance.

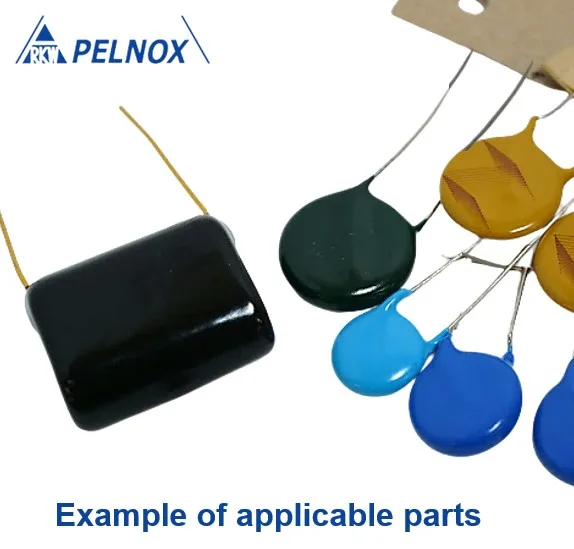

It is effective for insulating and finishing electronic components, rust proofing of metal products, and motor coating.

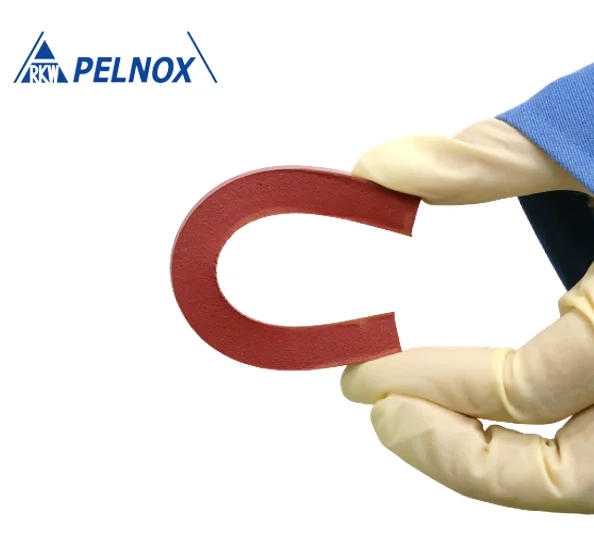

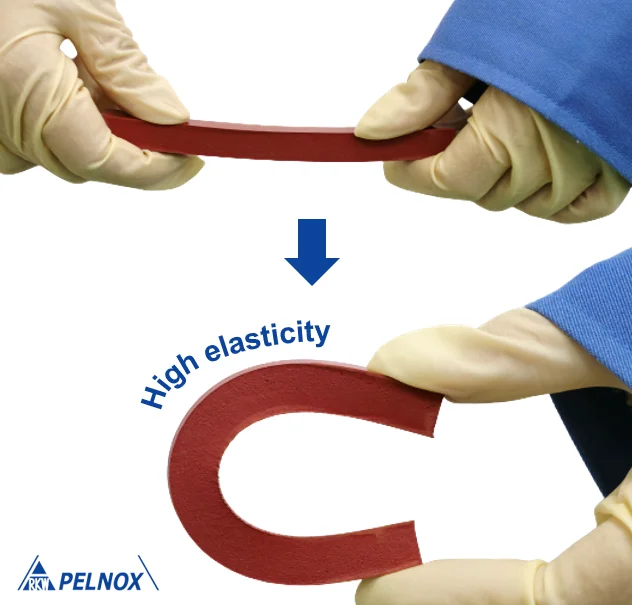

The greatest feature of this product is its flexibility.
Even when painted with this resin and cured, the resin does not crack even when bent.
This is our unique technology that is hard to find in the world.
We can also make prototypes in small quantities, so please contact us for more information.
Product Name | PCE-650 | ||||||
Use | Motor Insulation (Field Coil) | ||||||
Function | Flexible, Heat Cycle Resistant | ||||||
As supplied | （Typical Value） | ||||
Item | Condition | Unit | |||
Appearance | visual | - | BROWN | ||
Gel Time | JIS C 2161 150℃ | sec | 179 | ||
Average Particle Size | Layser method | μm | 67.00 | ||
Particle Size | １５０μｍ ｏｎ | - | 0.7 | ||
Melting Point | Kofura hot bench | ℃ | 61 | ||
Standard Curing Condition 190℃ x 15min.
As cured | ||||||
Item | Condition | Unit | Typical Value | |||
Specific Gravity | JIS K 6911 | - | 1.4 | |||
Hardness | Shore Ｄ | - | 52 | |||
Volume Resistivity | JIS C 2161 | Ω・ｃｍ | 5.6×10１2 | |||
after boil for 2hrs | 3.7×10１1 | |||||
Glass Transition Temperature | ＴＭＡ | ℃ | 33 | |||
Coefficient of Thermal Expansion | below Ｔｇ | ／℃ | 6×10-5 | |||
Tensile Strength | JIS K 6911 | MPａ | 10.7 | |||
The above values are typical and not specification | ||||||

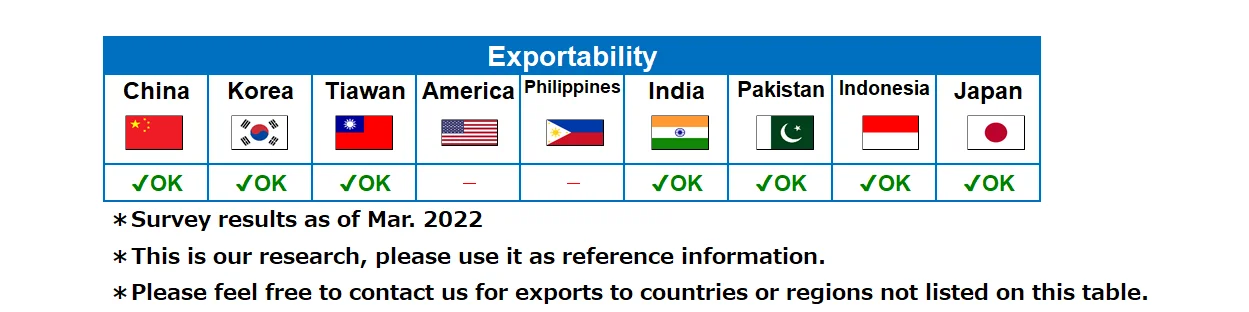

This product may not be exported due to national or regional chemical regulations; please contact us for details.
The greatest feature of our products is their flexibility!
It also has excellent heat resistance.
It is extremely difficult to achieve this level of flexibility with powdered epoxy resin, and no other company can offer such a high level of flexibility.
1.This product is refrigerated, so please bring it to room temperature before opening. Condensation may cause moisture to enter the product.
2.The powder may be lumpy due to consolidation. Disintegrate well before use.
3.Fill the tank with powder and perform break-in operation until the sprayer is stabilized.
4.Avoid direct contact with air conditioners and outside air. This will result in variations in adhesion and coating thickness.
5.During coating, adjust the air according to the fluidity of the powder and the amount of adhesion.
6.The painted product should be cured promptly under the specified curing conditions.
PCE-650 weighs 15 kg/box.
These are packed safely and securely in cardboard boxes.
Customized packages and containers are also available.
Please contact us for details
Please contact us for details
1. Who are we?
We are a Japanese resin manufacturer established in 1970.
Our lineup includes not only epoxy-based (liquid and powder) but also urethane and silicone-based insulating materials, coating materials, conductive paste materials, etc. Over 900 types of products are adopted and used worldwide.
2. How do you guarantee quality?
We always conduct a final inspection before shipment.
3. What can I purchase from you?
Epoxy-based products (liquid and powder), urethane, silicone-based insulating materials, and conductive materials.
4. Why should you buy from us instead of from other suppliers?
With our many years of experience and extensive product lineup, we are able to provide products that meet the detailed requirements of our customers.
We also have solid technical and support capabilities, so please feel free to contact us.
Our dedicated professionals are ready to support you.
5. What kind of services do you provide?
We provide technical support for resin selection, manufacturing process support, etc.
We provide packaging forms and quantities according to customer requirements.
We can customize resins according to the physical properties required by the customer.
