High heat resistance buy transparent epoxy resin glue for sale /ZC 210
- Category: >>>
- Supplier: PELNOX LTD.
Share on (11000003167119):
Product Overview
Description
Products Description
One-component epoxy adhesive with quick curing and high heat resistance/ ZC-210
ZC-210 is a one-component, thermosetting epoxy resin.
It is mainly used for adhesives.
It is particularly suitable for bonding small parts because it can bond targeted areas precisely.

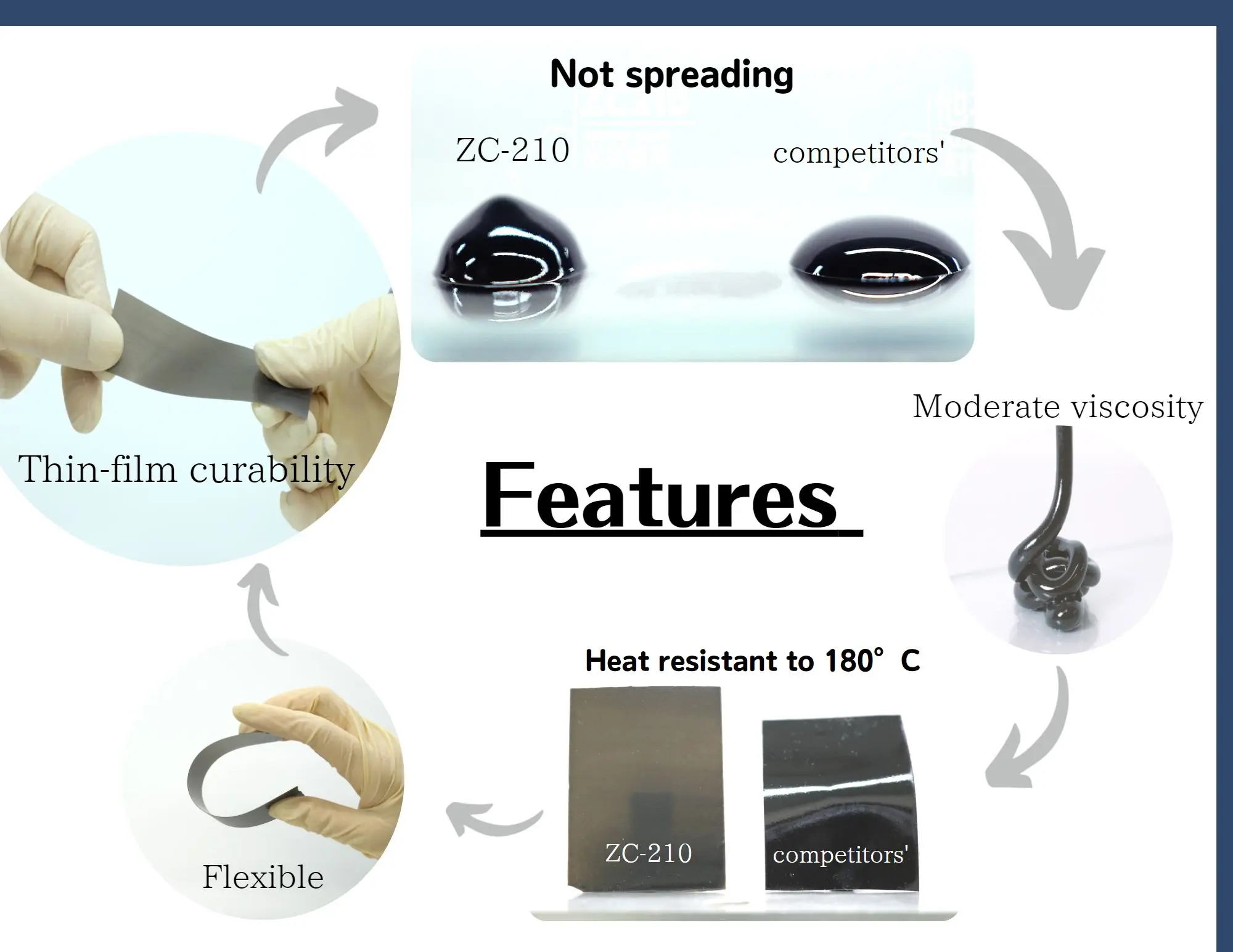

It also features excellent thin-film curability, resistance to expansion even when heated, and extremely high heat resistance.
Product Name | ZC-210 | ZC-210 | ZC-210 | ZC-210 | |||
Function | One Component, Low Stress, Low Curing Shrinkage, Low Warpage | One Component, Low Stress, Low Curing Shrinkage, Low Warpage, | One Component, Low Stress, Low Curing Shrinkage, Low Warpage, | One Component, Low Stress, Low Curing Shrinkage, Low Warpage, | |||
As supplied | （Typical Value） | ||||||
Item | Condition | Unit | |||||
Appearance | visual | ー | Black liquid | ||||
Viscosity | 25℃ 10rpm | Pa・s | 260 | 260 | |||
TI Value | 0.5/5rpm 25℃ | ー | 3.0 | 3.0 | |||
Specific Gravity | Buoyancy method | ー | 1.84 | 1.84 | |||
Standard Curing Condition 100℃ x 1 hour + 150℃ x 3 hours
As cured | ||||||
Item | Condition | Unit | Typical Value | |||
Hardness | JIS K 7215 25℃ | Shore D | 96 | |||
Curing Shrinkage | 120×10×10(mm) | % | 0.23 | |||
Glass Transition Temperature | JIS K 7197 TMA | ℃ | 175 | |||
Coefficient of Thermal Expansion | below Tg | 10^-5/℃ | 1.5 | |||
above Tg | 10^-5/℃ | 8.0 | ||||
Volume Resistivity | JIS K 6911 25℃ | Ω･cm | 7.2 x 10^16 | |||
PCT 24hrs | Ω･cm | 2.9 x 10^13 | ||||
Shear Adhesive Strength | JIS K 6850 25℃ Iron | MPa | 7 | |||
JIS K 6850 25℃ Aluminum | MPa | 11 | ||||
JIS K 6850 25℃ Copper | MPa | 14 | ||||
JIS K 6850 25℃ Alumina | MPa | 6 | ||||
The above values are typical and not specification | ||||||
This product may not be exported due to national or regional chemical regulations; please contact us for details.
Always store this product refrigerated or frozen.
1.Thaw thoroughly at room temperature before use.
Use of a dispenser is recommended.
2. Curing takes about 1 hour at 100°C + 3 hours at 150°C or 20 minutes at 170°C.
Safety and securely packed in Packaged in 30g syringes.
Customization of packages and containers is also available.
Please contact us for details.
Please contact us for details.
1. Who are we?
We are a Japanese resin manufacturer established in 1970.
Our lineup includes not only epoxy-based products (liquid and powder), but also urethane and silicone-based insulating materials, coating materials, and conductive paste materials. More than 900 types of products have been adopted and used all over the world.
2. How can we guarantee quality?
Always final inspection before shipping.
3. What can you buy from us?
Epoxy-based products (liquid and powder), urethane, silicone-based insulating materials, conductive materials.
4. Why should you buy from us instead of from other suppliers?
Because of our long track record and large product lineup, we can offer products tailored to your detailed requirements.
We have solid technical and support capabilities, so please feel free to contact us.
Your dedicated professional will support you.
5. What kind of service can we provide?
Technical assistance in resin selection, manufacturing process support, etc.
The packing form and quantity according to your requirements.
Resins can be customized according to your required physical properties.
Company Profile
PELNOX, LTD.
We are a formulator of resin compounds and adhesives manufacturing company, offering more than 900 products to more than 1,000 companies around the world.We can assist the customers where needed, from the small quantity prototype stage, up to the development of resin products. That is a wide range of materials including epoxy liquids and powders, urethane, silicone, and conductive paste materials.
