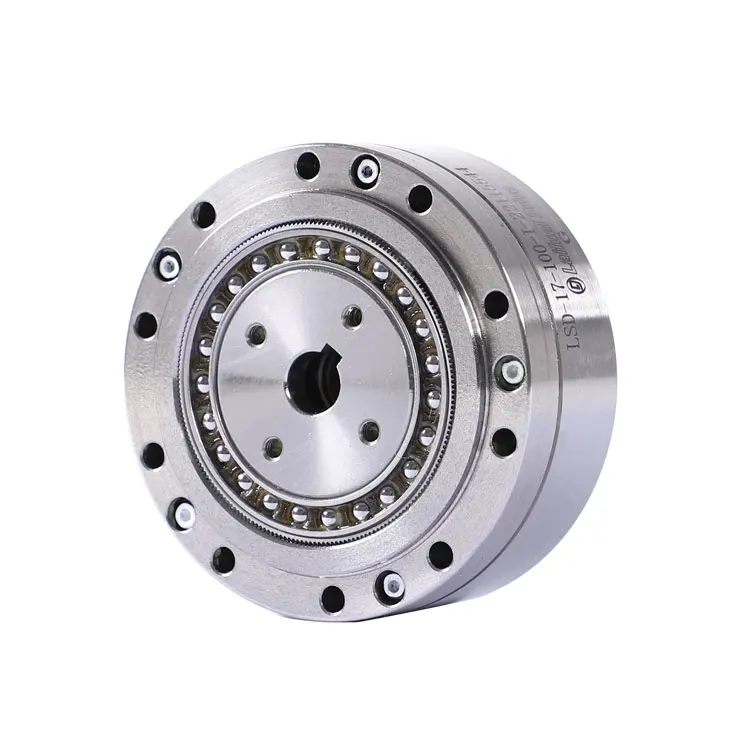

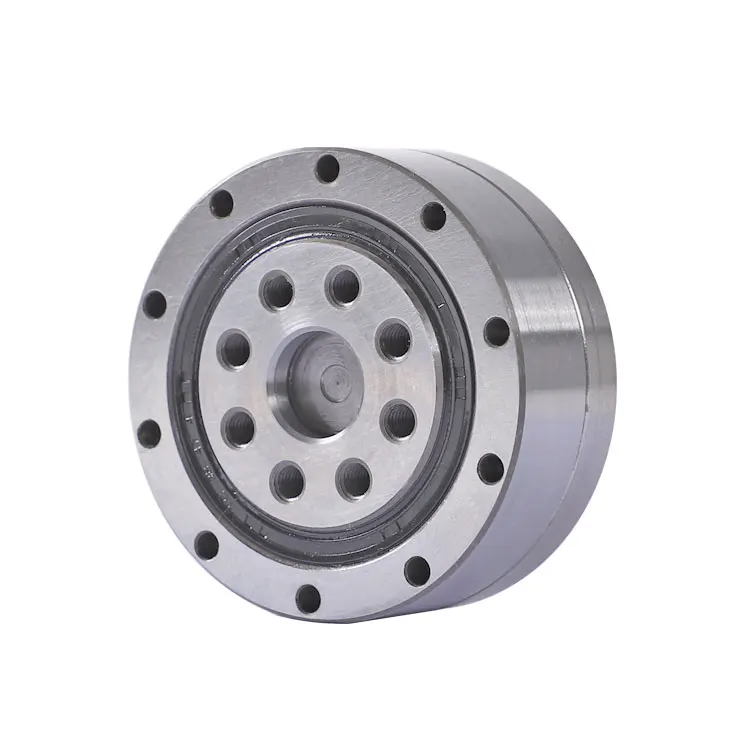

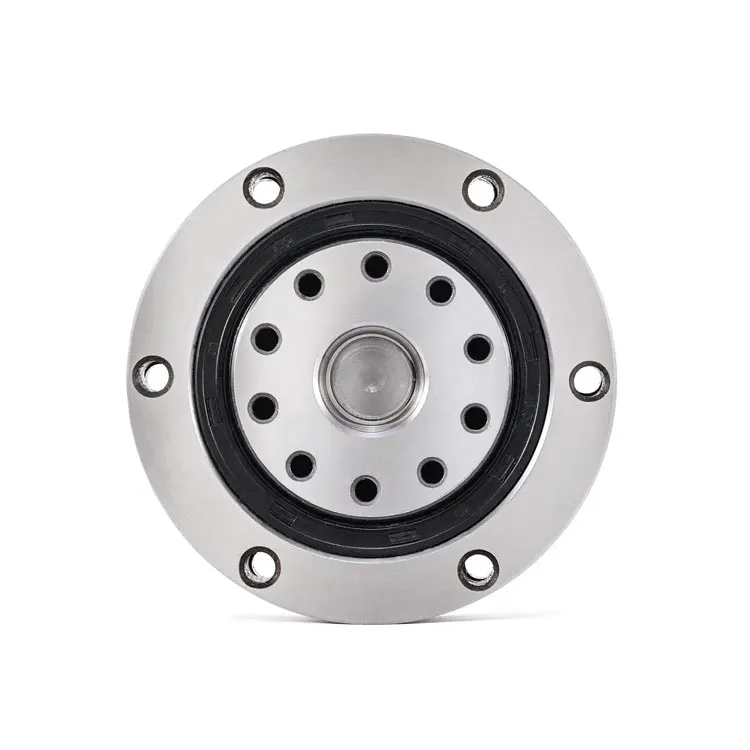

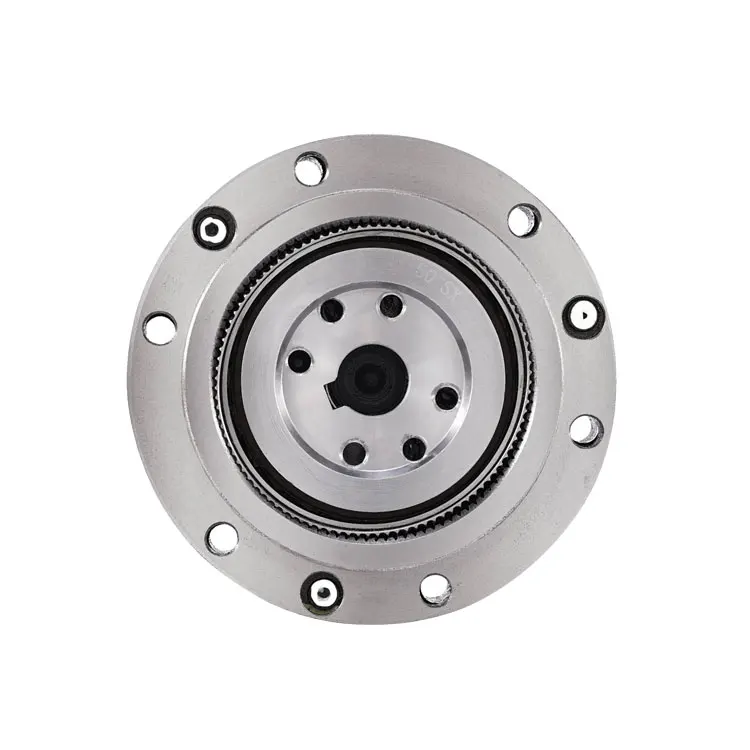

Industrial Machines Atv Vehicles robot High Rigidity Motion Control Top Gearbox Harmonic Drive Gear Harmonic Reducer
- Category: >>>
- Supplier: Shenzhen Homwing Technology Co. Ltd.
Share on (11000003199182):
Product Overview
Description
Product Description

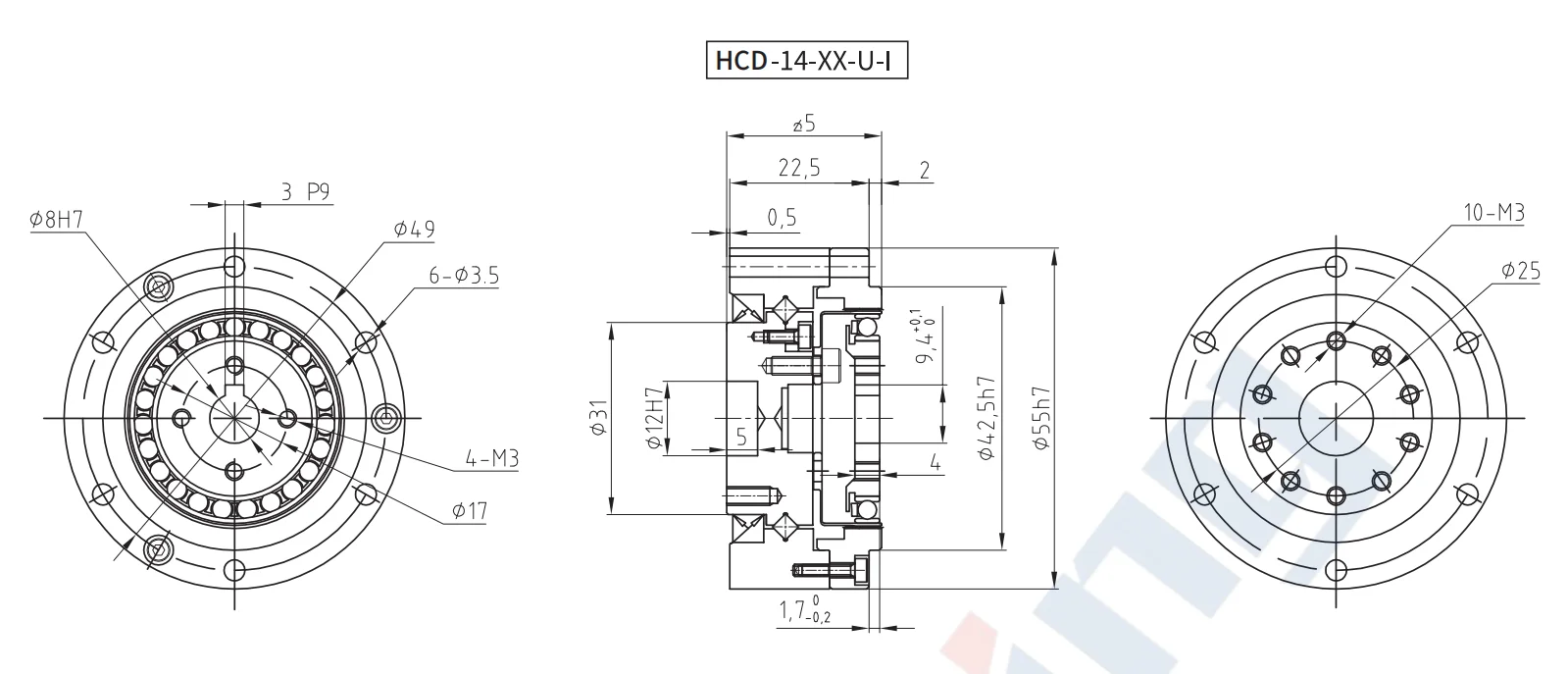

Model | Speed ratio | Enter the rated torque at 2000r/min | Allowed peak torque at start stop | The allowable maximum of the average load torque | ||||||
Nm | kgfm | Nm | kgfm | Nm | kgfm | |||||
14 | 50 | 3.7 | 0.38 | 12 | 1.2 | 4.8 | 0.49 | |||
80 | 4.2 | 0.43 | 16 | 1.6 | 5.9 | 0.6 | ||||
100 | 5.4 | 0.55 | 19 | 1.9 | 7.7 | 0.79 | ||||
17 | 50 | 11 | 1.1 | 23 | 2.3 | 18 | 1.9 | |||
80 | 14 | 1.4 | 30 | 0.3 | 21 | 2.1 | ||||
100 | 16 | 1.6 | 37 | 3.8 | 27 | 2.8 | ||||
20 | 50 | 17 | 1.7 | 39 | 4 | 24 | 2.4 | |||
80 | 21 | 2.1 | 46 | 4.7 | 30 | 3.1 | ||||
100 | 28 | 2.9 | 57 | 5.8 | 34 | 3.5 | ||||
Model | Maximum torque is allowed in an instant | Allow the maximum speed to be entered | Average input speed is allowed | Back gap | design life | ||
Nm | kgfm | r/hin | r/hin | ArcSec | Hour | ||
14 | 24 | 2.4 | 8500 | 3500 | ≤30 | 7000 | |
31 | 3.1 | ||||||
35 | 3.6 | ||||||
17 | 48 | 4.9 | 7300 | 3500 | ≤30 | 10000 | |
58 | 5.9 | ||||||
71 | 7.2 | ||||||
20 | 69 | 7 | 6500 | 3500 | ≤30 | 10000 | |
81 | 0.8 | ||||||
95 | 9.7 | ||||||
More Products
About Us
Certifications

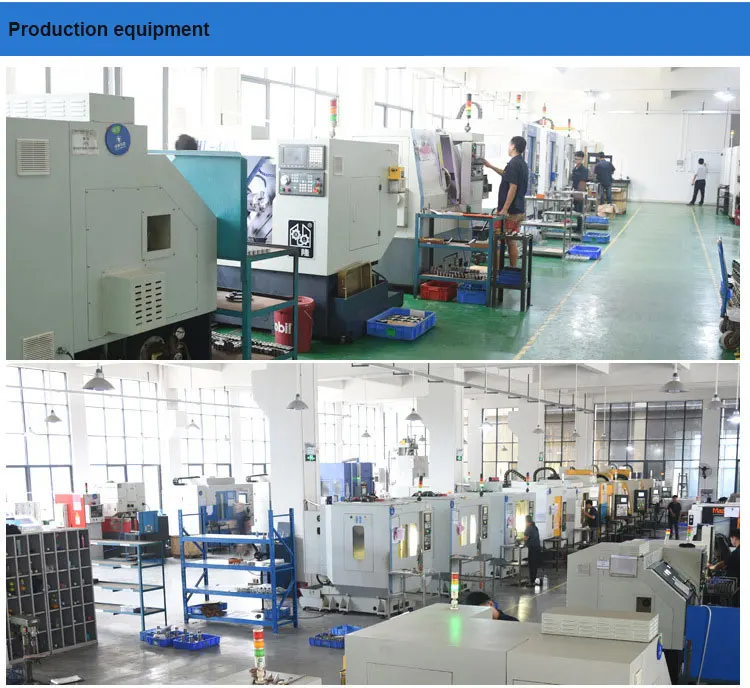

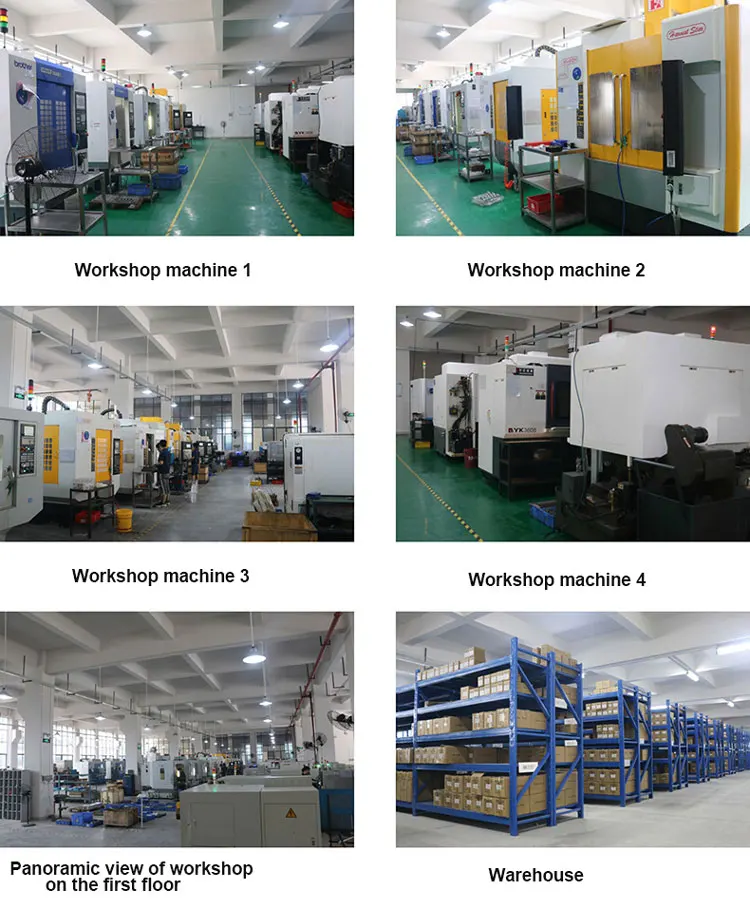

Factory Show
Transportation & Packaging
FAQ
Q: What should I provide when I choose gearbox/speed reducer?
A: The best way is to provide the motor drawing with parameter. Our engineer will check and recommend the most suitable gearbox model for your refer.
Or you can also provide below specification as well:
1) Type, model and torque.
2) Ratio or output speed
3) Working condition and connection method
4) Quality and installed machine name
5) Input mode and input speed
6) Motor brand model or flange and motor shaft size
Or you can also provide below specification as well:
1) Type, model and torque.
2) Ratio or output speed
3) Working condition and connection method
4) Quality and installed machine name
5) Input mode and input speed
6) Motor brand model or flange and motor shaft size
