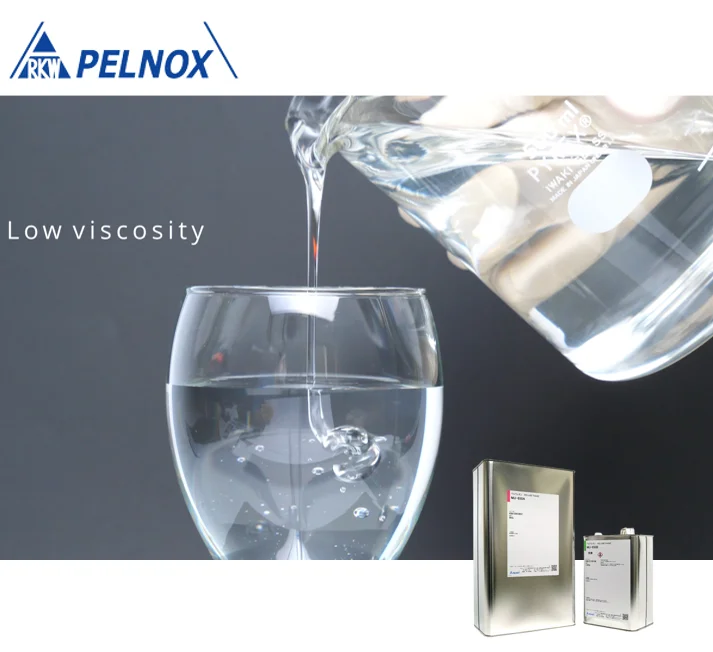

No solvent Transparent, non-yellowing, hard type two-component epoxy resin with low viscosity and good leveling properties /NM-102
Factory Wholesale Liquid Crystal Clear Epoxy Resin
NM-102A/B are two-component epoxy resins.
It can be used mainly as a coating resin for various materials and as a casting material.

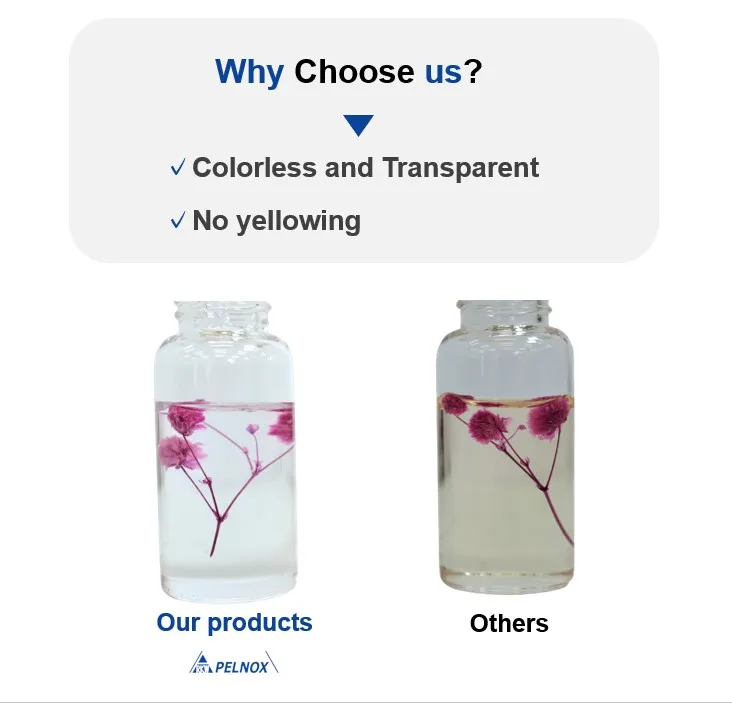

They have a beautiful, glass-like transparent appearance, excellent weather resistance, and no yellowing over time.
It is also resistant to air bubbles and cures at room temperature.
It has waterproof coating, glossy coating, and insulating effects.
It can be used mainly as a coating resin for various materials and as a casting material.
They have a beautiful, glass-like transparent appearance, excellent weather resistance, and no yellowing over time.
It is also resistant to air bubbles and cures at room temperature.
It has waterproof coating, glossy coating, and insulating effects.
It can be easily colored by adding pigments.
This allows for your unlimited creativity!
This allows for your unlimited creativity!
Product Name | NM-102A/NM-102B | ||||||
Function | Heat Resistant, High Transparent, Long Potlife | ||||||
As supplied | （Typical Value） | ||||||
Item | Condition | Unit | NM-102A | NM-102B | |||
Appearance | visual | － | Slightly blue transparent | Colorless transparent | |||
Specific Gravity | 25℃ | － | 1.17 | 0.96 | |||
Viscosity | 25℃ | mPa･s | 13,500 | 90 | |||
Mixed Viscosity | 25℃ | mPa･s | 1,100 | ||||
Mixing Ratio | parts by weight | 100/30 | |||||
parts by volume | 100/38 | ||||||
Pot Life | 25℃ | minute | 90 | ||||
Standard Curing Condition 70℃ x 2hours
As cured | （Typical Value） | |||||
Item | Condition | Unit | Typical Value | |||
Curing Condition | － | - | 70℃×2hour | |||
Appearance | visual | - | Colorless transparent | |||
Hardness | ASTM D-2240 25℃ | shore D | 84 | |||
Tensile Strength | JIS K-7113 | MPa | 82 | |||
Elongation | JIS K-7113 | ％ | 5 | |||
Flexural Strength | JIS K-7171 | MPa | 122 | |||
Flexural Modulus | JIS K-7171 | MPa | 2,800 | |||
Impact Strength | JIS K-7110 Izod V-notch | kJ/m2 | 5 | |||
Load Defoamation Temperature | JIS K-7207 Load 1.8MPa | ℃ | 117 | |||
shrinkage | ｔ＝4mm | ％ | 0.23 | |||
Coefficient of Thermal Expansion | TMA | /℃ | 6.9×10-5 | |||
Themal Conductiv | Hot Wire Method | W/mK | 0.21 | |||
The above values are typical and not specification | ||||||

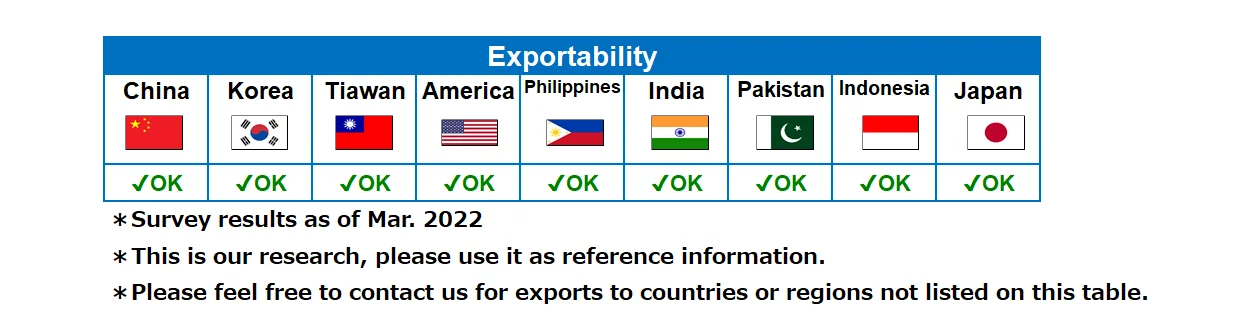

According to some country and regional regulation regarding chemical substances, this product may not be exported.Please contact us for details.
1. Add NM-102A:100 to NM-102B:30 and stir well. Always do this by weight.
2. When pouring: Pour into a container such as a case.When demolding this, apply mold release agent to the container in advance.
When coating: Remove dirt from the area to be coated in advance before application.
3. Leave at 25°C for 12 to 24 hours or at 70°C for 2 hours.

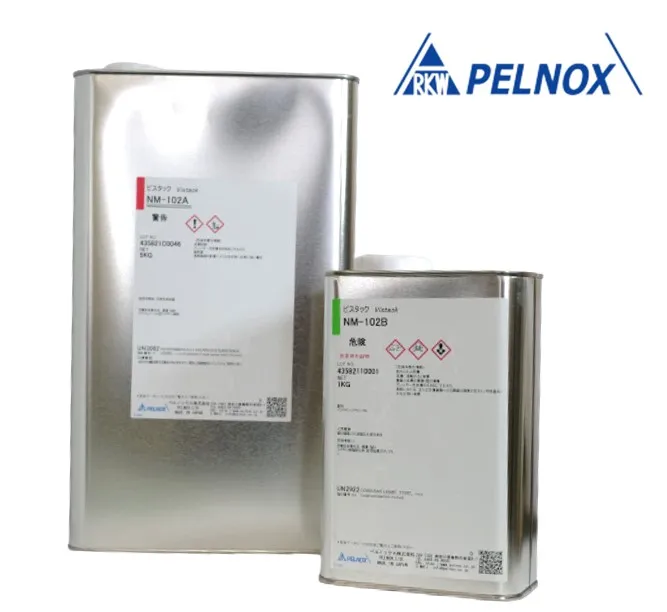

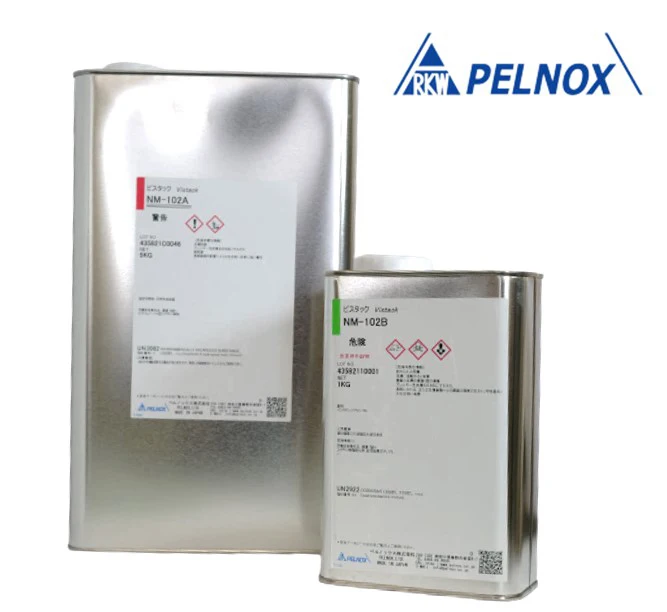

NM-102A is 5 kg/can in a metal container.
NM-102B is 1kg/can in metal container.
These are packed safely and securely in cardboard boxes.
Packages and containers can be customized.
Please contact us for details.
Please contact us for details.
1. Who are we?
We are a Japanese resin manufacturer established in 1970.
Our lineup includes not only epoxy-based products (liquid and powder), but also urethane and silicone-based insulating materials, coating materials, and conductive paste materials. More than 900 types of products have been adopted and used all over the world.
2. How can we guarantee quality?
Always final inspection before shipping.
3. What can you buy from us?
Epoxy-based products (liquid and powder), urethane, silicone-based insulating materials, conductive materials.
4. Why should you buy from us instead of from other suppliers?
Because of our long track record and large product lineup, we can offer products tailored to your detailed requirements.
We have solid technical and support capabilities, so please feel free to contact us.
Your dedicated professional will support you.
5. What kind of service can we provide?
Technical assistance in resin selection, manufacturing process support, etc.
The packing form and quantity according to your requirements.
Resins can be customized according to your required physical properties.
Company Profile
PELNOX, LTD.
We are a formulator of resin compounds and adhesives manufacturing company, offering more than 900 products to more than 1,000 companies around the world.We can assist the customers where needed, from the small quantity prototype stage, up to the development of resin products. That is a wide range of materials including epoxy liquids and powders, urethane, silicone, and conductive paste materials.
