Leading Manufacturer of Top Quality 18 Mpa Hydraulic System Pressure 2.3 Ton Construction Mini Excavator for Digging, Drilling

Share on (11000003279491):


Price:

Quantity:


Product Overview

Description





Product Description

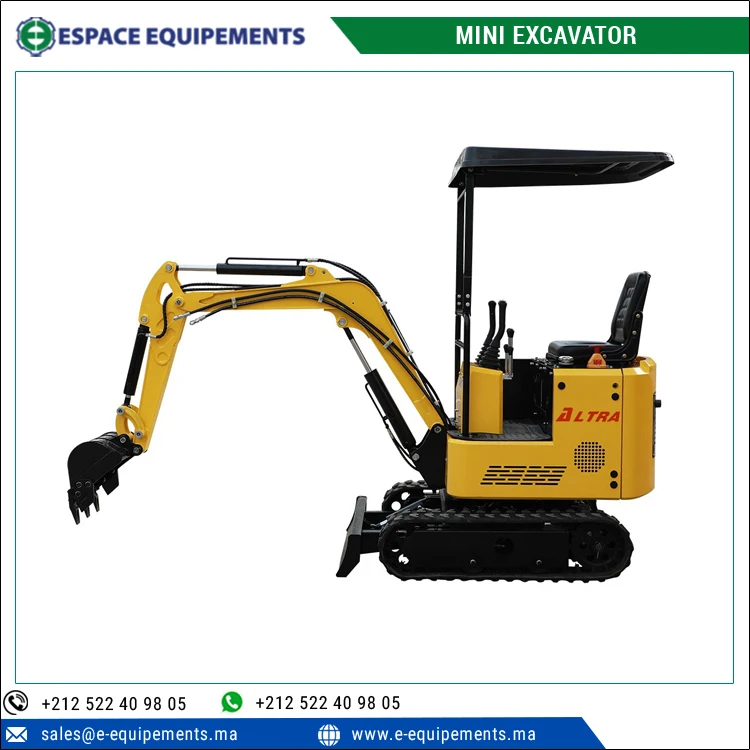

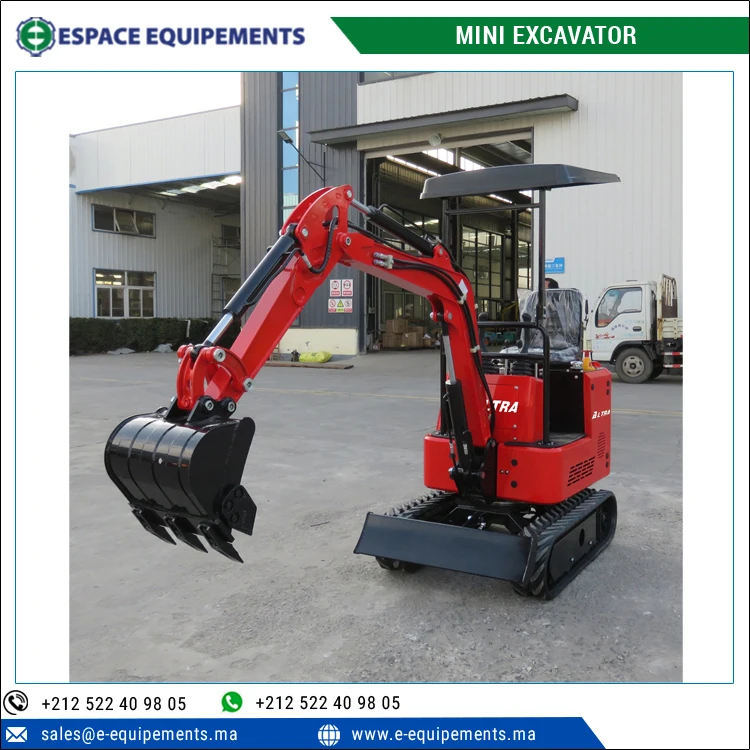

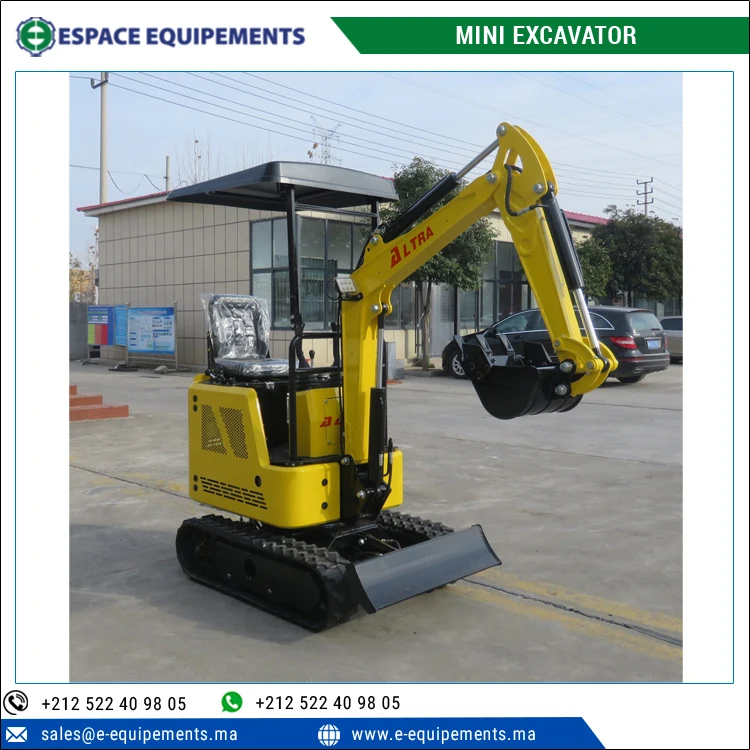

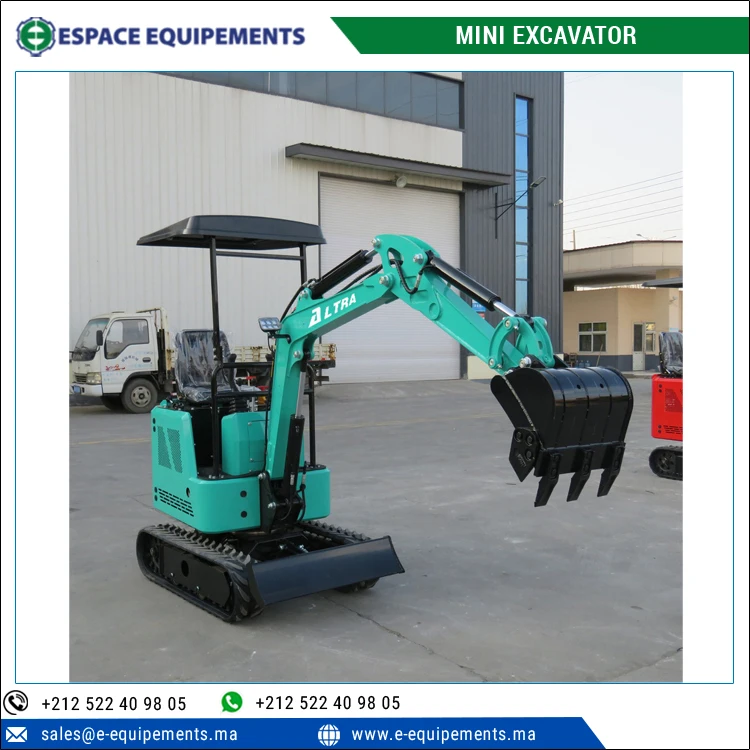

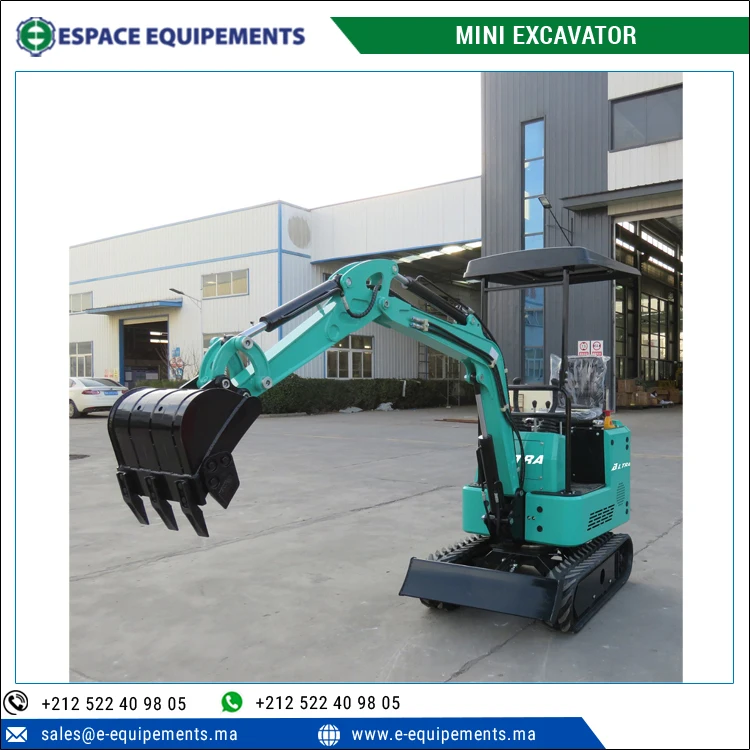

 Leading Manufacturer of Top Quality 18 Mpa Hydraulic System Pressure 2.3 Ton Construction Mini Excavator for Digging, Drilling





The ALT23 mini excavator is a low consumption excavator with high configuration and superior performance.





This compact 2.3 ton excavator is designed for small project like gardens, farmlands, municipal works. It can also be used in playgrounds and public parks.





It is multi-functional with many attachments such as breaker hammers, augers, wood grabbers, ditchers.





Features:



  • Small powerful engine for efficient, economical and reliable performance even for the toughest of jobs.

  • Simple and compact design that lets you easily drive through the tightest areas.

  • Easy to operate and maintain. The operating instructions in front of the console are simple and easy to use.







































































































































































ModelALT23
ProductMini excavator
BrandALTRA
Operating weight2300 kg
Overall dimension3850x1400 / 1060x2270 mm
Digging bucket capacity0.06 cbm
Digging bucket width490 mm
EngineLAIDONG/ Other
Engine power18.2 kw/ 17.7 kw
Engine typeDiesel, three cylinders, water cool
Engine displacement1.813 L
Starting typeElectric
Hydraulic main pumpVariable plunger pump
Hydraulic system pressure18 Mpa
PumHydraulic system flowp flow55 L/min
ValveTAIFENG
Swing motorUSA EATON
Swing speed11r/min
Travel motorUSA EATON
Travel speed2.5km/h
Sealing partsUSA PARKER
Bucket digging force21Kn
Arm digging force12.5 Kn
Grade ability30 Degree
Working fuel consumption4.2L/h
Diesel oil tank capacity30L
Engine oil tank capacity2.8L
Hydraulic oil tank capacity25L
Cooling fluid tank capacity10L
OPERATING RANGE
Max Digging height3400 mm
Max Dumping height2390mm
Max Digging depth2100 mm
Max Vertical digging depth1980 mm
Max Digging radius3920 mm
Min Turning radius1120 mm
Ground clearance210mm
Track length2190 mm
Track width230 mm
Swing angle of boom75/45 Degree







 ALTRA EXCAVATORS 6.jpegALTRA EXCAVATORS 5.jpeg





ALTRA EXCAVATORS 7.jpeg





ALTRA EXCAVATORS 8.jpeg





ALTRA EXCAVATORS 9.jpeg










excavators attachements.jpeg
