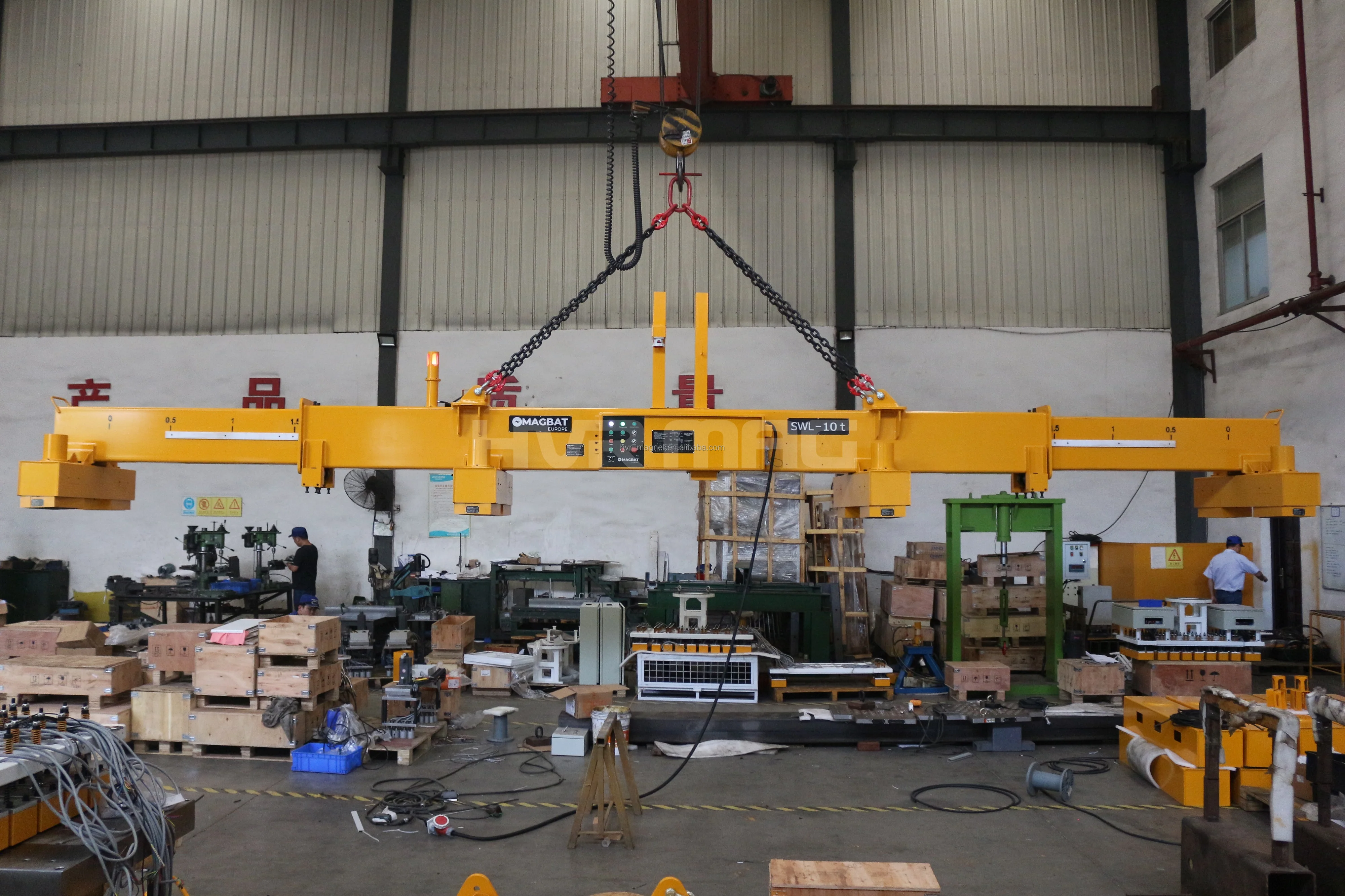

Electro permanent lifting magnets with telescopic beams
HM2 Series electro permanent lifting magnets with telescopic beams are specially developed for safe lifting and moving of steel sheets with different lengths.The electrically driven telescopic system makes it possible to use this traverse in limited spaces.

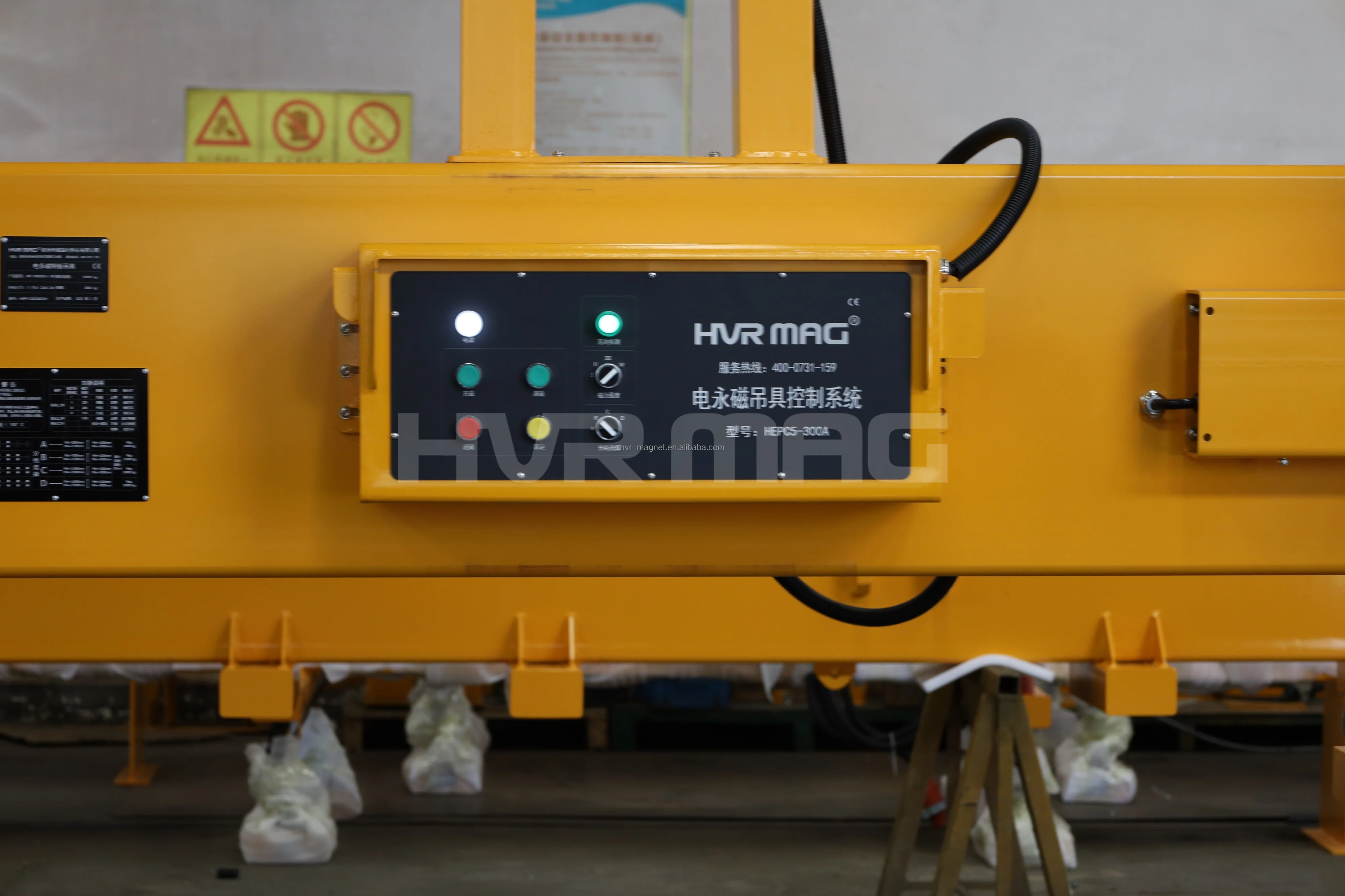

Control System
The electronic control unit has a selector switch with which several magnetic modules can be activated or deactivated according to the shape of the steel sheet.
Controlling the lifting operation via the integrated digital push buttons or with the standard supplied radio remote control.
Controlling the lifting operation via the integrated digital push buttons or with the standard supplied radio remote control.
Landing detection

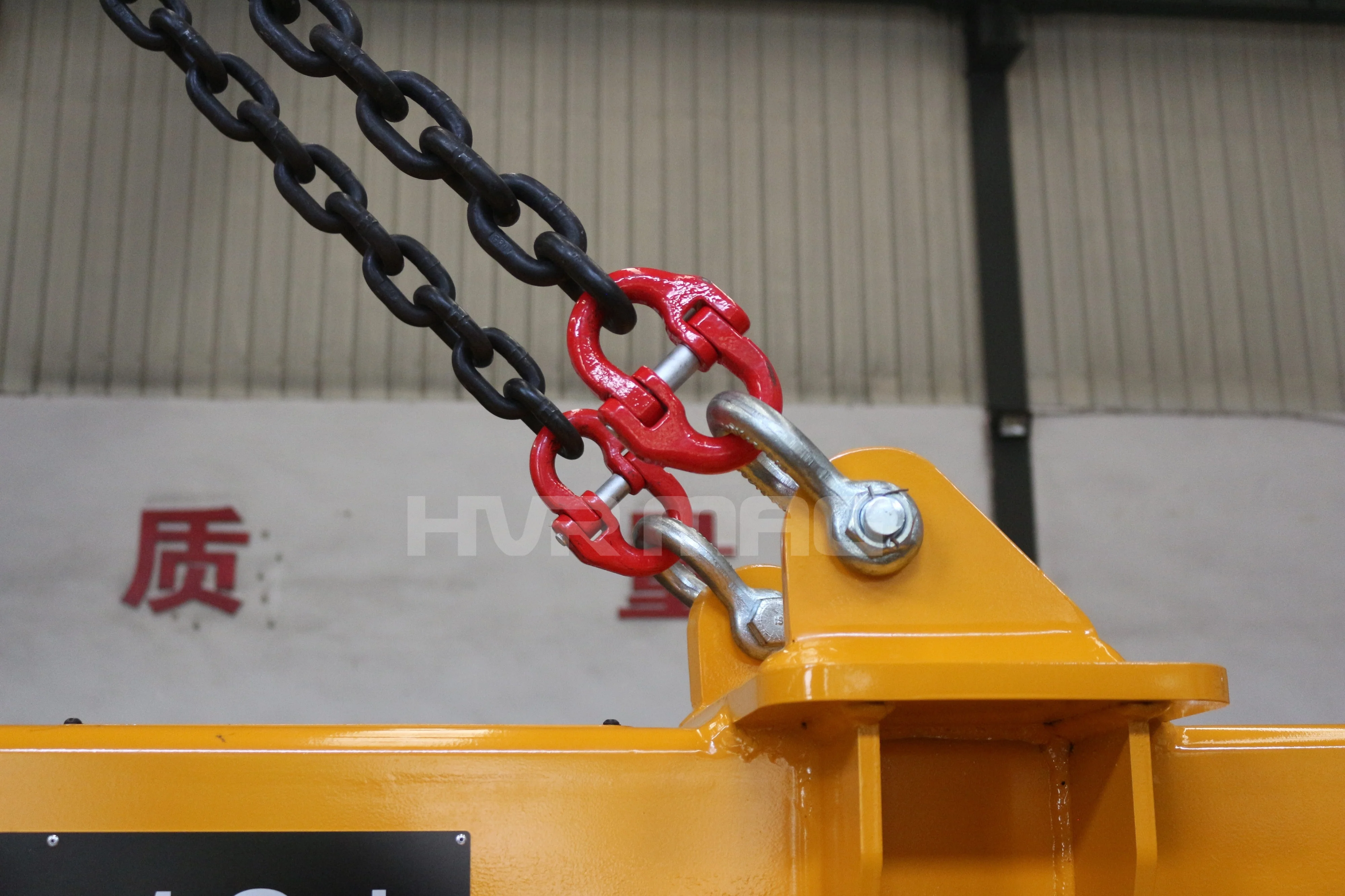

An inductive proximity switch and associated cam, mounted on the harp shackle of the hoisting chain, prevents accidental demagnetizing in the air.

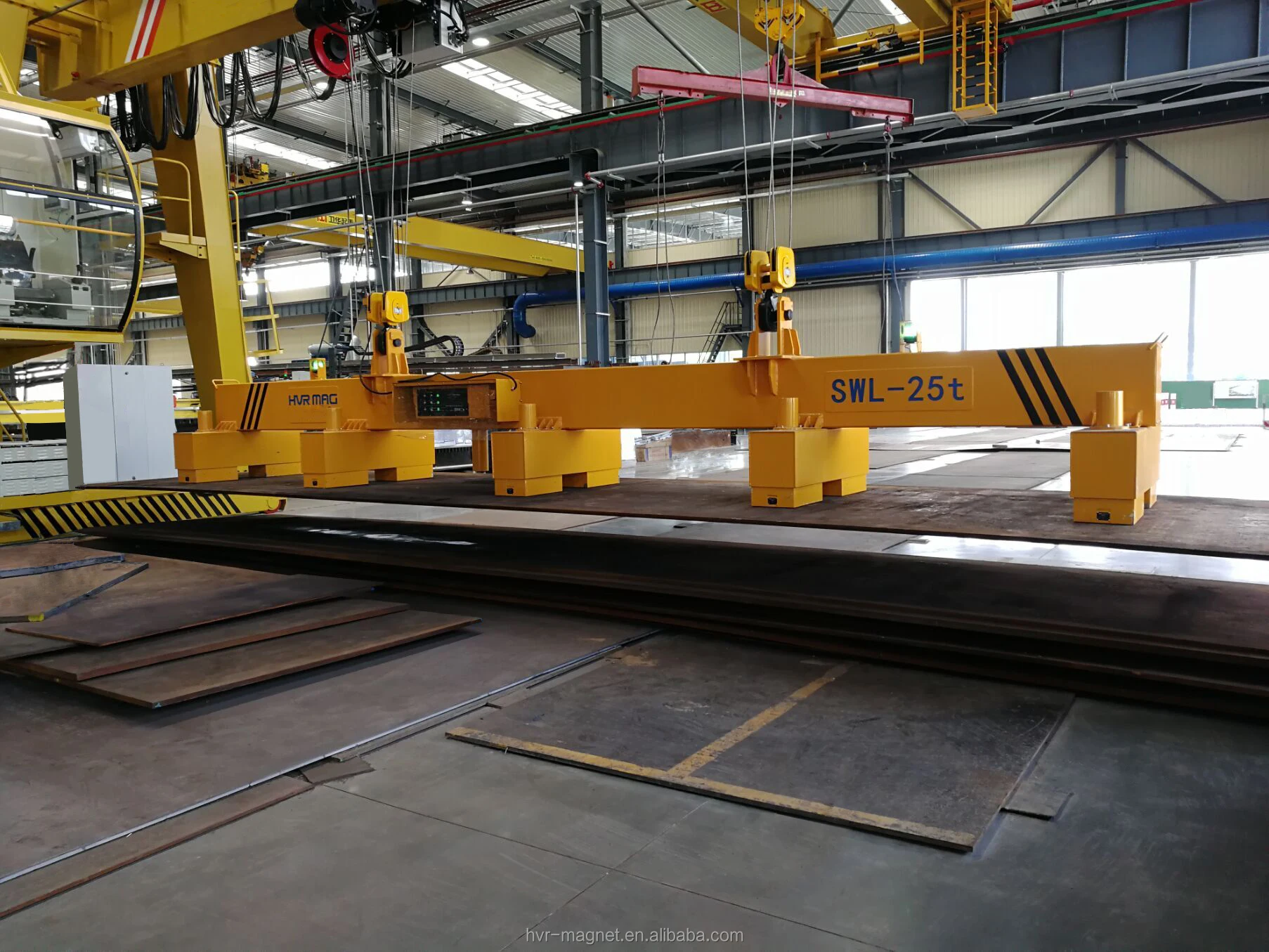

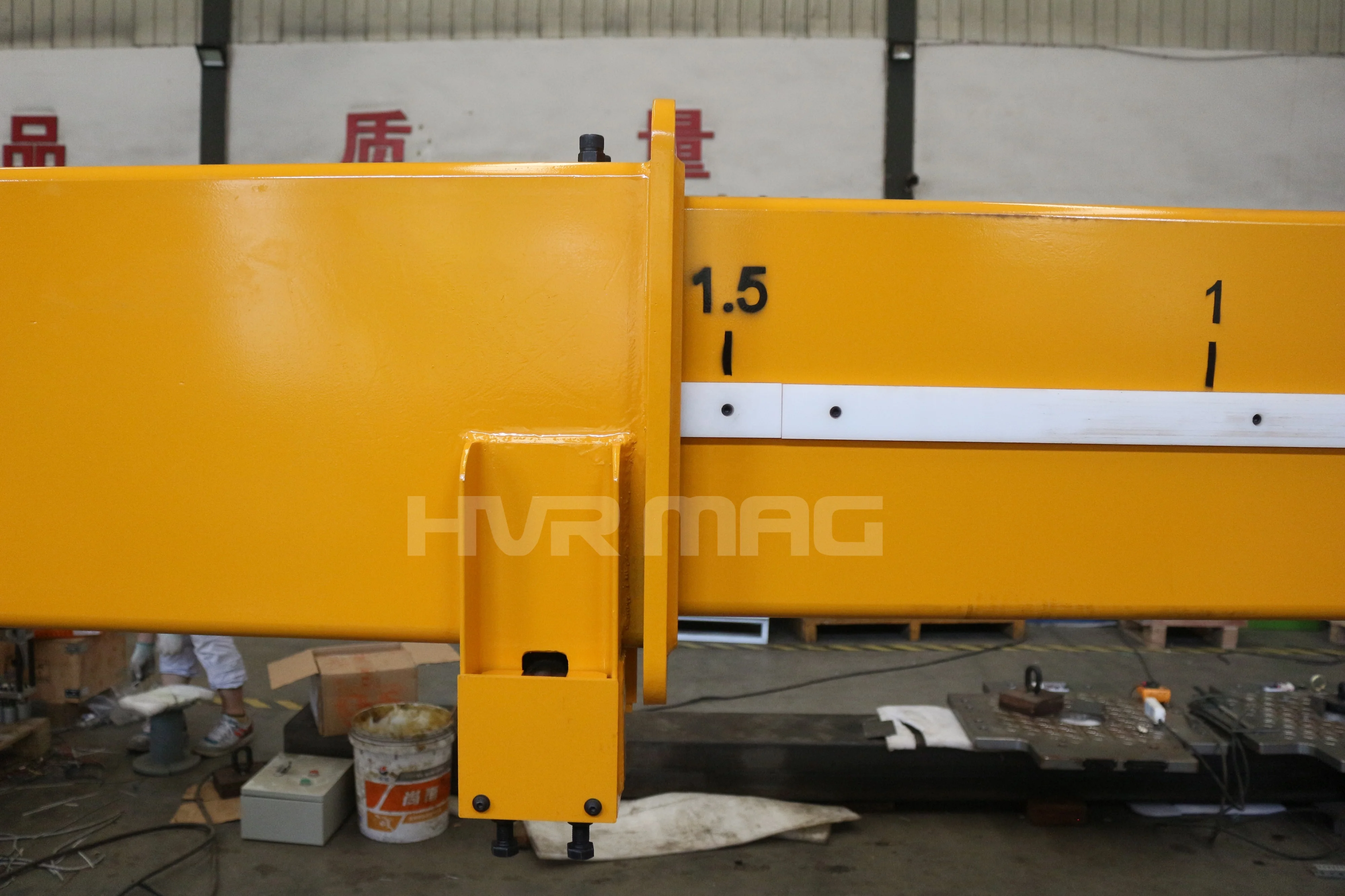

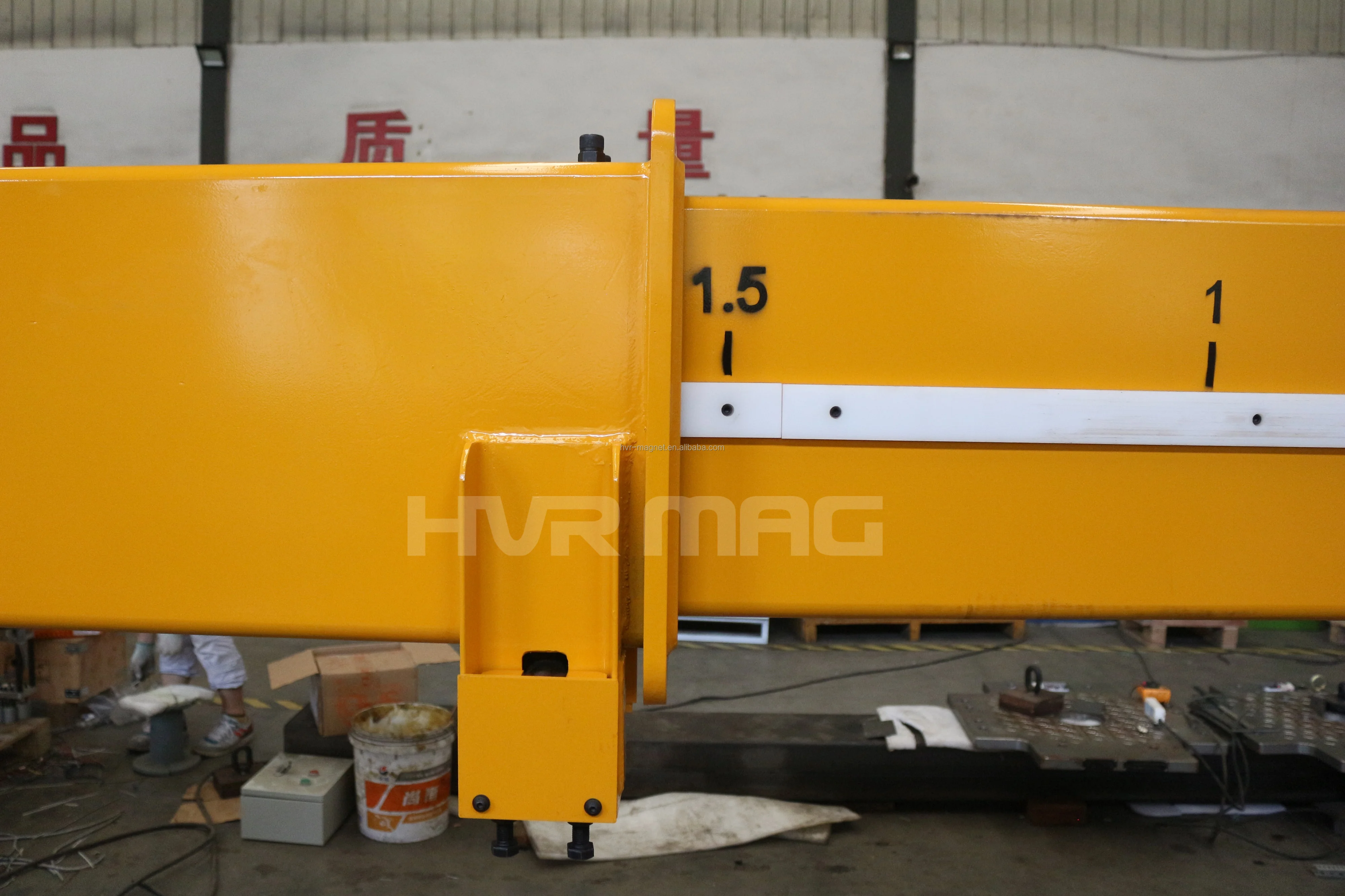

Telescopic beam
The welded beam made of structural steel is equipped with a number of electro permanent magnet modules, which are elastically suspended, for a perfect adaptation on the steel sheet.

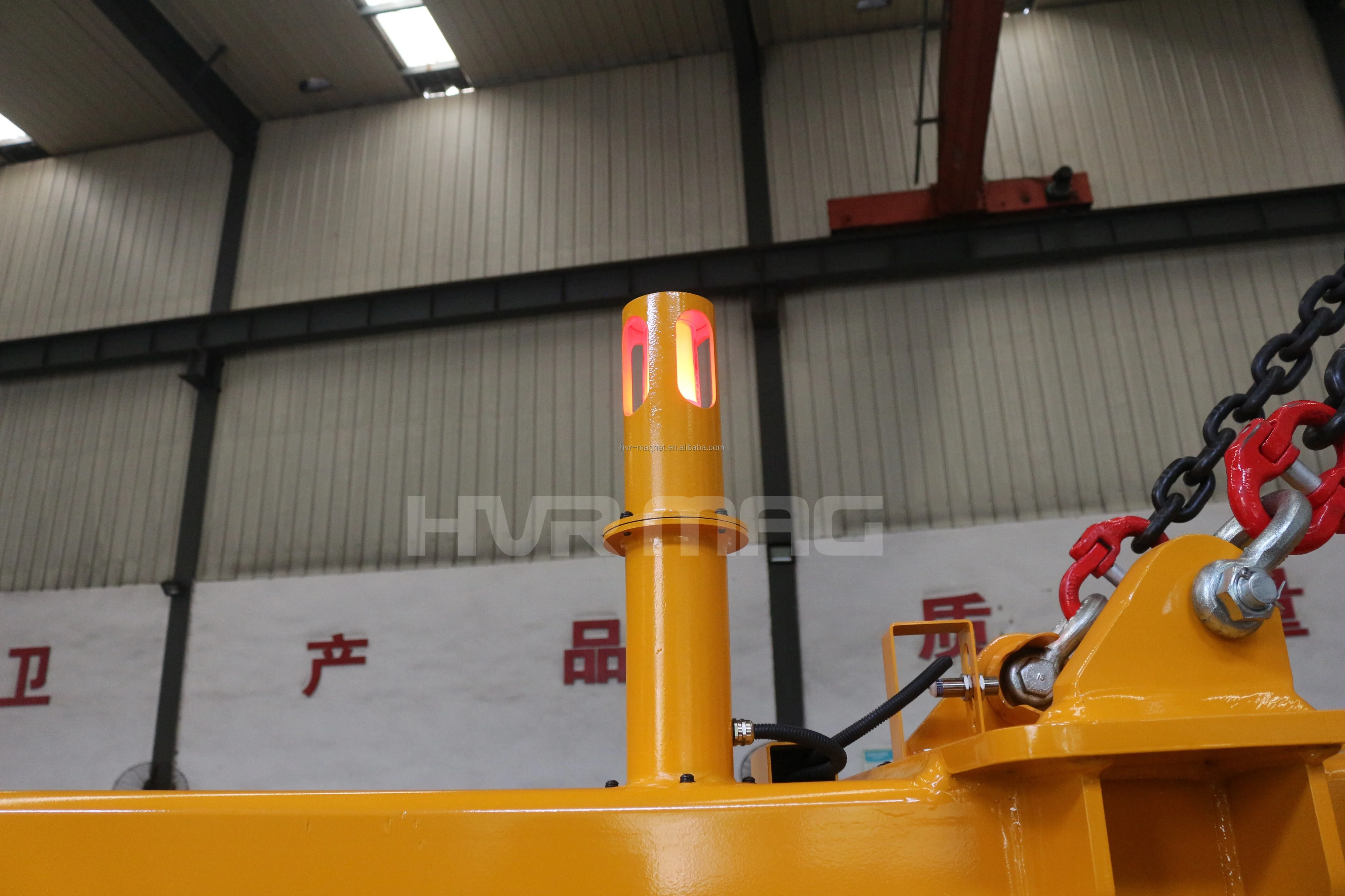

Lamp block
The status of the magnet is visually indicated by a clear LED lamp block. The load may only be moved when the green lamp lights up continuously.
PRODUCT SPECIFICATIONS
Art No. | Length(mm/in) | Width(mm) | Thickness(mm) | Capacity (kg) | Magnetic module | ||||||||
Min. | Max. | Min. | Max. | Min. | Max. | Model | Qty | ||||||
HM2-12-050 | 3000 | 12000 | 500 | 2500 | 5 | 20 | 5000 | HEPMP-640 | 8 | ||||
HM2-12-080 | 3000 | 12000 | 500 | 2500 | 5 | 32 | 8000 | HEPMP-1000 | 8 | ||||
HM2-12-090 | 3000 | 12000 | 500 | 3200 | 5 | 35 | 9000 | HEPMP-1200 | 8 | ||||
HM2-12-120 | 3000 | 12000 | 500 | 3200 | 5 | 40 | 12000 | HEPMP-1500 | 8 | ||||
HM2-12-150 | 3000 | 12000 | 500 | 3200 | 5 | 50 | 15000 | HEPMP-2000 | 8 | ||||
HM2-12-200 | 3000 | 16000 | 500 | 3200 | 5 | 50 | 20000 | HEPMP-1800 | 12 | ||||
HM2-12-240 | 3000 | 16000 | 500 | 3200 | 5 | 60 | 24000 | HEPMP-2000 | 12 | ||||
HM2-16-090 | 3000 | 16000 | 500 | 2500 | 5 | 32 | 9000 | HEPMP-800 | 12 | ||||
HM2-16-120 | 3000 | 16000 | 500 | 2500 | 5 | 38 | 12000 | HEPMP-1000 | 12 | ||||
HM2-16-160 | 3000 | 16000 | 500 | 3200 | 5 | 40 | 16000 | HEPMP-1500 | 12 | ||||
HM2-16-200 | 3000 | 16000 | 500 | 3200 | 5 | 50 | 20000 | HEPMP-1800 | 12 | ||||
HM2-16-240 | 3000 | 16000 | 500 | 3200 | 5 | 60 | 24000 | HEPMP-2000 | 12 | ||||

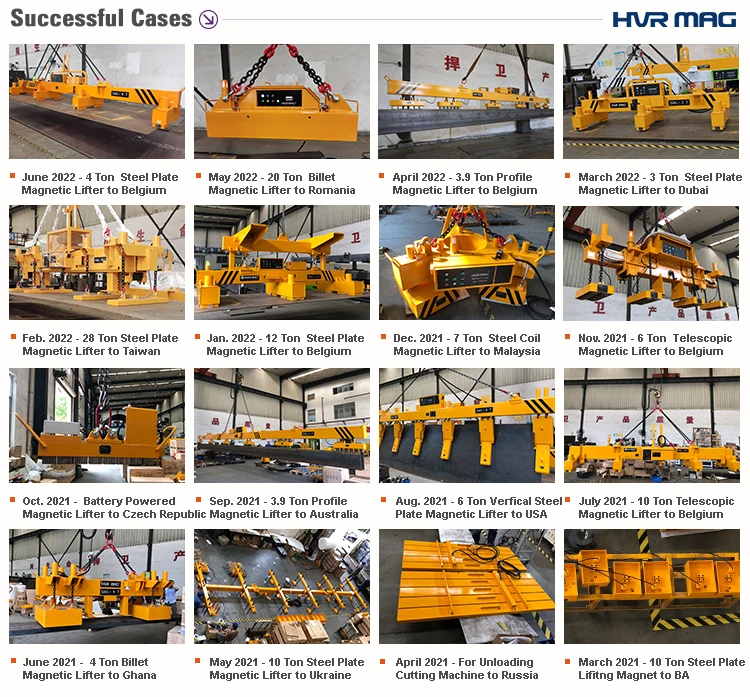

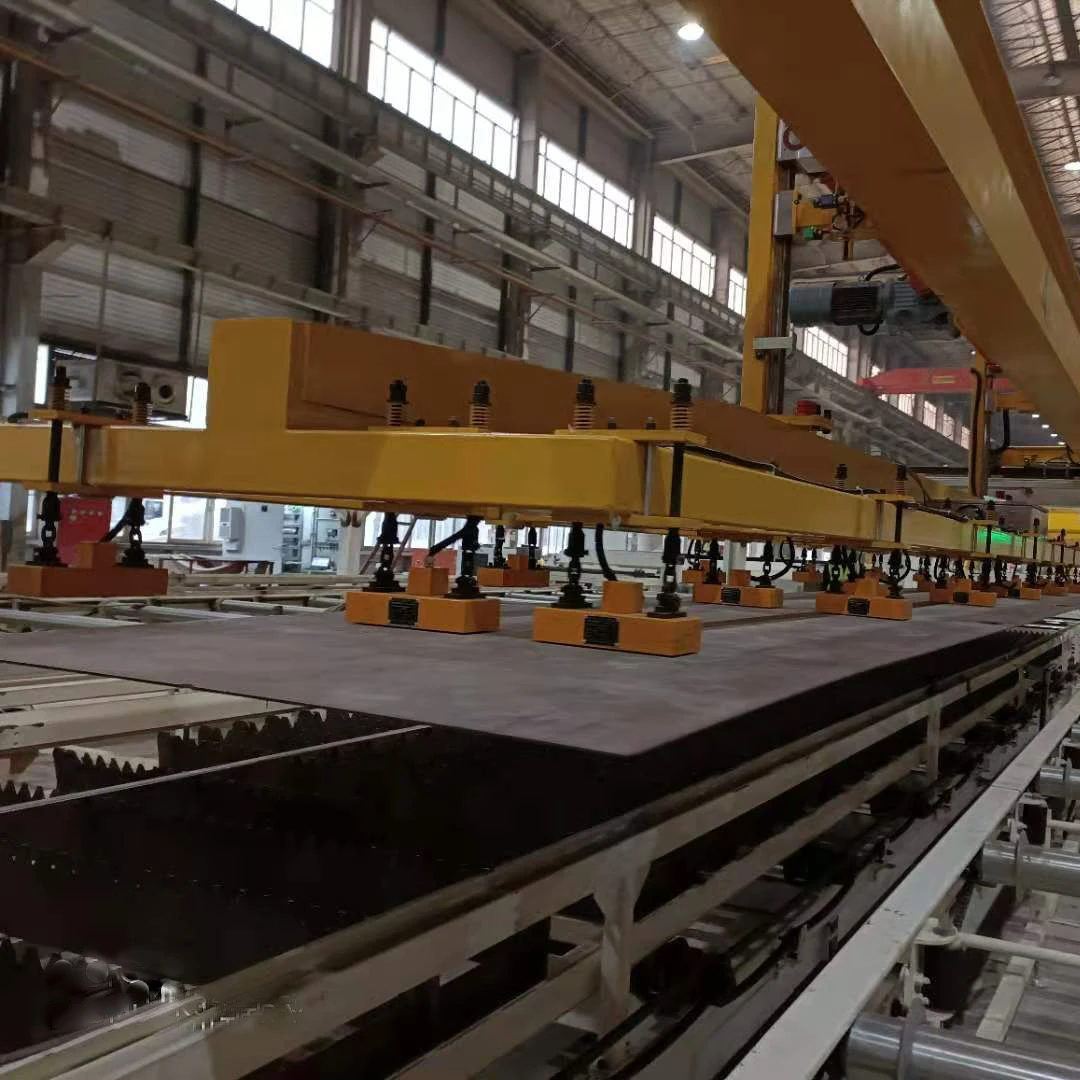

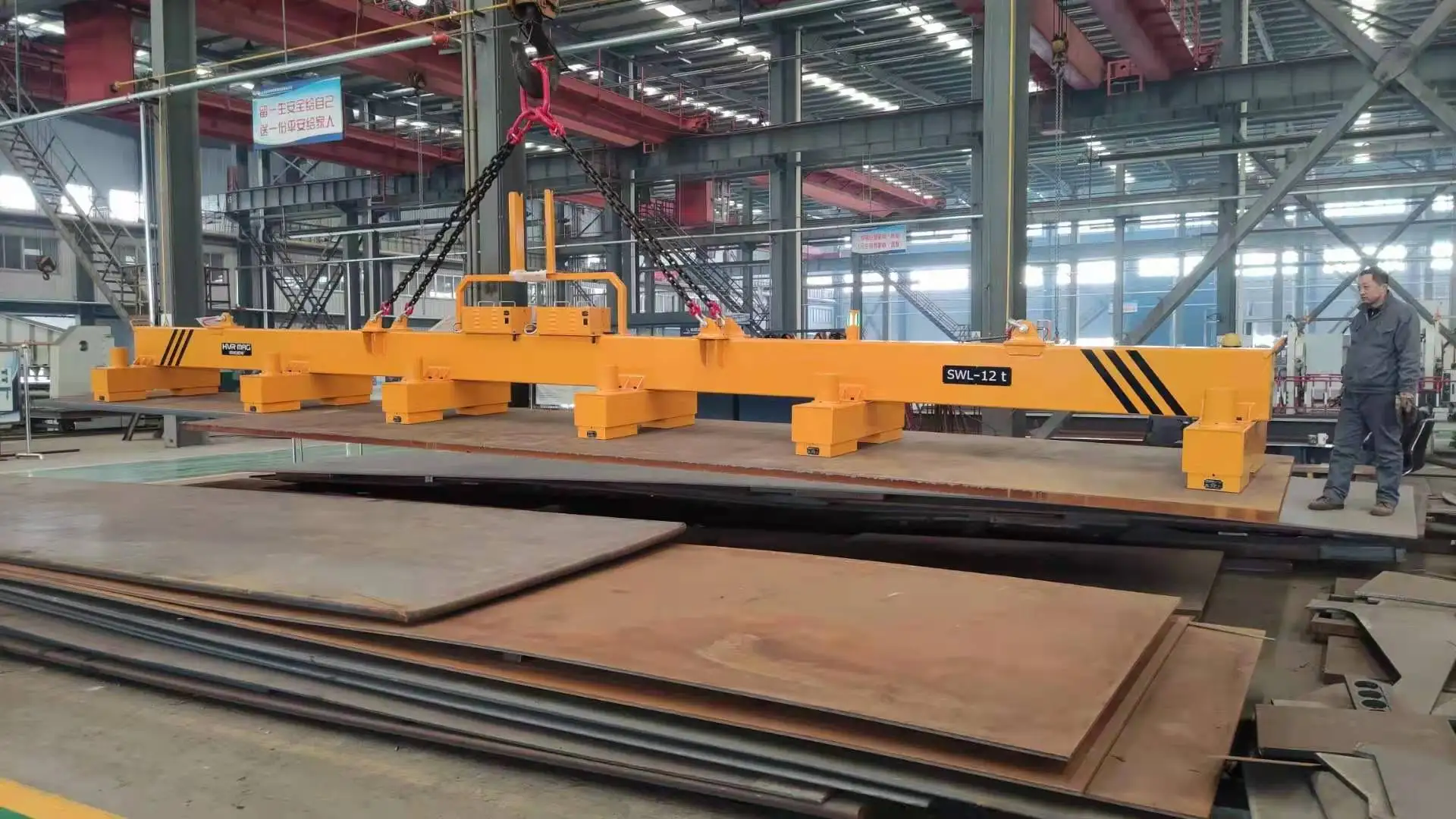

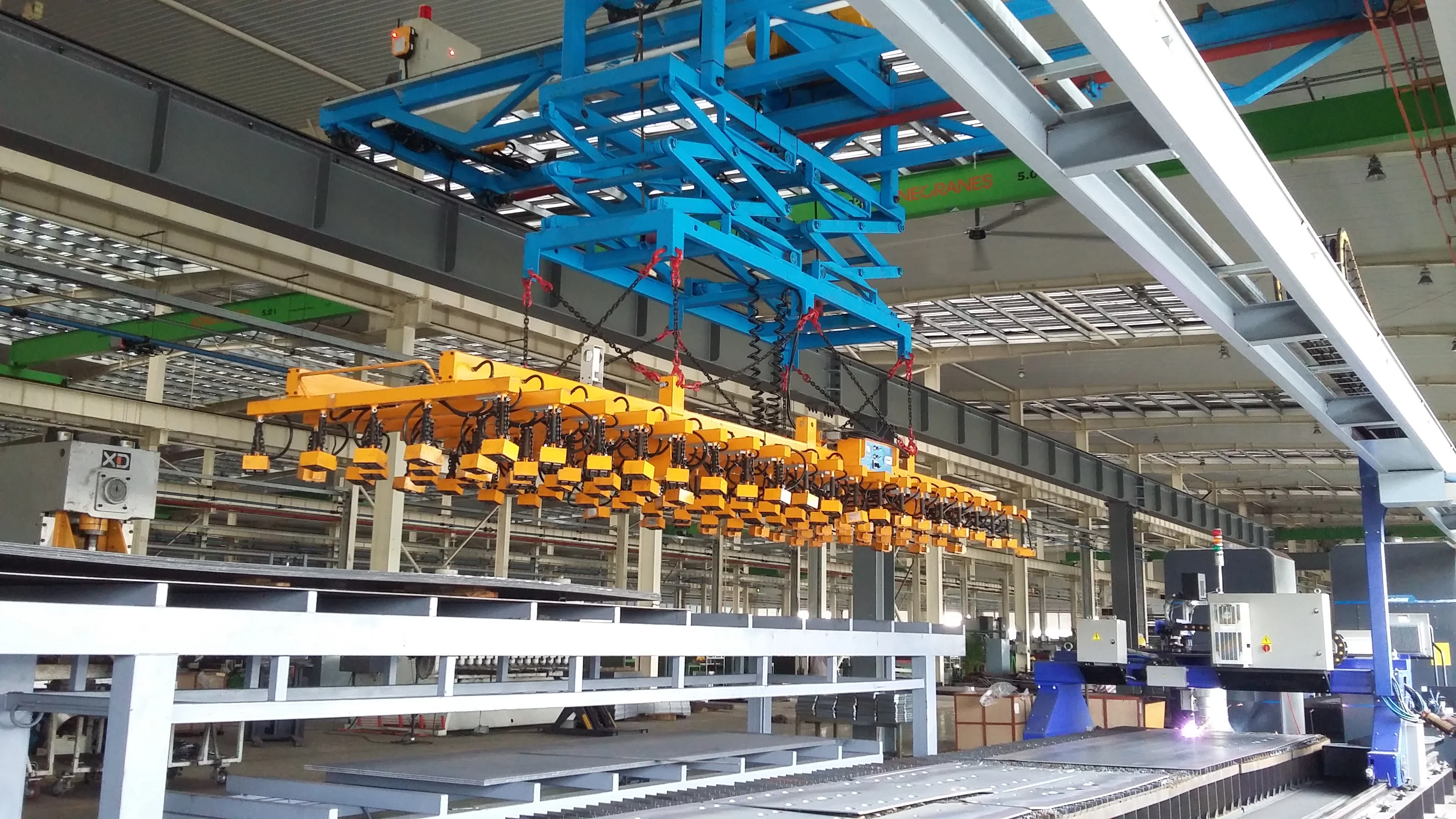

Cases
Packing & Delivery

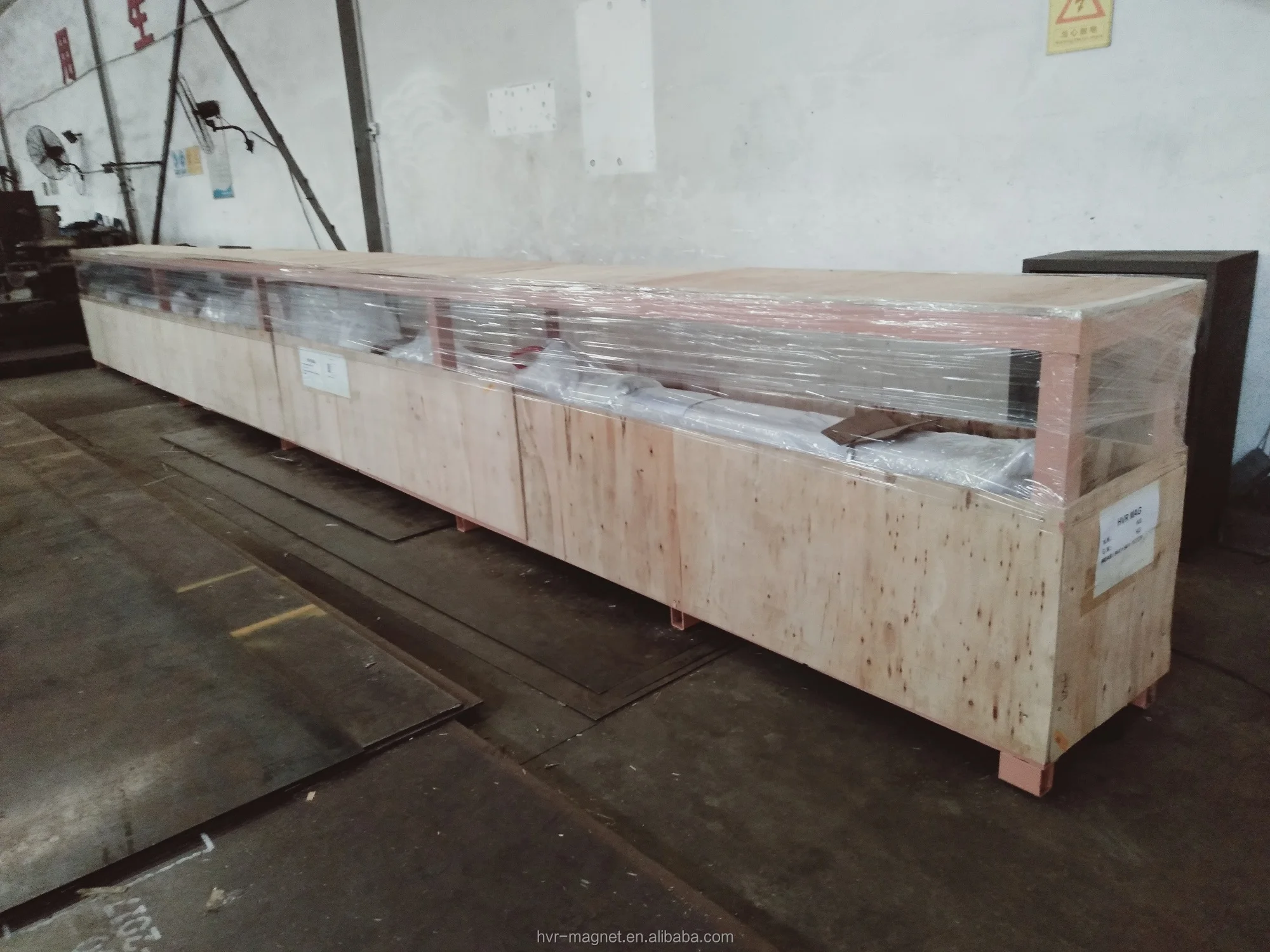

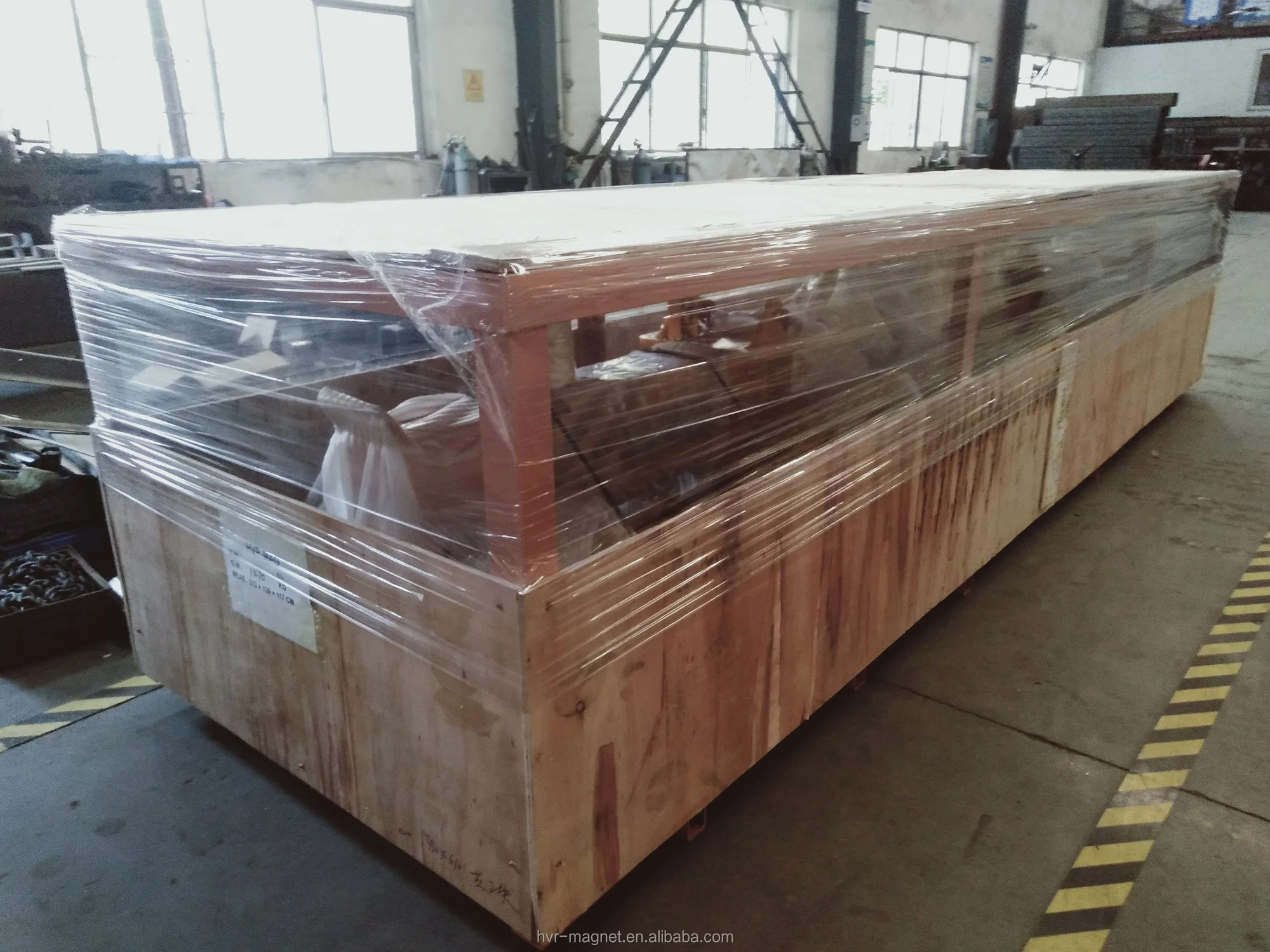

wooden case suitable for export

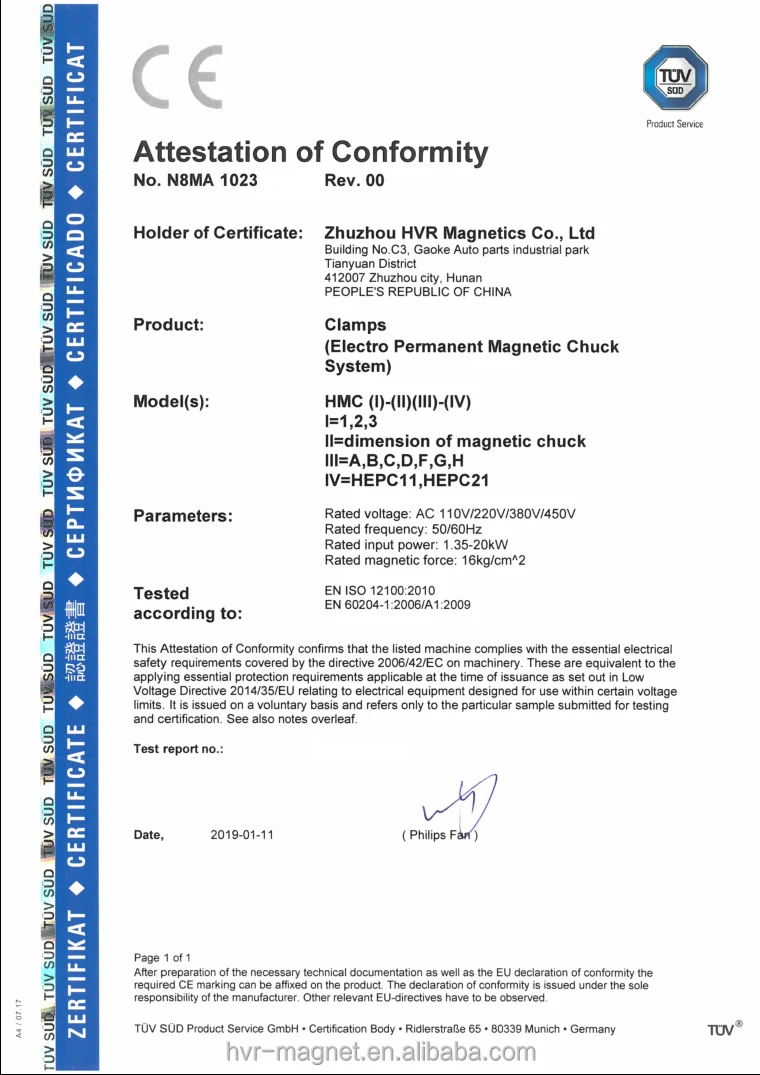

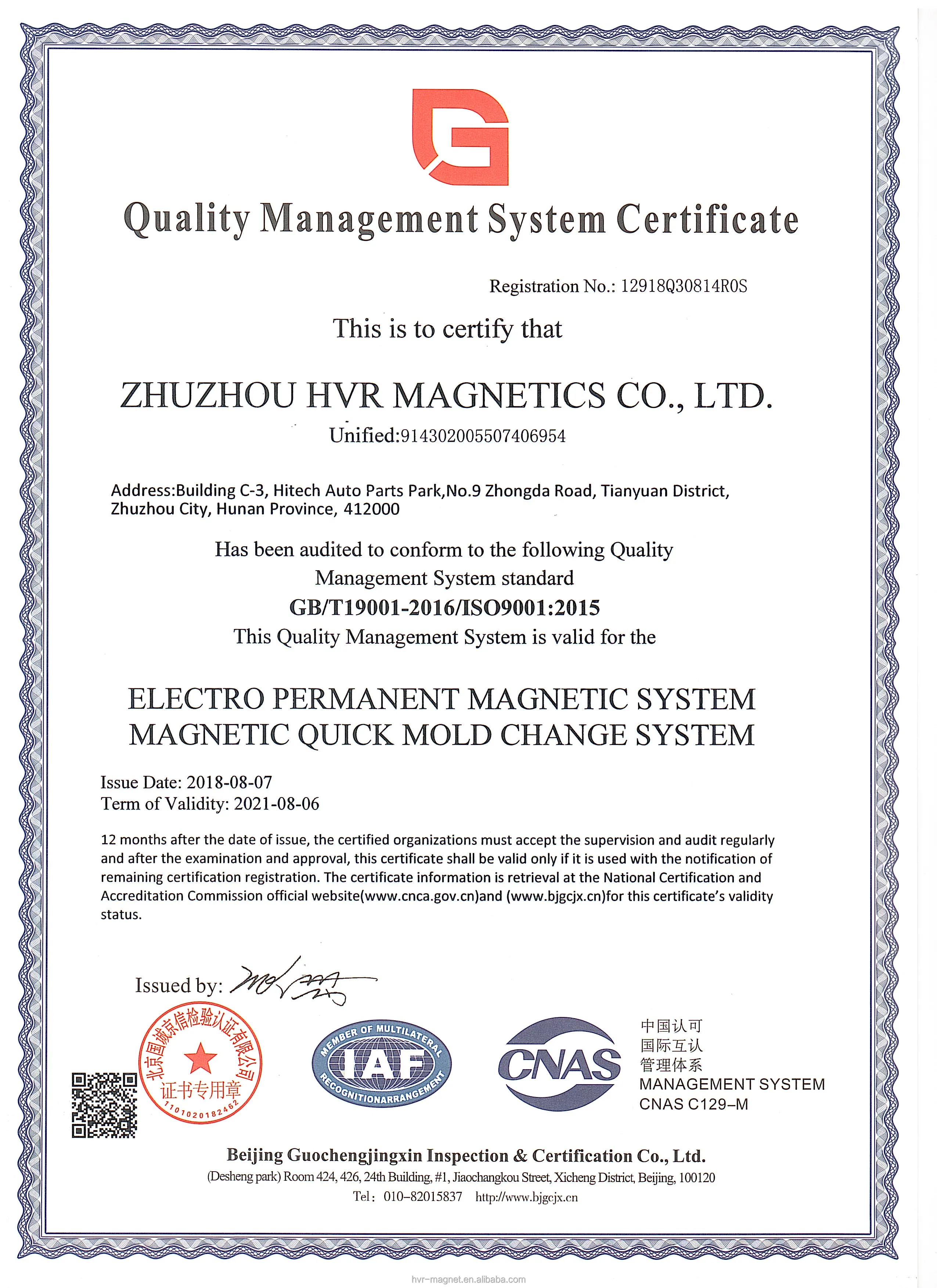

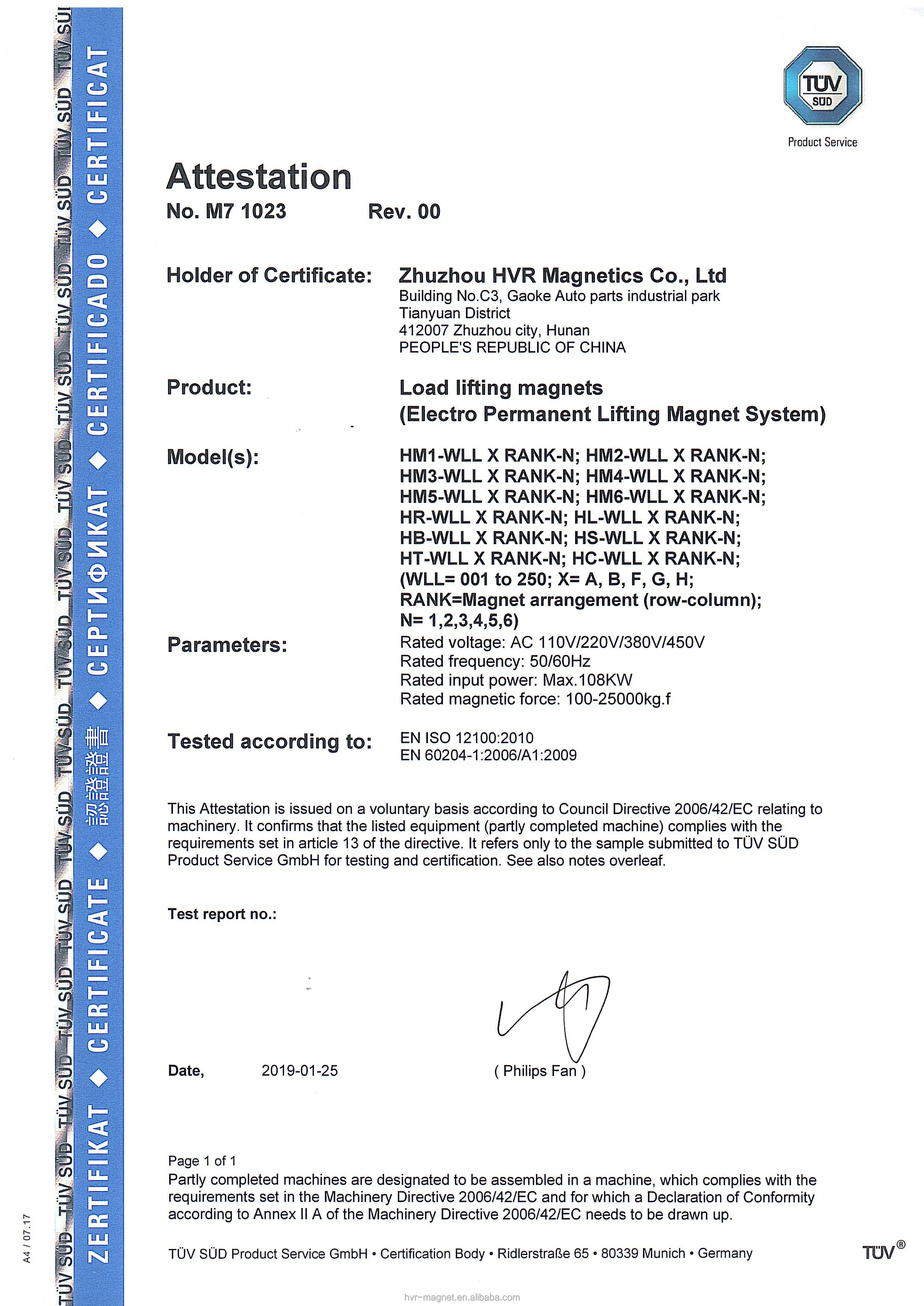

Certifications
Recommend Products
Company Profile
About HVR MAG
HVR Magnetics Co., Ltd is a high-tech enterprise that mainly researches and develops electro permanent lifting magnet, magnetics quick mold change system and electro permanent magnetic chuck .We have built stable cooperation with some famous companies as ABB,BOSCH, HITACHI, FUJISTU, FOXCONN and SUMITOMO.
HVR MAG designs and manufactures electro permanent lifting magnets for a wide range of applications. Our heavy duty lifting mangnets are designed for applications such as steel plate handling, coils, strips, profiles, piples, Billets, round bar, rail and more. These magnets are commonly used in steel structure shipyard. Metal cutting workshops. Warehouses , foundries, coil and pipe distributors, and other users of applicable steel products.
Why choose us
Our products and services have spreaded all the world ,and also have been recognized by customers.
FAQ
Q: HVR is a Factory or Trading company?
A: Zhuzhou HVR Magnetics Co.,Ltd is a professional manufacturer of magnetic products over 10 years, We bring the best lifting solution for steel sheets based on our innovative technology and superior product quality.
Q:How to guarantee the quality of products?
A: 1. Any goods go through strict inspection procedures before they leave the factory.
2. There is a global product liability insurance provided by Pingan of China for our products.
Q: Where is the factory?
A:Building C-3, Gaoke Industrial park, Tianyuan district Zhuzhou,Hunan ,China
Q: How about quotation?
A: Before our exact quotation,we need confirm the usage scenario, Size, Grade, Coating, Magnetization Direction and Quantity ,only when the model is confirmed can we give a quotation.
Q: What’s the electro permanent magnet?
A: Electro permanent magnet is a magnet which can be controlled by electricity. It only needs electricity when it is magnetized or demagnetized, and then it can maintain magnetism without electricity. An electropermanent magnet is a combination of a permanent magnet and an electromagnet.
