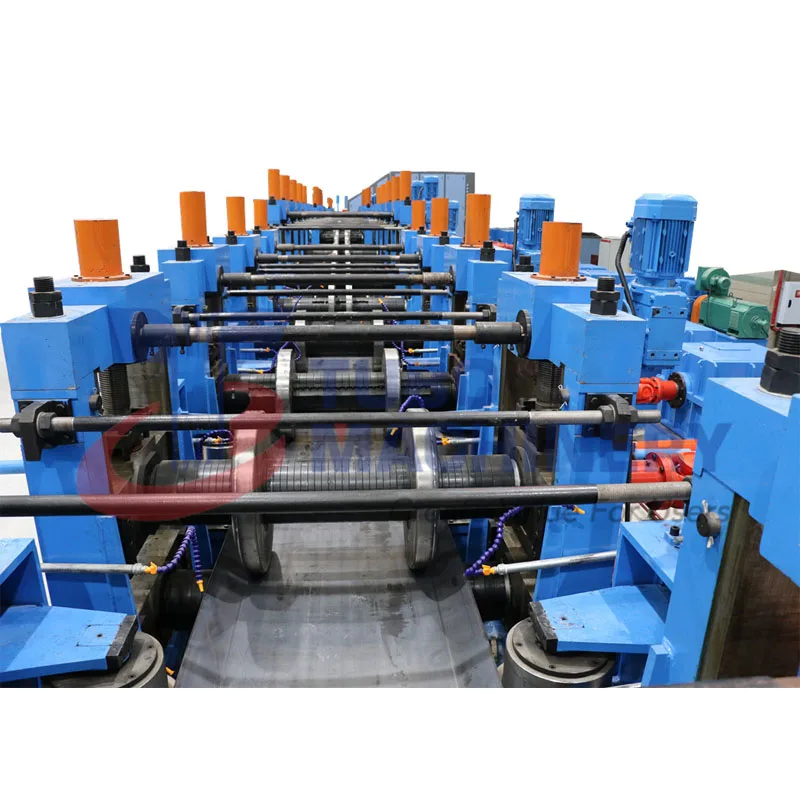

Low Price High Frequency ERW165 Tube Mill for Construction
This equipment is specially used for producing high-frequency straight seam welded pipe and corresponding square pipe andspecial-shaped pipe. The composition of equipment is from uncoiler to fixed length cutting saw .Rolling speed can be ajustedcorrespondingly within suitable range of pipe diameter and wall thickness.
We can also customized according to customer’s requirements


Technology Flow Chart
{Steel Coil}→→ Double-head uncoiler →→Strip-head shear & Butt welder station→→Vertical Spiral Accumulator →→ Forming Section（Main driving unit + Flattening unit & Feeding guide + Forming Section) →→ Welding Section (Seam guide stand + High frequency induction welding system+ Squeeze Roll welding stand + External bead scarfing + Seam Grinding stand）→→ Emulsion Water Cooling Section →→ Sizing mill (Main driving unit + Sizing Section + Speed testing unit + Turk Heads Straightener) →→ Cold Cutting Saw →→ Run-out Table & Packing Device.

Modle List of Tube Mill



Model
Round Pipe
Square & Rectangular Pipe
Speed
(m/min)
Dia.(mm)
Thickness(mm)
Dia.(mm)
Thickness(mm)
(m/min)
ERW32
10-38mm
0.5-2.0mm
10×10~30×30mm
0.5~1.6mm
Max.120m
ERW50
15-51mm
0.5-2.5mm
15×15~40×40mm
0.5~2.0mm
Max.120m
ERW60
16-60.3mm
0.5-3.0mm
15×15~50×50mm
0.5~2.5mm


Max.120m

ERW76
20-76mm
1.0-4.0mm
20×20~60×60mm
1.0~3.0mm


Max.120m

ERW89
25-89mm
1.0-4.5mm
20×20~70×70mm
1.0~3.5mm
Max.120m
ERW114
38-114mm
1.0-5.0mm
40×40~90×90mm
1.0~4.0mm
Max.80m
ERW165
60-165mm
2.0-6.0mm
50×50~150×150mm
2.0~5.0mm
Max.60m
ERW219
89-219mm
3.0-8.0mm
80×80~200×200mm
3.0~8.0mm
Max.50m
ERW273
114-273mm
4.0-10.0mm
100×100~250×250mm
4.0~10.0mm
Max.40m
ERW325
165-325mm
4.0-12.7mm
100×100~300×300mm
4.0~12.0mm
Max.30m
ERW426
219-426mm
5.0-14.0mm
150×150~350×350mm
5.0~14.0mm
Max.30m
ERW508
219-508mm
6.0-16.0mm
200×200~400×400mm
6.0~16.0mm
Max.25m
ERW610
325-610mm
6.0-18.0mm
250×250~500×500mm
6.0~18.0mm
Max.25m
ERW720
355-720mm
6.0-20.0mm
300×300~600×600mm
6.0~20.0mm
Max.25m




Specification




Raw Material
Coil Material
Low Carbon Steel, Q235, Q195
Width
50~200mm
Thickness
0.8~3mm
Coil ID
φ450-φ520mm
Coil OD
Max φ1200mm
Coil Weight
2.0~2.5 Tons




Production Capacity
Round Pipe
16~63mm
Square & Rectangular Pipe
12.7×12.7~50×50mm；
10×15~40×60mm
Wall Thickness
0.8~3mm (Round Pipe)
0.8~2.5mm(Square Pipe)
Speed
Max. 120m/min
Pipe Length
6~12m
Workshop Condition
Dynamic Power
380V, 3-phase,
50Hz (depends on local facilities)
Control Power
220V, single-phase, 50 Hz
Size of the whole line
65m X 8m （L*W）


Pipe Shape
Round, Square ,Rectangle, Oval and Shaped Pipe.
Pipe Application
Construction, Automotive, Constructure;
General MechanicalTubing, Furniture,
Agriculture,Chemistry, Oil,Gas, Conduit and so on.


Products Description


Step 1. Hydraulic double-Coil Un-Coiler
Un-Coiler is the important equipment of entrance section of pipe mill line. Mainly used to hold steel strip to make coils unfold.Supplying raw material for the production line .
Step 2.Hydraulic Shear & Automatic Welding
Shear&Butt welder is used to shear the irregular ends of steel strip and weld steel strips of two coils together. Thus ensuringthe continuous production.


Step 3.Horizontal accumulator
Accumulators are necessary for tube mill manufacturing, as they are responsible for temporary material storage and ensurescontinuous operation. It also protects the steel strip against scratching.

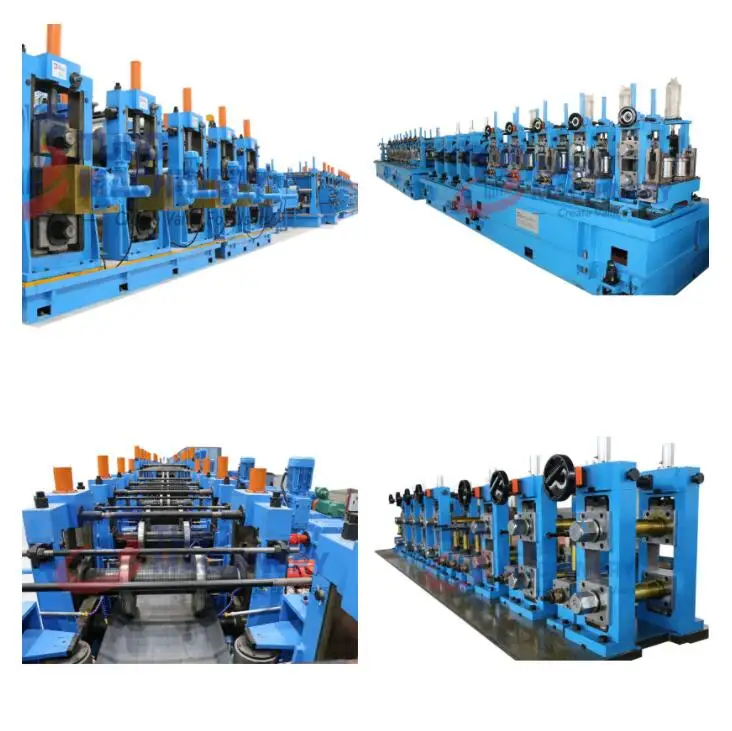

Step 4.Main Mill
The steel strip of a certain width is bent into corresponding specifications of round pipe, rectangular pipe or open profile
through roll forming.This unit consists of five parts: forming machine, welding machine, cooling part, sizing machine, and
straightening machine.


Step 5.Solid State H.F.Welder
Solid state high frequency tube welder for carbon steel, aluminum copper,Stainless steel tube/pipe welding.The whole set of solidstate H.F.welder is composed of switch rectifying cabinet,inverter output cabinet, 2-Dadjustable bracket,circulation soft water cooling system and central operation cabinet.
Step 6.Cold Flying Saw
It is the mechanical equipment which used in continuously production, Auto Fixed ruler cutting steel pipes , which is one of the element support device for weld pipe production line.Low inertia DC motor through mechanical transmission device,measuring,calculate and driving saw car at the same speed with the high speed running pipe,then cut off the pipe with specified length .


Step 7. Run Out Table & Storage Frame
Type: Roller chain conveyor; Length: 20m
- Structure: Welding frame
- Speed: 180m/min
- Driving of Rolls: Chain with AC2.2Kw Motor * 2 Sets
Step 8.Automatic Stacking Machine

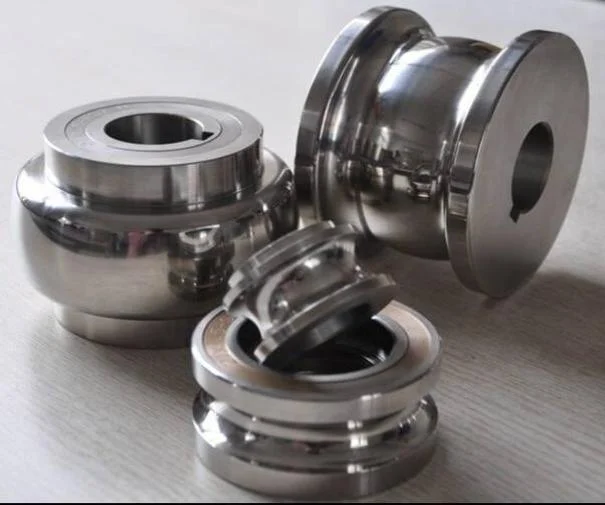

Step 9. Roller
Material： Cr12
Hardness of heat treatment: HRC 58-62°;
Squeeze Roll：Material H13，
Hardness of heat treatment: HRC50-53°
Tested with Ultrasonic Tester for each roller;


Optional


Uncoiler
1. Hydraulic uncoiler
2. Mechanical uncoiler
3.Hydraulic Single-Mandrel Uncoiler

Shear&Butt Welding Device
1. Pneumatic shear & Automatic Welding
2. Hydraulic Shear & Automatic Welding
3.HYDRAULIC SHEAR and BUTT WELDING


Worm Gearing and Digital Counter
Configuration: Worm and worm wheel
Function: To make the inner block and outer block move at same time while adjusting.
Cutting Saw
1.Friction Saw
2.Cold Cutting Saw


Solid State High Frequency Welder
1. Water-water cooling System
2. Air- Water Cooling System

Automatic Stacking Machine
1. Electromagnetic Model;
2. Tube Length: 6 - 8m
3.With the Soluble Oil Drainage System;
4. Package Storage Station (3 Packages)

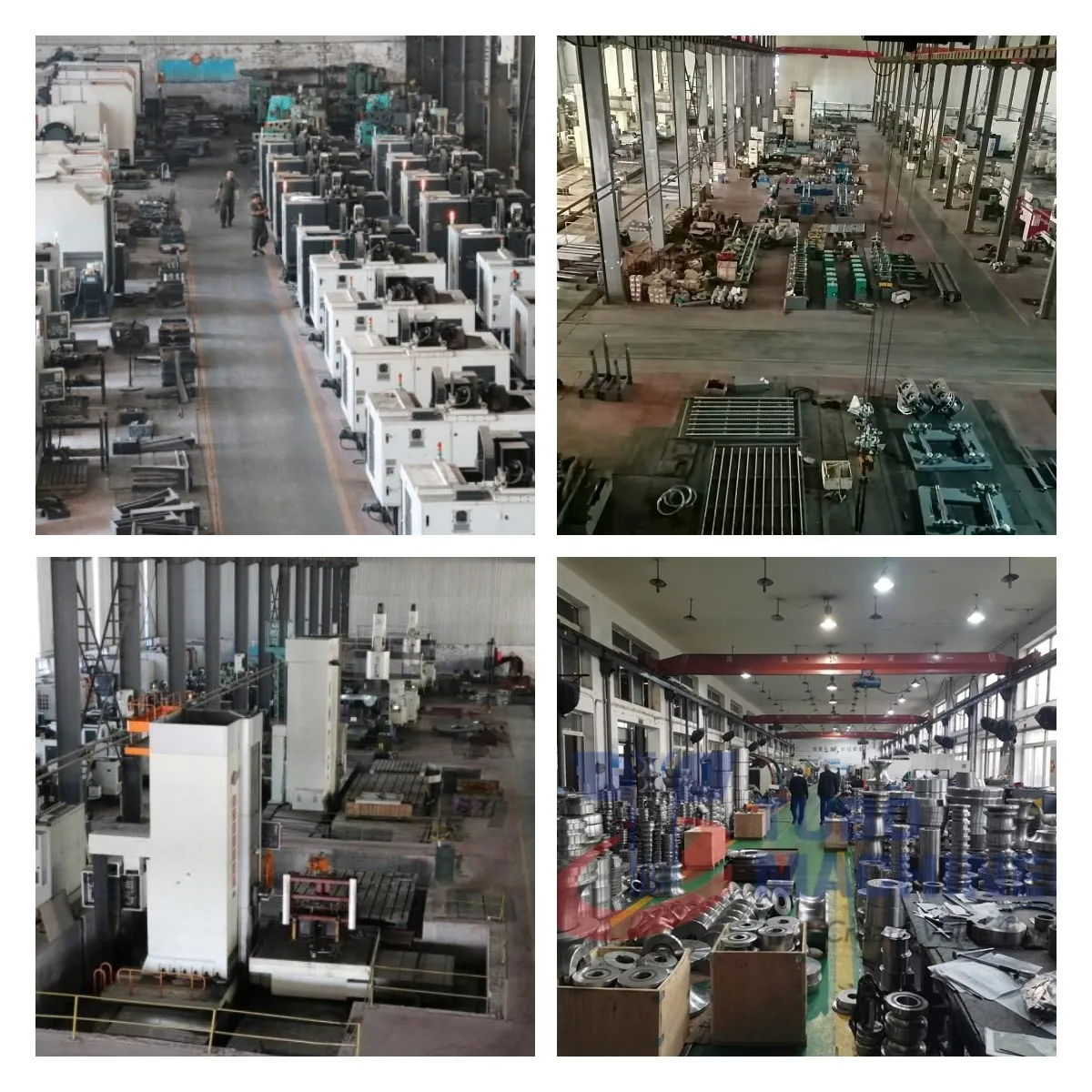

Our Workshop








Field Visits






Successful Project


1.In 2020. Chongqi,China.
ERW300x300x16mm,
Direct Square Forming Technology,
With cold roll forming producing function.
2.In 2020.Guangdong,China.
ERW300x300x14mm,
Direct Square Forming Technology,
Motor Adjusting.


3.In 2020. Shandong,China.
ERW200x200x10mm,YS700MPa,
Direct Square Forming Technology,
Motor Adjusting.
4.In 2019,Argentina.
ERW203/160x160mm. FFX + Direct Square Technology.
Fully Siemens Automatic Size Changing System. The Best Roller Share-Use Technology for Round+Square pipes.


5.In 2020,Uzbekstan.
ERW76mmUpgrading for Forming,
Welding,Sizing & Flying Saw.
6.In 2020,Brazil.
ERW32x1.6x140m/min.


7.In 2022,Jordan
ERW60x3mm Tube Mill
Speed :95m/min
Cold saw
8.in 2022 , Columbia
Automatic Packing Machine For ERW89 Tube Mill online


Our Advantage
1) We have our own CNC Machining Center, We can control cost and deliverly time.
2）More than 15 years R&D and Manufacturer Experience.
3）We can customized according to customer’s requirements.
4) We have professional researching, designing, processing, testing and after-sale service teams.
5) We can Strict quality control in raw material, processing accuracy,heat treatment,assembling accuracy,standard components and so on. Strict inspection for equipment before delivery.


Packing&Shipping






FAQ


1. Q : Are you manufacturer ?
A: Yes, We are manufacturer . More than 15 years R&D and Manufacturing Experience. We use more than 130 CNC machining equipmentsto guarantee our products perfect.

2. Q: What payment terms do you accept?
A: We are flexible on payment terms, please contact us for details.

3. Q:What information do you need to supply a quotation?
A: 1. Maximum Yield Strength of the material,
2.All pipe sizes needed (in mm),
3. Wall thickness (min-max)

4. Q: What is your advantages?
A: 1. Advanced mould share-use technology (FFX, Direct Forming Square). It saves a lot of invest amount.
2. Latest quick change technology to increase the output and reduce labor intensity.
3. More than 15 years R&D and Manufacturing Experience.
4. 130 CNC machining equipments to guarantee our products perfect.
5. Customized According to Customer Requirements.

5. Q: Do you have after sales support?
A: Yes,we have. We have a 10-person -professional and strong installation team.

6.Q: How about your service?
A:(1) One year’s warranty.
(2) Providing spare parts for life time at cost price.
(3) Providing Video technical support, Field installation, commissioning and training, online support, Engineers available to
service machinery overseas.
(4) Provide technical service for facility reforming, refurbishment.
