Malaysia Manufacturer Electromagnetic Lock with Dual Tier Control Function for Single Leaf Door
- Category: >>>
- Supplier: ATNESIS SDN. BHD.
Share on (11000003344085):
Product Overview
Description
Products Description

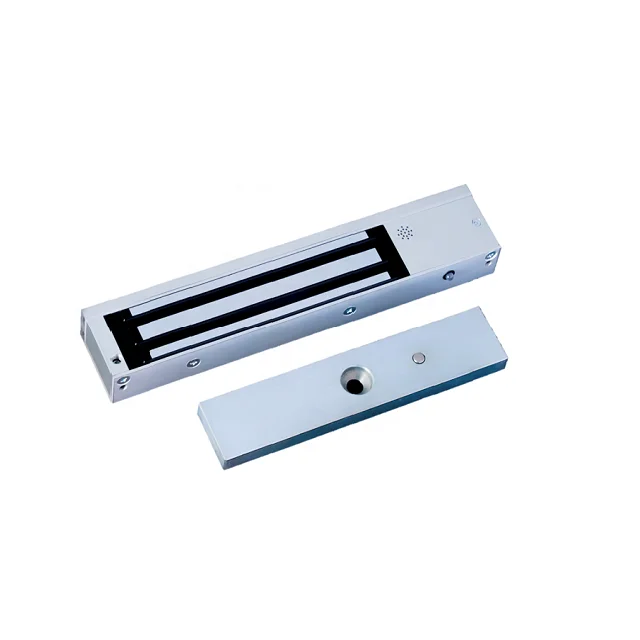

Single Series Surface Electromagnetic Locks
- 600lbs Single Series Surface EM locks were designed to meet fire/life safety applications by providing an auxiliary locking mechanism that has no moving parts to bind or wear out for trouble free operation.
- 2-tier access control features in a single device - Buzzer & Time Delay Function.
- Time Adjustor - Setting of door re-lock time.
- Trigger - Connected to emergency exit button device to control Door Exit Button to open the door while emergency.
- Buzzer - Sounds when magnet does not detect Armature Plate after a specific time set.
- Integrated Lock Status Monitoring Function (LSMF) with bond sensor.
- Fail Safe, Robust, Durable & Efficient.
- Zero Residual Magnetism.
- Dual Voltage Input, 12Vdc or 24Vdc selectable.
- Ease of installation with low maintenance & low energy consumption.
- Operate quietly & care free.
- Versatile mounting brackets: U1-275, ZL-275, LS-275, ZLDC-275-G LSDC-275-G, AH-275, AB-275 are suitable for 600lbs
electromagnetic lock.
Specification
Item | Details |
Place of Origin | Malaysia |
Brand Name | ALGATEC |
Model Number | UL275TB-SL |
Certification | ISO 9001:2015, CE Certified, RoHS Compliant, TUV Performance Test, Fire Resistance Performance Test |
Product Type | Single Series Electromagnetic Lock |
Warranty | 5 Years |
Application | Single Series EM Lock is for access control system which serve in diverse applications such as corporate building, retail, industrial, hospital, transportation, finance institution and military facility. It is a surface mounted EM Lock that ideal for single leaf swinging wooden door, glass door, aluminium door frame and etc. |
Features | UL275TB-SL |
Holding Force | Up to 600lbs |
Magnet Size | 250 X 42 X 26 mm |
Armature Size | 180 X 38 X 11 mm |
Current Drain | 480mA±10%/12Vdc, 240mA±10%/24Vdc |
Operating Temperature | (-10 to 55)°C, (14 to 131)°F |
Housing Finishing | Anodized Aluminium |
Est. Weight | 2.0kg |
Suitable Mounting Brackets Selections
ZLDC-275-G
LSDC-275-G
Other Equipment
Company Profile
ATNESIS (formerly known as UWC Electric), is the leading Electromagnetic Locks manufacturer in the Southeast Asia region with facility within Malaysian region.
With the product brand of " ALGATEC", which has emerged as a renowned brand in the security market. We offering a series of superior electromagnetic locks for a broad range of applications. ALGATEC products consist of EM lock with UL Listed, highest holding force up to 1500lbs, surface or flush mount, water-proof and eco-friendly version that suitable for all door types. Ease of use and installation, as well as the highest level of quality are all standard features in ALGATEC product range.
With the growing demand for innovative secured access, we have been designing a plethora of locks to meet different needs. Unlike many manufacturers, ATNESIS comprises young, dynamic engineers, designers and marketers who think out of the box to develop EM Locks.
To further enhance our EM Lock business, we have integrated our EM Lock with Card Access System to provide our customers with a total solution. Other products include Stainless Steel Exit Switches, Power Supply Unit, Wire Loops and etc.
At ATNESIS, as we hold firm to our beliefs and values, we have a remarkable reputation in the security industry. We provide nothing but the best for you.
