prestressed concrete lintel making machine for making linels beams with grooves
- Category: >>>
- Supplier: Henan Wishes Machinery Equipment Co. Ltd.
Share on (11000003351246):
Product Overview
Description
Product Overview

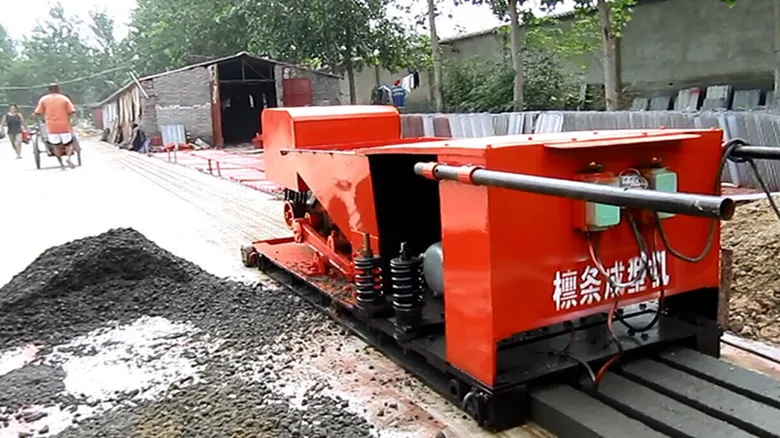

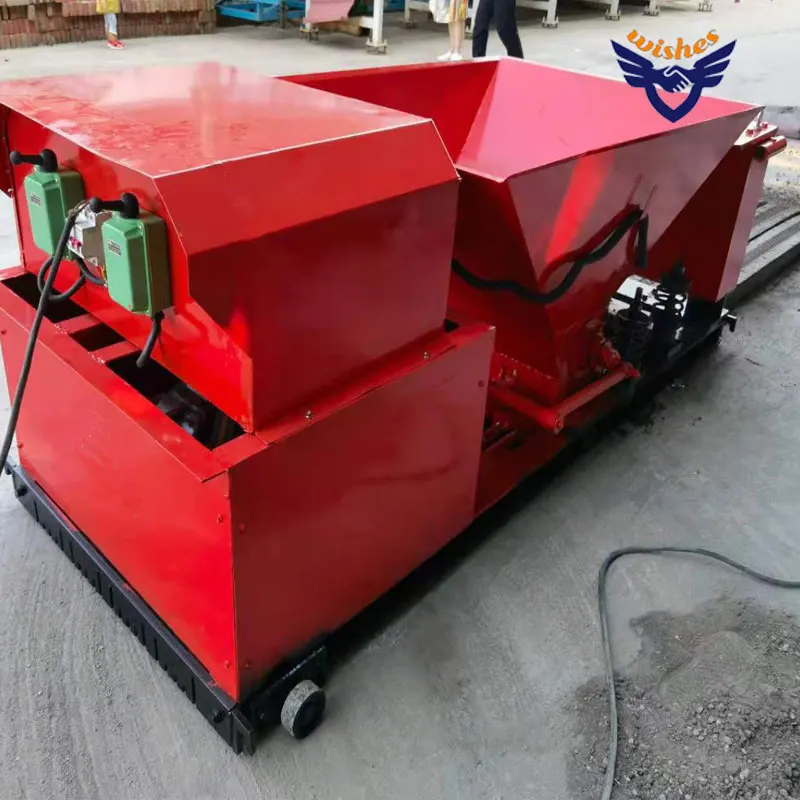

Precast prestressed concrete lintel extrusion machine

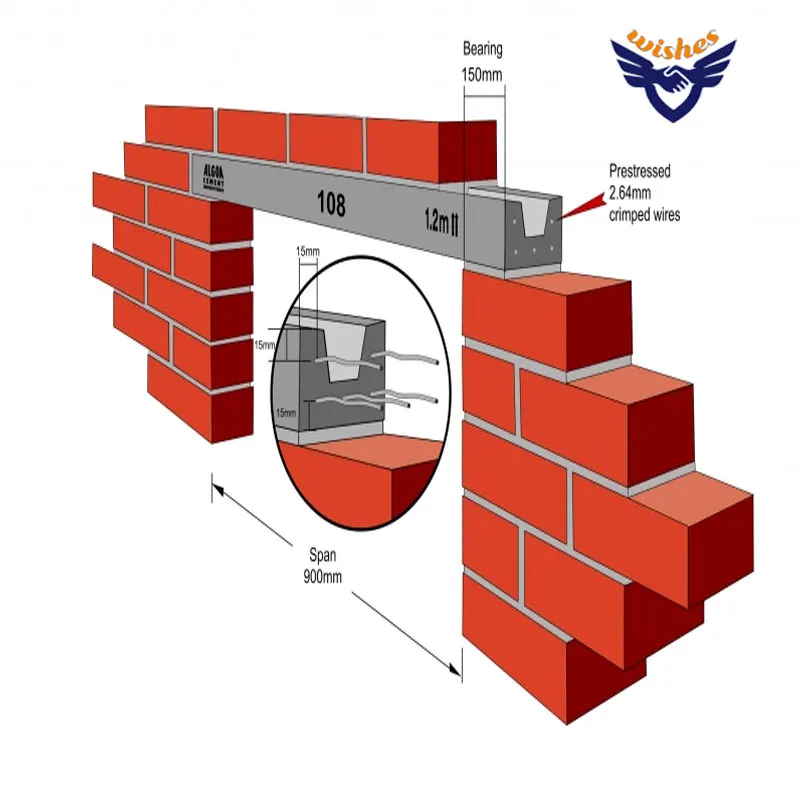

Precast concrete lintels are designed provide structural masonry support to
openings in walls for residential, commercial and domestic buildings for both internal and
external construction.
openings in walls for residential, commercial and domestic buildings for both internal and
external construction.
FEATURES AT A GLANCE
Features
1.Easy to operate and the operators do not require special skills
2. Efficient production. 4-6rows of concrete beams can be completed with few minutes
3. More compact concrete beam with good finished quality
4. The size of finished beam accurate
4. The size of finished beam accurate
5. The structure of mahcine is simple .Easy to maintain .
6. Only need 2-3 manpower for whole production progress
We can customize the machine as per your Required lintel beam sizes
The lintels can be reinforced with 3-6 steel wires
The machine working site
PRODUCT SPECIFICATIONS
No | Models | Beam sizes | No. of lintels | Motor Power |
1 | TWT-75X75 | 75X75mm | 6 -beams | 5.5 KW |
2 | TWT-70X100 | 70X100mm | 6 beams | 6KW |
3 | TWT-150X140 | 150X140mm | 4 beams | 7.5KW |
4 | TWT-140X215 | 140X215CM | 3 beams | 7.5KW |
5 | TWT-150X215 | 150X215CM | 3 beams | 10KW |

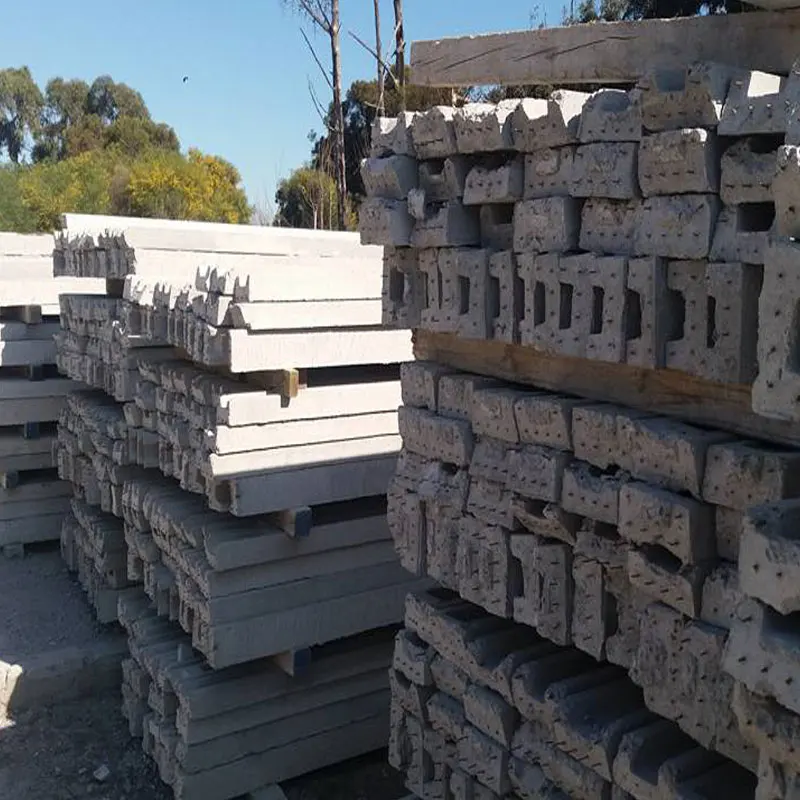

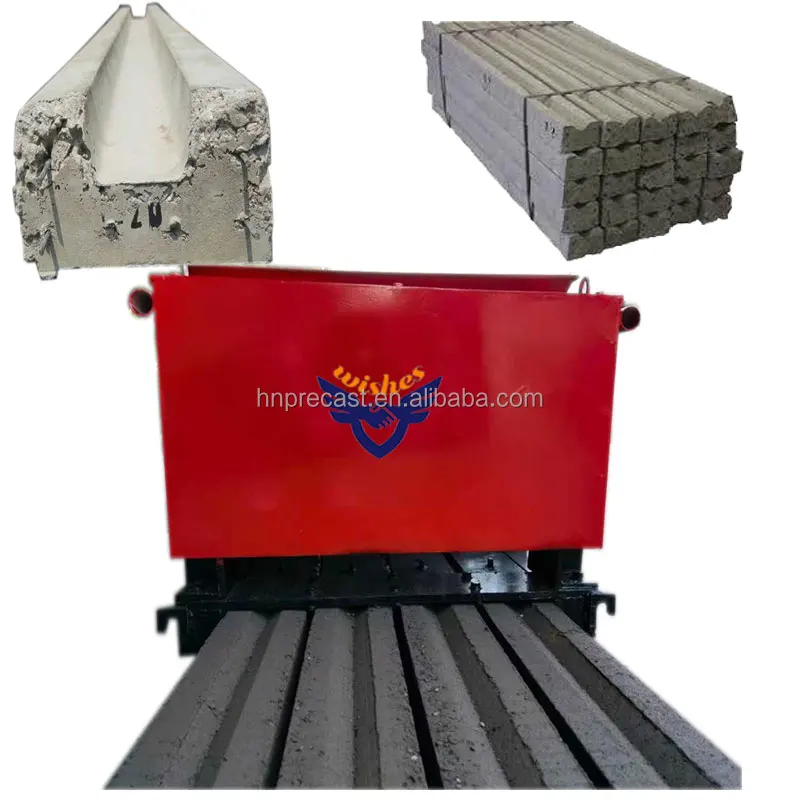

Finshed Products And Applications
LIntels for door and windows
Lintel shape and sizes can be pre-customized
Concrete Lintel beam
The lintel beam can be used for brick structure or steel concrete structure buildings
Load bearing beam
Load bearing beams or supporting columns
Recommend Products
FAQ
Q1：What sizes of beam your machine can make ?
A1： We can customize the machine as per your requirement
Q2: How long is your lead time?
Q2: How long is your lead time?
A2： 10- 15working days
Q3: How is this machine packed and shipped
A3：wood case for LCL or nude packed in the container
