Price:$11,900.00 - $12,980.00

Quantity:


Product Overview

Description



Product Description


MINI TRACK LOADER SUPPLIED BY TAIAN HI-TECH SUNRISE MACHINERY
- Real Manufacturer
-Warranty Supplied
-Fast delivery

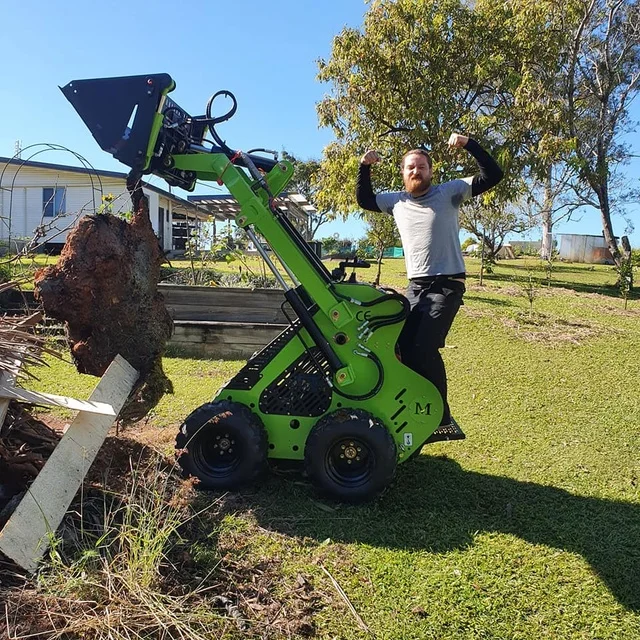

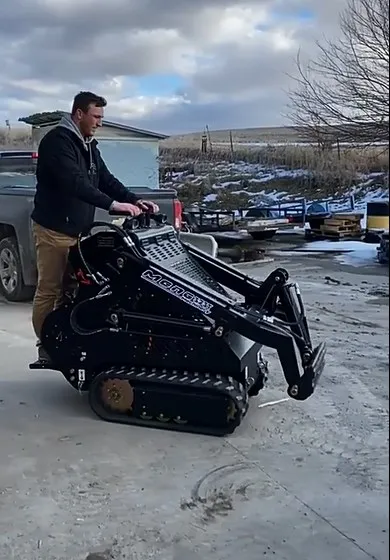

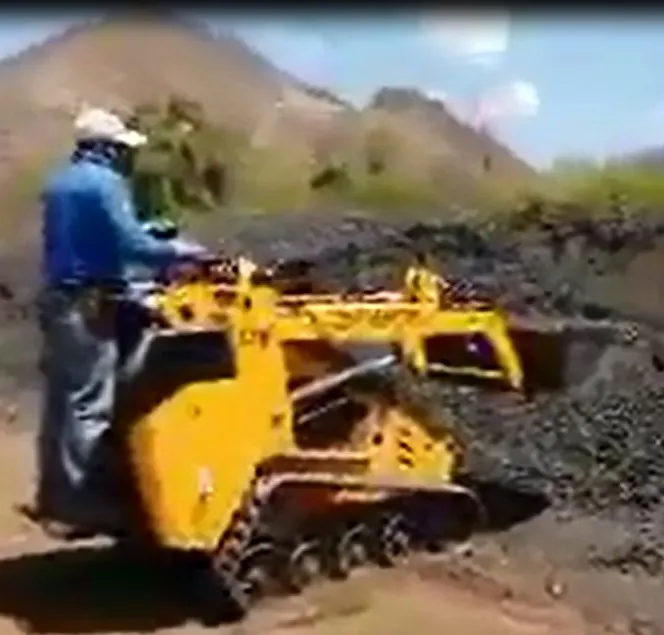

User Cases:




Find a dealer:
Please contact us to find a local dealer for doing good service for you or you can start now build the dealership with MENG MINI skid steer loader .


Different Engine for optional
Depending on your country requested. EPA or No need EPA
Euro IV or no need Euro IV /V ?
For optional 25HP EPA models/ 30HP Euro V models / 35hp 4 cylinder diesel models.
Specification will be little different depending on engine brand differ.
EPA model 25hp specification:


DIMENSIONS
TY-327T (US.)
TY-327T Tracked
Operating height
101in
2695mm
Height to bucket hinge pin
74.8in
2000mm
Height to top
58.9in
1496mm
Overall length with GP bucket
106.4in
2694mm
Overall length without bucket
81.7in
2067mm
Wheelbase
30.3in
1080mm
Overall width
41.7in
1070mm
Mini ground clearance
6.3in
94mm
Angle of departure
23°
23°
Rated loading capacity
880lbs
400kgs
Kerb weight
2930lbs
1330kgs
POWER
TY-327T
TY-327T Tracked
Engine maker
KUBOTA engine
Kubota engine
Fuel type
Diesel
Diesel
Rating power
25HP
22.4kw
Number of cylinder
3
3
Displacement
1.496L
1.496L
Rated speed
2400 rpm
2400 rpm
TRAVEL SPEED
TY-327T
TY-327T Tracked
Max. drive speed
7.8 km/ h
6.8 km/h
HYDRAULIC SYSTEM
TY-327T
TY-327T Tracked
WORKING SYSTEM
working system pressure
180bar
180bar
working system Flow rate
9.5gal/min
36L/min
DRIVING SYSTEM
Driving System pressure
250 bar
250 bar
Driving system Flow rate
16 gal/min
62.4 L/min
Auxiliary circuit System
Auxiliary circuit Pressure
180bar
180bar
Auxiliary circuit flow rate
9.5gal/min
36L/min
FLUID CAPACITIES
TY-327T ( U.S )
TY-327T Tracked
Fuel tank capacity
10.6gal
40 L
Engine oil
1.25gal
4.7 L
Hydraulic reservior capacity
10.6gal
40 L

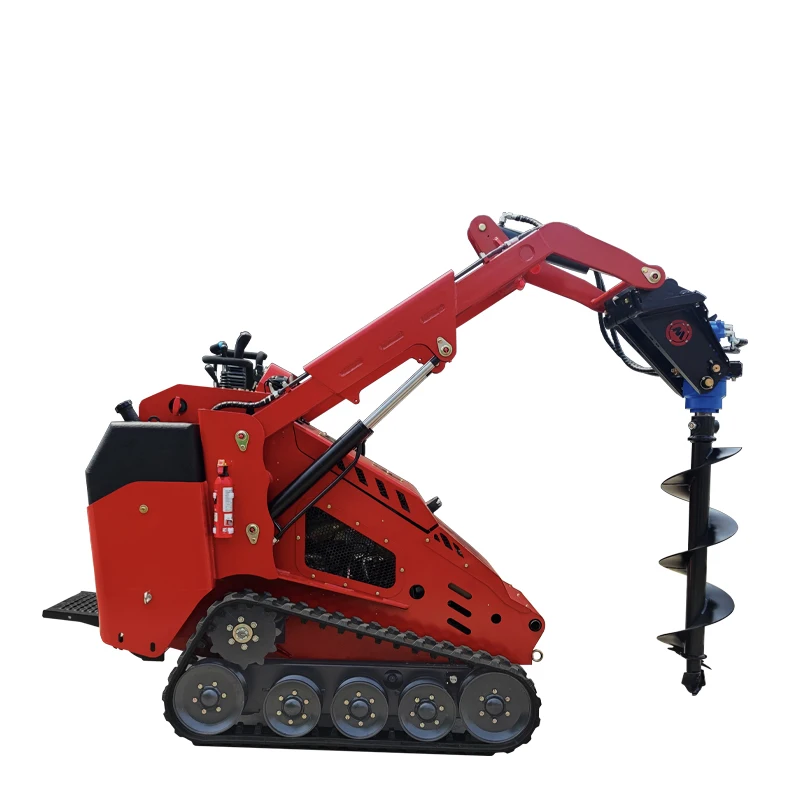

Diesel mini loader model TY-327T track loader

on MENG new designed hydraulic joystick rubber skid steer TY-327T Diesel Track Mini Loaderline trade show super september mini skid steer loader

Diesel mini loader TY-327 with UK or Japan branded diesel engine has been a trusted companion amongst landscapers, builders, electricians, contractors, acreage owners and farmers lauch into Europe Australia, America, Canada.
Rubber Posi track 30hp diesel engine power joystick mini skid steer loader farm machinery
TY-327 mini loader comes standard with many features that other machines will cost additional or are not available at all. Some include:
Mini track multi terrain skid steer loader

√ Perkins 27hp Diesel engine
√ Full Italian HC Hydraulic joystick
√ HANSA triple pump
√ U.S WHITE Hydraulic Drive motor
√ Donaldson Cyclonic 3-stage air filter
√ Hydra flow attachment valve
√ Auxiliary pump for trenching, drilling etc
√ Big Aluminum Oil cooler
√ Electrophoresis painting
√ Nipples on all friction points
√ Italian DNP Flat faced oil couplings
√ High departure angle for rough terrain
√ LED Head lights


√ Universal quick hitch plate
MENG new designed hydraulic joystick rubber skid steer TY-327T Diesel Track Mini Loader



SPECIFICATIONS FOR TY-327 diesel mini loader with 30hp

Engine
Engine model
Perkins engine diesel
No. of cylinders
3 cylinder
Net Power
30hp
Dimensions
Operating height
2695mm
Height to bucket hinge pin
2000mm
Height to top
1496mm
Overall length with GP bucket
2694mm
Overall length without bucket
2067mm
Wheelbase
1080mm
Overall width
1070mm
Mini ground clearance
94mm
Angle of departure
23°
Rated loading capacity
400kgs
Kerb weight
1330kgs
Hydraulic system
working system pressure
250 bar
working system Flow rate
62.4 L/min
Driving System pressure
250 bar
Driving system Flow rate
62.4 L/min


Main Features

-400 Kgs loading capacity.

- High track rough terrain driving.

-Big fluid output

-Engine drive master pump directly much torque to support power.

- Multi-functional attachments including stump grinder, trencher, backhoe.

Mini track multi terrain skid steer loader

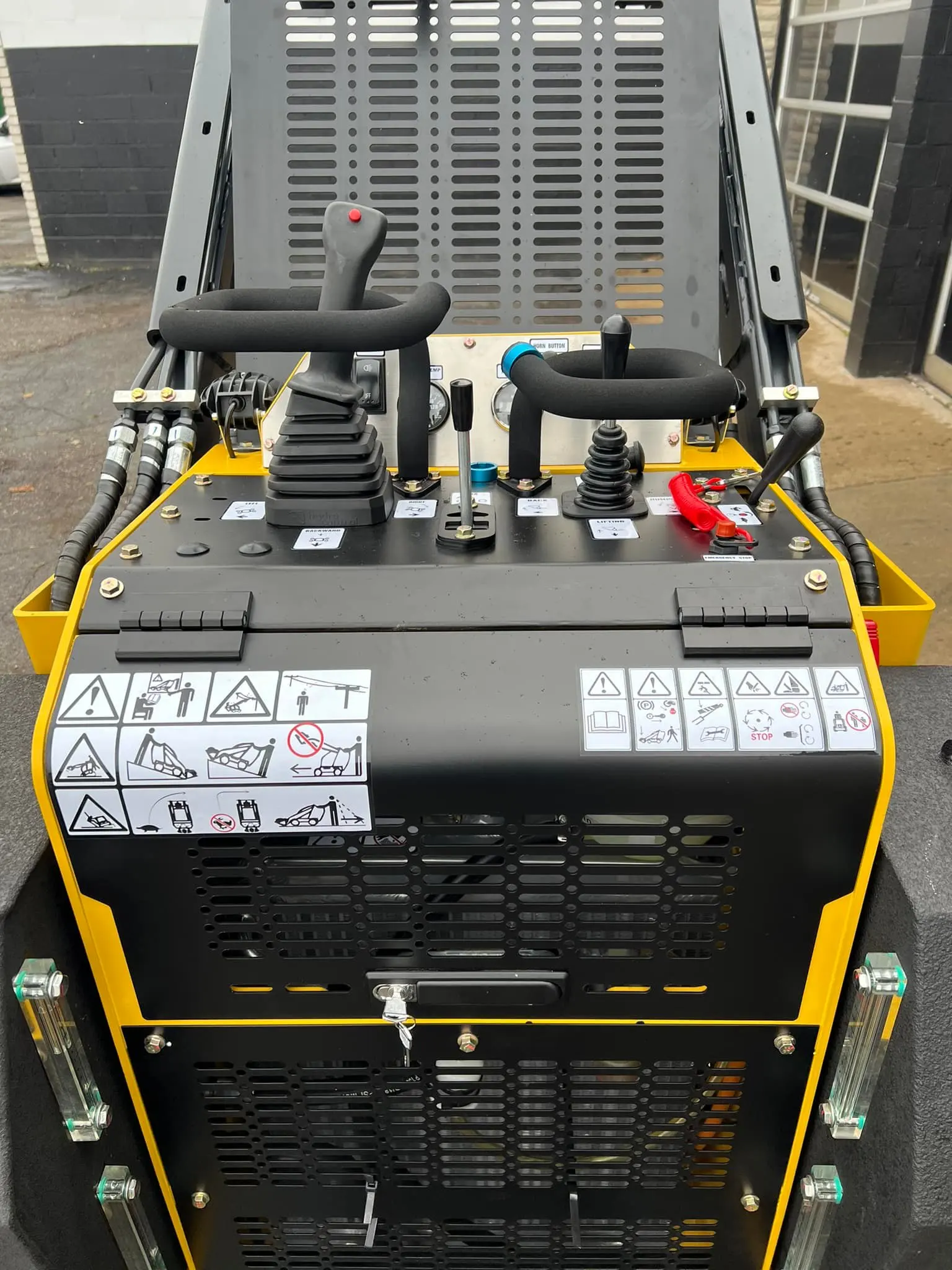

Operating Joystick controls.

 pedal including:
-Two hand lever, drive machine and work lifting arm and bucket.
-One middle lever,
operating various accessories
- Hydraulic oil temperature meter
-Ammeter
-Hour meter
-Driving light button
- Voltage meter
-Hand throttle



.

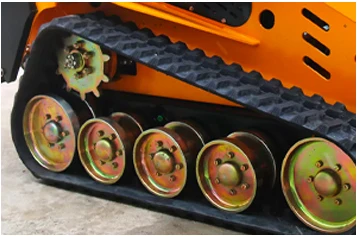

High track rubber crawler .

Attachment connector:
- It is Italian DNP flat-faced connector,
ISO standard coupler.

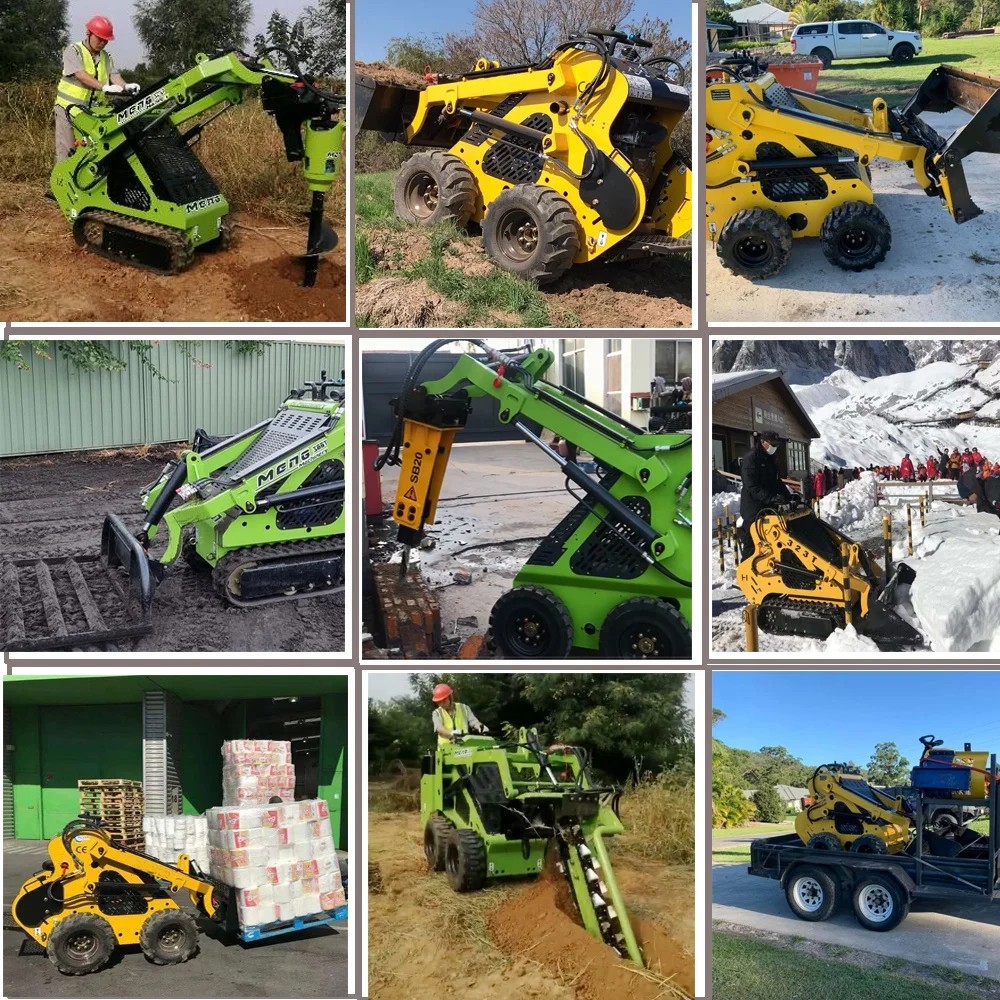

Landscapers:-Levelling bar to level the ground
-Grab bucket food for moving mulch, transporting trees, branches for removal.-cement/concrete mixer-pallet fork
Electricians-trencher / trench filler -backhoe / simple backhoe-breaker
Fencing contractors-Auger and bit -cement ,concrete mixer
Clean road:- snow blower -sweeper / angle broom-snow blade.

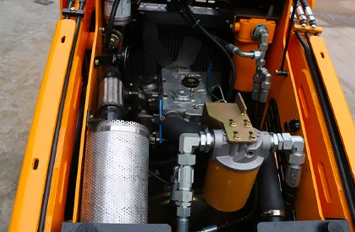

Easy daily check.

All- Alumium engine cooler :
- The engine radiator is all-Aluminum, good for engine cooling.
-It is easier for get touch into motor ,pumps as
Swing -out the cooler.



Our Service




Won the MINI SKID STEER LOADER brand trophy for 3 consecutive years






Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

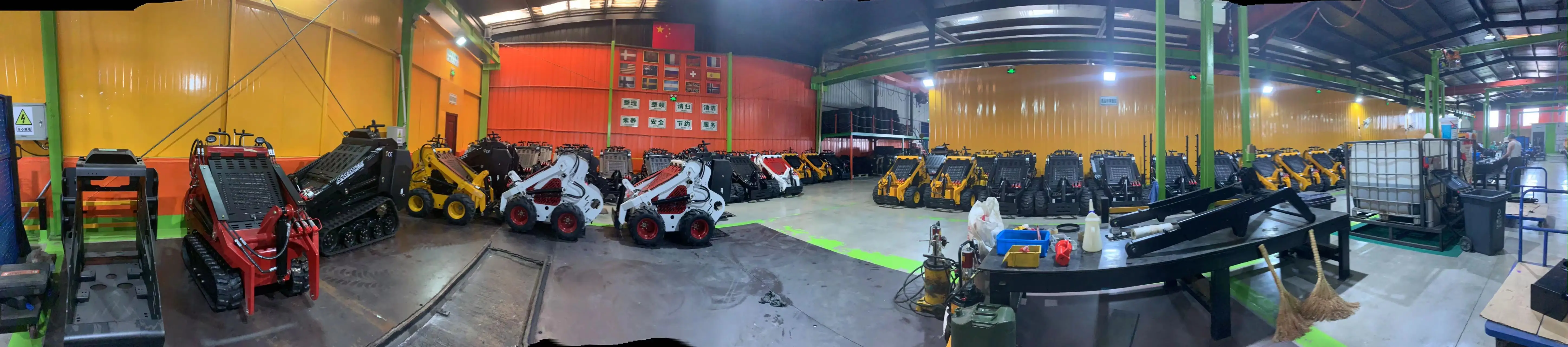

* View our Factory.

Mini track multi terrain skid steer loader

After-Sales Service

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Mini track multi terrain skid steer loader



Packing & Delivery


Packaging
Size
2m *1.1m*1.5m
Weight
1600kgs



Packaging Details
4-6 units /20'ft container

6-8 units /40'ft container .


Packaging
Size
2m *1.1m*1.5m
Weight
1800kgs



Packaging Details
Shipped by LCL .
