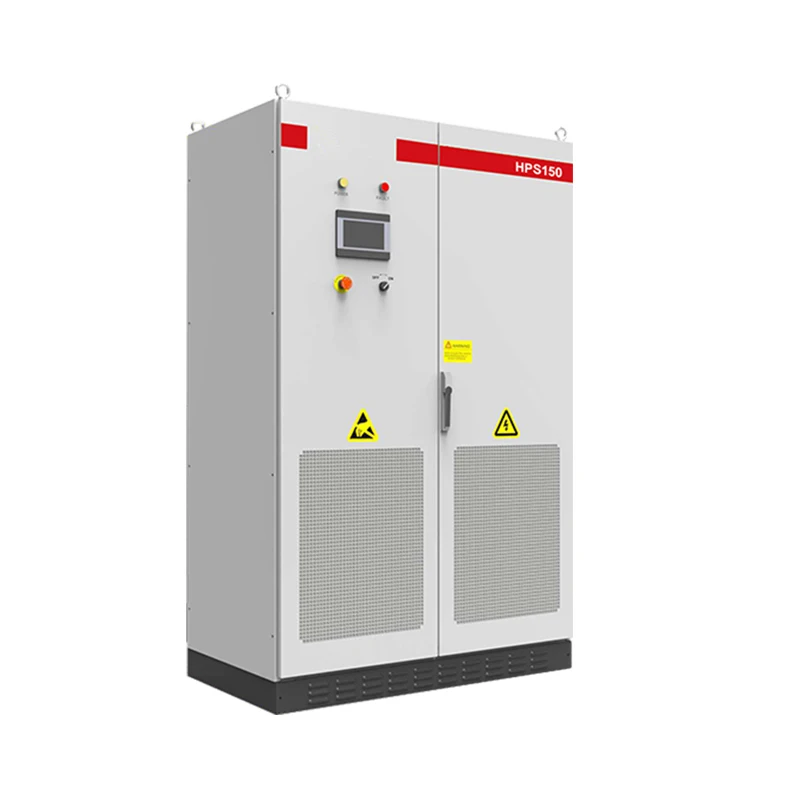

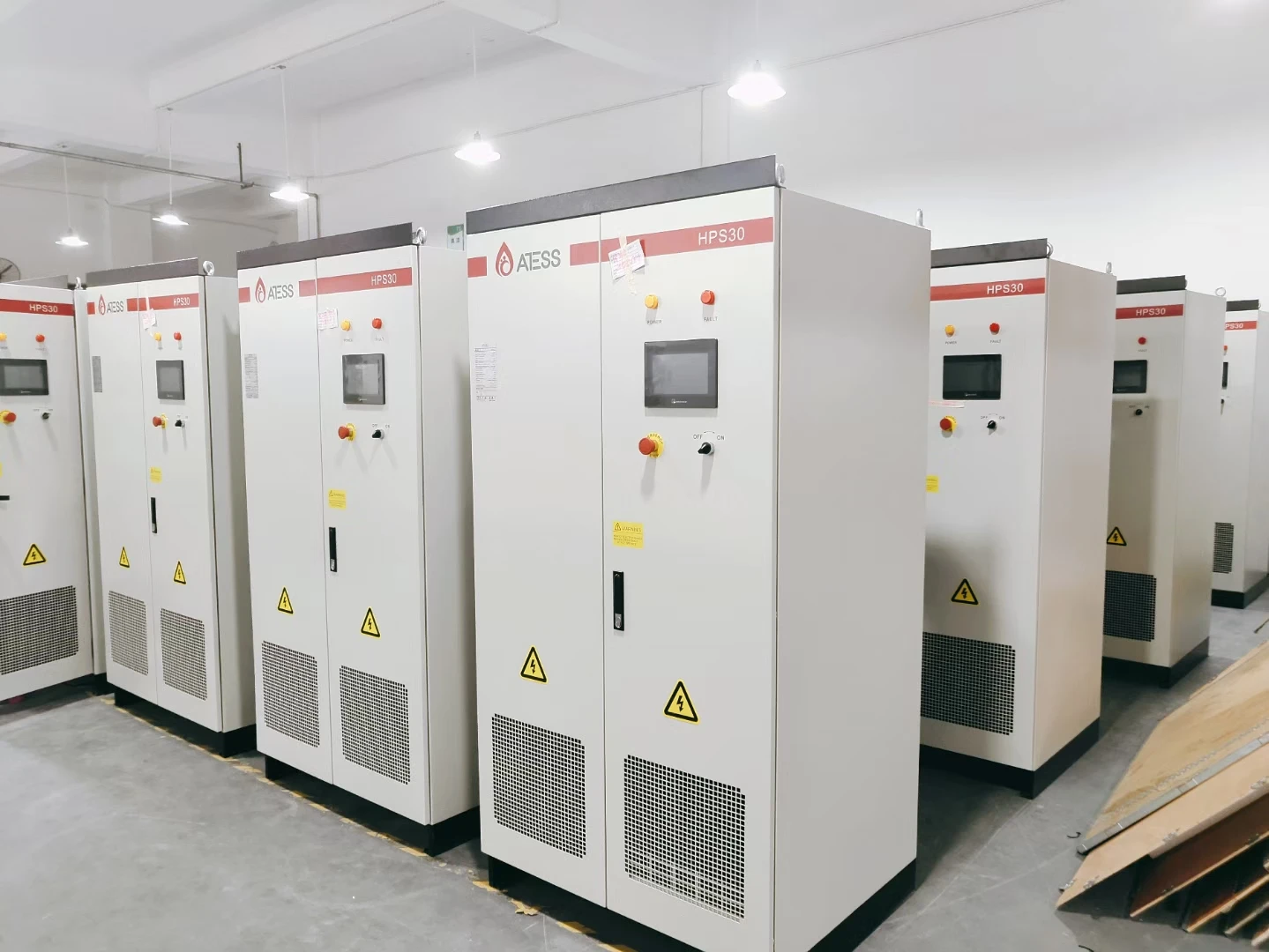

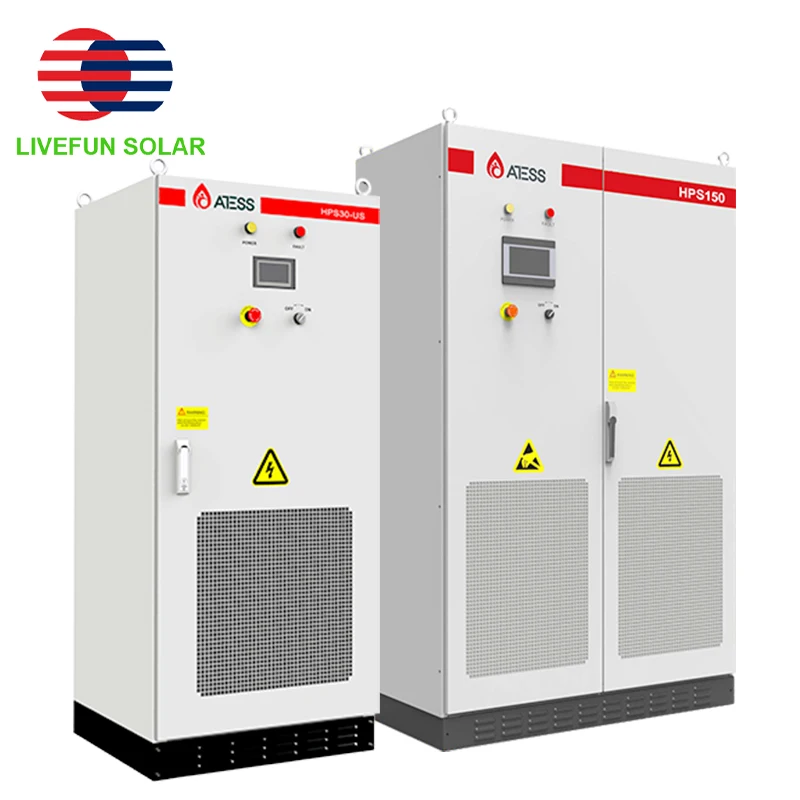

3PHASE 120V/220V US STANDARD 30KW 50KW 100KW 120KW 150KW ATESS HPS on/off grid Hybrid Inverter
- Category: >>>
- Supplier: Henan Livefun Solar Tech Co. Ltd.
Share on (11000003407018):
Product Overview
Description
Product Details
*All in one hybrid inverter.
*Programmable working mode.
*Scalable design:Quadruple capacity by paralleling 4 units.
*Hot back-up One inverter fails in parallel system, the other(s) takes over seamlessly.
*Touchscreen LCD:More convenient for parameter setting and maintenance.
*Seamless transfer:Uninterruptable power supply guaranteed.
*Dry contact output: Supports remote control of DG.
*Programmable working mode.
*Scalable design:Quadruple capacity by paralleling 4 units.
*Hot back-up One inverter fails in parallel system, the other(s) takes over seamlessly.
*Touchscreen LCD:More convenient for parameter setting and maintenance.
*Seamless transfer:Uninterruptable power supply guaranteed.
*Dry contact output: Supports remote control of DG.
Specification
HPS50-US | HPS100-US | HPS150-US | ||||
AC(on-grid) | ||||||
Apparent power | 55kVA | 110kVA | 165kVA | |||
Rated power | 50kW | 100kW | 150kW | |||
Rated voltage | 190-240v Wye / High-legDelta with split phase(Opt) | 190-240v Wye / High-legDelta with split phase(Opt) | 190-240v Wye / High-legDelta with split phase(Opt) | |||
Rated current | 152~120A | 304~241A | 456~361A | |||
Voltage range | 190-240V | 190-240V | 190-240V | |||
Rated frequency | 50/60Hz | 50/60Hz | 50/60Hz | |||
Frequency range | 45~55/55~65Hz | 45~55/55~65Hz | 45~55/55~65Hz | |||
THDI | <3% | <3% | <3% | |||
PF | 0.8 lagging~0.8 leading | 0.8 lagging~0.8 leading | 0.8 lagging~0.8 leading | |||
AC connection | 3/N/PE Wye / 3/N/PE Delta(opt) | 3/N/PE Wye / 3/N/PE Delta(opt) | 3/N/PE Wye / 3/N/PE Delta(opt) | |||
AC input | 55kVA | 110kVA | 165kVA | |||
AC(off-grid) | ||||||
Apparent power | 55kVA | 110kVA | 165kVA | |||
Rated power | 50kW | 100kW | 150kW | |||
Rated voltage | 190-240v Wye / High-legDelta with split phase(Opt) | 190-240v Wye / High-legDelta with split phase(Opt) | 190-240v Wye / High-legDelta with split phase(Opt) | |||
Rated current | 152~120A | 304~241A | 456~361A | |||
THDU | ≤2% linear | ≤2% linear | ≤2% linear | |||
Rated frequency | 50/60Hz | 50/60Hz | 50/60Hz | |||
Overload capability | 110%-10 mins 120%-1 min | 110%-10 mins 120%-1 min | 110%-10 mins 120%-1 min | |||
DC (Battery and PV) | ||||||
Max. PV open-circuit voltage | 1000V DC | 1000V DC | 1000V DC | |||
Max. PV power | 75kWp | 150kWp | 225kWp | |||
PV MPPT voltage range | 480V-800V DC | 480V-800V DC | 480V-800V DC | |||
Battery voltage range | 352V-600V | 400V-600V | 400V-600V | |||
Max. charge power | 75kW | 150kW | 225kW | |||
Max. discharge power | 55kW | 110kW | 165kW | |||
Max. charge current | 150A | 300A | 450A | |||
Max. discharge current | 156A | 275A | 413A | |||
General information | ||||||
Protection degree | IP20 | IP20 | IP20 | |||
Noise emission | <65dB(A)@1m | <65dB(A)@1m | <65dB(A)@1m | |||
Operating temperature | -25 °C~+55 °C | -25 °C~+55 °C | -25 °C~+55 °C | |||
Cooling method | Forced-air | Forced-air | Forced-air | |||
Relative humidity | 0-95% non-condensing | 0-95% non-condensing | 0-95% non-condensing | |||
Maximum altitude | 6000m (derate over 3000m) | 6000m (derate over 3000m) | 6000m (derate over 3000m) | |||
Dimension (W/H/D) | 950/1860/750mm | 1200/1900/800mm | 1200/1900/800mm | |||
Weight | 590kg | 923kg | 1200kg | |||
Build-in transformer | Yes | Yes | Yes | |||
Lightning protection | Type ll | Type ll | Type ll | |||
Transfer between on/off grid | Automatic≤10ms | Automatic≤10ms | Automatic≤10ms | |||
Standby consumption | <30w | <30w | <30w | |||
Communication | ||||||
Display | Touch screen | Touch screen | Touch screen | |||
Communication | RS485/CAN | RS485/CAN | RS485/CAN | |||
Certificate | ||||||
UL1741,CSA-C22.2 | ||||||
* The MPPT voltage of PV strings should be 50~200Vhigher than the Max battery voltage. | ||||||

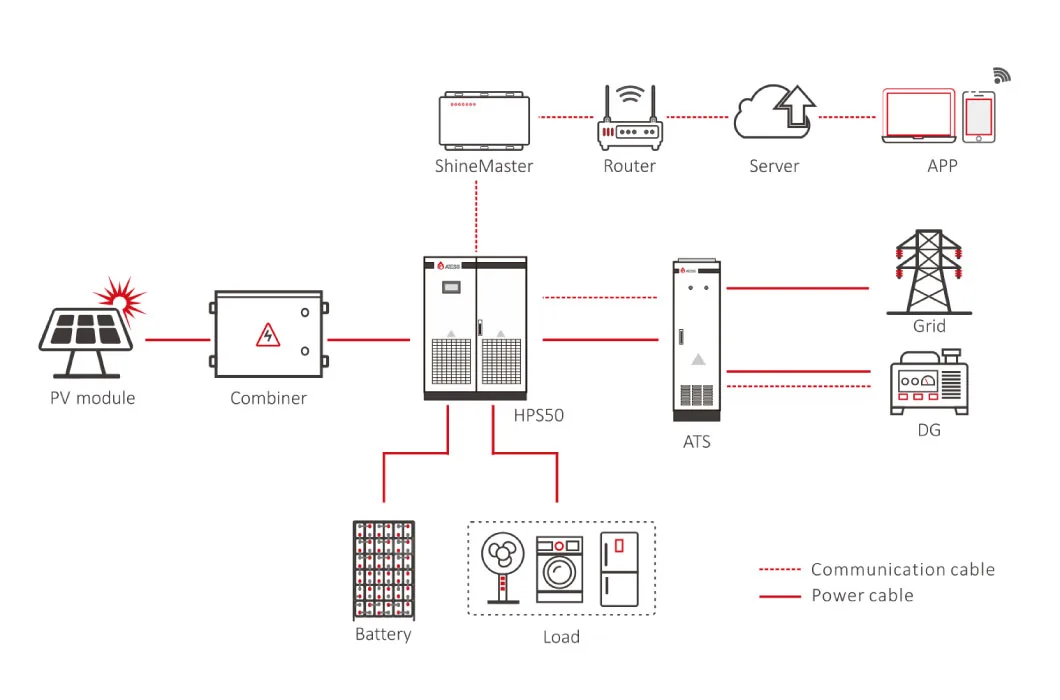

System Architechture
Monitor Solution

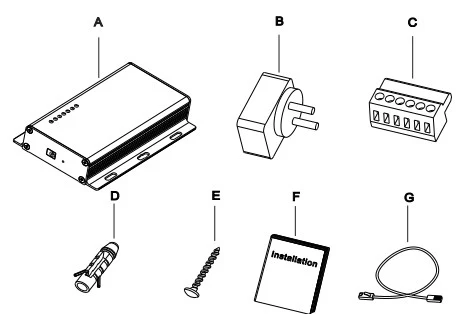

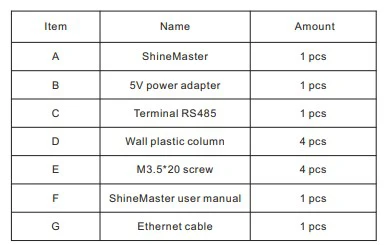

Enerlog
Data logger for overall system monitoring, collect operation data from different units via Modbus RS485 and communicate with ATESS
server via internet.
server via internet.
EnerClo
ATESS monitoring cloud platform for different applications including residental, commercial and utility grade on and off grid
solar storage systems.
solar storage systems.
EnerView
Mobile phone app available on both IOS and Android to access ATESS EnerClo for online monitoring and maintenance..

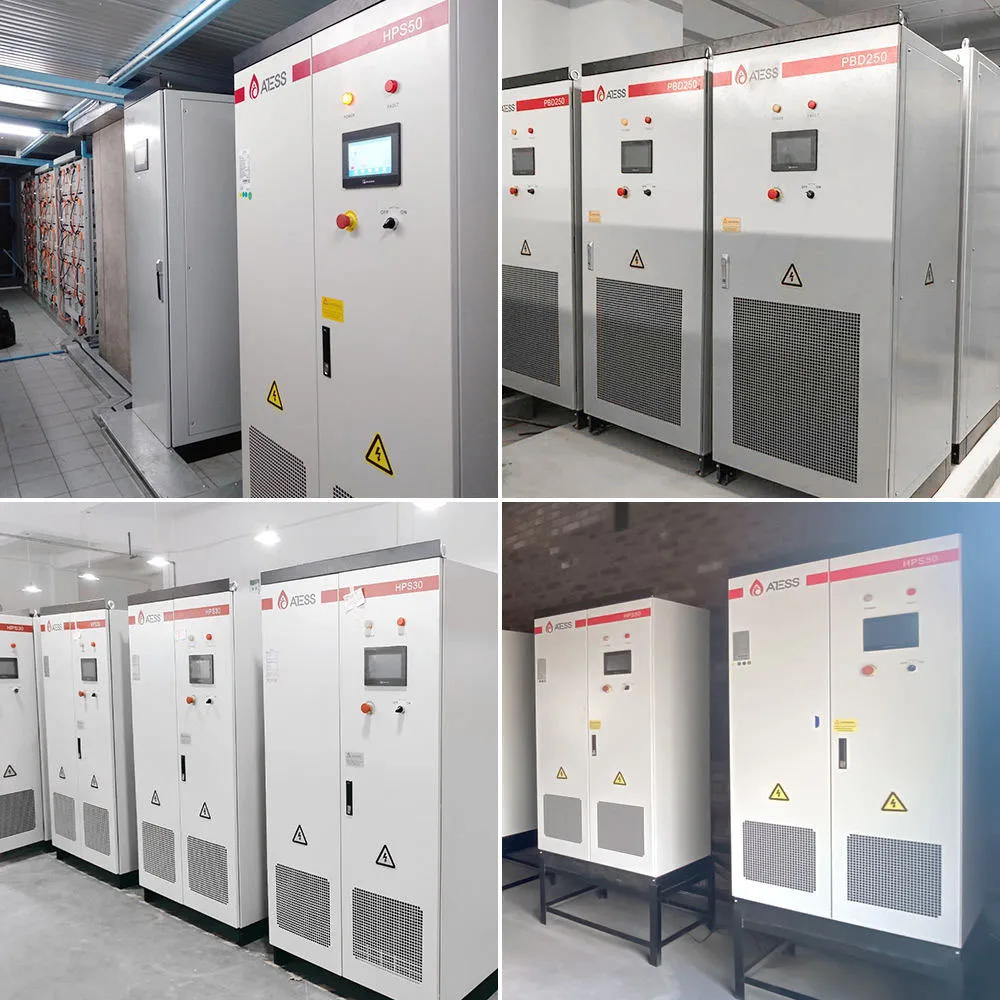

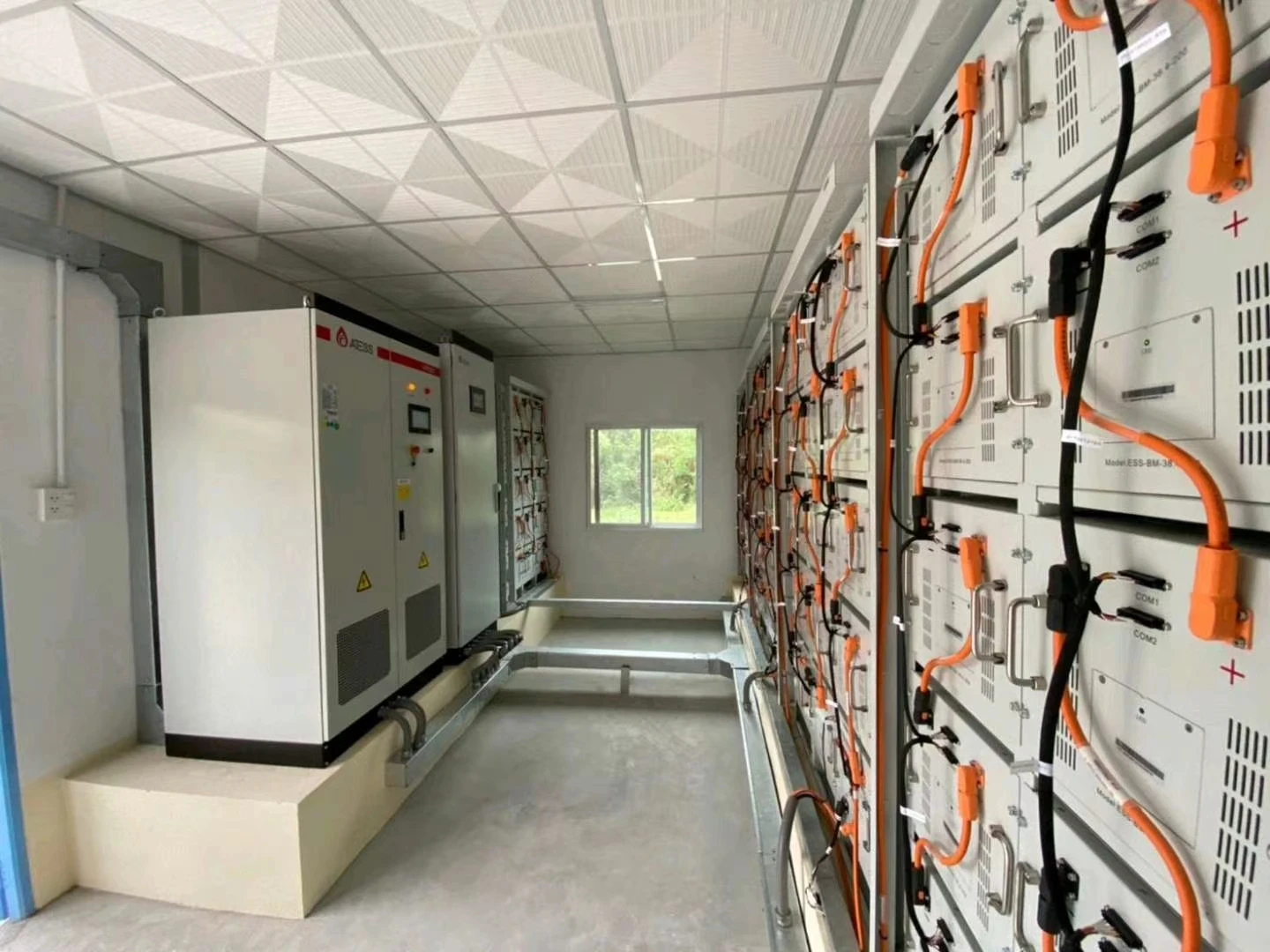

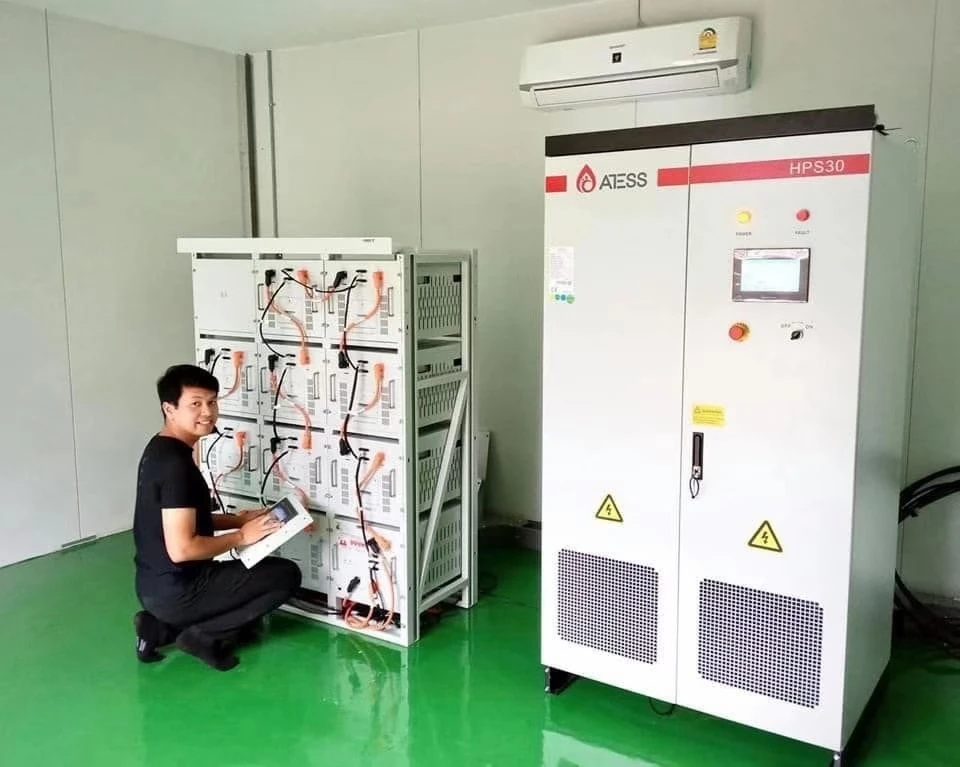

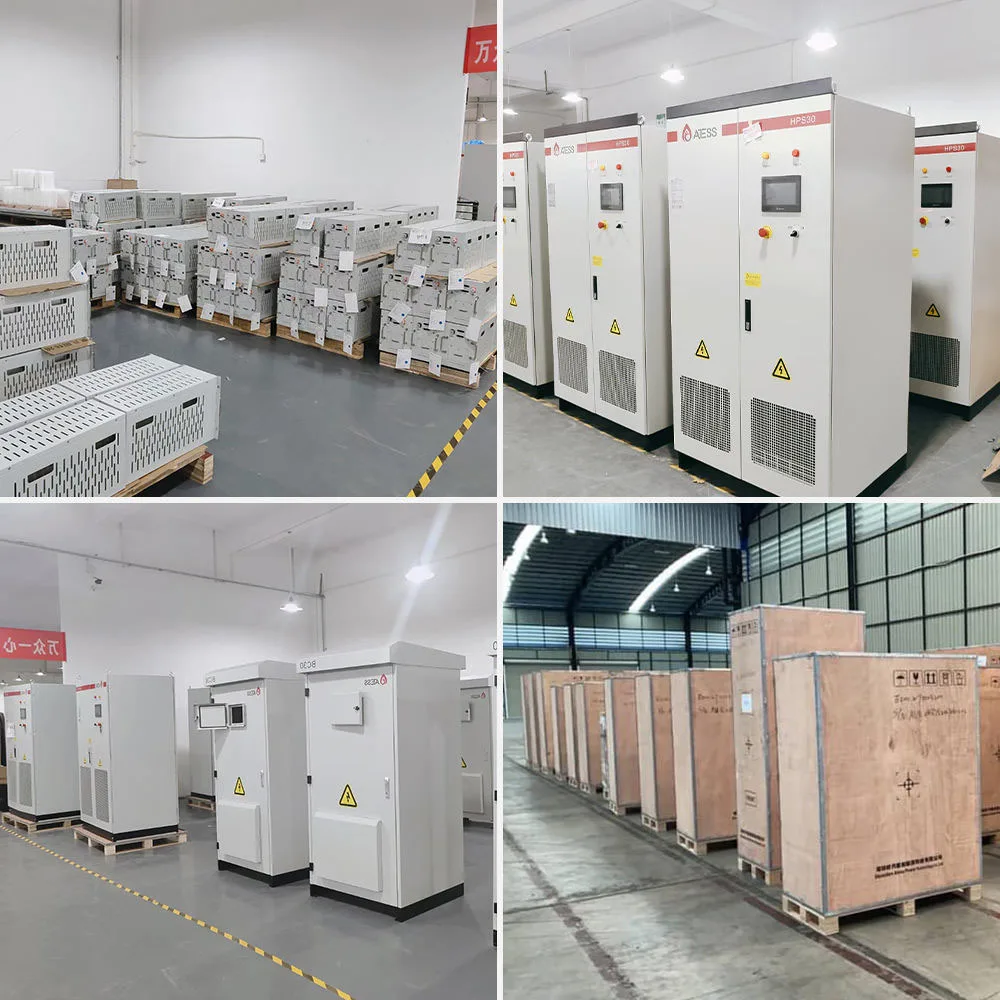

Project Case

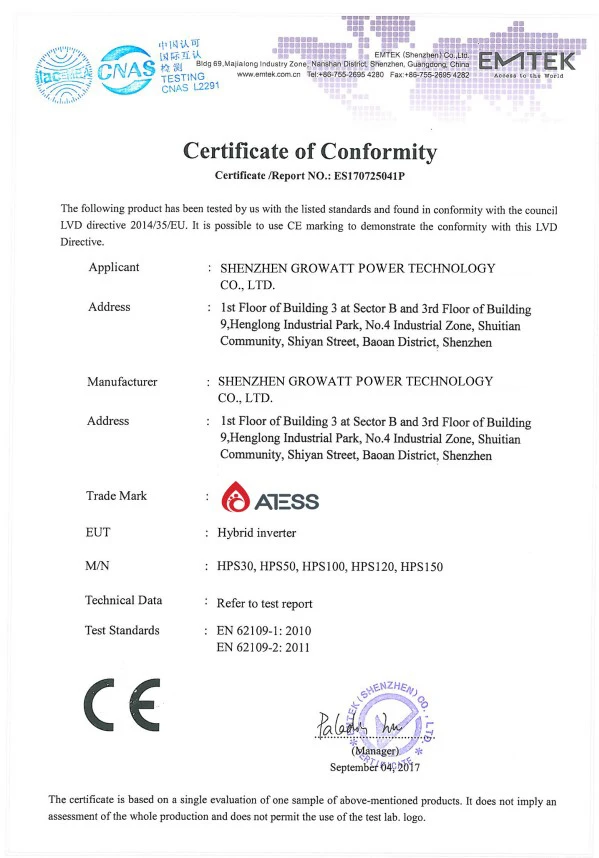

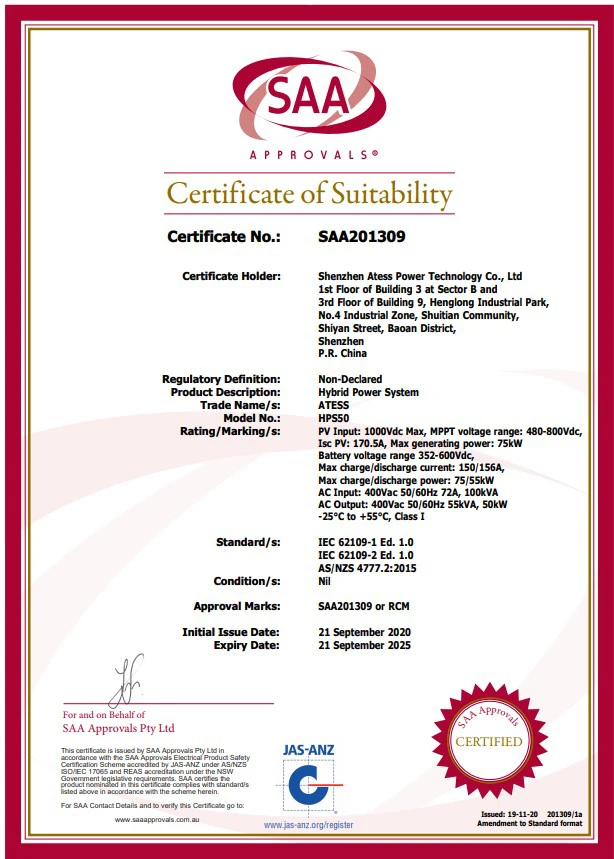

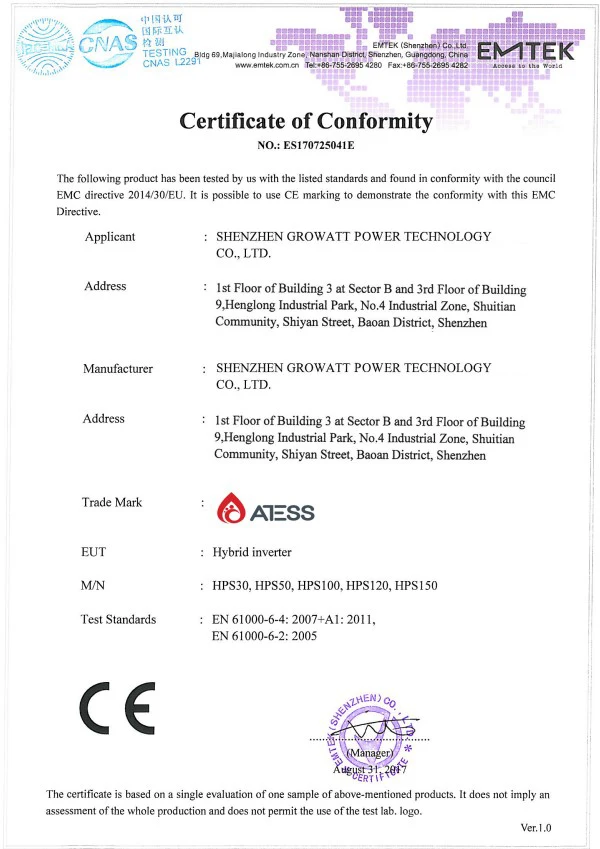

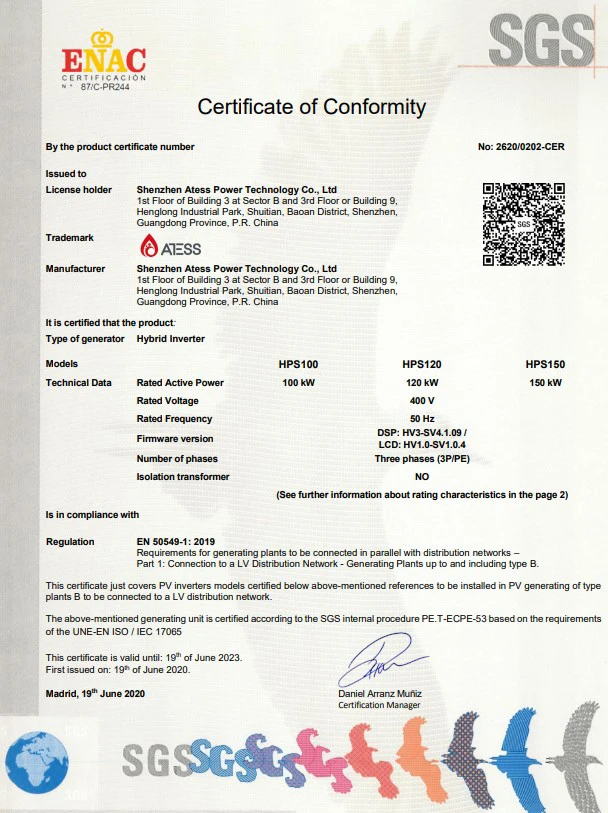

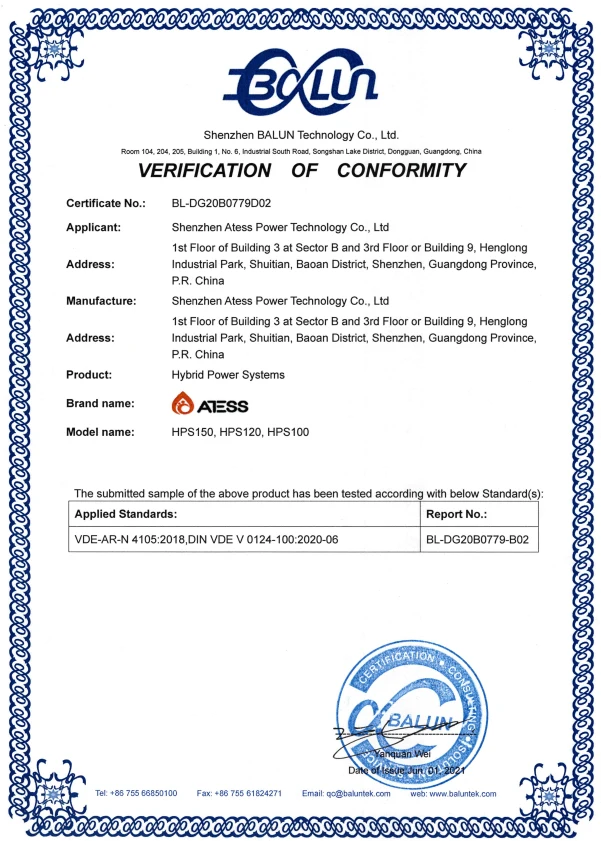

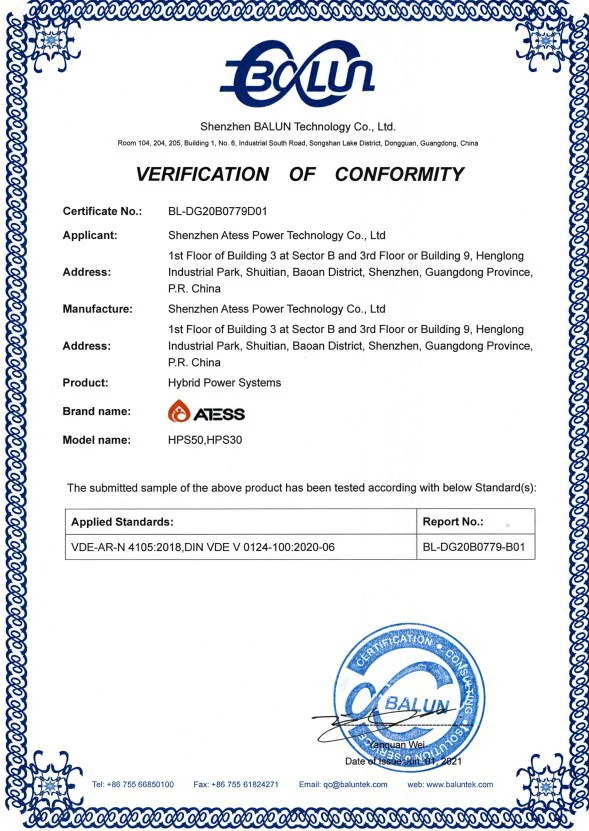

Global Certificate
Contact us
Henan Livefun Solar Technology Co., Ltd. | ||
Export Director: | Karl Xu | |
Tel/Watsapp: | +86 13673324979 | |
Email: | karl@livefunsolar.com | |
Web: | www.livefunsolar.com | |
Add: | Zhengzhou, Henan, CHINA. | |
