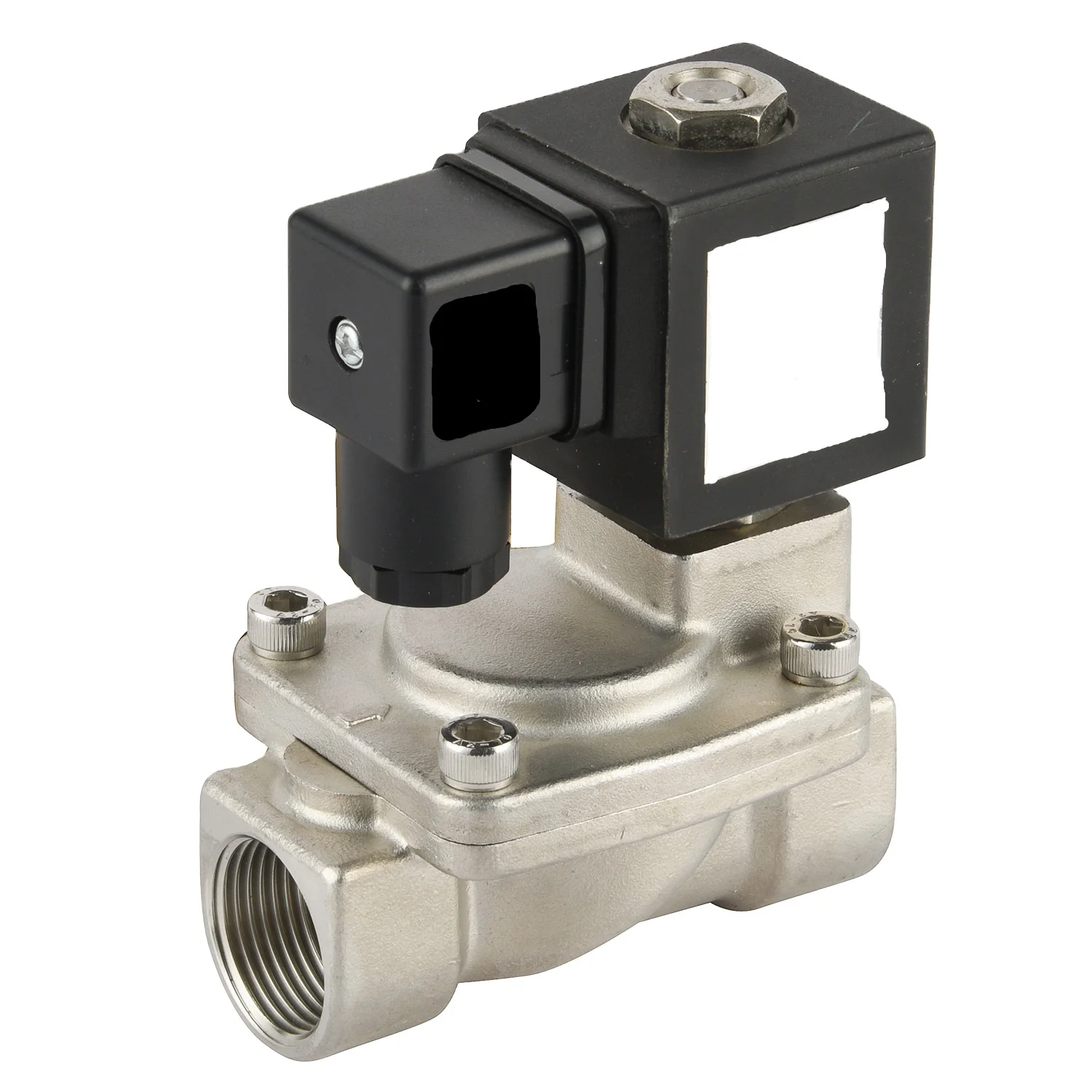

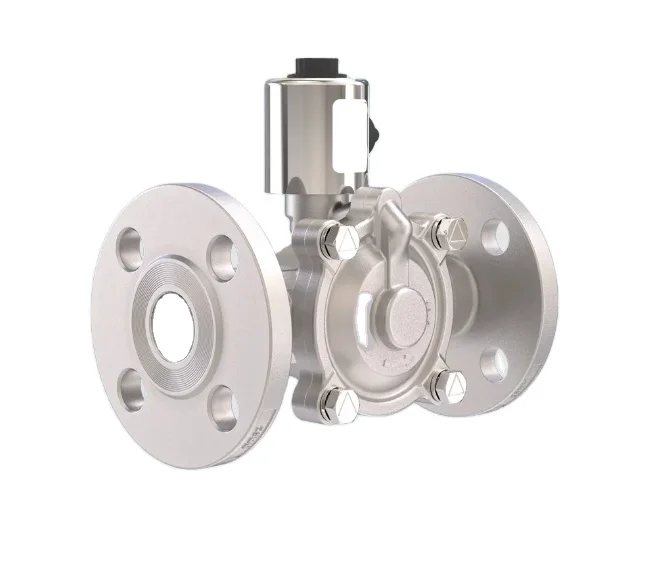

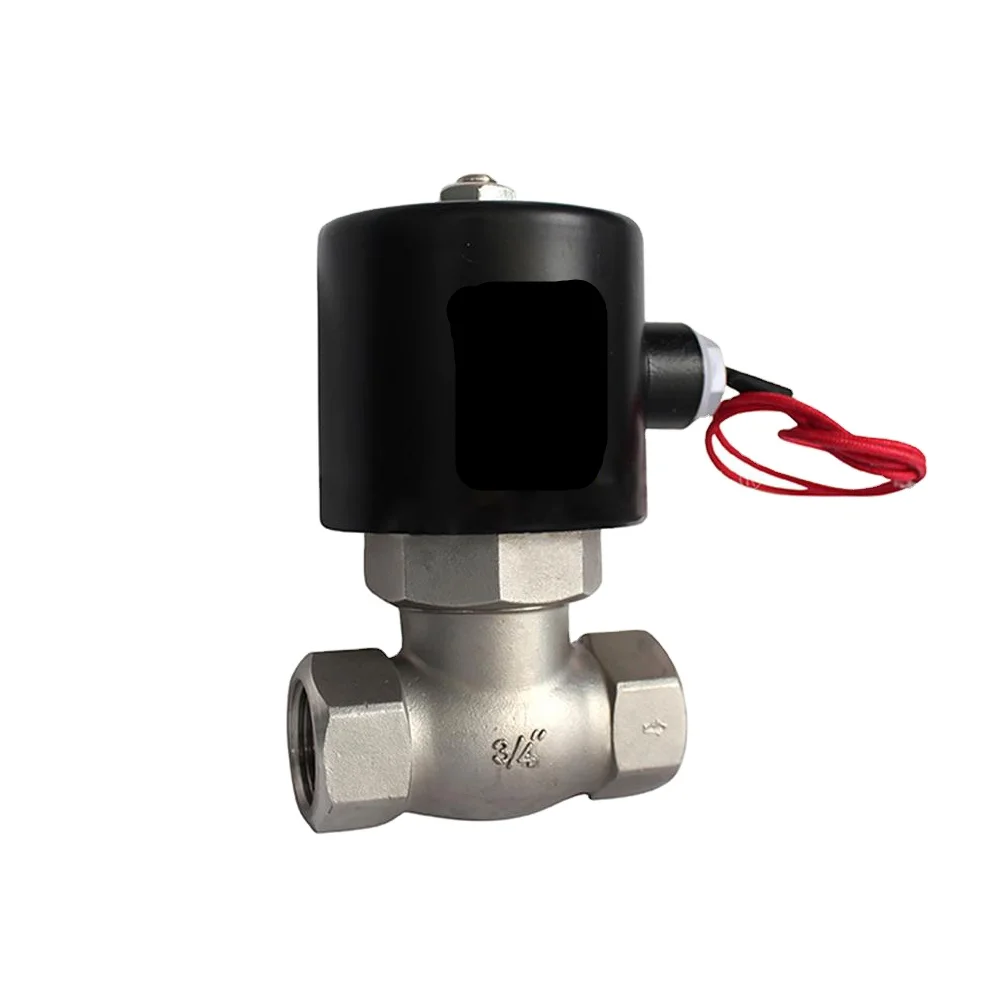

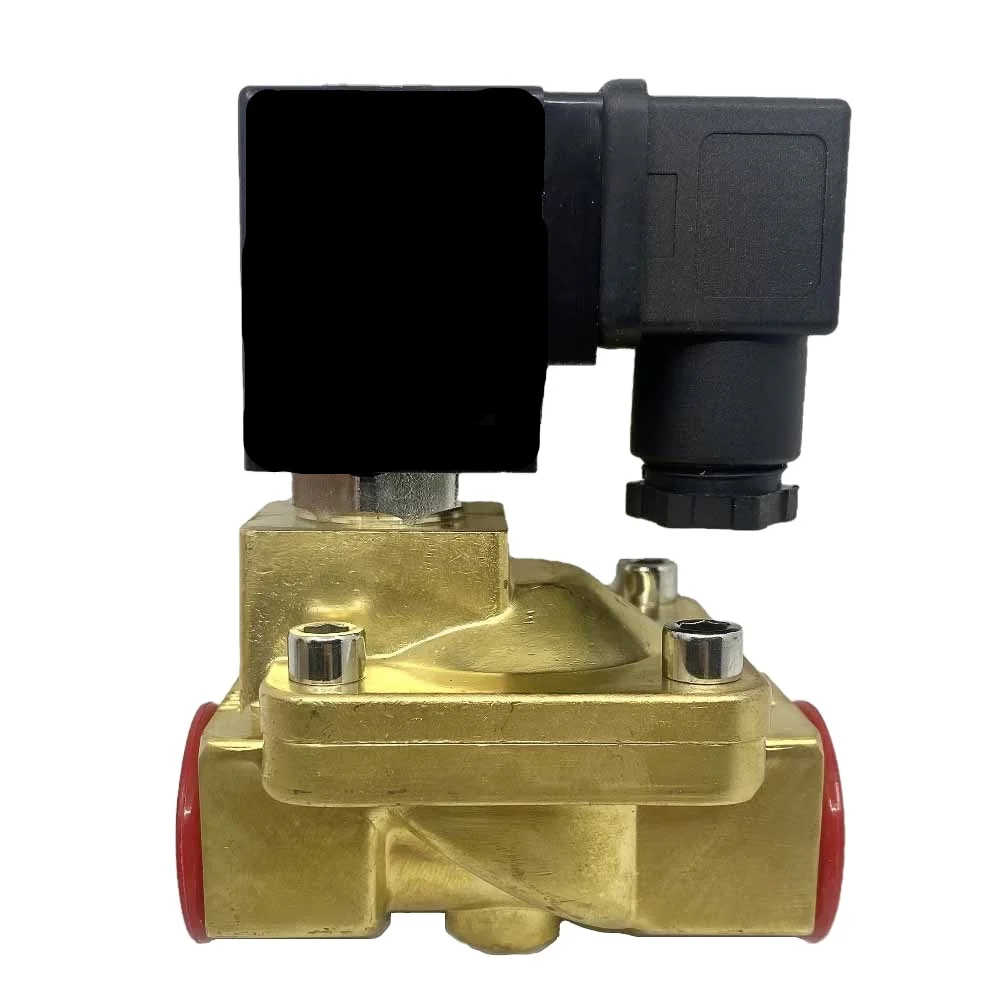

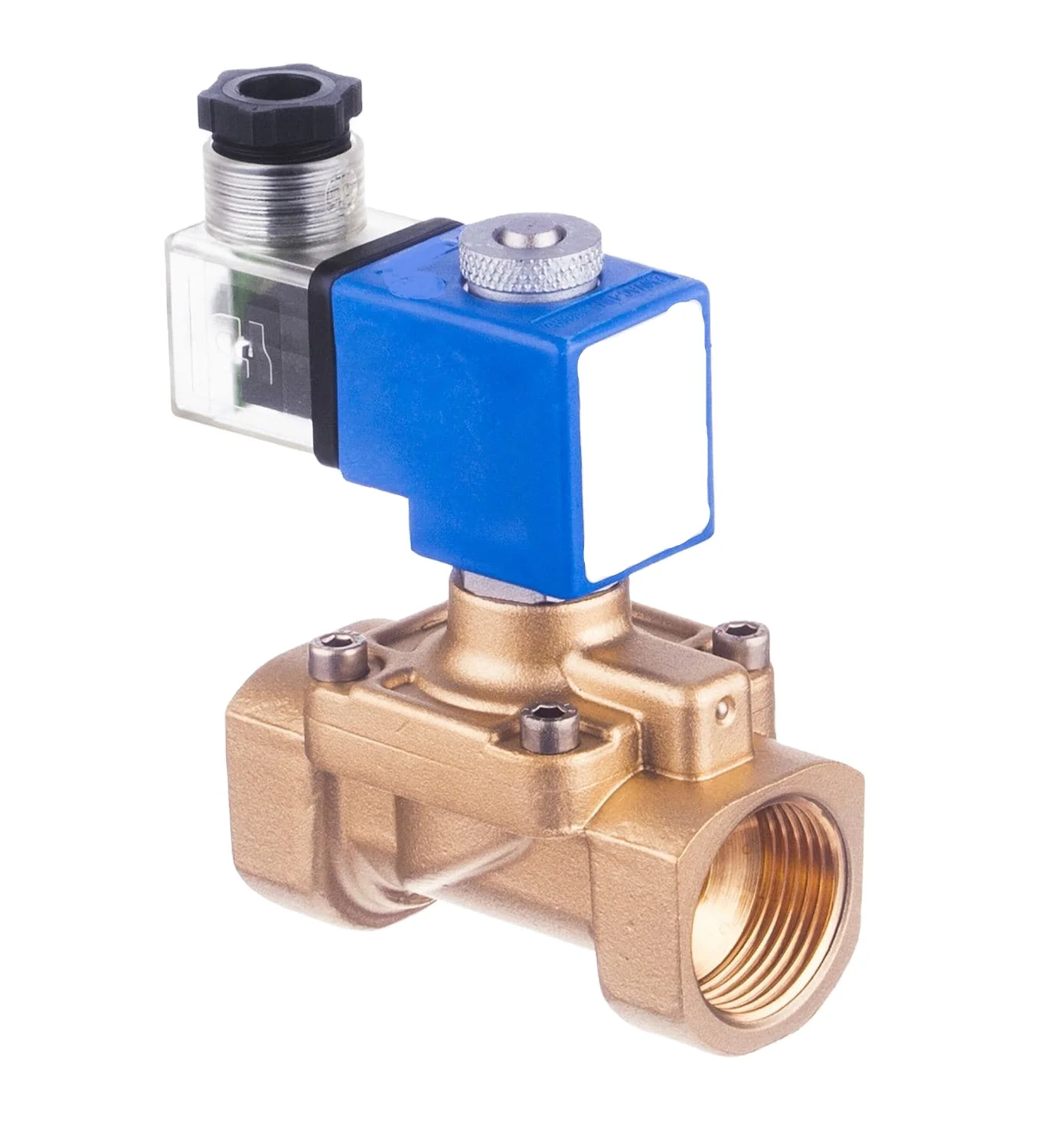

Indian supplier goods price high performance top quality pilot solenoid valve for water liquid and gas
- Category: >>>
- Supplier: C-WAY EXPORTS
Share on (11000003408461):
Product Overview
Description
Item | Value |
Warranty | 1 year |
Type | Emergency Shut-Off Valves, Truck Shut-Off Valves, Metal Check Valves, Safety Relief Valves, Temperature & Pressure Relief Valves, Pressure Reducing Control Valves, Pressure Regulators, Temperature Regulating Valves, SOLENOID VALVES |
Customized support | OEM |
Place of Origin | India |
Telangana | |
Brand Name | C-WAY |
Model Number | N/A |
Application | Industrial |
Temperature of Media | High Temperature, Low Temperature, Medium Temperature, Normal Temperature |
Power | Solenoid |
Media | Water,Liquid,gas |
Port Size | 3/4" Inch |
Structure | Pilot |
Product name | Pilot solenoid valve |
Type | 3/2 ways |
Power | Solenoid |
Medium | Water Oil Gas |
Size | 3/4 Inch |
Working Temperature | -10° C to 70° C |
Connection End | Flange and screwed Ends |
Valve type | 3 Port 2 Position |
Usage | Industrial |
Brand | C-WAY |
3/2 PILOT OPERATED SOLENOID VALVE
* We are the largest supplier of wide range of Solenoid Valves of international standard, used in different applications and media, some of which are the Pilot operated the Semi lift diaphragm, the Piston operated, the Union type, and others with various features. From ½” inch to 6” inch sized valves are available with -30°C to 180°C working temperature capacity and 5 BAR to 110 BAR pressure sustaining capability. We provide all standards from 12 V to 230 V AC and DC flameproof coils. These solenoid valves come up with Screwed, Flange, and Tri-Clover End Connections.
* A 3/2-way valve has three ports and two positions that can be driven pneumatically, mechanically, manually or electrically via a solenoid valve.
* Solenoid valves differ in the characteristics of the electric current they use, the strength of the magnetic field they generate, the mechanism they use to regulate the fluid and the type and characteristics of fluid they control. The mechanism varies from linear action, plunger-type actuators to pivoted-armature actuators and rocker actuators. The valve can use a two-port design to regulate a flow or use a three or more port design to switch flows between ports. Multiple solenoid valves can be placed together on a manifold.
* Solenoid valves are the most frequently used control elements in fluid. Their tasks are to shut off, release, dose, distribute or mix fluids. They are found in many application areas. Solenoids offer fast and safe switching, high-reliability, long service life, good medium compatibility of the materials used, low control power and compact design.
* The valve body must be compatible with the fluid; common materials are brass, stainless steel, aluminium, and plastic.
* Solenoid Valves are suitable for the control of single acting cylinders and diaphragms. Normally closed and normally open, for selection or diversion of pressure, dry air, gas, water, light oil and others gases and liquids, Instrumentation, lubrication devices, robots, pilot operators.
Feature of Valve
End Connection | Screwed / Flange |
Body Material | SS ASTM A351 Grade CF8 / CF8M |
Diaphragm & Media Temp | Nitrile (NBR) [-30° C to 90° C] ; EPDM [-10° C to 140° C] ; Viton (FKM) [-10° C to 180° C] |
Circumstance Temp | -10° C to 70° C |
Media | Air,Water,Chemical,Gas |
Operating Voltage & Power Consumption | 24 AC[7 W];110 V[8 W];230 AC[8 W];12 DC[10 W];24 DC[11 W] |
Main Features
Internal Parts are in superior corrosion resistance steel, (Equivalent to SS316L) Suitable for Food Industries, Pharmaceuticals, Chemical application & Highly corrosive environment
Coil Information
Coil Features
High Reliability Unaffected by Voltage Surges. Easy coil changes coil lockable in 4X90 position, or freely movable in between as require.
Applications
* Air compressor
* Door locking in hotels, offices and secure areas
* Vending machines
* Remote access systems
* Turnstiles
* Car park and access barriers
* Water-pressure valves
* MRI machines
* Power plants
* Refrigeration
* Air conditioning
* Automobiles
* Hydraulics
Internal Parts are in superior corrosion resistance steel, (Equivalent to SS316L) Suitable for Food Industries, Pharmaceuticals, Chemical application & Highly corrosive environment
Optional Feature: 90% Power saver series also available, Manual Override.
Coil Information
Coil Features
High Reliability Unaffected by Voltage Surges. Easy coil changes coil lockable in 4X90 position, or freely movable in between as require.
Applications
* Air compressor
* Door locking in hotels, offices and secure areas
* Vending machines
* Remote access systems
* Turnstiles
* Car park and access barriers
* Water-pressure valves
* MRI machines
* Power plants
* Refrigeration
* Air conditioning
* Automobiles
* Hydraulics

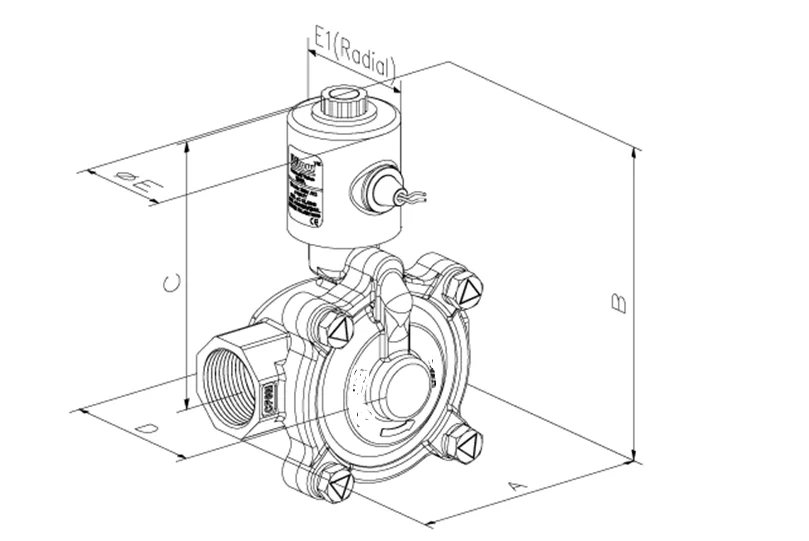

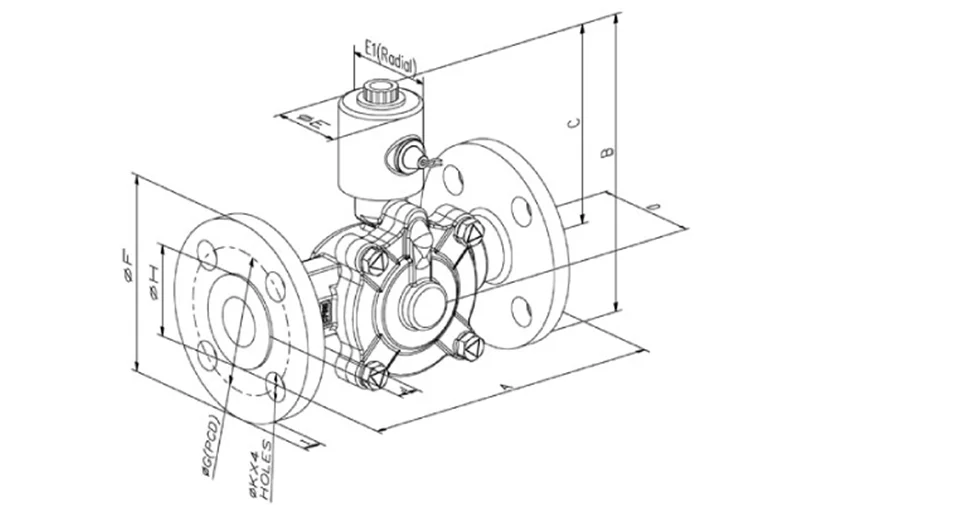

Dimension
Technical Specification
Body Material | Pipe (Inch) | Orifice (mm) | Min. Operating Pressure Kg/cm² | Max. Operating Pressure Kg/cm² | Seal & Diaphragm Material | Flow Factor Kv m³ / hr |
CF8 / CF8M | 3/8" | 17 | 0.5 | 12 | NBR / EPDM / VITON | 2 |
CF8 / CF8M | 1/2" | 17 | 0.5 | 12 | NBR / EPDM / VITON | 4.4 |
CF8 / CF8M | 3/4" | 20 | 0.5 | 12 | NBR / EPDM / VITON | 6.4 |
CF8 / CF8M | 1" | 25 | 0.5 | 12 | NBR / EPDM / VITON | 10 |
CF8 / CF8M | 1 1/4" | 36 | 0.5 | 12 | NBR / EPDM / VITON | 13.3 |
CF8 / CF8M | 1 1/2" | 36 | 0.5 | 12 | NBR / EPDM / VITON | 17.10 |
CF8 / CF8M | 2" | 48 | 0.5 | 12 | NBR / EPDM / VITON | 32.3 |
CF8 / CF8M | 2 1/2" | 60 | 0.5 | 12 | NBR / EPDM / VITON | 43.5 |
CF8 / CF8M | 3" | 72 | 0.5 | 12 | NBR / EPDM / VITON | 64.5 |
CF8 / CF8M | 3/8" | 17 | 1 | 20 | NBR / EPDM / VITON | 2 |
CF8 / CF8M | 1/2" | 17 | 1 | 20 | NBR / EPDM / VITON | 4.4 |
CF8 / CF8M | 3/4" | 20 | 1 | 20 | NBR / EPDM / VITON | 6.4 |
CF8 / CF8M | 1" | 25 | 1 | 20 | NBR / EPDM / VITON | 10 |
CF8 / CF8M | 1 1/4" | 36 | 1 | 20 | NBR / EPDM / VITON | 13.3 |
CF8 / CF8M | 1 1/2" | 36 | 1 | 20 | NBR / EPDM / VITON | 17.10 |
CF8 / CF8M | 2" | 48 | 1 | 20 | NBR / EPDM / VITON | 32.3 |
CF8 / CF8M | 2 1/2" | 60 | 1 | 20 | NBR / EPDM / VITON | 43.5 |
CF8 / CF8M | 3" | 72 | 1 | 20 | NBR / EPDM / VITON | 64.5 |
